Parker PAVC 33 L223 Variable Displacement Piston Pump (3000 PSI)

Parker PAVC 33 L223 Variable Displacement Axial Piston Pump (3000 PSI)

The Parker PAVC 33 L223 is an open-circuit, swashplate-design axial piston pump engineered for demanding continuous-duty industrial and marine hydraulic circuits. Rated for dynamic system pressures up to 3000 PSI (207 bar) continuous with intermittent excursions to 3600 PSI (248 bar), this model integrates high-density cast iron housings with an internal barrel-bearing cradle arrangement designed specifically to withstand high radial shaft loading and severe fluid conditions.

Configured with standard pressure compensation (compensator code “223”), this unit autonomously modulates swashplate stroke angle to deliver near-zero output volume at dialed cut-off pressure, maximizing thermal management and drastically mitigating idle-phase power draw. The “L” shaft configuration designates Counter-Clockwise (CCW) drive rotation as viewed from the shaft end, coupled with standard SAE mounting and connection geometry for drops-in system integration.

Model Details

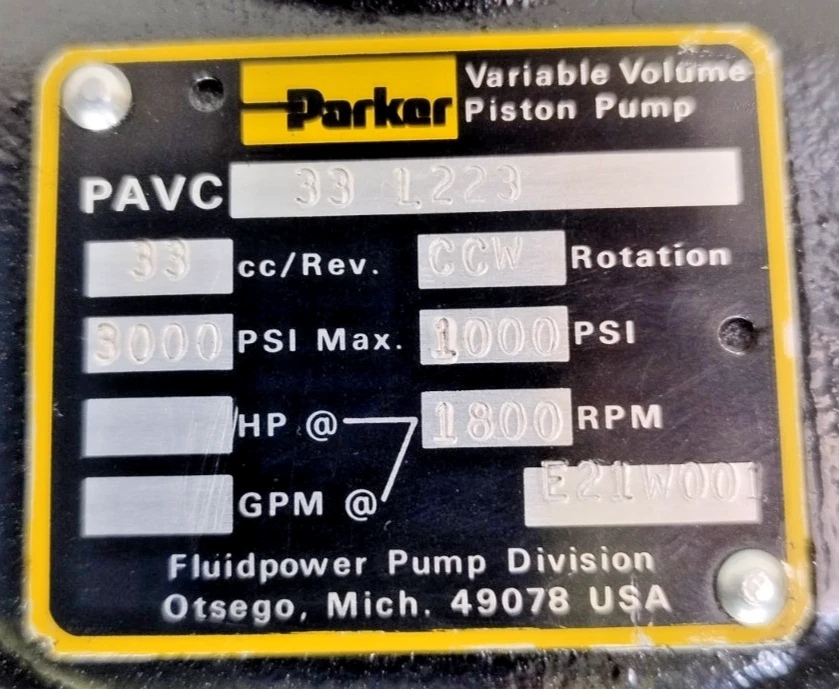

• Complete Model Code: PAVC33L223 / PAVC 33 L223
• Manufacturer Part Number (MPN): PAVC33L223
• Frame Displacement Family: PAVC 33 Series
• Operating Mechanism: Swashplate Axial Piston, Variable Displacement
• Shaft Rotation: Counter-Clockwise (Left-Hand / CCW) looking at drive shaft face
• Control Type: Standard Pressure Compensated (Differential Spool Adjustment Range: 600–3000 PSI)

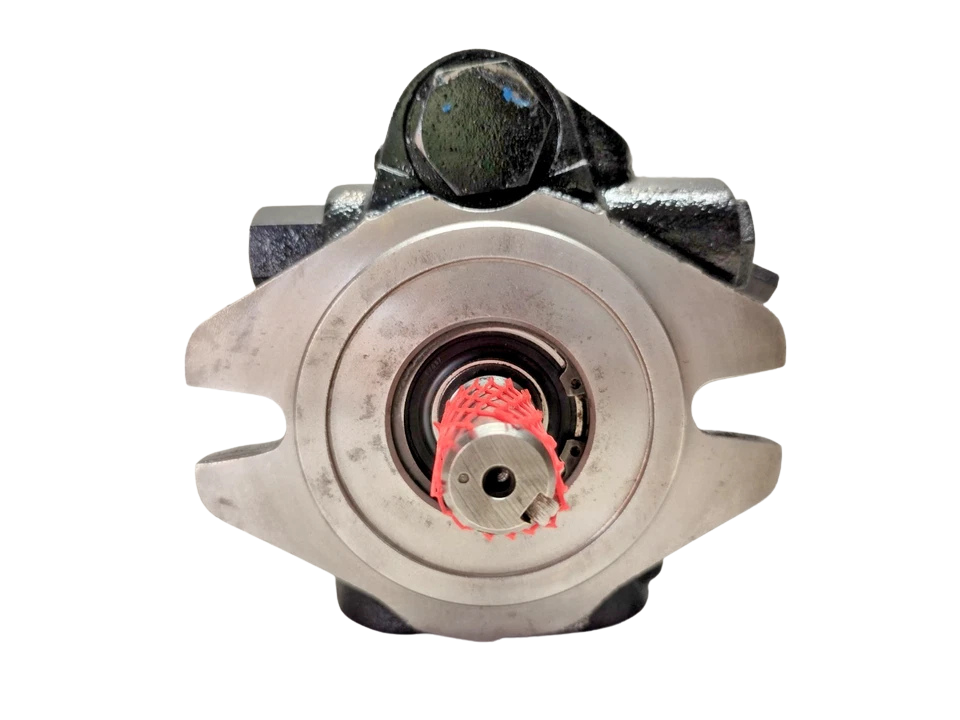

• Shaft & Flange Configuration: SAE-B 2-Bolt Pilot, SAE Keyed Drive Shaft

Technical Details

Key Features

1. High-Yield Cast Iron Construction: Structural casting resists severe pressure spikes, mechanical vibration, and internal thermal fatigue under continuous cycling.
2. Hydrodynamic Barrel Bearing Support: Proprietary cylinder block bearing system counteracts radial side loads transmitted by mechanical gear or belt drives.
3. Fast-Response Dynamic Compensator: Maintains dialed cut-off pressure with recovery times below 50 milliseconds during abrupt directional valve shifts.

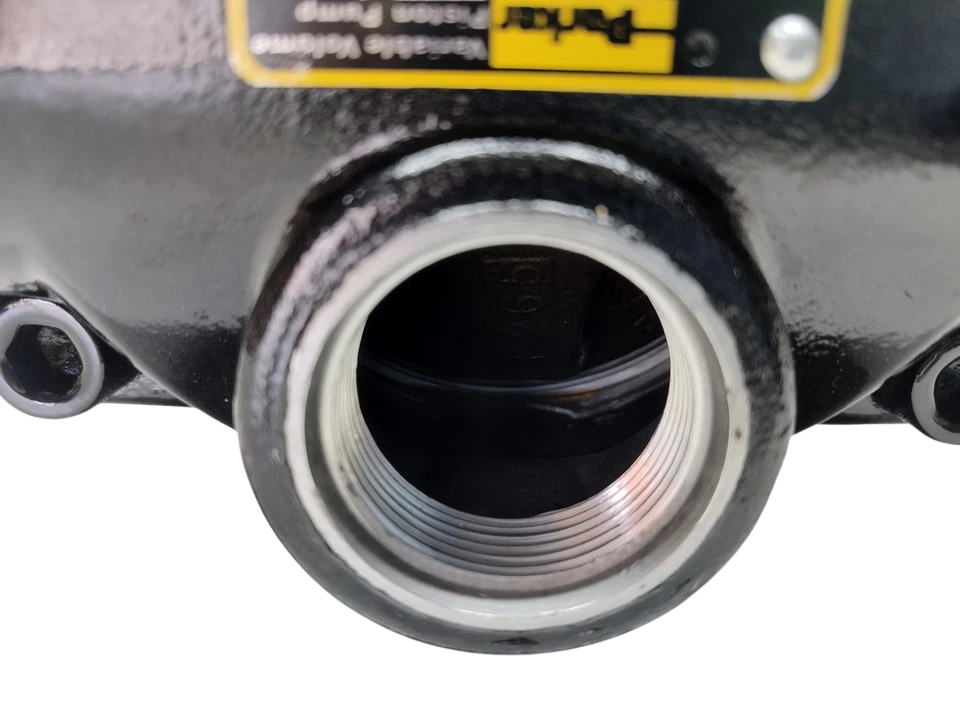

4. Dual SAE Porting Layout: Equipped with code 61 4-bolt split flange ports to secure leak-free, high-pressure mechanical mating.
5. Integral Case Drain Relief: Safeguards internal shaft seals from destructive backpressure spikes up to transient tank-line surges.

Part Number Cross-References

• Direct Interchange: Parker PAVC33L223, PAVC-33-L-223, PAVC33-L-223
• Opposite Rotation Companion: Parker PAVC33R223 (Right-Hand / CW configuration—ensure rotation matches existing prime mover)
• Functional Retrofits: Can replace legacy PAVC33 series variants (e.g., standard pressure/flow comp options) when replumbed to code 223 spool configuration.

Primary Industrial Applications

• Marine deck machinery (winches, capstans, windlasses)
• Electro-hydraulic vessel steering gear actuation
• Plastic injection molding clamping & core-pull cylinders
• Hydraulic scrap metal balers and shear beds
• Continuous-duty industrial power units (HPUs)
• Secondary hydraulic drives on drilling platforms and jack-up rigs

Frequently Asked Questions

What does “L223” mean in the Parker PAVC 33 model code?

In the Parker model breakdown, L indicates Counter-Clockwise (CCW) rotation as viewed from the drive shaft end. 223 designates the pressure compensator control assembly, meaning the pump automatically destroke itself to zero flow once the system hits the user-set pressure between 600 and 3000 PSI.

Can I convert this pump from CCW (Left-Hand) to CW (Right-Hand) in the field?

Field conversion is not recommended without OEM replacement components. Converting rotation requires replacing the port valve plate, altering internal control pins, and resetting the swashplate cradle alignment. Running a CCW pump backwards without a rebuild kit will cause catastrophic internal scoring.

What is the maximum case drain pressure allowed on the PAVC 33?

Continuous case drain pressure must remain below 10 PSI (0.7 bar). Intermittent pressure spikes must not exceed 25 PSI (1.7 bar). The case drain must run unrestricted through an independent return line directly into the oil reservoir.

What fluid viscosity grade is recommended for the Parker PAVC 33 L223?

The pump operates optimally on high-quality anti-wear hydraulic oil (mineral-based ISO VG 32, VG 46, or VG 68) with a working viscosity between 100 and 250 SUS (20 to 53 cSt). Fluid cleanliness must be maintained at or above ISO 4406 rating 18/16/13 using 10-micron nominal filtration.

Why is fluid exiting the drive shaft seal on my new pump?

The most frequent cause is excessive case pressure from a restricted, undersized, or blocked case drain line, or starting the pump without venting trapped air. Ensure the drain line discharges directly into the tank without shutoff valves or restrictive filter heads in line.
