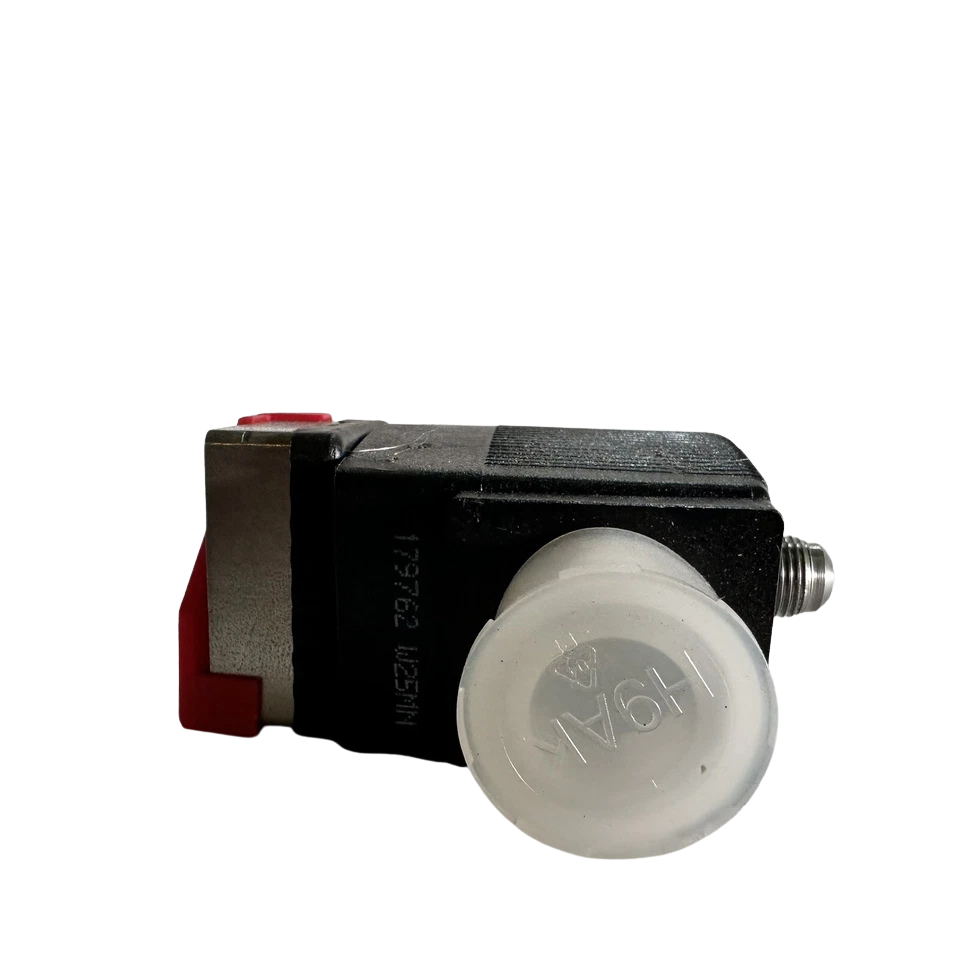

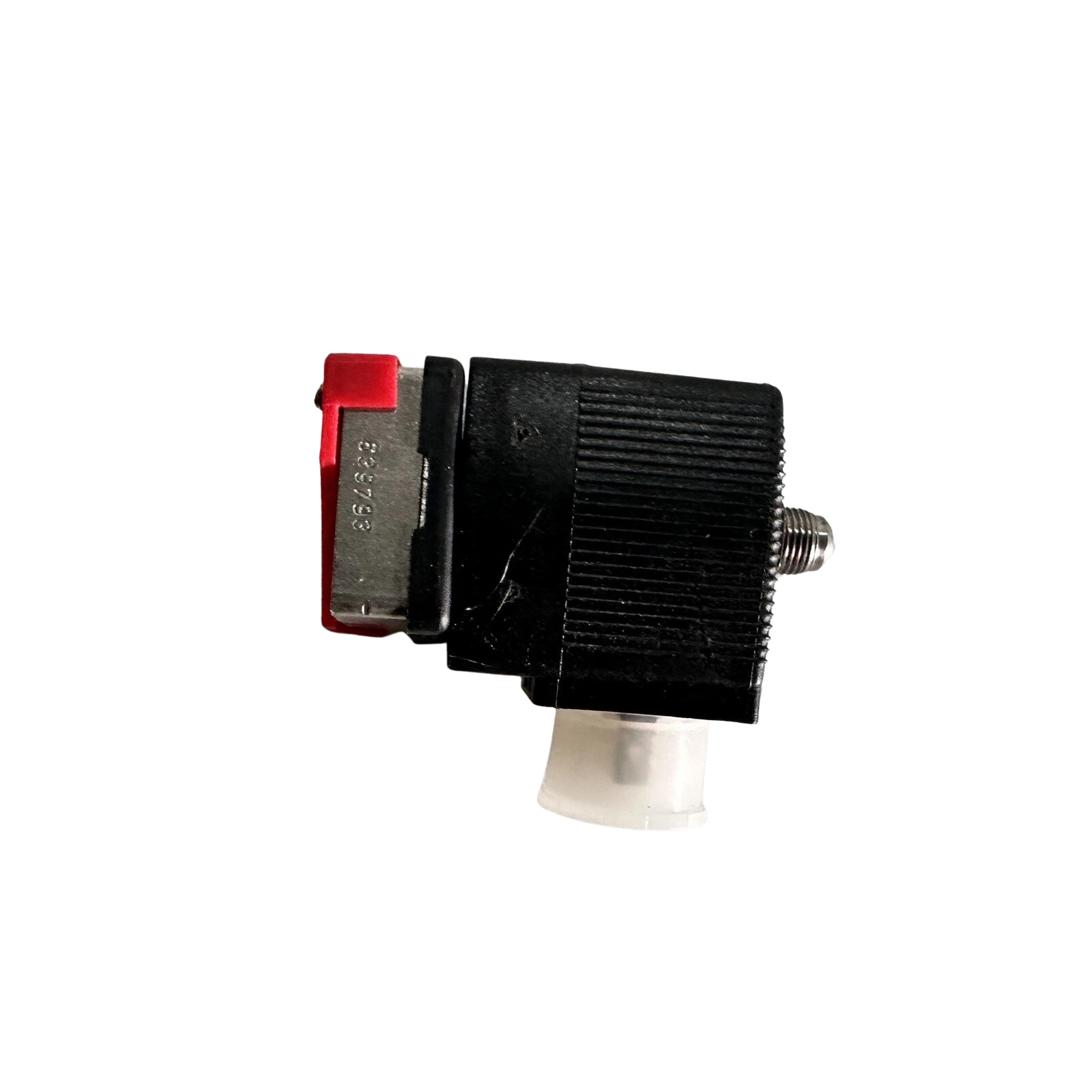

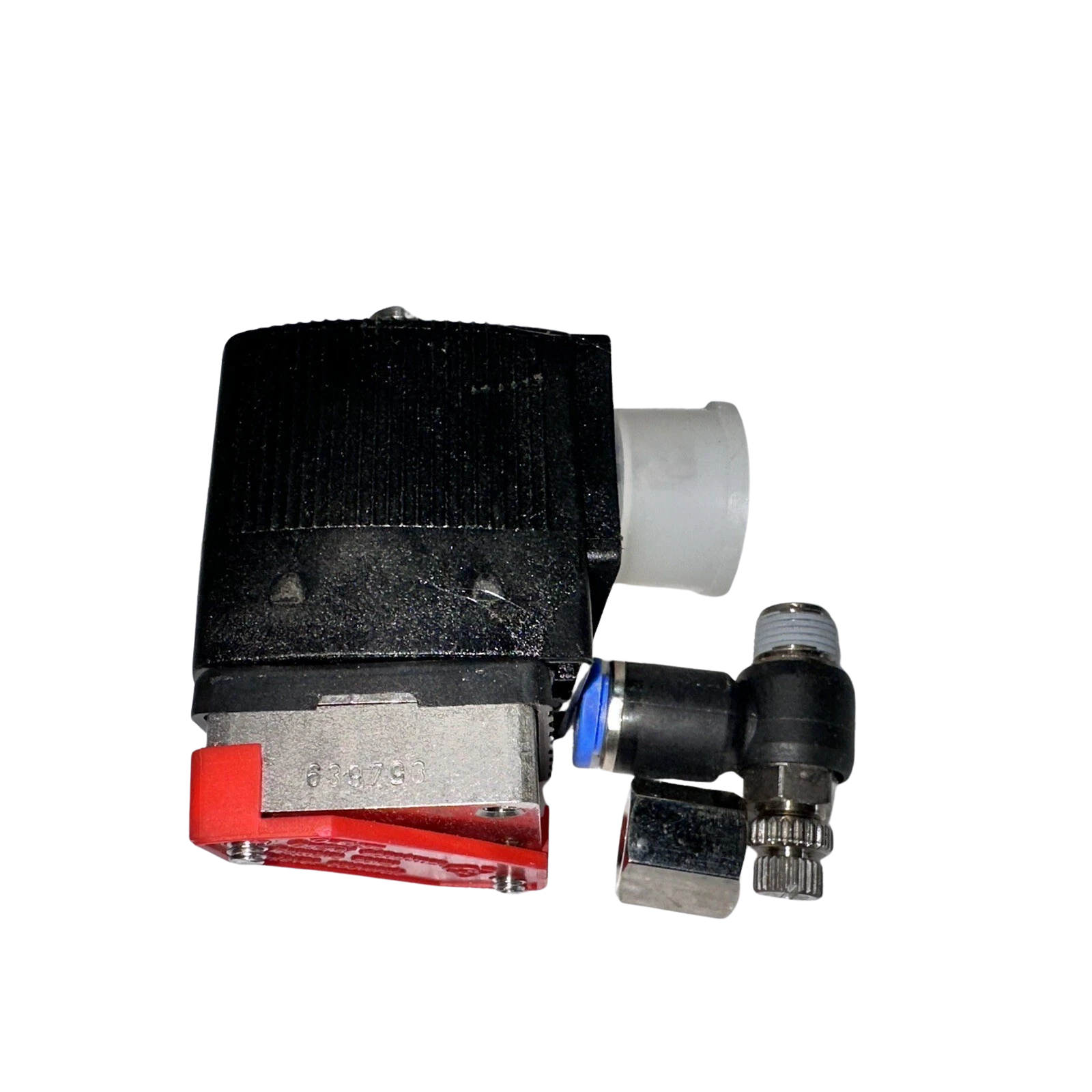

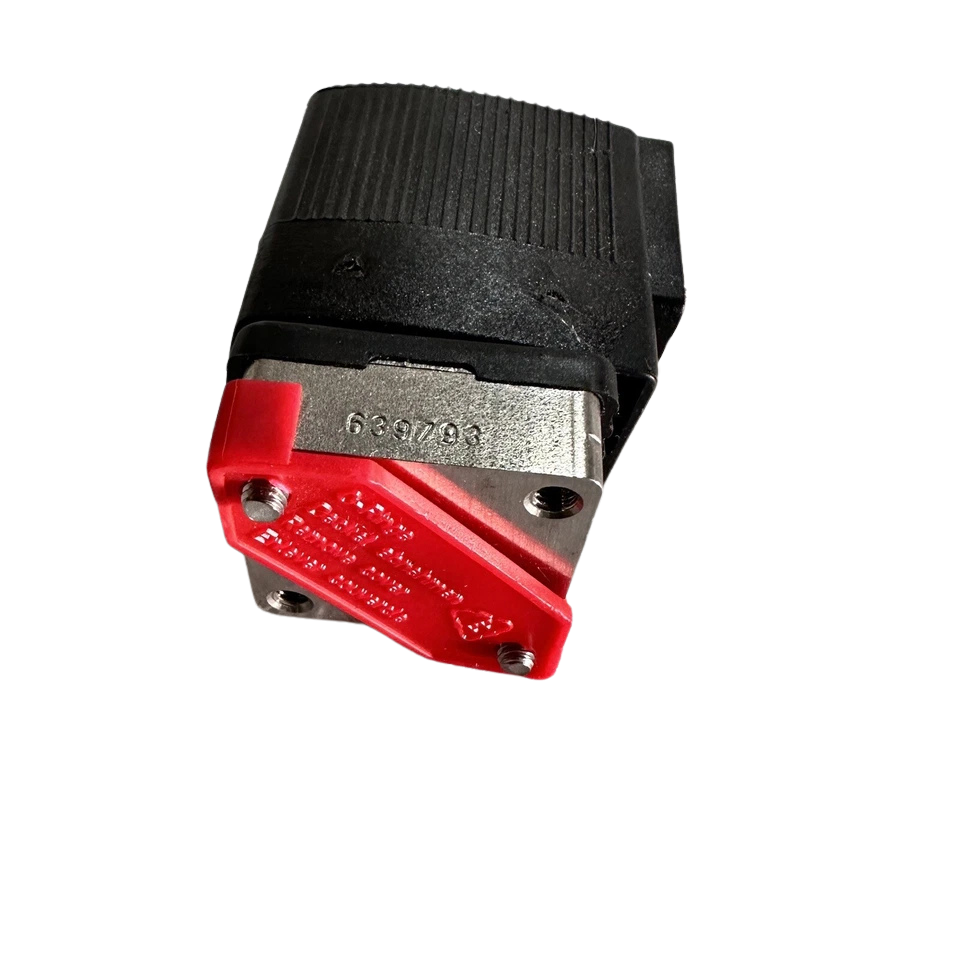

RIKEN KEIKI RK-3SV-M C 3-Way Solenoid Valve 24V DC 8W

RIKEN KEIKI RK-3SV-M C 3-Way Solenoid Valve (24V DC, 8W)

The RIKEN KEIKI RK-3SV-M C is an industrial grade 3-way direct acting solenoid valve for high precision gas sampling, manifold switching and fluid diversion in challenging maritime and offshore gas detection designs. This valve is operated by a 24V DC supply and draws 8W of continuous power. It has an integrated FPM/FKM fluoroelastomer seal matrix with a precision-ground internal armature to provide leak-tight seal performance under differential pressures up to 6.0 Bar (Pno-6).

The RK-3SV-M C is designed principally for Riken Keiki fixed gas monitoring panels, multi-point maritime sampling systems and chemical process automation racks, where it delivers fast response switching cycles with low thermal drift. Its corrosion-resistant housing and coil encapsulation rated for IP protection against humidity, vibration and exposure to atmospheric salt characteristic of marine engine rooms, pump rooms and hazardous area monitoring enclosures.

Model Details

• Manufacturer: RIKEN KEIKI Co., Ltd.

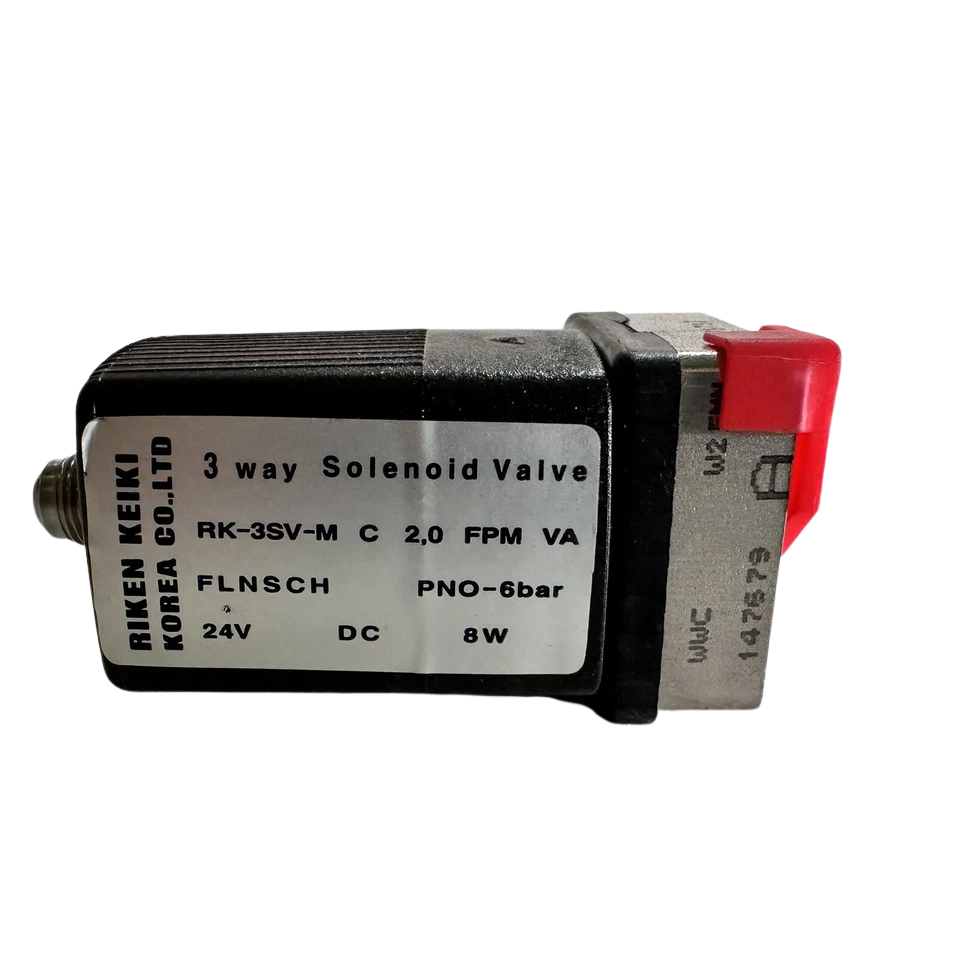

• Full Model Code: RK-3SV-M C 2.0 FPM VA
• Manufacturer Part Number (MPN): RK-3SV-M C
• Orifice / Flow Rating Code: 2.0 FPM VA
• Pressure Rating Code: Flnsch Pno-6 Bar

Key Features

1. Direct-Acting 3-Way Architecture: Enables dual-port selection and exhaust/purge switching in high-integrity gas sampling lines.
2. Low Power & Thermal Loss: 8W power draw at 24V DC limits internal heating, preventing sample gas degradation and extending coil life.
3. FPM/FKM Elastomer Sealing: Standard fluoroelastomer seals deliver chemical resistance to aggressive VOCs, toxic gas samples, and ambient moisture.
4. 6.0 Bar (PN-6) Operating Rating: Rated for up to 6.0 Bar static and dynamic line pressures in gas manifold configurations.
5. Compact Marine Footprint: Weighing 340g with a compact mounting footprint, it integrates into space-constrained marine sampling cabinets and panel racks.

Applications

• Marine Gas Detection Cabinets: Sample selection and fresh air zero-calibration switching for multi-point pump room and cargo hold sampling systems.
• Chemical Process Sampling: Automated gas stream switching and loop venting in petrochemical and refinery process lines.
• Industrial Gas Analyzers: Calibration gas injection and carrier gas line isolation.
• Automated Pneumatic Control: Direct line pilot control and pneumatic actuator control in industrial automation loops.

Expert Installation Advice from Marine Automation Engineers:

• Prevent Particulate Ingress: Gas sampling systems on vessels frequently suck in fine particulates, condensate, or oil trace from cargo spaces. Always install an inline hydrophobic particulate filter (5-micron or finer) upstream of Port 1 to prevent valve seat scoring or sticking.
• Voltage Ripple Verification: When powering the RK-3SV-M C from a 24V DC marine supply line, verify that ripple voltage does not exceed 5%. Unfiltered PWM or high-ripple switch-mode power supplies cause coil hum and excess heat buildup, leading to early insulation failure.
• Manual Override & Bench Testing: Before reinstalling a reconditioned RK-3SV-M C unit into an active multi-point gas sampling manifold, perform a bench seat-leak test at 2 Bar nitrogen pressure. Energize with 24V DC and measure current draw—it should pull consistently around 0.33A at nominal ambient temperature.
• Port Configuration Check: Double-check your Normally Open (NO), Normally Closed (NC), and Common (COM) port allocations before plumbing the manifold. Reversing the sample line and purge line will result in cross-contamination of sample channels during sequential scanning cycles.

Frequently Asked Questions

What is the primary function of the RIKEN KEIKI RK-3SV-M C solenoid valve?

The RK-3SV-M C is a 3-way direct-acting solenoid valve designed to switch between two gas/fluid pathways or route a common line to two distinct outlets. It is widely used in Riken Keiki gas sampling systems to alternate between zero-air calibration gas and active sample streams.

What are the power and electrical requirements for the RK-3SV-M C?

The RK-3SV-M C operates on a 24V DC power supply with a continuous power consumption of 8.0 Watts. Nominal coil current draw is approximately 0.33 Amperes at standard room operating temperatures.

Can the RK-3SV-M C solenoid valve handle aggressive chemicals or seawater spray?

Yes, the valve utilizes high-grade FPM (fluoroelastomer) seals and corrosion-resistant metal internal components, making it resistant to ambient salt air, moisture, and common industrial volatile organic compounds (VOCs).

What pressure range is the RK-3SV-M C valve rated for?

The RK-3SV-M C is rated for operating pressures up to 6.0 Bar (PN-6 classification), making it ideal for positive-pressure pneumatic lines as well as vacuum sample-drawing networks.

How do I troubleshoot a stuck RK-3SV-M C solenoid valve?

If the valve fails to switch, first verify that 24V DC is present at the coil terminals under load. If voltage is correct but the valve does not click, check coil continuity with a multimeter. If the coil is intact but the valve does not change flow paths, internal particulate accumulation may be mechanically jamming the plunger. Isolate, depressurize, and clean the internal orifice using electrical contact cleaner or alcohol.
