Schneider Electric HMIPSPS752D1X01 15.6″ iPC Core i5 8GB 128GB SSD

Schneider Electric HMIPSPS752D1X01 15.6″ Easy Harmony Performance Industrial Panel PC

The Schneider Electric HMIPSPS752D1X01 is a fanless 15.6-inch widescreen industrial panel PC engineered for process automation, SCADA runtimes, and distributed edge supervision. Operating on an Intel® Core™ i5-6200U processor (2.3 GHz base) paired with 8 GB on-board DDR4 DRAM and an industrial 128 GB mSATA solid-state drive, this unit delivers real-time deterministic data processing without thermal throttling in enclosed enclosures.

Featuring an IP65-rated front bezel cast from heavy-duty aluminum alloy, the display handles industrial particulates, washdown mist, and high-vibration engine control station environments. The single-touch analog resistive interface supports single-point input operation while wearing standard work gloves. Native DC power regulation accommodates 12 V to 24 V DC supply networks (-15% / +20% tolerance), providing built-in brownout protection against industrial DC bus fluctuations.

Model Details

• Brand: Schneider Electric
• Product Line: Easy Harmony iPC (Performance PPC Series)
• Model Number / Commercial Reference: HMIPSPS752D1X01
• Manufacturer Part Number (MPN): HMIPSPS752D1X01
• Operating System: Windows 10 IoT Enterprise 64-bit pre-installed

Technical Specifications

Key Features

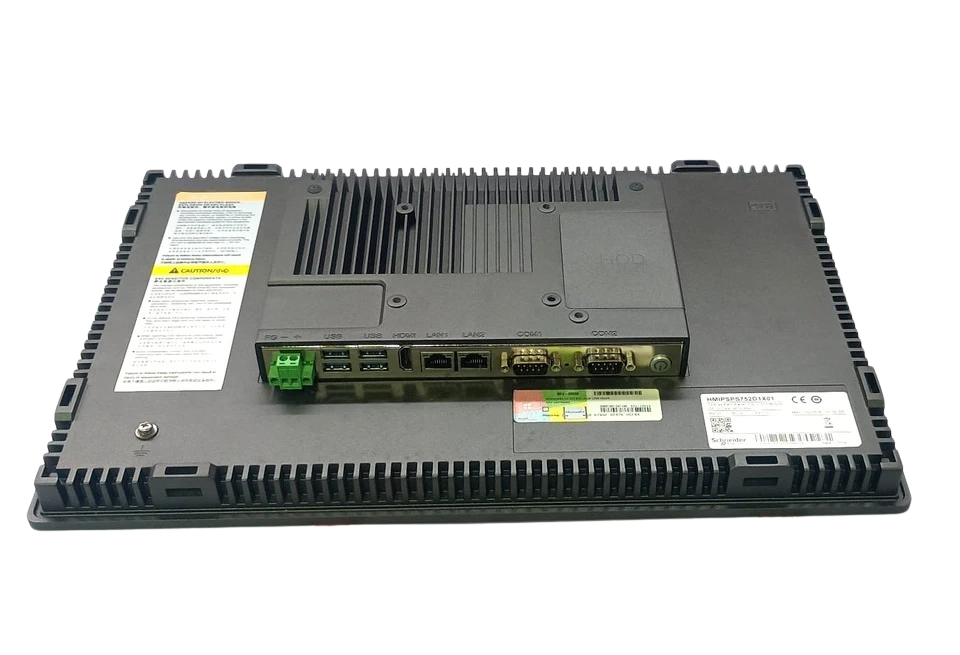

1. Fanless Convection Architecture: Robust passive heat dissipation via a finned cast-aluminum chassis eliminates ingress pathways caused by active fans, extending MTBF.

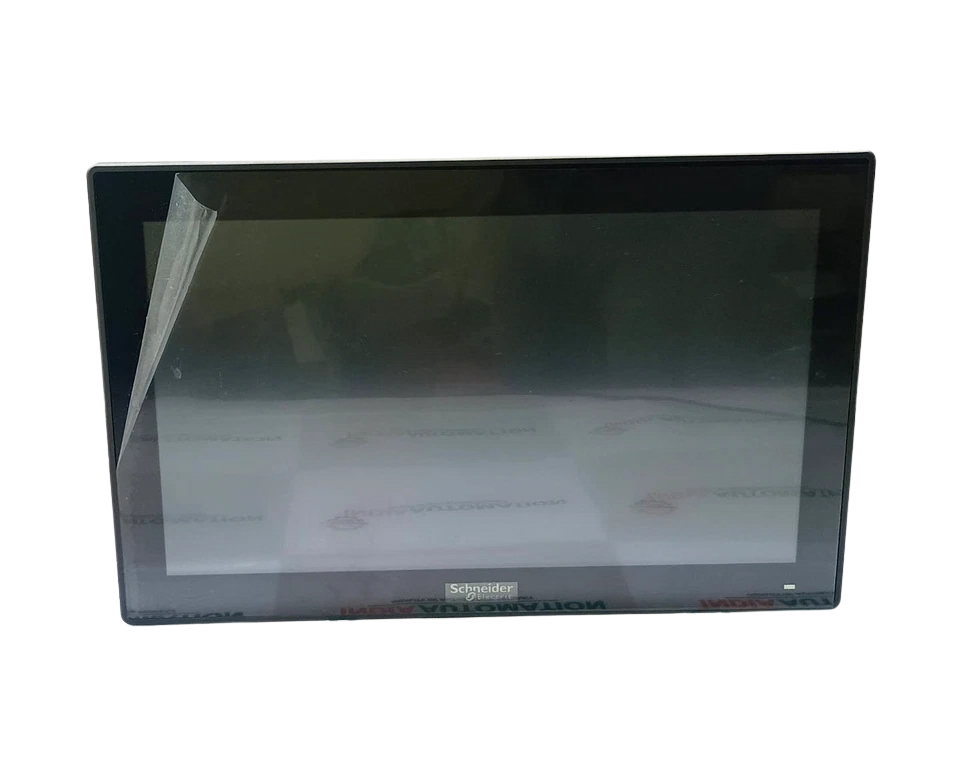

2. Industrial Widescreen Touchscreen: 15.6″ FWXGA (1366 × 768) TFT LCD with 400 cd/m² luminance, 50,000-hour LED backlight lifespan, and a 160°/170° view angle.
3. Dual Isolated Gigabit Networking: 2 × RJ45 ports (10/100/1000 Mbps) provide physical separation between operational technology (OT / PLC fieldbus) and enterprise IT networks.
4. Software-Configurable Serial Ports: 2 × DB9 sub-D male serial ports supporting RS-232, RS-422, and RS-485 via internal jumper/software assignment.
5. Expandable Internal Storage: Equipped with a native 128 GB mSATA SSD, plus an open 2.5″ SATA III drive bay and an M.2 expansion slot for extended NVMe/mSATA logging drives.

Equipment Compatibility

• PLCs & Automation Controllers: Modicon M221, M241, M251, M258, M340, M580 ePAC systems via Modbus TCP/IP or Ethernet/IP. Fully compatible with Rockwell ControlLogix/CompactLogix (EtherNet/IP CIP), Siemens S7-1200/1500 (Profinet/ISO on TCP), and Omron Sysmac controllers.
• SCADA & Edge Software: Pre-optimized for EcoStruxure Machine SCADA Expert, Schneider Wonderware / AVEVA InTouch, Citect SCADA, Ignition by Inductive Automation, and custom Node-RED / OPC UA clients.
• Drive & Motion Systems: Altivar ATV320, ATV340, ATV630, ATV930 process drives, and Lexium servo drives via Modbus RTU (serial) or Modbus TCP.

Part Number Cross-References & Alternates

• HMIPSPS752D1X01: Harmony Easy iPC 15.6″ Wide Core i5 8GB RAM 128GB SSD Win10 (Direct Match)
• HMIPSPS952D1X01: Harmony Easy iPC 18.5″ Wide Core i5 8GB RAM 128GB SSD Win10 (Larger screen variant)
• HMIPSO0752D1W01: Harmony Easy iPC 15.6″ Wide Celeron 4GB RAM 64GB SSD (Economy variant)
• HMIDT752: Harmony GTU 15″ W Display Module (Modular display-only counterpart)
• HMIGTO6510: Magelis Harmony GTO 12.1″ Wide Touch Panel (Legacy HMI alternative)

Frequently Asked Questions

Does the Schneider HMIPSPS752D1X01 support gloves and stylus pens on the touchscreen?

Yes. The HMIPSPS752D1X01 uses an analog resistive touch sensor. Unlike capacitive smartphone screens, resistive panels register pressure. This allows operators wearing heavy nitrile, leather, or synthetic industrial work gloves, as well as blunt plastic styluses, to operate the panel PC accurately.

Can the internal SSD storage of HMIPSPS752D1X01 be upgraded?

Yes. The unit comes equipped with a 128 GB mSATA SSD pre-installed with Windows 10 IoT Enterprise. The chassis features internal mechanical provisions for an additional 2.5-inch SATA hard drive/SSD and an internal M.2 card slot, allowing engineers to add high-capacity data-logging or RAID mirror storage drives.

What is the correct cut-out dimension for mounting HMIPSPS752D1X01 in an electrical enclosure?

The required panel cut-out dimension is 390 mm wide by 244 mm high (+1 mm / -0 mm tolerance). The minimum panel thickness for proper clamp retention is 1.6 mm, with a maximum thickness of 6.0 mm.

How does the fanless cooling operate without overheating?

The IPC utilizes conduction and natural convection cooling. The aluminum rear chassis and front bezel act as a unified heatsink. To maintain the maximum operating temperature rating of 55°C, install the unit vertically with at least 100 mm (4 inches) of clearance above, below, and behind the heat-dissipating chassis.

Can I run Modbus RTU and RS-485 directly from the built-in serial ports?

Yes. Both COM ports (COM1 and COM2) utilize DB9 male connectors that are switchable between RS-232, RS-422, and 2-wire/4-wire RS-485 modes. Serial termination and protocol parameters are easily configured directly through hardware jumpers or BIOS/device manager settings without needing external protocol adapters.
