Tanktech T2000-TFC-02 Replacement Tape | 30M Gas-Tight UTI Tape

Replacement Tape for TKT Tanktech T2000-TFC-02 – 30 Meter

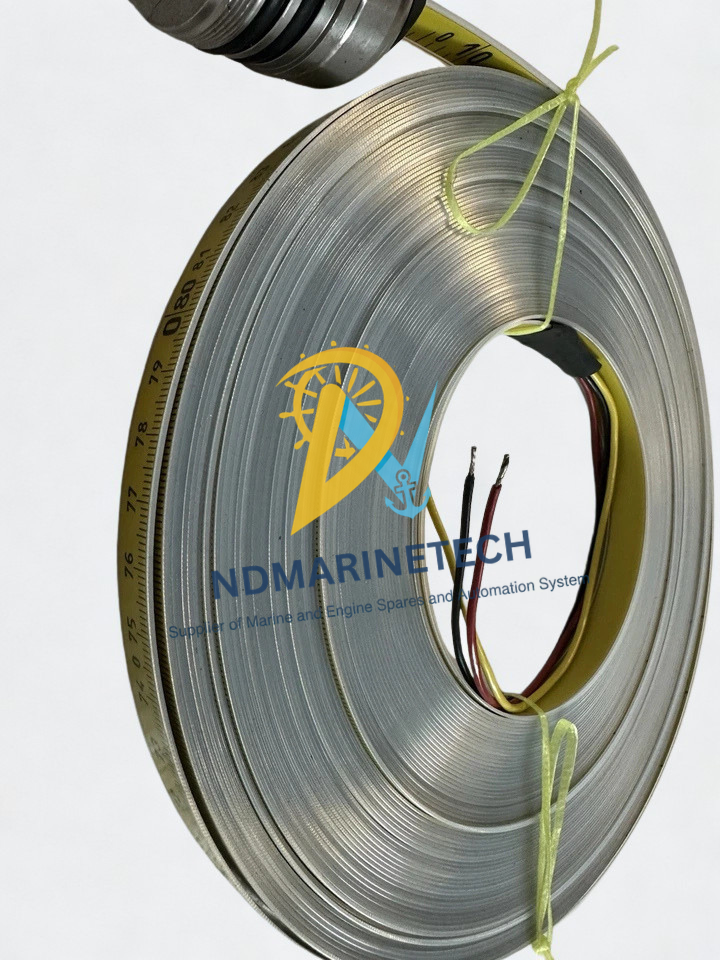

30-Meter Replacement Tape for TKT Tanktech T2000-TFC-02 Portable Oil/Water Interface Detector This 30-metre replacement tape is a high quality tape to provide first-rate accuracy and air-tight integrity of your onboard gauging operations. This heavy-duty gauging tape is designed specifically for use in closed-type cargo monitoring systems aboard chemical and oil tankers, and provides a direct, high-fidelity replacement for original assemblies that are old, kinked or damaged.

The dual-conductive core of the tape provides a continuous signal from the sensor probe to the main LCD body, allowing perfect detection of ullage, oil-water interfaces and temperature changes. Designed to meet rigorous maritime compliance regulations, it has high visibility metric markings protected by an anti-corrosive, hydrocarbon resistant ETFE jacket, engineered to withstand extreme marine conditions.

Technical Specifications

Key Features

1. High-Visibility ETFE Protection: Surrounded by a durable ETFE jacket that is chemically inert and provides protection to the high-carbon stainless steel core from aggressive chemicals, solvents and corrosive cargo vapours.

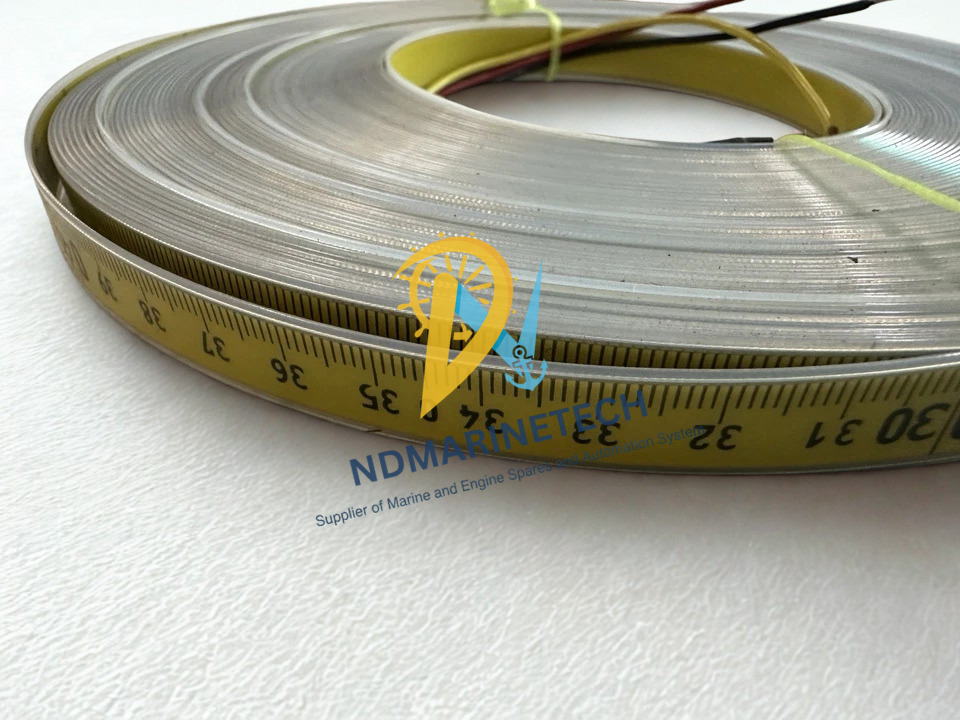

2. Permanent Under-Jacket Printing: The scale graduation is permanently printed under the jacket , and will not wear out or fade from repeated chemical exposure.
3. Zero-Stretch Load Engineering Designed to withstand physical distortion or stretching under tension loads to 45 kg (100 lbs) for long-term calibration accuracy.
4. Gas-Tight Integrity, Intact: Designed to fit neatly within the T2000-TFC-02 housing barrel to eliminate loss of harmful hydrocarbon vapours, fully compliant with restricted/closed gauging requirements.

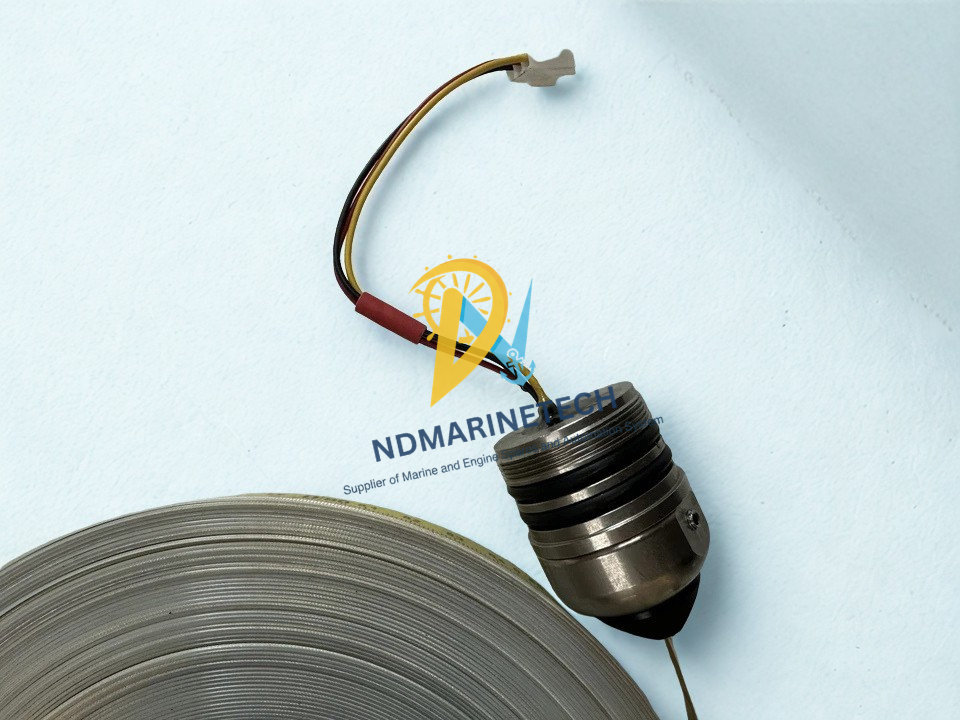

5. Assembled Connection Point: Includes a strong, pre-terminated connector link for quick and dependable connection to the original 34mm Tanktech sensor probe.

Re-Spooling Calibration Guide

NOTE ON CRITICAL ENGINEER: Verify the system zero point reference while changing the tape on your TANKTECH T2000-TFC-02 frame. Slight variations in manual re-spooling can lead to an offset problem. Always check your reference measurement with a certified mechanical sounding tape before releasing the unit for official custody transfer documents.

Tips for Long Life:

1. Engage the Cleaning Adaptor Properly: When pulling the probe out of heavy fuel oil or crude, ensure the mechanical cleaning wiper blade on the barrel housing is fully engaged (turned to ON). Cleaning the tape while rewinding prevents oil sludge accumulation inside the storage drum, which can over-weight the reel and cause internal electrical contact drag.
2. Avoid Sharp Kinks: The primary cause of internal signal loss on Tanktech systems is a fractured tinned-copper core wire caused by sharp bending. Never drop the probe sharply onto the deck or step on the tape during a visual check.
3. Static Discharge Safety: Always secure the grounding clamp to the ship’s structure before introducing the tape and probe assembly into the tank vapor space. Even with an intrinsically safe Ex ia IIB T4 rating, establishing a ground path protects both the electronics and the crew from electrostatic hazards.
