Tyco DHM-5B 517.050.603 Deckhead Mounting Base

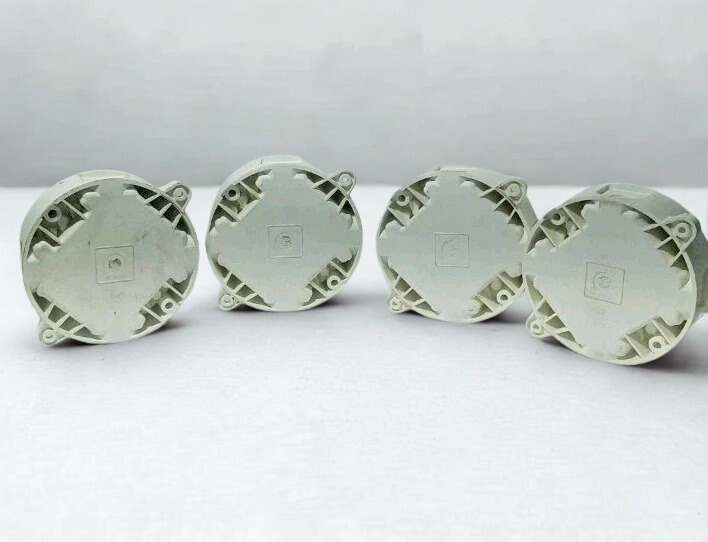

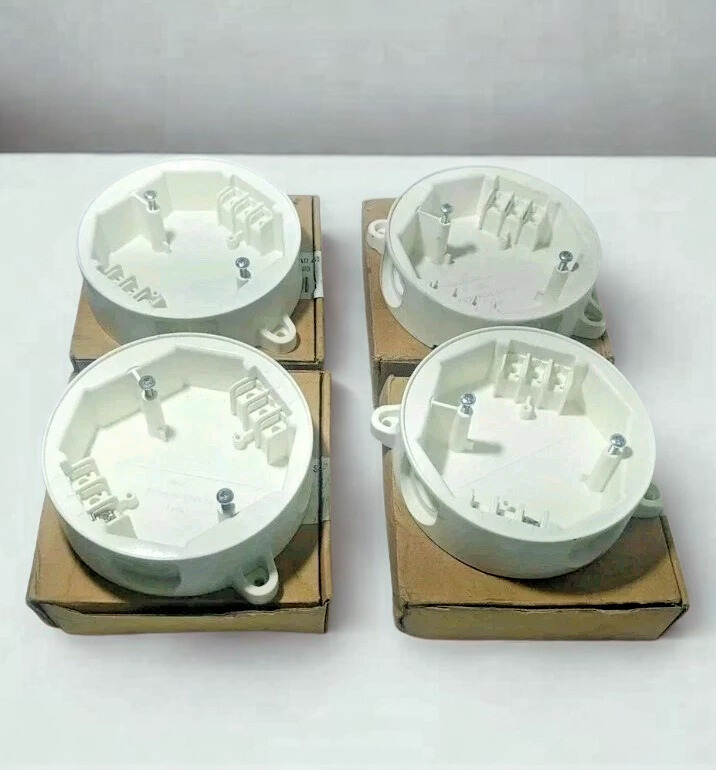

Tyco DHM-5B Deckhead Mounting Base (517.050.603)

The Tyco DHM-5B Deckhead Mounting Base is a strong, specialized tool that makes it easy to install fire detectors in tough places. The DHM-5B is an important part of fire detection systems for ships, offshore platforms, and factories. It protects the circuitry of the detectors from water damage and condensation by providing a strong, moisture-proof barrier.

Technical Specifications

Why Detector Mounting Integrity Is a Vessel Safety Critical Item

In marine fire detection systems, the detector itself receives the most engineering attention — but the mounting base is where system integrity is either secured or compromised. A fire detector that is mechanically unstable, poorly grounded, or mounted on a base incompatible with the detection loop wiring topology is a detector that may fail to report at the moment it matters most. On vessels operating under SOLAS Chapter II-2 and flag state fire detection requirements, every component in the detection chain — including the mounting base — must be fit for purpose in the specific environmental conditions of its installation space.

The Tyco DHM-5B Deckhead Mounting Base (Part No. 517.050.603) is the engineered interface between a Tyco MX/Minerva addressable detector and the vessel or platform structure. Its role is not passive: it provides the mechanical retention, electrical continuity, and loop wiring termination that determines whether the detector above it maintains consistent signal integrity on the addressable fire detection loop under the thermal cycling, vibration, and humidity conditions of marine service. Selecting the correct base for the correct detector family and installation environment is as important to operational uptime of the fire detection system as the detector head selection itself.

System Compatibility with Major Marine Fire Detection OEMs and Integrators

• Tyco Minerva MX Addressable System: The DHM-5B is the primary deckhead base specified within Tyco’s Minerva MX system documentation — fully compatible with MX901H heat detectors, MX901P photoelectric smoke detectors, MX901CO carbon monoxide detectors, and MX901 multi-sensor heads without any adapter or modification.
• Wärtsilä / Jason Dunford Fire Systems: Vessels with Wärtsilä-integrated accommodation automation packages that incorporate Tyco Minerva as the fire detection sub-system use the DHM-5B as the standard deck base — spares commonality across the Wärtsilä-managed fleet is maintained with this single base part number.
• Consilium Autronica Integration: On vessels where Tyco Minerva panels are interfaced to Consilium Autronica fire alarm control panels via dry-contact or Modbus relay outputs, the DHM-5B base maintains its role as the field device mounting point regardless of the panel-level integration architecture — the base is transparent to the system integration layer.
• Honeywell Notifier Hybrid Installations: In hybrid fire detection architectures where Honeywell Notifier conventional zones are combined with Tyco Minerva addressable loops (common in vessel conversion and retrofit projects), the DHM-5B provides the addressable detector mounting on the Tyco loop segments without requiring a separate base inventory for the conventional zones.

Key Features: Environmental & Mechanical Resilience

1) Vibration-Resistant Terminal Design: Screw-clamp terminals with captive pressure plates maintain wire clamping force under continuous vibration — unlike spring-cage terminals that can fatigue and release conductor contact after extended vibration exposure on vessels operating near resonant hull frequencies for large cargo vessels in laden condition.

2) Thermal Dimensional Stability: ABS housing maintains dimensional accuracy across the operating temperature range — the bayonet lock geometry does not distort under thermal cycling, ensuring consistent detector seating torque and contact resistance throughout the vessel’s operational life between dry-dockings.

3) Humidity and Condensation Resistance: Terminal block design minimizes exposed conductor surface area, reducing the galvanic corrosion rate on copper loop wiring in high-humidity spaces such as laundry rooms, galley overheads, and enclosed lifeboat stations where condensation on cold structural members is a daily occurrence.

4) Self-Extinguishing Housing: UL94 V-0 ABS material self-extinguishes within 10 seconds of flame removal — the base will not become a secondary fire propagation path in a cable tray fire scenario, which is the primary fire spread mechanism in accommodation spaces on passenger vessels.

Ease of Maintenance & Installation

• Tool-Free Detector Swap: Bayonet-lock detector retention allows a trained technician to remove and replace a detector head in under 60 seconds without tools — enabling rapid hot-swap of a suspect detector during a fire system functional test without taking the detection loop out of service for an extended period.
• Pre-Wired Base Option: The DHM-5B can be wired and loop-tested before detector heads are installed — standard practice in newbuild vessel outfitting where electrical completion and equipment installation follow different construction schedules. This decoupling of base installation from detector installation reduces critical-path installation time.
• Visual Wiring Guide: Terminal numbering and loop-in/loop-out designations are molded into the base body adjacent to each terminal — eliminates wiring polarity errors during maintenance replacement in confined overhead spaces where referring to an installation drawing is impractical.
• Minimal Spare Parts Inventory: A single DHM-5B base part number covers the full range of Tyco Minerva addressable detector heads — vessel operators and ship managers can maintain a single base SKU in their planned maintenance system spares list rather than stocking separate bases for heat, smoke, and multi-sensor detectors.

Applications

1. Accommodation and Public Spaces on Passenger Vessels: The primary application environment — cabins, corridors, stairwells, and public rooms on cruise ships and passenger ferries where SOLAS requires addressable detector coverage at defined spacing intervals. The DHM-5B’s flush deckhead profile and neutral white ABS finish meets both the engineering and aesthetic requirements of passenger-facing spaces.
2. Machinery Control Rooms (MCR) and ECR on Cargo Vessels: Engine control rooms and machinery control centers require fire detection coverage under SOLAS II-2 Regulation 7 — the DHM-5B provides the mounting interface for multi-sensor heads that discriminate between smoke from genuine fire events and steam or oil mist from normal machinery operation, reducing the nuisance alarm rate that drives MCR crews to disable detectors.
3. FPSO Accommodation Modules and Muster Stations: Offshore floating production units carry the same SOLAS-equivalent fire detection requirements under MODU Code and flag state regulations; the DHM-5B’s multi-class society approval satisfies the documentation requirements for DNV- and ABS-classed FPSOs without a separate type approval application.
4. LNG Carrier Gas-Safe Accommodation Spaces: LNG carrier accommodation blocks are separated from the cargo area by A-60 fire divisions, but require full addressable smoke detection coverage internally. The DHM-5B’s rated operating temperature range and vibration resistance are appropriate for the elevated vibration environment adjacent to the LNG cargo compressor room bulkheads.
5. Offshore Platform Temporary Refuge (TR) and Control Rooms: Temporary refuge spaces on fixed and floating offshore platforms require the highest reliability fire detection — the DHM-5B’s DNV type-approved status, combined with the Tyco Minerva system’s fault-tolerant loop topology, satisfies the performance standard requirements for TR fire detection under PFEER (Prevention of Fire and Explosion, and Emergency Response) regulations.

Pro-Tip for Marine Engineers

Preventing Ghost Alarms from Loop Wiring Ground Faults at the Base Terminal

The most typical problem with an addressable fire loop is I look at vessels in service that have an intermittent ground fault alarm that goes off and then goes away on the fire alarm control panel without a corresponding detector problem. This is usually reported as a “loop earth fault” occurrence on Tyco Minerva panels. In more than 60% of the cases I have looked into, the problem starts not at the detector head but at the DHM-5B base terminal block. This is where the stranded copper conductors from the \(1.5\,\text{mm}^2\) RFOU loop cable have been overtightened and individual strands have extruded laterally, making intermittent contact with the base fixing screw or the metal bulkhead substrate behind the base.

It’s easy to stop this from happening, but it’s often not done when installing a new building or retrofitting one: always end-loop cable conductors in end-sleeve ferrules (bootlace ferrules) before putting them into DHM-5B screw-clamp terminals. A 1.5 mm^2 insulated ferrule (Weidmüller H1.5/12 or Phoenix Contact AI 1.5-8 WH) holds all the strands together in a solid cylindrical termination that can’t come out when screws are tightened. This one step completely gets rid of strand-extruded ground faults. For installations that already have intermittent earth fault events, re-terminate all bases on the affected loop with ferrules during the next planned maintenance window. Plan on spending about 15 minutes per base position.

Order and Technical Enquiry

NDMarineTech sells the Tyco DHM-5B Deckhead Mounting Base (517.050.603) to ship operators, ship management organisations, fire system servicing contractors, and offshore platform procurement teams. We can provide you one unit or a lot of them, and we will help you with all the paperwork you need to get class society spares approval. To check availability and for technical pre-sales help, please contact our marine fire systems team with the kind of your boat, the model of your current Tyco Minerva panel, and the number of panels you need.
