ACENSORES ENORMOUS 0301230 Speed Change Magnetic Reverb Sensor ELV-0025.077

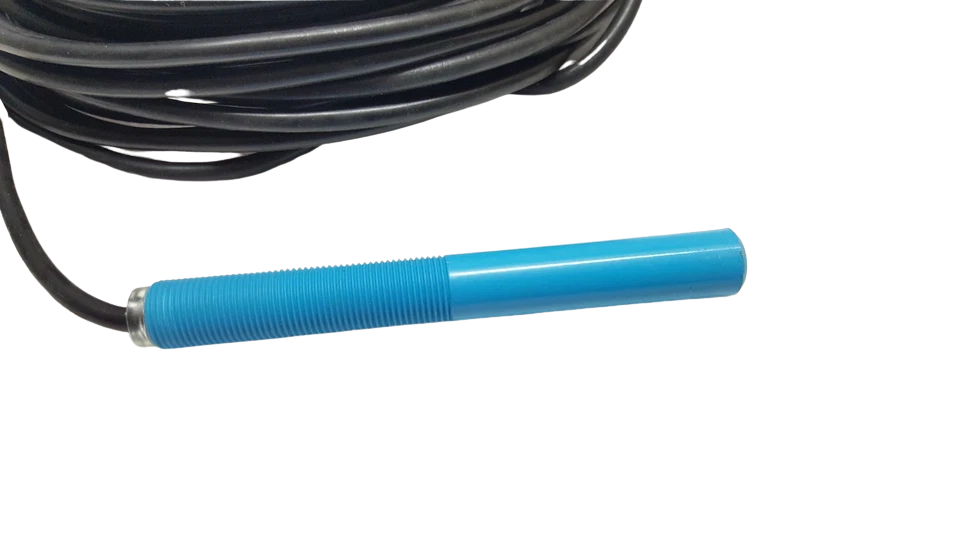

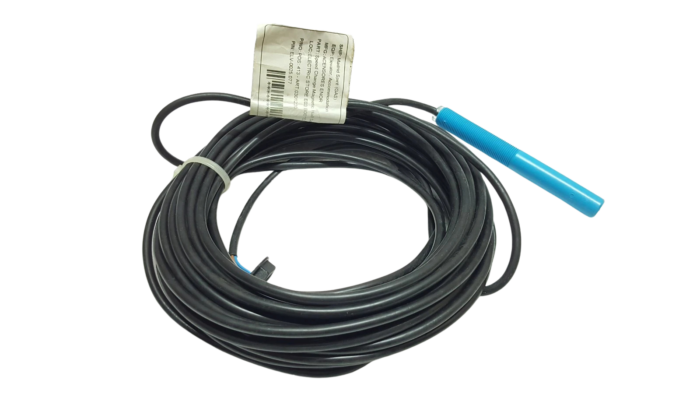

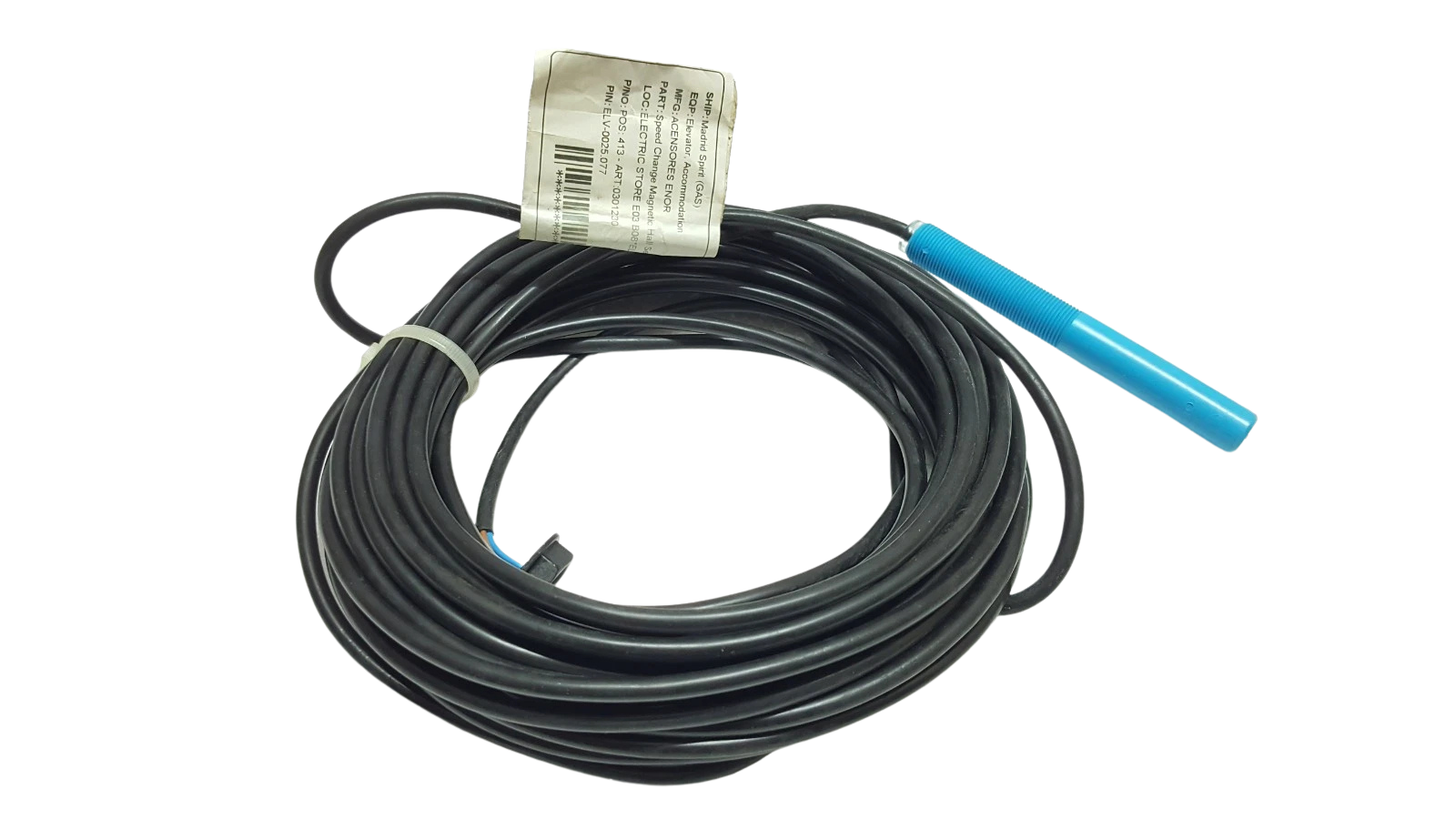

ACENSORES ENORMOUS 0301230 Speed Change Magnetic Reverb Sensor (ELV-0025.077) Heavy-duty, extremely sensitive magnetic proximity and speed change monitoring device for high-performance vertical transportation and industrial automation applications. The sensor is optimized to sense accurate velocity shifts and deceleration points of floor transition and to provide clean and unbroken pulse signals to lift controllers and automation PLCs. Designed for demanding vibration profiles and long duty cycles, it guards against mechanical wear and provides zero alignment accuracy for high-speed elevators, cargo lifts and heavy industrial equipment.

Model Details

• Manufacturer: ACENSORES ENORMOUS
• Model Designation: Speed Change Magnetic Reverb Sensor
• Manufacturer Part Number (MPN): 0301230

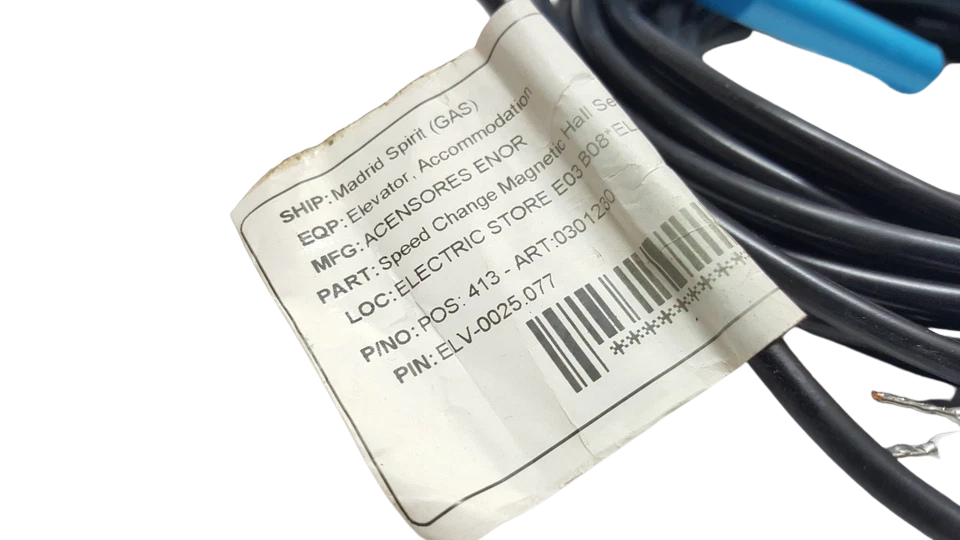

• Alternate Part / Sub-Assembly ID: ELV-0025.077

Technical Specifications

Key Features

1. High-Precision Reverb Detection: Delivers exact magnetic pulse feedback for sudden or gradual speed profile transitions in high-rise systems.
2. Rugged IP67 Enclosure: Fully sealed against moisture, hydraulic oil mist, carbon dust, and industrial contaminants.
3. Dual Output Compatibility: Supports both NPN and PNP configurations to match legacy and modern controller logic boards seamlessly.
4. Transient Voltage Protection: Integrated reverse polarity and surge suppression circuitry prevent controller handshake degradation.

Compatibility

• Compatible Elevator Control Systems: ACENSORES ENORMOUS Modular Lift Series, ELV-Bus Architecture Panels.
• Interchangeable Controller Interfaces: Standard universal PLC input modules operating on 24DC sinking/sourcing logic.
• Mechanical Integration: Direct-mount replacement for older generation ENORMOUS magnetic deceleration switches using identical bolt-hole patterns.

Applications

• High-speed passenger and high-capacity freight elevator shaft deceleration profiling.
• Industrial crane hoist position tracking and velocity monitoring.
• Automated guided vehicles (AGVs) floor-marker speed adjustment systems.
• Heavy machinery moving-parts synchronization and cyclical limit switching.

Part Number Cross-References

• OEM Part Number: 0301230
• Internal Sub-Assembly Code: ELV-0025.077
• Generic Industry Equivalent: ENORMOUS-MAG-REV-030

Frequently Asked Questions

What is the primary function of the ACENSORES ENORMOUS 0301230 Sensor?

The 0301230 sensor is designed to detect precise magnetic markers along an elevator shaft or industrial track, triggering exact speed changes, floor-leveling sequences, and safety slowdown commands.

Can this sensor replace older versions labeled under ELV-0025.077?

Yes. ELV-0025.077 is the direct engineering sub-assembly and cross-reference code for the 0301230 model, ensuring full form, fit, and functional compatibility.

Is the output configuration adjustable between NPN and PNP?

Yes, the internal circuit architecture accommodates flexible integration with diverse logic boards by supporting selectable NPN/PNP output modes through standard terminal wiring adjustments.

What is the expected lifespan of this magnetic reverb sensor in continuous industrial use?

Built with solid-state components and encapsulated in an IP67 housing, the unit typically exceeds 10 million switching cycles under normal operating environments.
