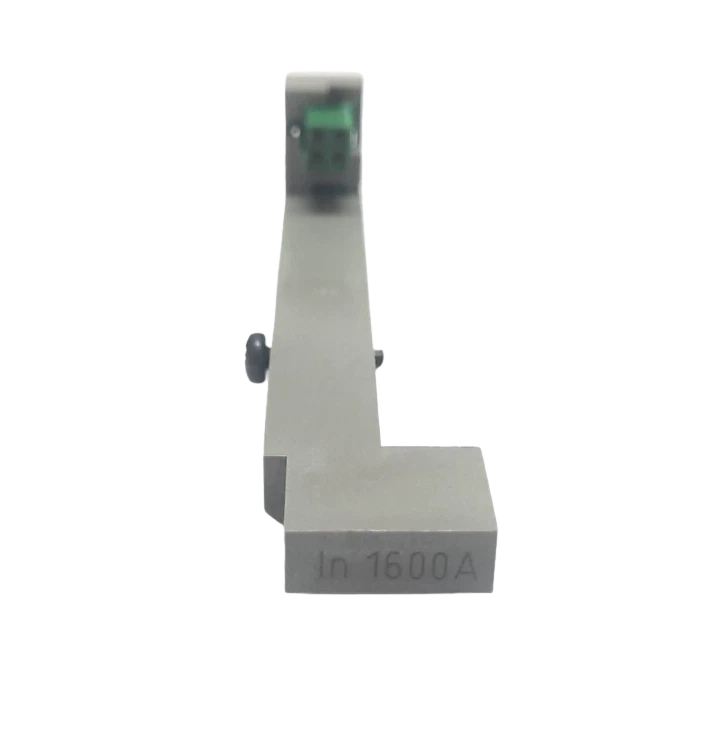

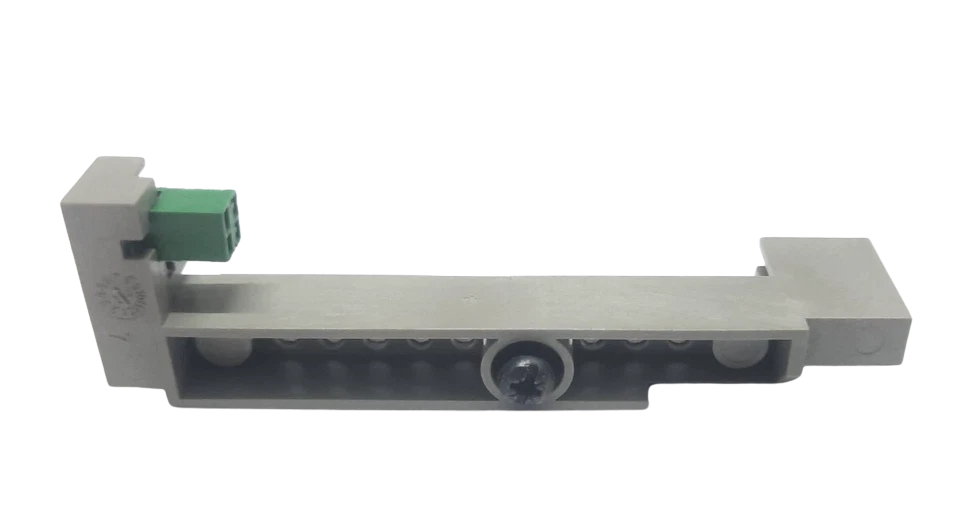

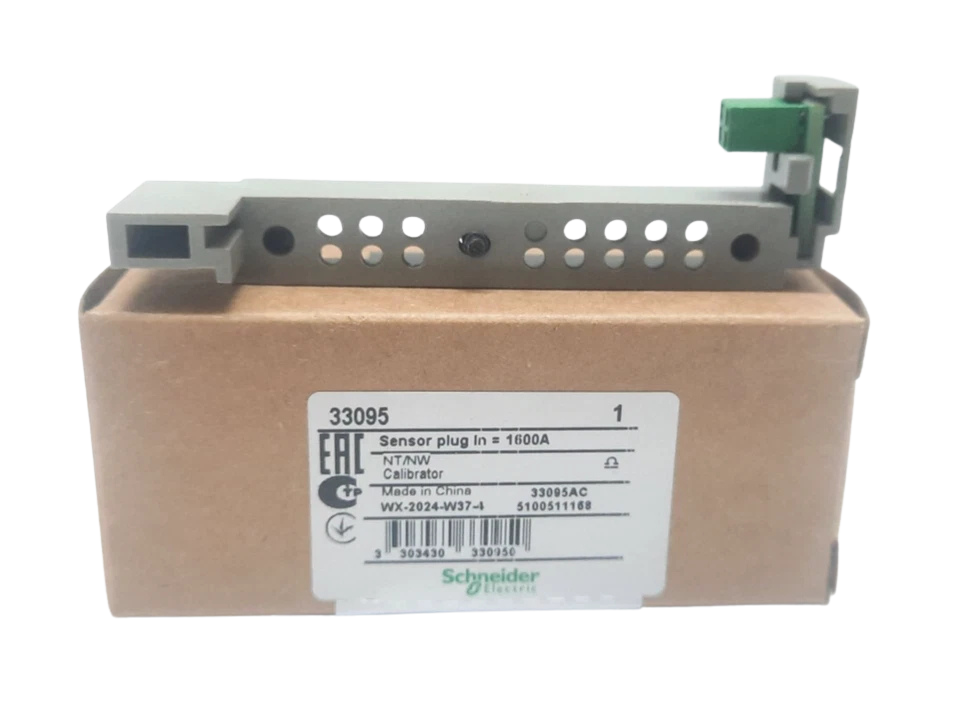

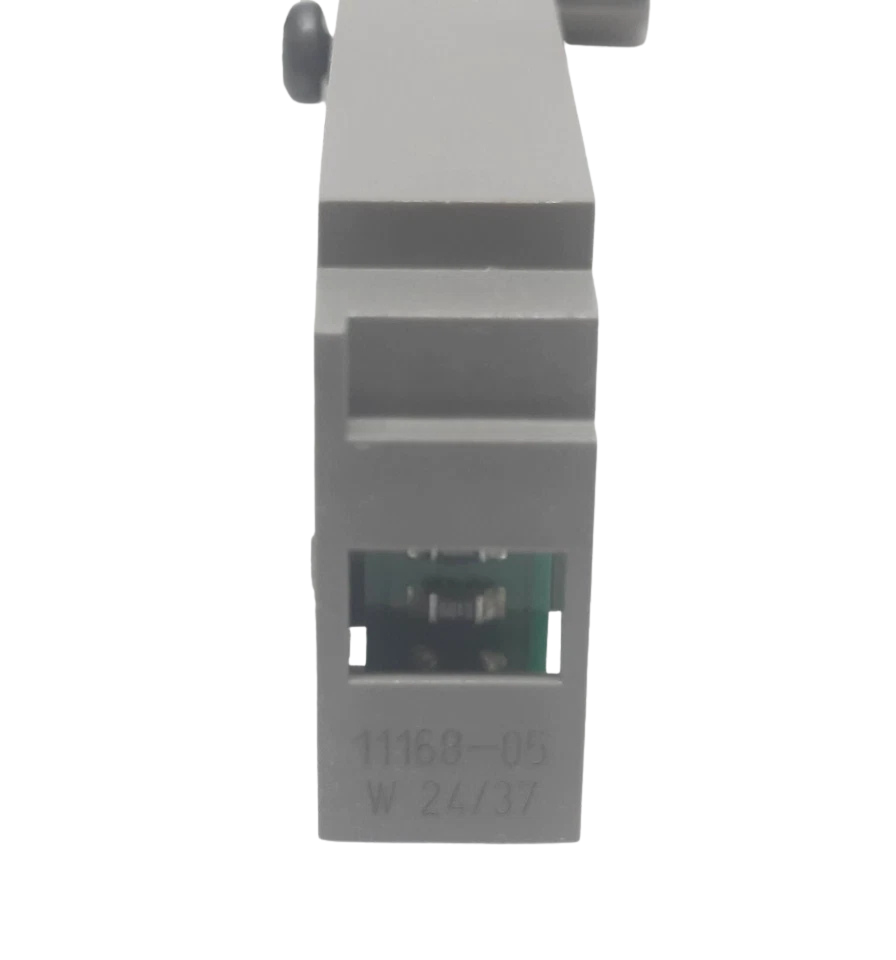

Schneider 33095 Masterpact 1600A Sensor Plug Connector

Schneider Electric Masterpact 1600A Sensor Plug Connector (33095)

The Schneider Electric 33095 is a 1600A Sensor Plug (Sensor Connector) with precision calibration for Masterpact NT and NW Air Circuit Breakers (ACBs) with Micrologic control units. This specific rating plug is used in current sensors in maritime switchboards and heavy industrial power distribution systems to scale the physical CT (Current Transformer) secondary output to the microprocessor in the Micrologic trip unit. This guarantees correct long duration protection threshold, thermal memory calculations and fault interrupting coordination. This plug is built to endure strong electromagnetic interference (EMI) and hard marine situations. This plug establishes the particular Ampere rating scale (Ir) for the circuit breaker frame.

Model Details

• Brand: Schneider Electric
• Product Type: Micrologic Trip Unit Sensor Plug / Calibrator
• MPN (Manufacturer Part Number): 33095 (Alternate/North American style: S33095)
• Product Family: Masterpact NT / NW / PowerPact P & R

Technical Details: Schneider 33095

Key Features

1. Exact Ampere Scaling: Calibrates the Micrologic trip unit to recognize the specific 1600A frame threshold, establishing baseline protection parameters.
2. Plug-and-Play Architecture: Features mechanical keying to prevent insertion errors into mismatched breaker frames during shipboard maintenance.
3. High-Grade Thermal Stability: Constructed with industrial-grade polymer housings engineered to resist tracking, vibration, and high ambient engine-room temperatures.
4. Microprocessor Handshake: Interfaces directly with onboard EEPROM data parameters to log trip histories and load profiles accurately.
5. Global Marine Standard Compliance: Fully compatible with IEC 60947-2 selective coordination schemes mandatory for classed vessels.

Applications

• Marine Main Switchboards and Emergency Switchboards (Naval and Commercial Cargo/LNG carriers)
• Offshore Oil & Gas Production Platforms and Floating Production Storage and Offloading (FPSO) units
• Data Center Critical Power Distribution Units (PDUs)
• Heavy Industrial Low-Voltage Switchgear Panels
• Petrochemical Plant Main Feeder Circuit Protection

Compatibility

• Schneider Masterpact NW Series: NW08, NW10, NW12, NW16, NW20, NW25, NW32, NW40 (specifically tailored for 1600A configurations or down-rating schemas)
• Schneider Masterpact NT Series: NT06, NT08, NT10, NT12, NT16
• Trip Units: Micrologic 2.0A/E, 5.0A/P/H, 6.0A/P/H variants

Engineer Expert’s Guide:

1. Verification of Rating Match: Always cross-reference the physical copper busbar sizing and CT secondary ratings inside the Masterpact cradle before swapping a sensor plug. Installing an incorrect rating plug (e.g., placing a 1600A plug onto a 2500A frame) will cause immediate thermal mismatch errors and potential nuisance tripping on the Micrologic display.
2. Torque Control: When servicing or replacing the plug, ensure the retention screw is tightened precisely to 0.8 Nm. Over-tightening can fracture the terminal base plate or distort the sensitive pin contact array, resulting in intermittent data loss to the trip unit.
3. Static Discharge Precautions: Always discharge static electricity before handling the sensor plug module. The internal calibration circuitry interfaces directly with solid-state components on the Micrologic board that are sensitive to ESD.

Frequently Asked Questions

What is the primary function of the Schneider 33095 sensor plug?

The 33095 sensor plug acts as a hardwired calibrator that informs the Micrologic electronic trip unit that the Masterpact circuit breaker is configured for a 1600A operational threshold, ensuring accurate overload and short-circuit protection profiles.

Can this sensor plug be hot-swapped while the switchgear is energized?

No. For safety and equipment protection reasons, always rack out the Masterpact circuit breaker to the disconnected position and ensure control power is isolated before removing or installing any Micrologic sensor plugs or accessories.

Is the Schneider 33095 compatible with older Merlin Gerin Masterpact units?

Yes, it is backward compatible with legacy Merlin Gerin and current Schneider Electric Masterpact NT/NW ranges utilizing standard Micrologic trip architectures, provided the frame rating aligns with 1600A specifications.
