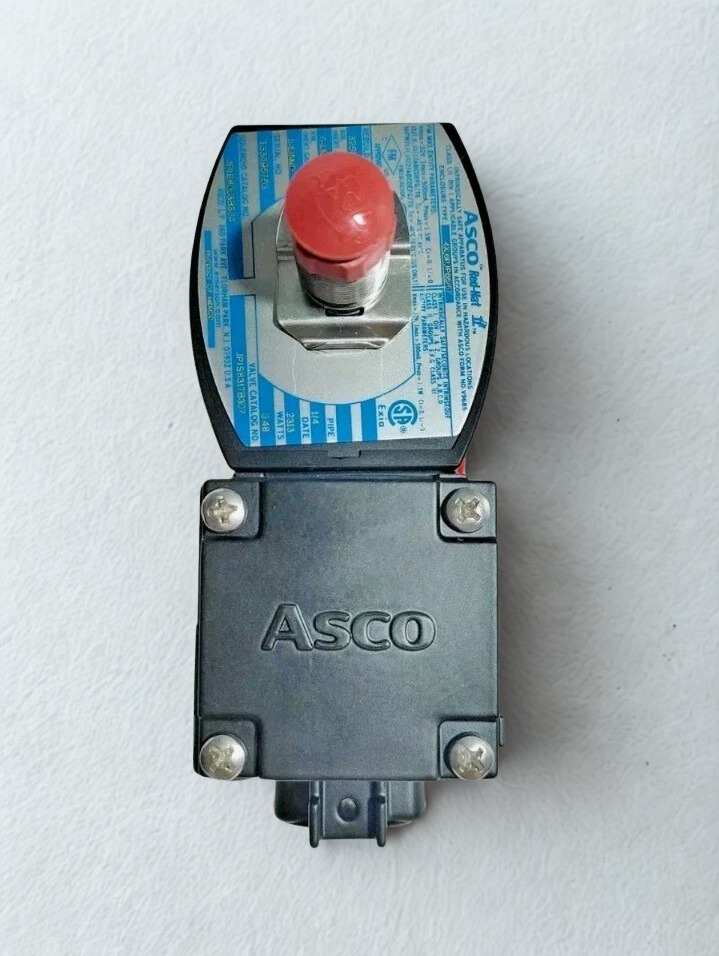

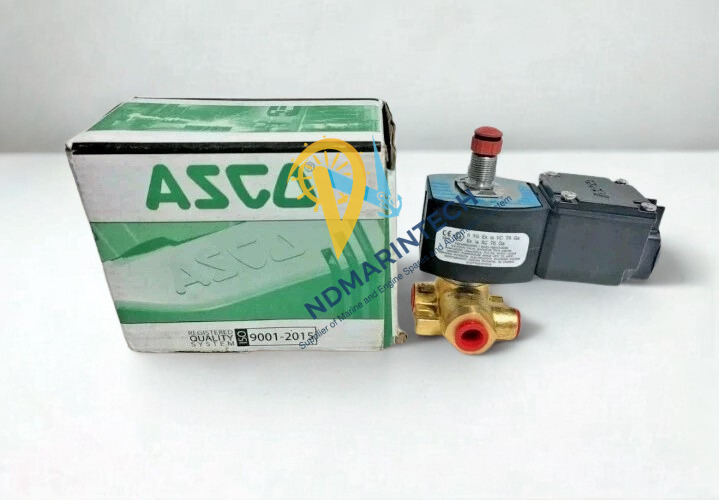

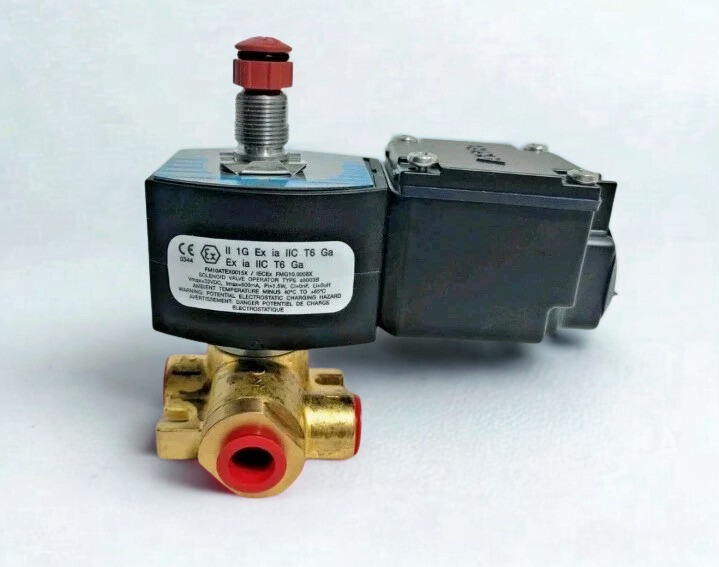

ASCO JPIS8317B307 24V DC Solenoid Valve | 1/4″ 3-Way NPT

ASCO JPIS8317B307 24V DC Solenoid Valve – High-Flow 3-Way Control

The ASCO JPIS8317B307 is a key pilot interface for ships’ pneumatic and hydraulic control loops. This 1/4″ NPT 3-way valve works with 24V DC logic and is widely used in distributed control systems (DCS) that use Schneider Modicon PLCs or ABB Symphony Plus architectures. The 8317 series is distinct from conventional industrial valves because it is built to maintain the seat intact during high-frequency engine harmonics and localized hull vibrations that happen a lot in Category 3 vibration zones.

For blue-water conditions to be safe to use, parts must be able to endure 95% non-condensing humidity and continual salt spray. The JPIS8317B307 includes a hardened solenoid operator and an internal pilot assembly that won’t rust, so things won’t stick. This solenoid lets out the proper amount of air at the right pace for instances where you need to precisely control larger actuators, like Masoneilan or Honeywell control valves. This makes sure that the actuator is in the appropriate place during emergency shutdowns (ESD).

Specifications

Engineered Features for Marine Reliability

• Low-Wattage Coil Design: Made to work best with 24V DC loops to keep heat from building up and extend the life of insulation in engine room cabinets that don’t have any air flow.
• High-Frequency Vibration Resistance: The internal spring tensioning is set up such that 60Hz grid fluctuations or low-frequency propeller cavitation don’t produce “chatter.”
• Direct-Acting Poppet: No minimum operating pressure is needed, therefore shifting is always reliable, even when the air header pressure lowers.
• Galvanic Isolation Ready: The coil housing lets the ship’s hull be safely grounded, which stops stray current from corroding it.
• FKM (Viton) Sealing: Standardized elastomers can withstand instrument air that is full of oil and heat up to 75°C.

Critical Marine Applications

• Pilot-to-shift valve for heavy-duty hydraulic directional control of steering gear.
• Ballast Water Management: Opening and closing pneumatic butterfly valves in pump rooms with high humidity.
• Main Engine Lube Oil Skids: Bypass valves that control temperature can be turned off from a distance.
• HVAC Damper Control: at salt-air settings, it keeps the flap on the air-handling unit (AHU) at the right place.
• Fuel Oil Purifier Skids: High-cycle switching for getting rid of sludge and keeping an eye on water in oil.
