BPI 16DNL1 Progressive Cavity Pump | 10 m3/h | Motive Gear Motor

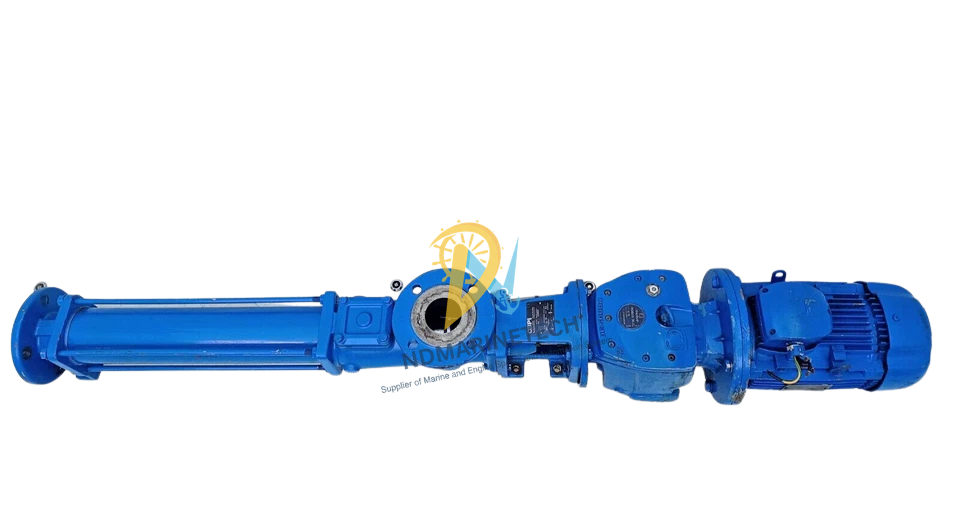

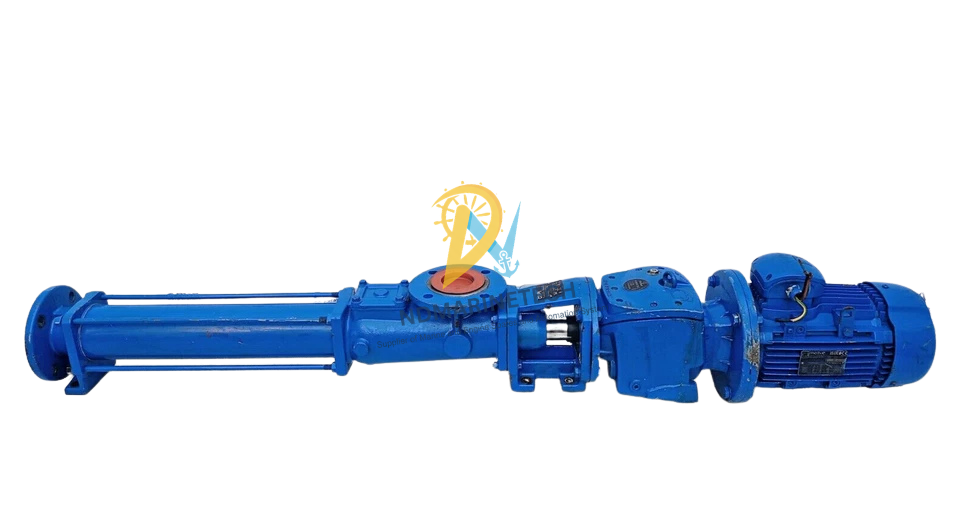

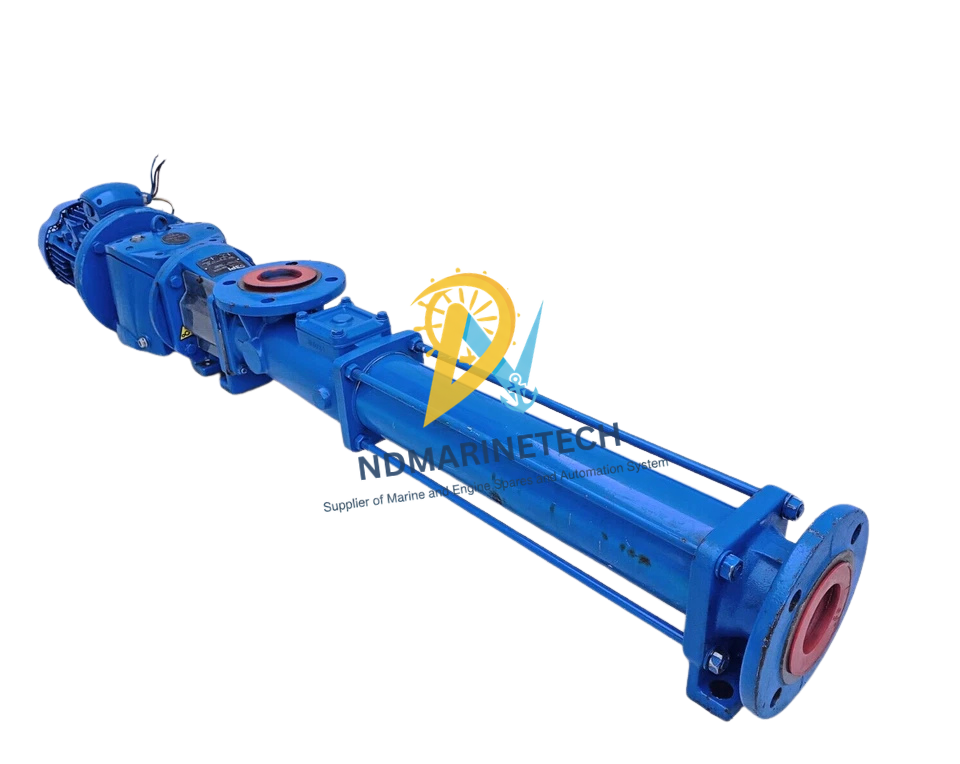

BPI-Pump BPI 16DNL1 Progressive Cavity Pump with Motive Gear Motor

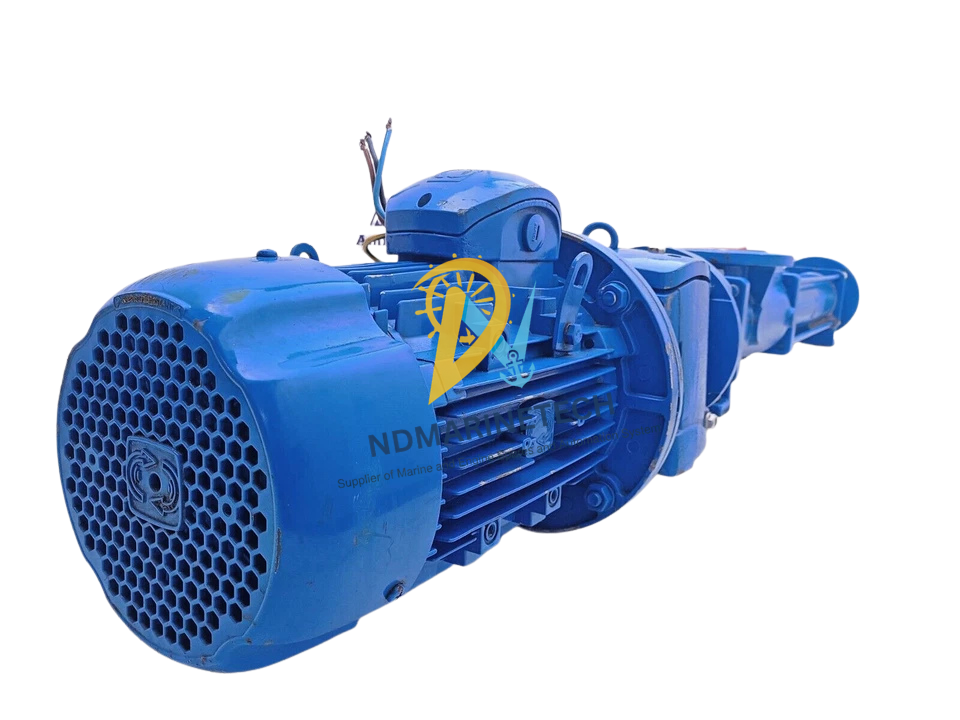

Get the most from your fluid handling systems with the BPI 16DNL1 Progressive Cavity Pump. This single screw positive displacement pump is well known for its reliability in tough industrial and nautical situations and gives a steady flow, devoid of pulsations, even with the most viscous or shear sensitive liquids. This device is complemented with a strong Motive Robus 30-2 gear motor which provides excellent mechanical efficiency and durability over time.

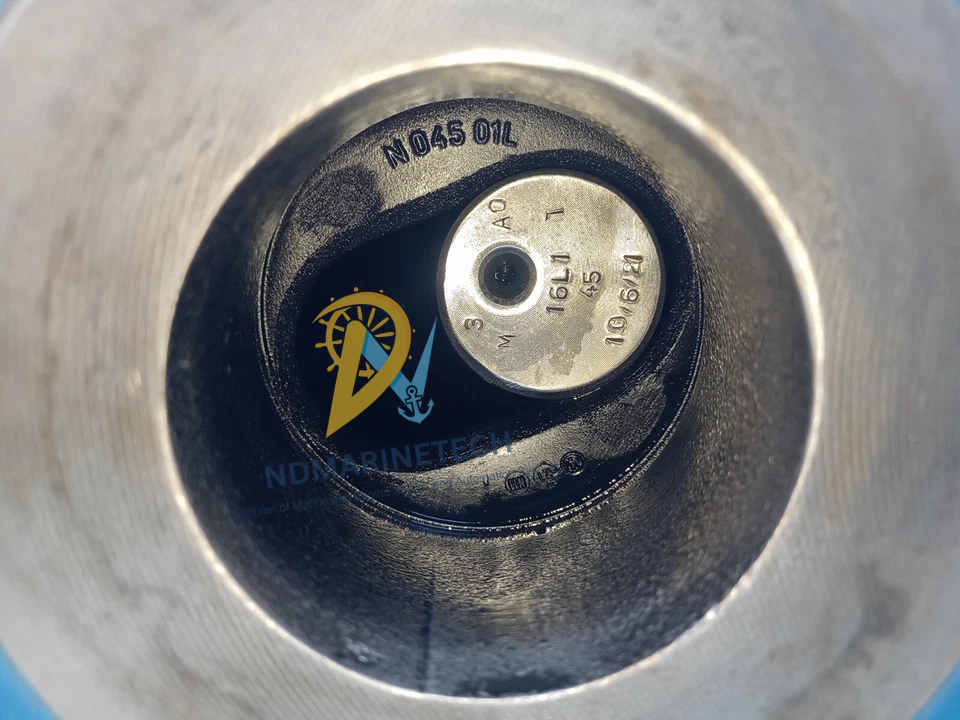

The BPI 16DNL1 is a high performance, single screw progressive cavity pump for applications where precise flow control and consistent transfer rates are required. Unlike centrifugal pumps, this machine is excellent at moving thick, abrasive, or lumpy media without losing integrity. It has a helical rotor rotating within a double helical stator , so discrete , sealed compartments are created which move fluid steadily from inlet to output.

Key Features

1. Pulsation-Free Flow: Ensures smooth, consistent delivery vital for dosing and metering applications.
2. Handles heavy Fluids, Sludge and Slurries that Jam or Stall Other Pumps Easily handles heavy fluids, sludge and slurries that jam or stall other pumps.
3. Shear-Sensitive Capability: Works at low internal velocities, maintaining the integrity of sensitive liquids.

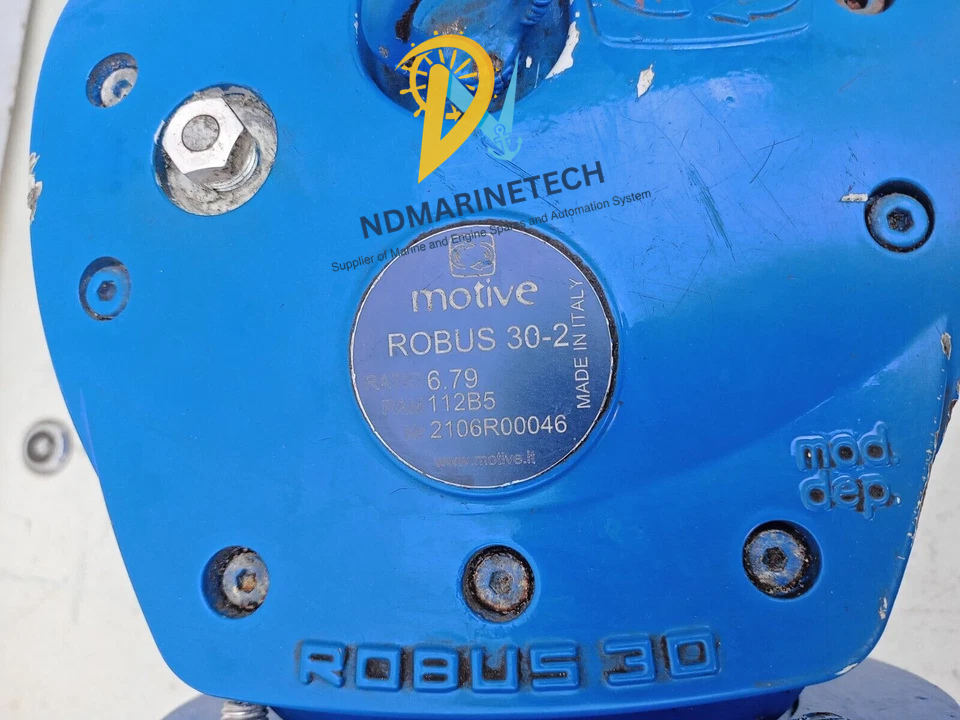

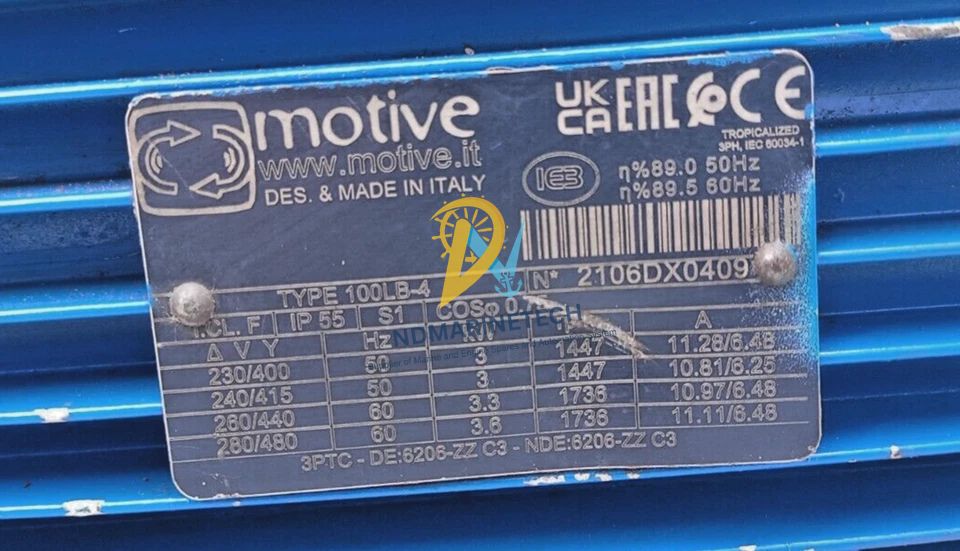

4. Powerful Drive System: Features a dependable Motive Robus 30-2 gear motor for fine-tuned torque and speed control.
5. Self-Priming: Good suction performance, suitable for difficult suction lifts installations.

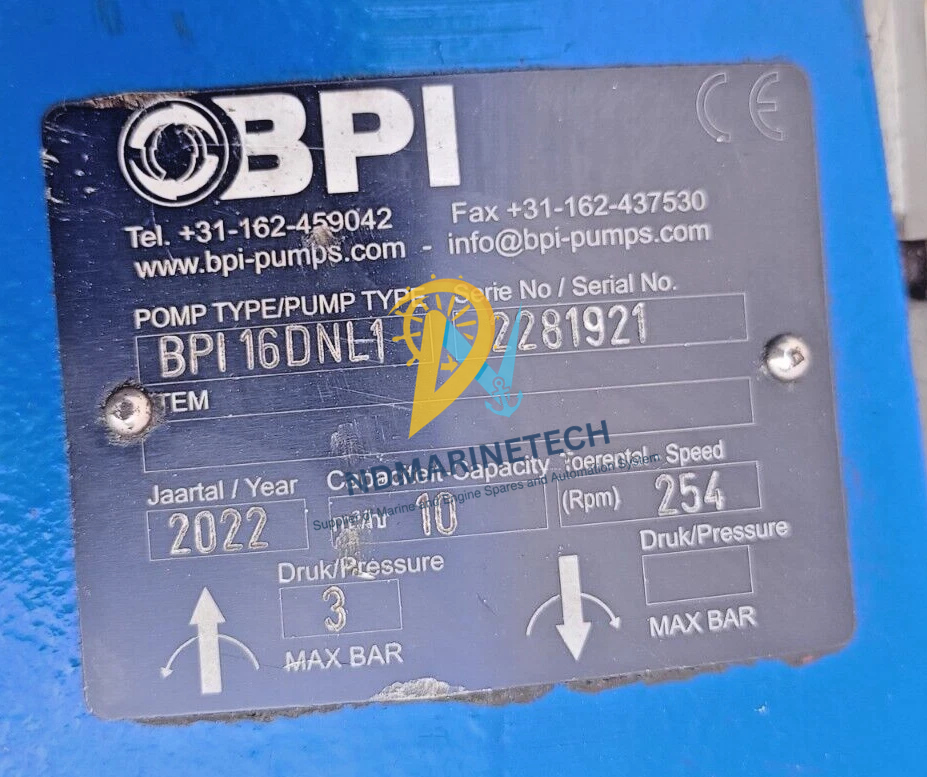

Technical Specifications: BPI 16DNL1

Applications

• Marine & Offshore: Suitable for bilge water disposal, oil transfer, and fuel management.
• Wastewater Treatment: Efficiently transfers sludge, polymers and thickening agents.
• Industrial Processing: Good for chemical dosing, transfer of paint/coating and adhesive handling.
• Mining & Construction Capable of pumping abrasive drilling mud, cement slurries and grouting fluids.

Our Engineer Expert’s Guide:

1. Do not run a progressive cavity pump dry. Dry Running Prevention Rotor and stator require liquid lubrication . Running without fluid will quickly overheat and damage the elastomer stator.
2. Startup Procedure: Check the direction of rotation before starting up. If the fluid is very viscous, ensure the suction valve is fully open and the pump is primed.
3. Wear Monitoring. Measure the motor load with an ammeter. A fast rise is usually an indication of a blockage and a steep decline may be an indication of loss of primary or internal bypass from worn stators.

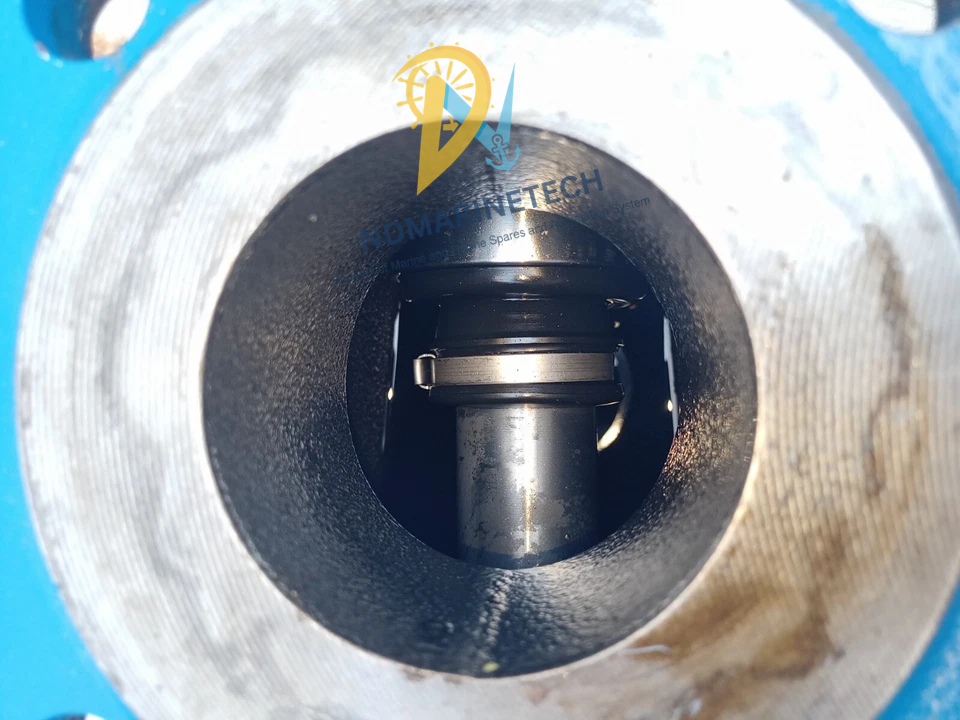

4. Maintenance: Regular checks of the mechanical seals are necessary. If you observe any fluid weeping from the shaft region it is imperative that you replace the seal quickly to avoid contamination of the bearing.
5. Variable Frequency Drives (VFD): I would definitely recommend a VFD for motor speed control. This allows you to adapt the flow rate to your specific process needs and to minimise the risk of over-mechanical stress and thus to prolong the service life of the rotor and stator.
