Eaton SPX250A0-4A2B1 Variable Frequency Drive | SPX9000 200kW
$12,786.00
Condition: New – Open Box
1 in stock

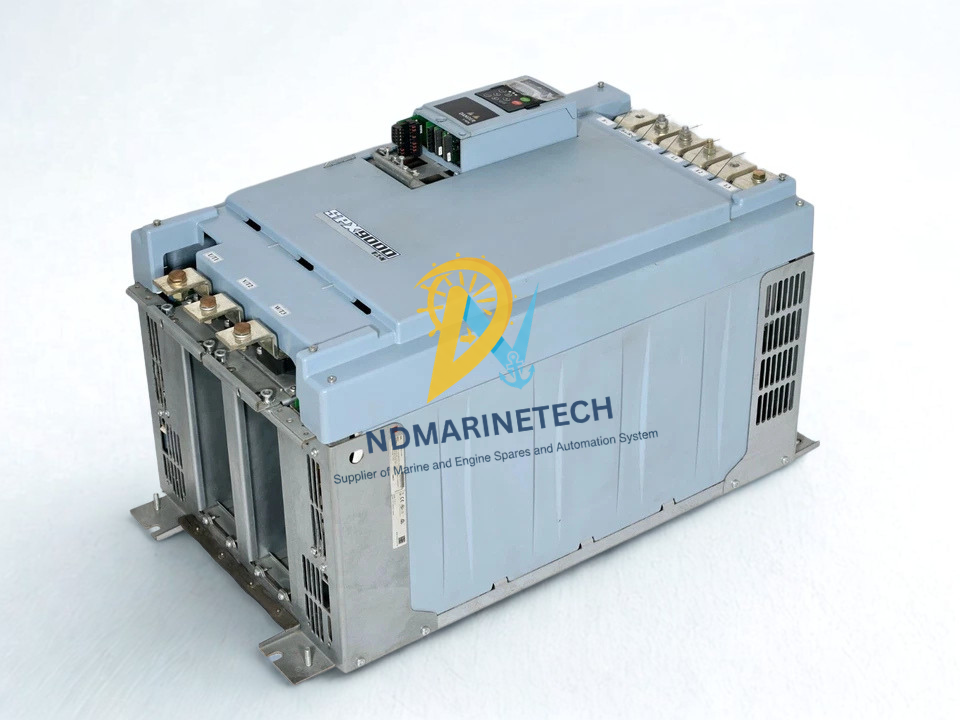

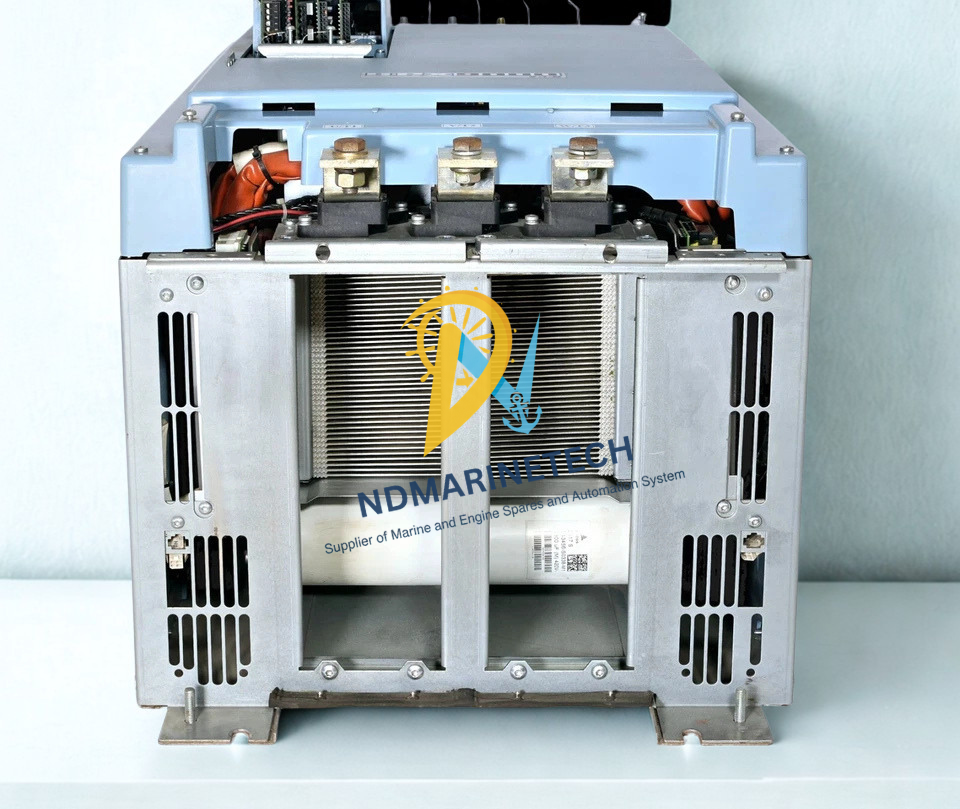

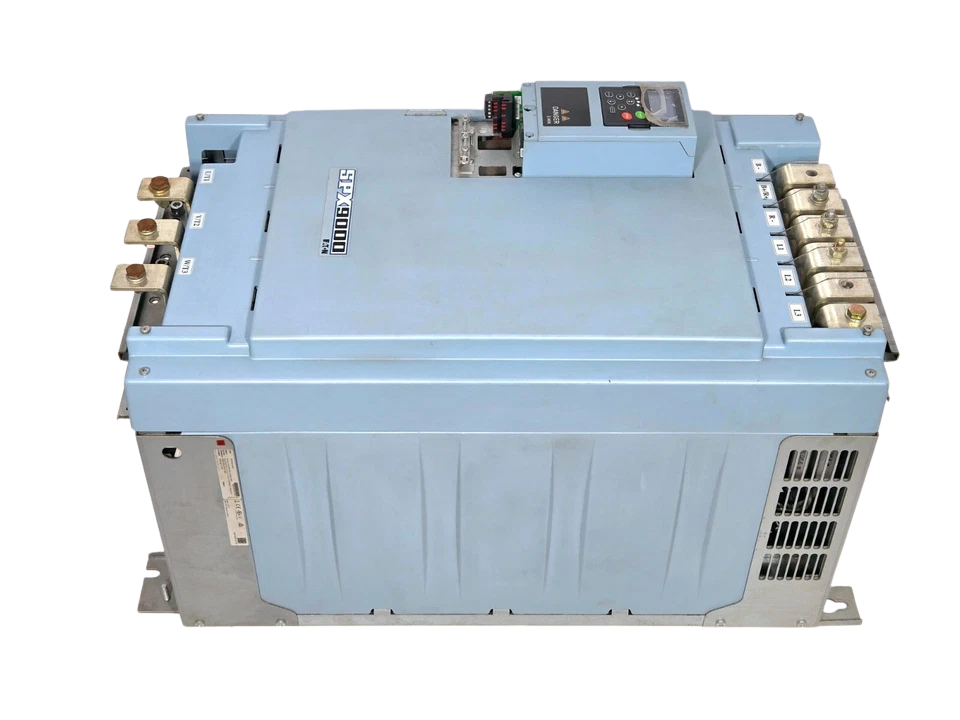

Eaton SPX9000 SPX250A0-4A2B1 Variable Frequency Drive (200kW | 380-500V)
The Eaton SPX250A0-4A2B1 is a high-performance, heavy-duty Adjustable Frequency Drive from the industry renowned SPX9000 family. This 200kW (300 HP) open chassis inverter is engineered for the demanding requirements of complex industrial processes and maritime engineering installations to give ultra-precise motor control, rapid microprocessor response and best-in-class open or closed loop vector control.
The SPX250A0-4A2B1 has special features including an internal brake chopper and built-in EMC Class N filtering which let it cope smoothly with severe torque changes, safeguarding important machinery from voltage surges and mechanical stress. Whether managing fluid dynamics on a vessel or controlling high-capacity material handling systems onshore, this drive offers the rugged reliability required in harsh environments
Model Details:
- Brand: Eaton / Cutler-Hammer
- Series: SPX9000 Series
- Model Number (MPN): SPX250A0-4A2B1
- Global Part Number: 133130
- Frame Size: FR10

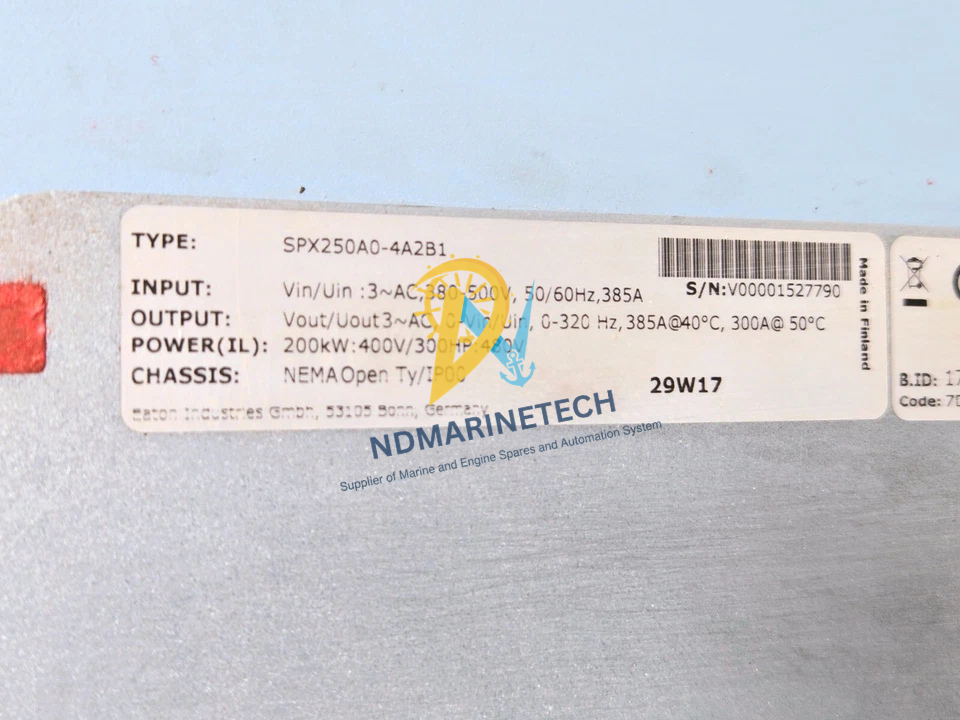

Technical Details: Eaton SPX250A0-4A2B1
| Parameter | Specification Details |
|---|---|
| Rated Power (Low Overload) | 200 kW / 300 HP |
| Rated Power (High Overload) | 160 kW / 250 HP |
| Input Voltage Range | 3-Phase (3Φ) 380 Vac to 500 Vac (±10%) |
| Rated Low Overload Current (IL) | 385 A |
| Rated High Overload Current (IH) | 300 A |
| Output Frequency Range | 0 to 320 Hz |
| Enclosure Rating | Open Chassis / IP00 (Vertical Mount) |
| EMC Protection | Integrated Filter (Class N) |
| Dynamic Braking | Internal Brake Chopper Included |
| Control Interfaces | Alphanumeric Keypad (5 Modular Slots Available) |
| Dimensions (H x W x D) | 45.9 in x 19.7 in x 19.9 in (116.6 cm x 50 cm x 50.5 cm) |
| Unit Weight | 513.9 lbs (233.1 kg) |
Main Features
- High-Dynamic Vector Control Seamlessly switch from open-loop to closed-loop vector control for great precision with induction and permanent magnet AC motors.
- Modular I/O Expandability: Equipped with 5 plug-in option slots (3 freely assignable) that handle typical industrial networks such as Modbus, PROFIBUS-DP, DeviceNet and EtherNet/IP.
- Strong Thermal & Harmonic Protection: Built-in EMC Class N filter keeps electromagnetic interference away from neighbouring automation networks, essential for sensitive shipboard setups.
- Integrated Brake Chopper: Enables fast deceleration of high inertia loads without the risk of overvoltage trip-out.
Part Number
- Eaton MPN: SPX250A0-4A2B1
- Alternate Product Code: 133130
- RS Stock Number: 240-072
- Legacy Branding: Cutler-Hammer SPX250A0-4A2B1
