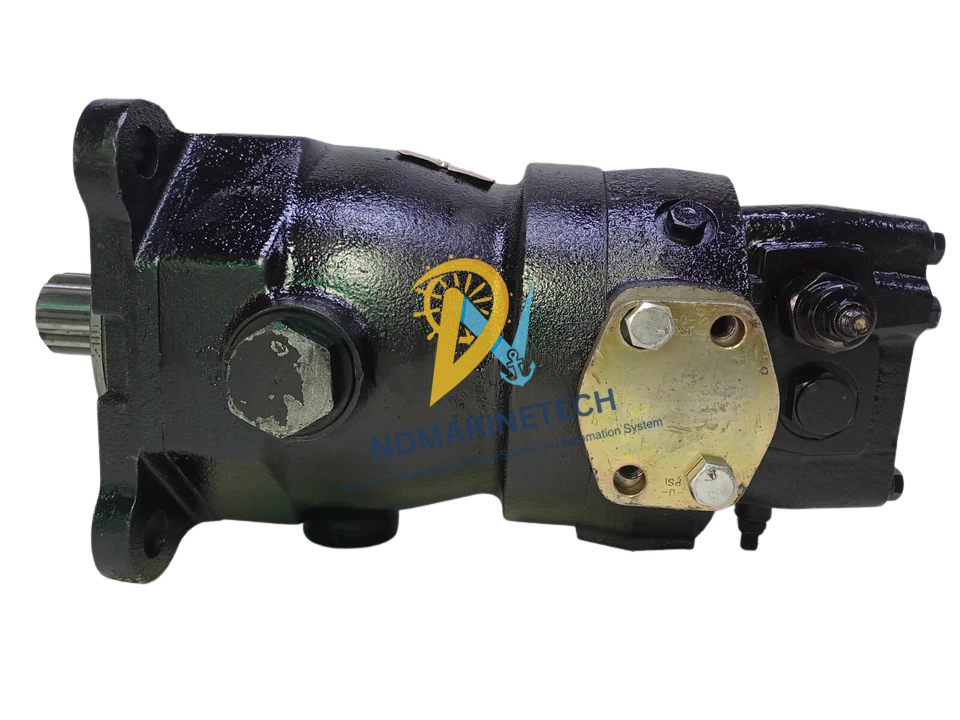

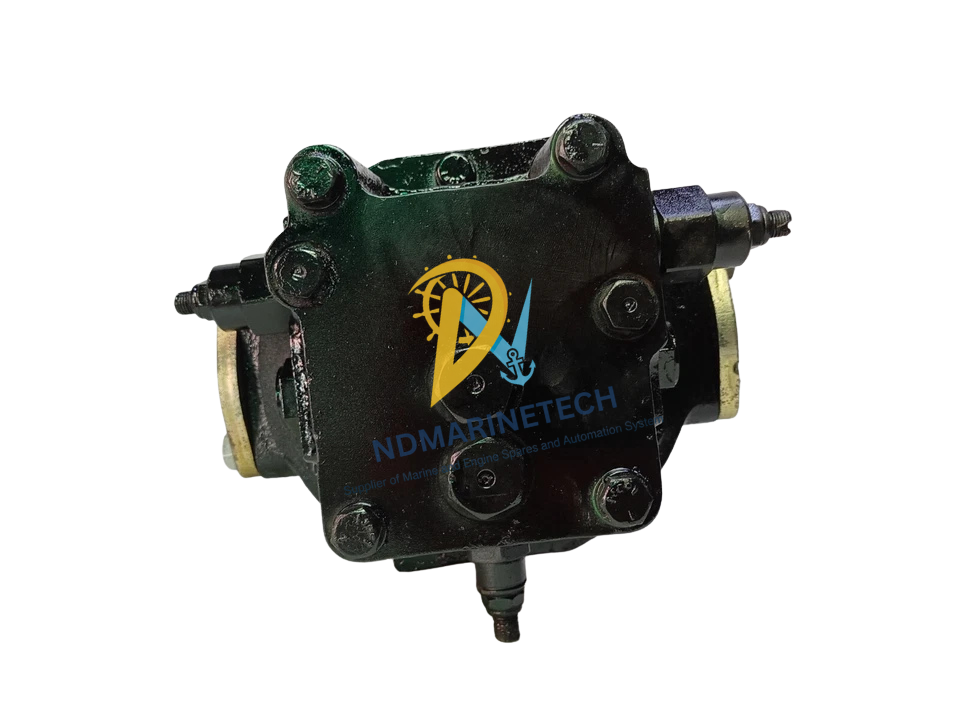

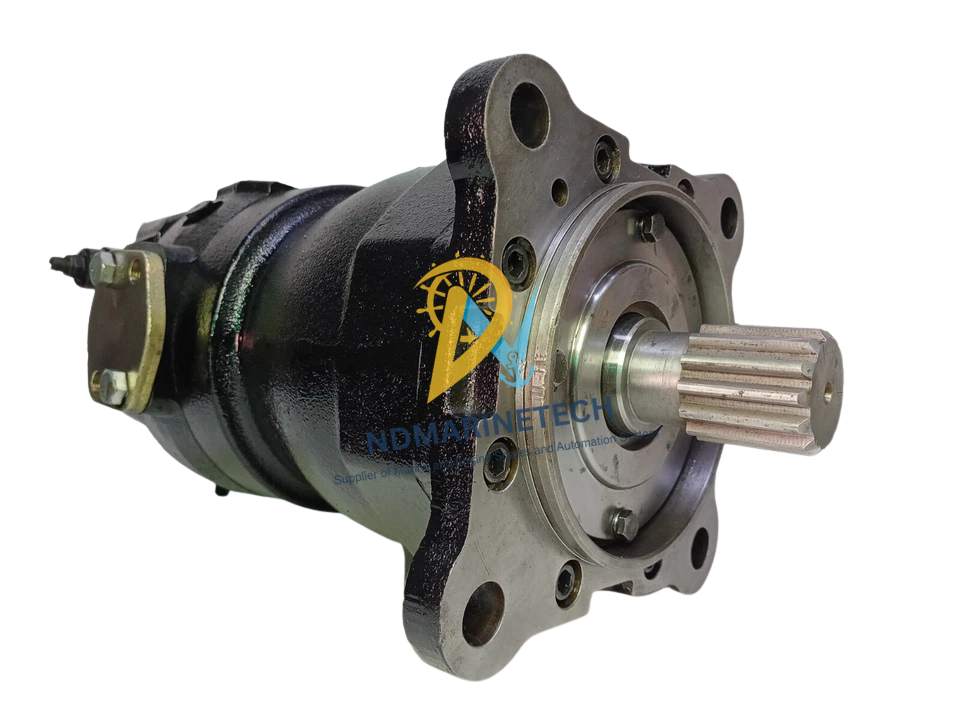

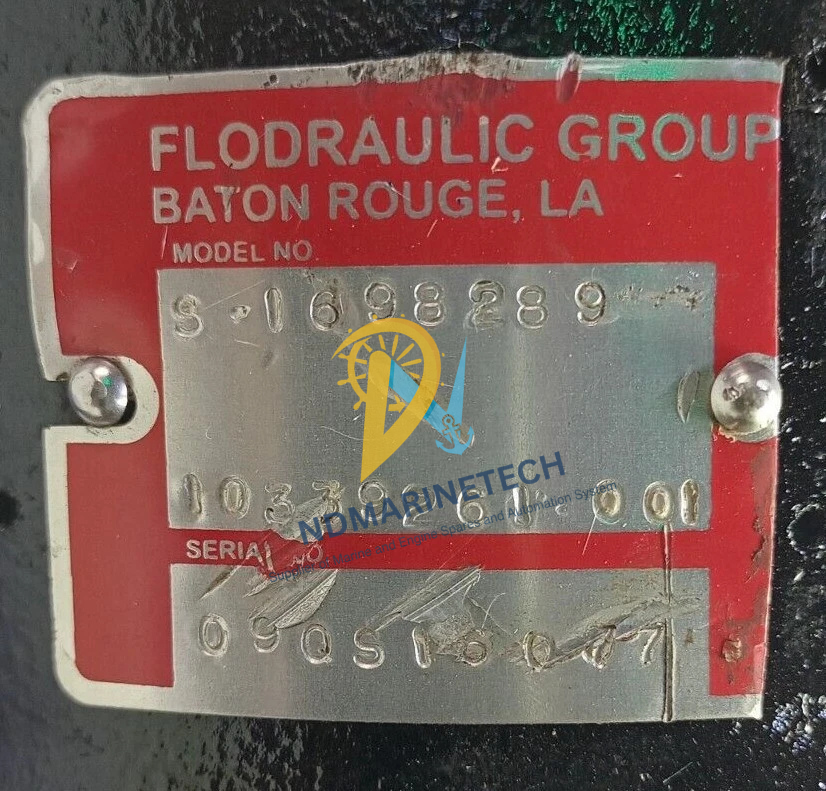

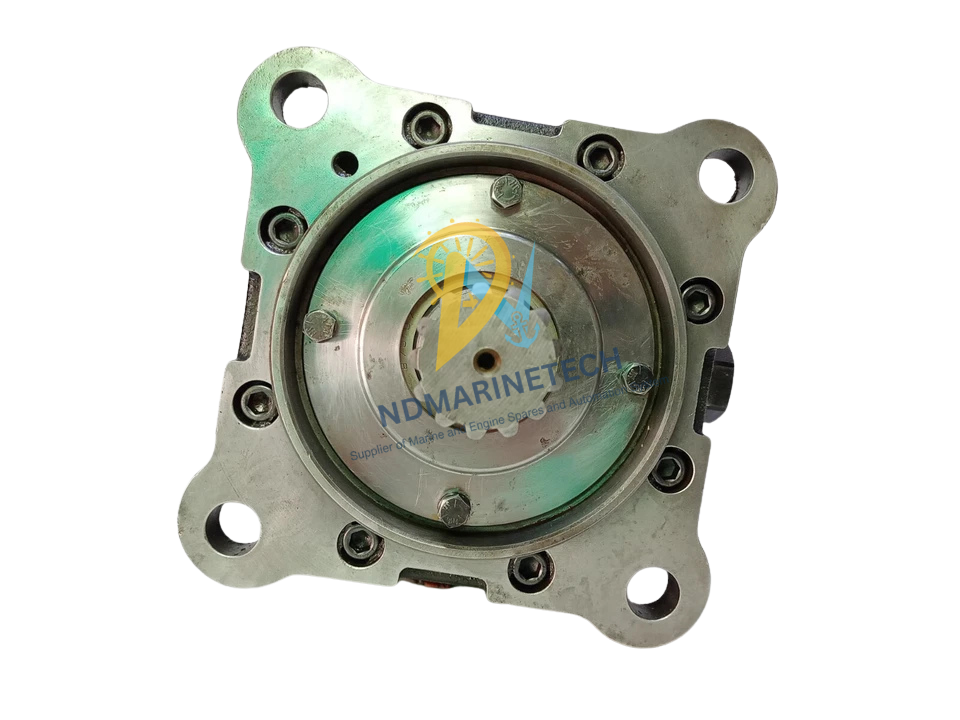

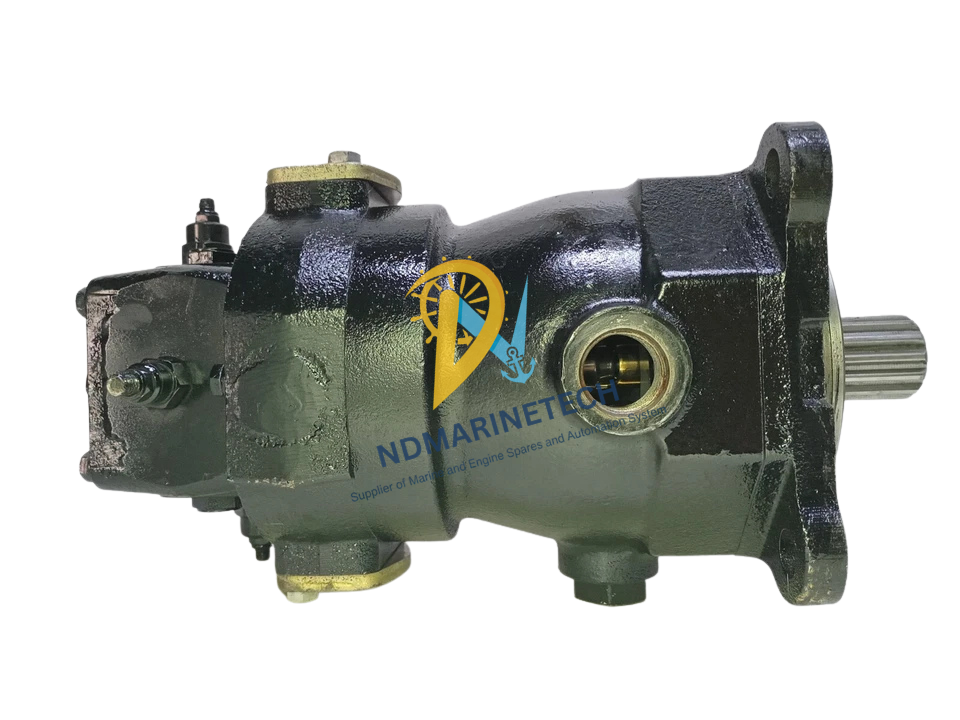

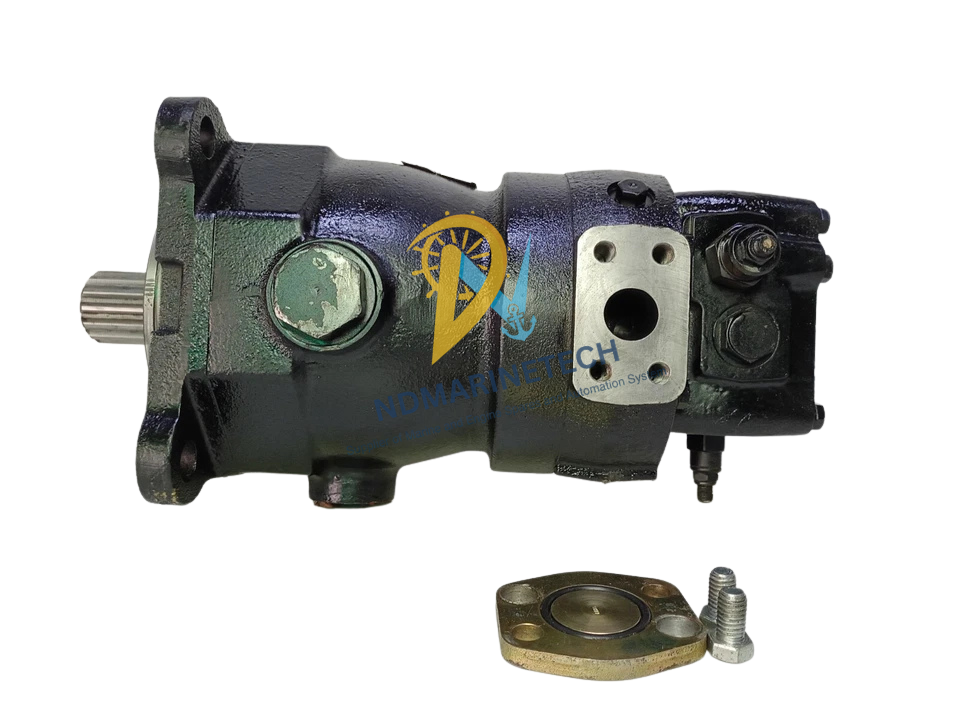

Flodraulic/Dynapower S-1698289 Hydraulic Motor 6 in³/rev 6000 psi

Flodraulic/Dynapower S-1698289 Hydraulic Motor (6 in³/rev, 6000 psi)

A heavy-duty hydraulic motor designed for demanding industrial and marine applications, the Flodraulic/Dynapower S-1698289 (10339261-001) is a high-performance device. This motor is engineered to operate under extreme pressures of up to 6,000 psi, ensuring exceptional reliability and robust torque. This unit is designed to endure the rigors of high-load environments, regardless of whether you are maintaining a critical legacy system or equipping new heavy machinery.

Product Specifications

Main Features

1. High-Pressure Rating: Rated for 6,000 psi operation, making it suitable for high-torque, high-efficiency requirements.
2. Precision Engineering: Constructed in accordance with OEM specifications to guarantee seamless integration into existing hydraulic circuits.
3. Reliable Construction: Constructed with high-strength materials to extend the service life and minimize deterioration in harsh environments.
4. Optimal Performance: Ensures consistent power output and seamless operation in variable load conditions.
5. Proven Design: A reliable option for heavy-duty power transmission in the marine and industrial sectors.

Where to Use?

• Marine propulsion and steering systems
• Heavy-duty winches and cranes
• Industrial material handling equipment
• Construction machinery (pavers, rollers, and trenchers)
• Boring and drilling rigs

NDMarineTech Engineer’s Guide:

1. System Flushing Prior to installing this high pressure motor please make sure your hydraulic lines are flushed to ISO cleanliness standards. Contamination is the number one cause of early failure in high pressure piston motors.
2. Case Drain Management Make sure the case drain line is clear and runs straight back to the reservoir. A plugged case drain causes a pressure spike internally which will induce shaft seal failure.
3. Break-in Procedure: On initial commissioning, run the motor at lower pressure for the first 30 minutes to assure appropriate seating of the valve plate and rotating group.
4. Oil Selection: Use only top-quality antiwear hydraulic oil with the suitable viscosity index for your operating temperature range to safeguard the precision-machined interior surfaces.
