Kral KF-85.DBA.008997 Triple Screw Magnetic Coupling Pump

Kral KF-85.DBA.008997 Triple Screw Magnetic Coupling Pump

The Kral KF-85.DBA.008997 is a triple screw positive displacement pump for challenging industrial and marine applications. The unit provides a hermetically sealed, leak-free solution with a magnetic coupling that prevents the dangers of typical mechanical seals such external leakage, pollution of the environment and failure caused by abrasive residues. This pump is designed for reliability and provides smooth low-pulsation flow with changing viscosities and large differential pressures.

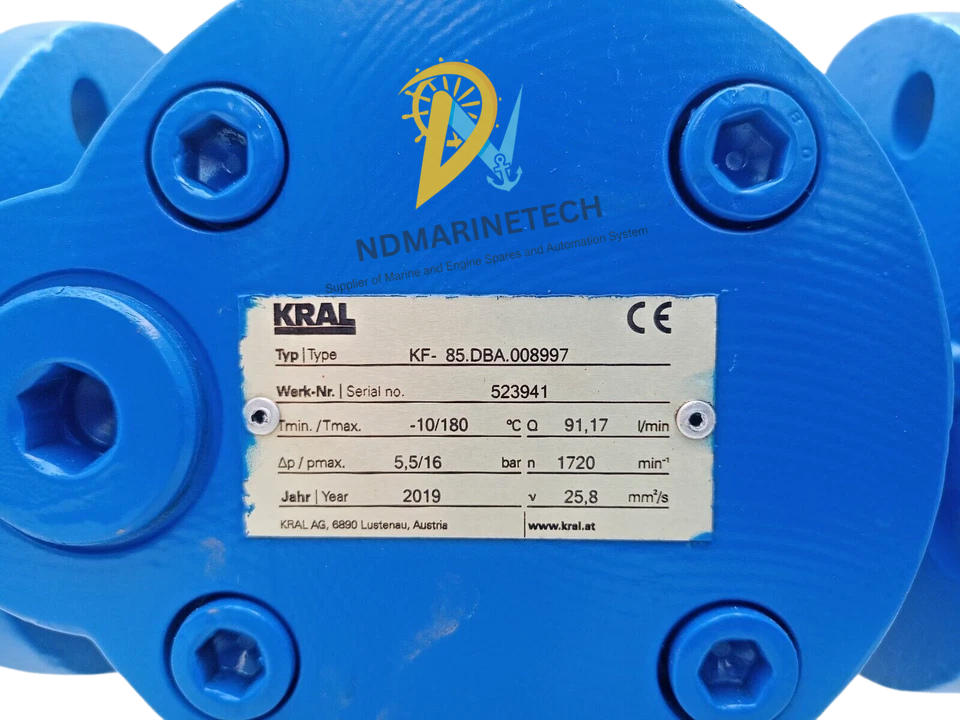

Pump Specification: KF-85.DBA.008997

Features and Benefits

1. Leak-Free Design Magnetic coupling technology offers total sealing, removing the environmental risk of fluid leakage in the engine room.
2. High Reliability: Maintenance-free external ball bearing system, service life up to 30,000 hours.
3. Low-Pulsation Delivery: Triple-screw architecture yields smooth, steady flow, necessary for precision fuel delivery and lubrication systems.
4. Self-Priming: Powerful suction capabilities for flexible installation and easy system commissioning.
5. Advanced Safety: An inbuilt safety valve prevents the system from becoming overpressurized during operation.

Where to Use?

• Marine Fuel Systems: Main supply and recirculation pump for Heavy Fuel Oil (HFO) and Marine Diesel Oil (MDO) booster modules.
• Lubrication Systems Reliable supply of lubricants for big marine engines, gearboxes and turbines.
• Oil Burner Technology: Ideal as a ring line and transfer pump for industrial heating systems.
• Industrial Processing: Handling of chemically inert, non-abrasive liquids in chemical or plastics processing (including PUR).
• Tank Installations: Fuel and lubricating oil storage for filling and transfer purposes.

Engineer Expert’s Guide:

Marine Engineer’s Note: Do not run in a magnetic coupling pump such as the KF-85 dry, even for a few seconds, during installation or commissioning of the pump. The magnetic coupling uses the pumped fluid to take away heat. When working with low-viscosity fuels, make sure the system is completely ventilated before starting up. Always check the alignment of the pump and motor during installation as tiny misalignments will cause an increase in load on the magnetic coupling assembly. From time to time watch the pump suction head to avoid cavitation, the chief cause of premature spindle wear in screw pumps, for long term health.
