CAT 7W-2172 Magneto Altronic III Ignition Unit

CAT Magneto G Altronic III Ignition Unit (Part Number: 7W-2172 / CA7W2172)

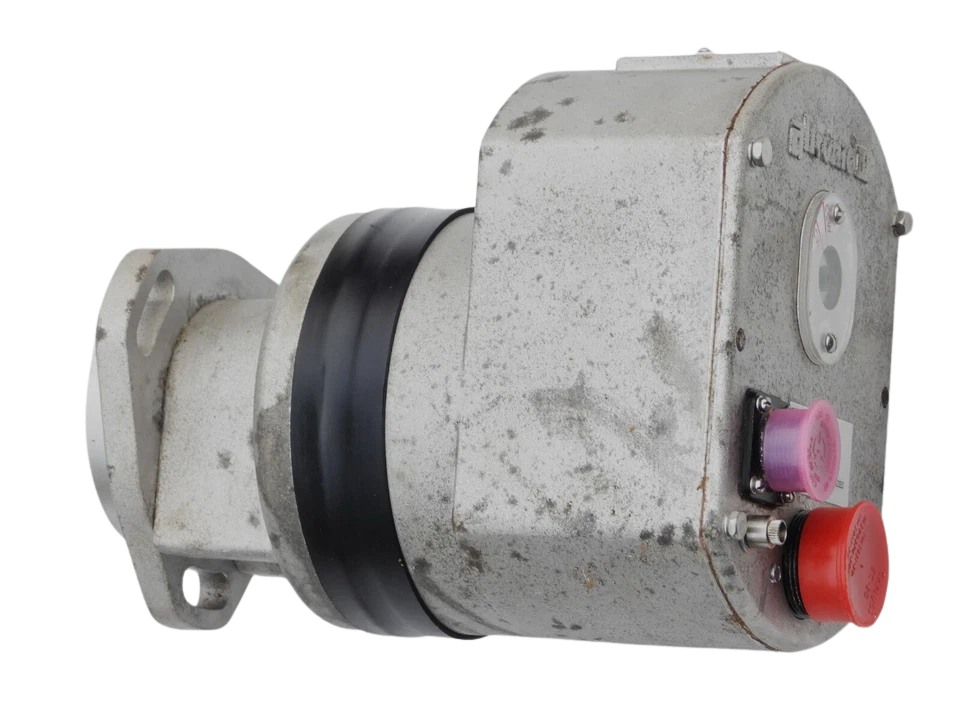

The CAT 7W-2172 Magneto Ignition Unit (Altronic III) is a low-tension capacitor discharge (CD) ignition generator engineered for heavy-duty Caterpillar® natural gas and dual-fuel engines. Manufactured by Altronic to Caterpillar OEM specifications, the 7W-2172 assembly provides a maintenance-free, self-contained ignition source that operates independently of external battery or parasitic electrical power.

Utilizing an internal 12-pole permanent magnet alternator, the unit generates stable primary low-tension energy directly transferred to external step-up coils at each cylinder. This low-tension distribution architecture prevents high-voltage dielectric breakdown, arcing, and premature flashover across cables within demanding marine engine rooms, offshore rigs, and continuous pipeline pumping applications. Sealed high-load precision ball bearings, heavy-duty internal spur gears, and a modular electronic back-cover design ensure continuous duty in extreme vibration, high ambient temperature, and Class I, Div 2 hazardous environments.

Model Details

• Manufacturer: Altronic, LLC (Original Equipment Manufacturer for Caterpillar)
• OEM Partner: Caterpillar Inc.
• Product Line: Altronic III Series Low-Tension Ignition System
• Manufacturer Part Number (MPN): 7W-2172 (also cataloged as 7W2172)
• Caterpillar Group Assembly: Magneto GP 7W-2172 / Ignition GP-Gas Engine

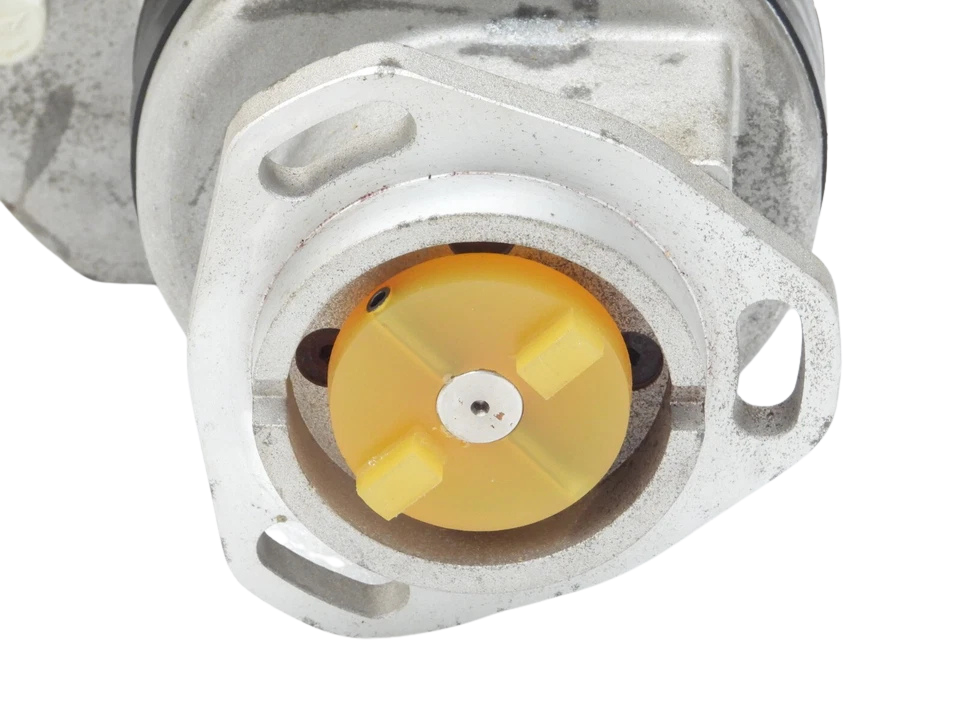

• System Design: Base-drive, flange-mounted mechanical drive with internal solid-state distribution logic and 12-pole rotating alternator

Technical Details:

Compatible Equipment Models

• Caterpillar Engine Series:
  • CAT G3508: Marine auxiliary, generator drives, gas compression skids (Serial Prefixes: 2JF, 9TG, etc.)
  • CAT G3512: Marine propulsion/genset, industrial pumping, co-generation packages (Serial Prefixes: 4KC, 5JD, 7NJ, etc.)
  • CAT G3516: Prime power generation, offshore platform power, landfill/biogas plants (Serial Prefixes: 3RC, 4EK, 8LD, etc.)
  • CAT G3400 Series: Selected retrofit configurations (G3408, G3412 where low-tension Altronic III upgrade packages are specified).
• Compatible Coils & Shielded Leads:
  • Altronic Standard Primary Coils: 501 061, 501 061-S
  • Altronic Long-Duration Shielded Coils: 591 010, 591 010-S, 591 012
  • Spark Plug Connectors: 1″-20 or 13/16″-20 thread shielded integral extension leads

Part Number Cross-References

• Caterpillar Part Numbers: 7W-2172, 7W2172, CA7W2172
• Related CAT Ignition Groups: 4P-2053, 4P-2057, 7C-0482, 7C-1145, 9Y-0149, 9Y-0150, 9Y-0151, 9Y-5311
• Predecessor / Alternative Magneto Code: 4W-3231 / 4W3231
• Altronic Base Series: Altronic III Standard Flange Series (Engine-specific timing profile)

Features

1. True Self-Powered Operation: Driven by an integrated 12-pole permanent magnet rotor, creating full firing energy down to 60 cranking RPM without reliance on external batteries, DC rectifiers, or parasitic alternator supplies.
2. Low-Tension Distribution: Distributes low-voltage primary pulses (150–180 VDC) over high-temperature wiring to individual cylinder coils, eliminating internal rotor ionization, corona leakage, and distributor cap tracking.

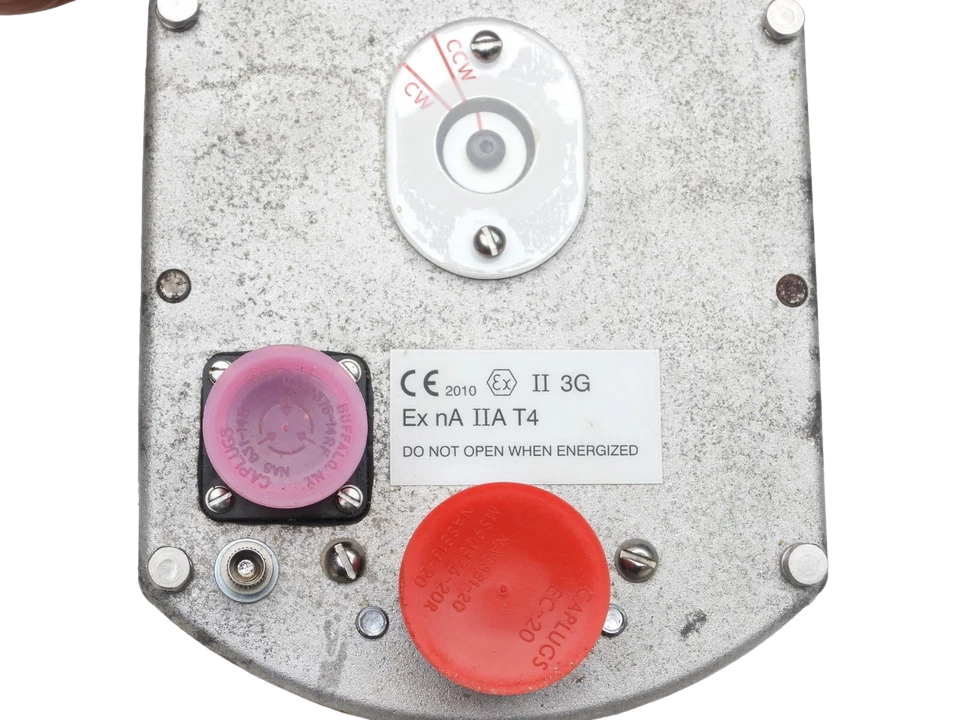

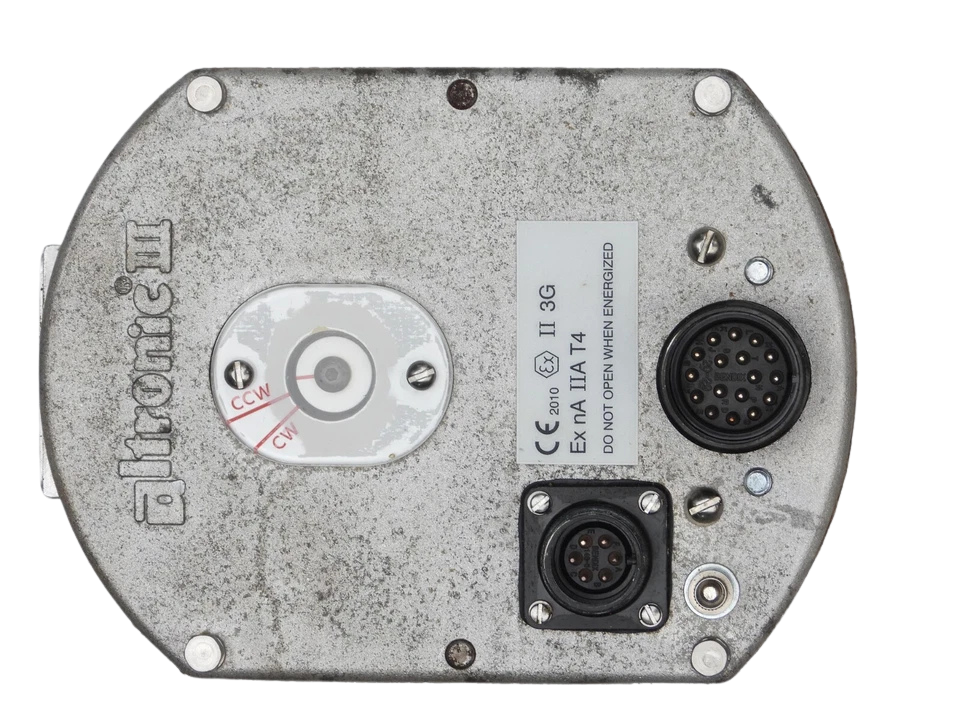

3. Modular Electronic Back-Cover: Solid-state timing triggers, SCR discharge circuits, and electronics are isolated on a field-removable back plate, allowing complete electronic servicing without unseating or re-timing the drive shaft.
4. High-Vibration Marine Damping: Precision ground helical internal gearing running in underloaded conditions, mated with heavy-duty sealed bearing packs and dynamic synthetic elastomer drive couplings to decouple torsional engine harmonics.
5. Hazardous Area Explosion-Proof Design: Hermetically sealed and grounded architecture meeting international class ratings for offshore engine rooms and flammable gaseous atmosphere operations.

Frequently Asked Questions

What is the primary difference between the 7W-2172 Altronic III and standard high-tension magnetos?

The CAT 7W-2172 is a low-tension capacitor discharge system. Standard magnetos produce 25,000+ volts internally and route high tension through distributor caps and long plug wires, risking leakage and crossfire. The Altronic III system generates low voltage (150–180 V) internally and steps it up to firing voltage directly at the spark plug via individual cylinder coils.

Does the CAT 7W-2172 magneto require an external 24V DC power source to run?

No. The 7W-2172 is a self-powered system. It utilizes an internal 12-pole permanent magnet rotor that produces full firing energy from engine cranking speeds (as low as 60 RPM on 4-cycle engines) through rated RPM. External DC power is not required for operation.

How do I troubleshoot a cylinder bank that is failing to fire?

First, isolate whether the problem is global or cylinder-specific. Check the multi-pin output connector with a peak-reading multimeter or scope at cranking speed to determine if the 150V primary pulse is reaching that specific output pin. If pulse output is missing, the back-cover module trigger board may be degraded. If pulse is present, inspect the harness lead, the external step-up coil (e.g., 501-061), and spark plug gap resistance.

Can the 7W-2172 unit be repaired without losing engine timing?

Yes. The electronics are contained entirely on the removable back-cover. You can remove and replace the electronic rear section while leaving the magneto housing, shaft, gears, and base drive coupling firmly mounted and timed to the engine gear case.

Is this unit compatible with shielded spark plug leads for hazardous marine locations?

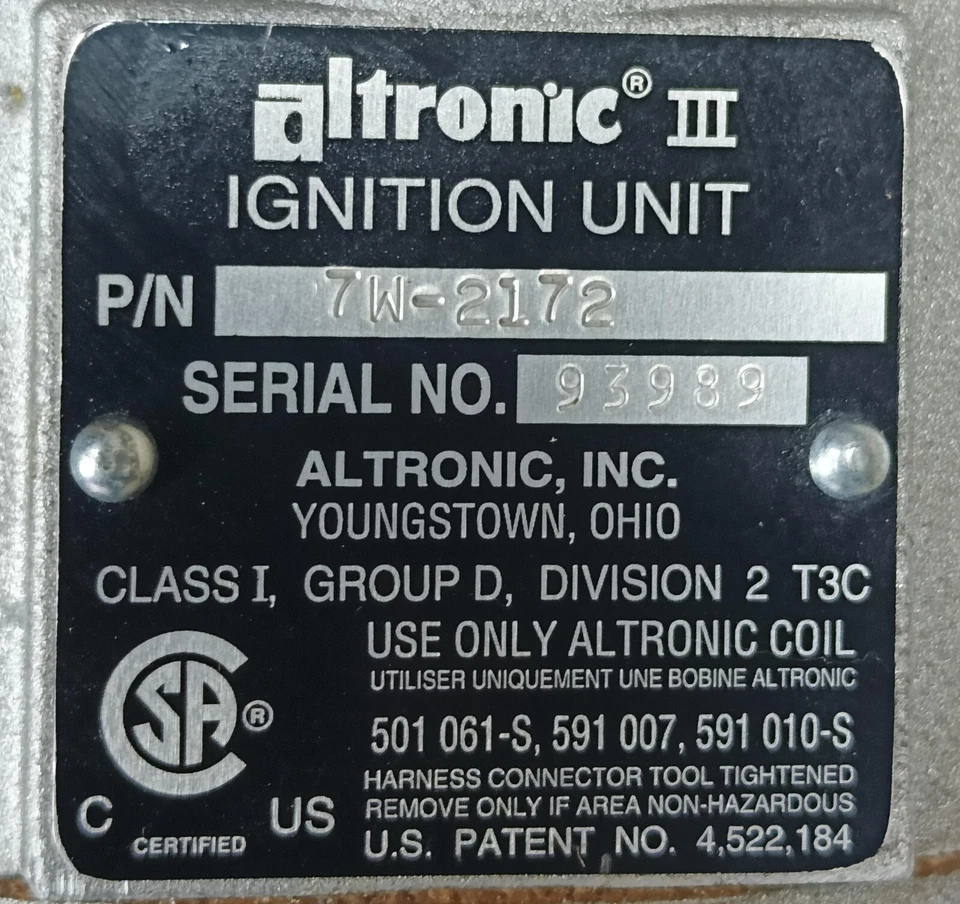

Yes. The 7W-2172 is engineered to mate directly with shielded harness assemblies and explosion-proof coils approved for Class I, Division 2, Group D operating environments, eliminating exposed electrical arcing risk in bilge or offshore gas compression spaces.
