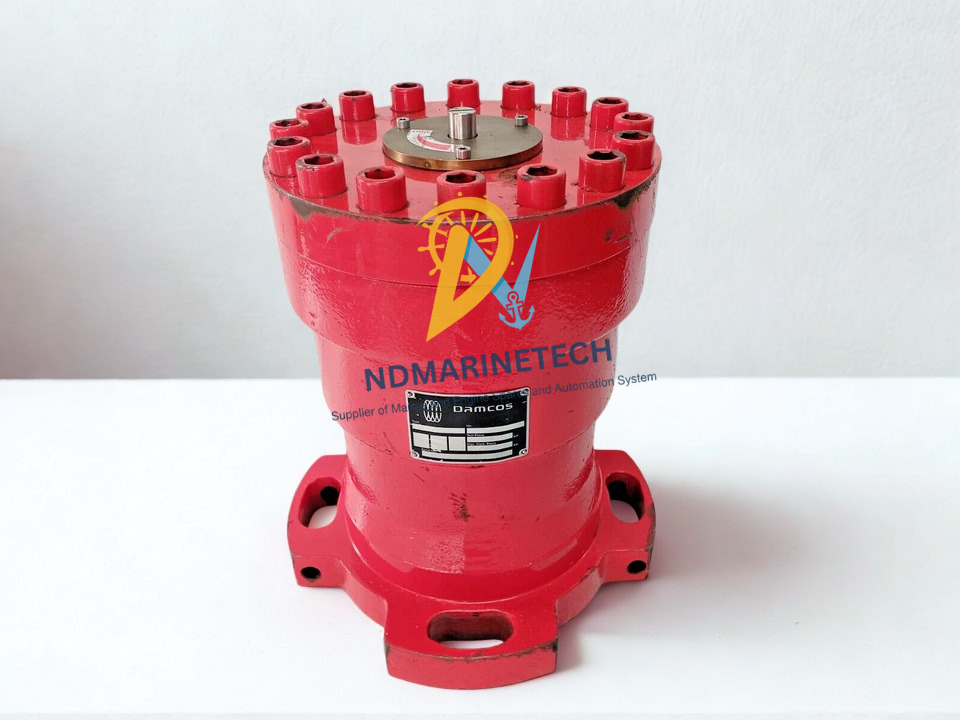

Damcos BRC 052-A1 Hydraulic Balanced Rotary Actuator

Damcos BRC 052-A1 Hydraulic Double Acting Balanced Rotary Actuator

The Damcos BRC 052-A1 is a high performance hydraulic double acting balanced rotary actuator specially designed for the demanding requirements of marine applications. This actuator is well known for its innovative helical spline design which enables steady, balanced high torque output during the whole 90° quarter turn operation. Whether it is for vital ballast systems or main valve controls, the BRC 052-A1 is a gold standard in maritime hydraulic engineering, providing unmatched reliability in tough, salt-laden atmospheres.

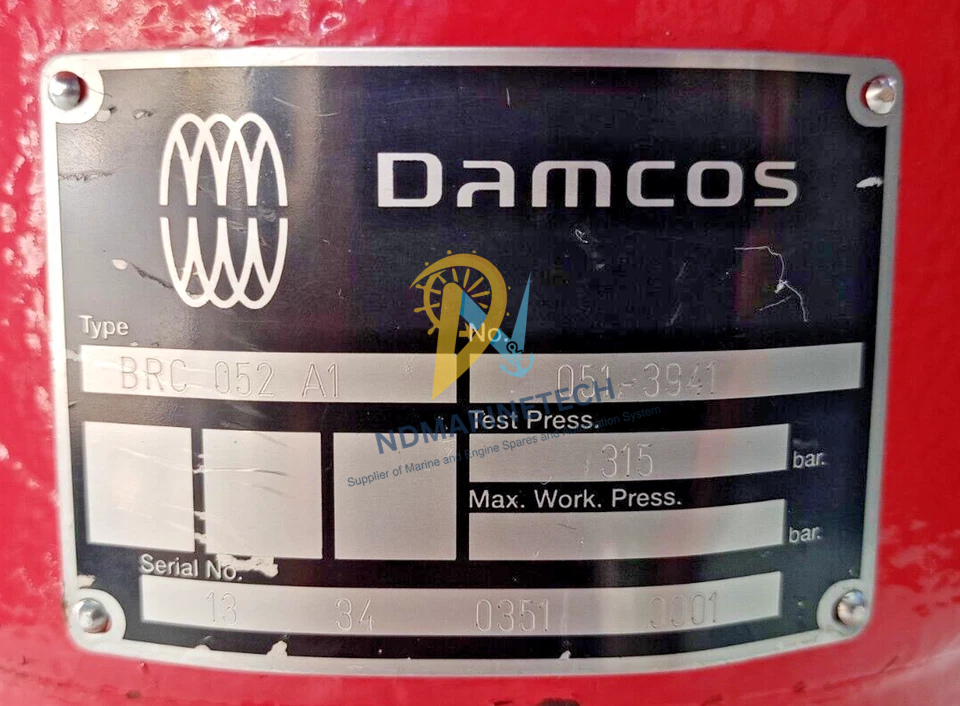

Hydraulic Actuator Specification: BRC 052-A1

Features

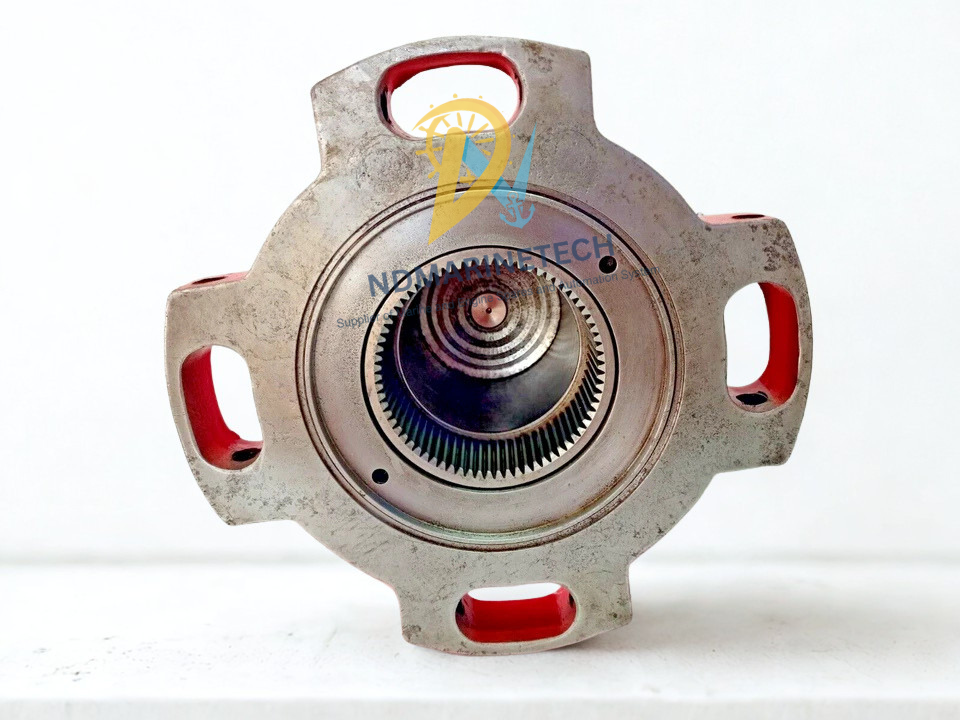

1. Unique Helical Spline Technology: Provides balanced torque without needing big displacement for smooth valve operation.
2. Marine-Grade Durability: Built to withstand sea air and saltwater corrosion, ensuring a long lifespan in deck or engine room settings.
3. Zero Side Loading: The balanced rotational principle removes side forces and bending moments on the valve spindle, increasing valve seat life.
4. Small Footprint: For maritime machinery locations where space is at a premium, but without sacrificing output power.
5. Modular Flexibility: Works with all major types of quarter-turn valves and allows direct attachment of control blocks and position indicators.

Applications

• Marine Valve Remote Control (VRC) systems.
• Ballast water management and cargo handling systems.
• Emergency shutdown and fire-safety valve actuation.
• Onboard fluid transfer and process control.

NDMarineTech Engineer’s Guide:

1. Filtration: These actuators are carefully manufactured. Keep your HPU (hydraulic power unit) to ISO 4406 18/16/13 cleanliness requirements at all times. Oil contamination is the main cause of internal seal bypass.
2. Commissioning: Check the true concentricity of the valve stem during installation. Even with a properly balanced actuator, misalignment leads to early breakdown of the stem seal.
3. Maintenance: If you hear a “chatter” while operating, check the crossover valve settings. The BRC 052-A1 is whisper silent, any vibration is an indication of air in the lines or impeded exhaust flow.
