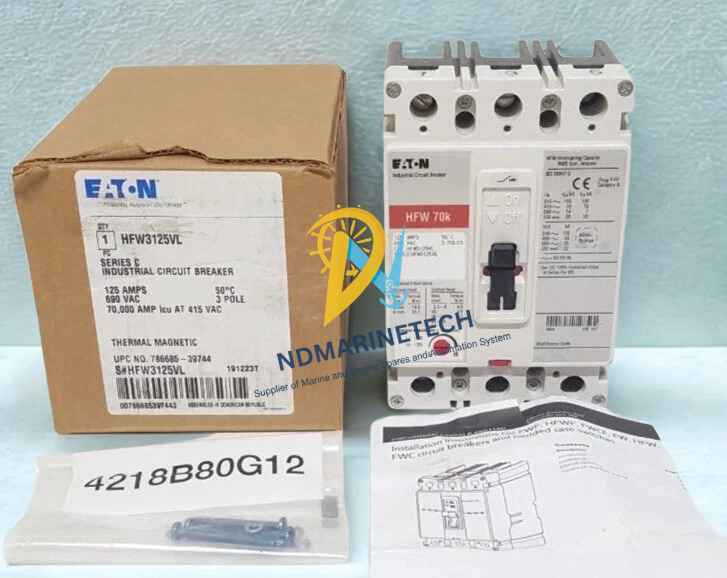

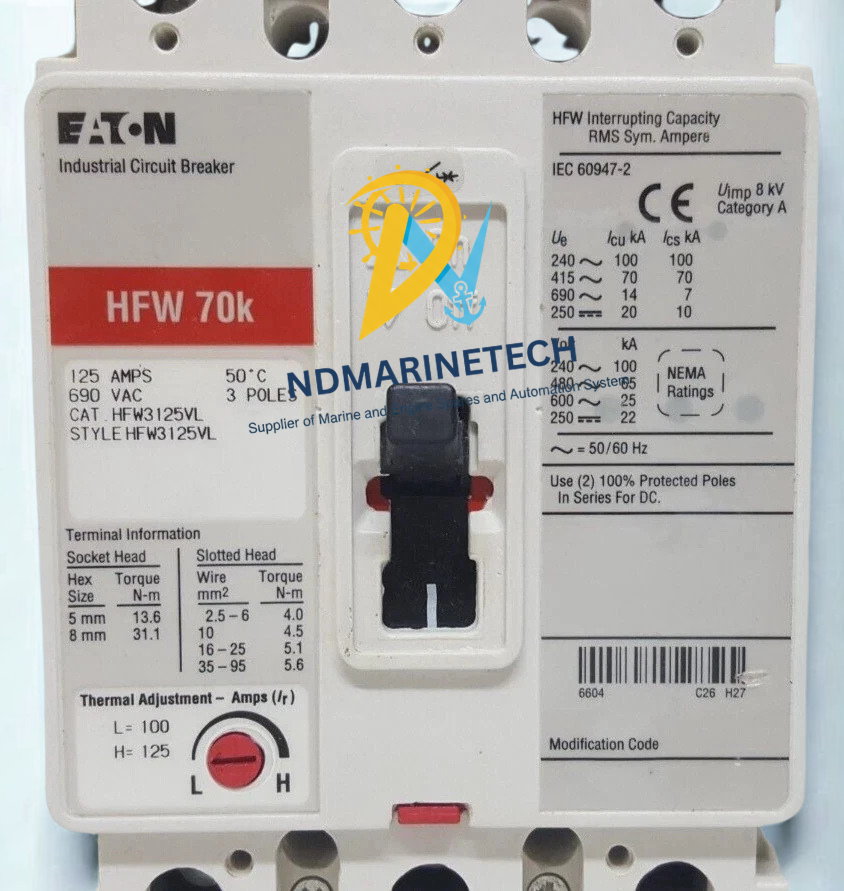

Eaton HFW3125VL 3 Pole 125A Circuit Breaker

Eaton HFW3125VL 3 Pole 125 Amps Circuit Breaker (70kA)

Eaton HFW3125VL is a high performance, industrial-grade Molded Case Circuit Breaker (MCCB) that provides excellent overcurrent and short-circuit protection. This is a 3-pole, 125-amp breaker from Eaton’s famous Series C family, built for high-fault conditions, with an outstanding 70kA interrupting capacity at 415V.

The HFW3125VL is equipped with a strong thermal-magnetic trip unit and high-quality construction, ensuring the utmost operational safety, service continuity and equipment protection. Its tiny footprint makes it perfect for space-constrained electrical panels, naval switchboards and tough industrial machinery applications.

Model Details:

• Model/Type: HFW3125VL

• Manufacturer: Eaton / Cutler-Hammer

• MPN (Manufacturer Part Number): HFW3125VL

• Part Number Cross-References: HFW3125, HFW-3125-VL, HFW3125V

Technical Details:

Main Features

1. 70kA High-Interrupting Capacity – Safely clears high magnitude fault currents safeguarding downstream equipment from catastrophic failure.
2. Marine-Grade Reliability: Designed to tolerate severe vibration, ambient heat and moisture for no nuisance tripping.
3. Thermal-Magnetic Trip Mechanism Good for extended time delay overload prevention and instantaneous short circuit protection.
4. Compact F-Frame Design Maximize panel space savings without sacrificing heavy-duty electrical performance.
5. suited at 50°C: Specially suited for higher ambient temperatures, making it ideal for engine rooms and enclosed industrial control panels.

Where to use?

• Marine Switchboards & Distribution Panels: Essential to the protection of sub-panels and main distribution on offshore rigs, tugboats and commercial vessels.
• Industrial Motor Control Centers (MCCs) Provides reliable branch circuit protection for harsh ventilation systems, compressors and pumps.
• Commercial HVAC Systems Effectively handles huge commercial refrigeration and heating units’ high inrush currents.
• Generator Output Protection Provides safe power distribution and isolation for auxiliary maritime or industrial generators.

Guide by Engineer Expert:

When retrofitting or installing the Eaton HFW3125VL in marine environments or heavy industrial zones, pay close attention to the ‘V’ and ‘L’ designators in the suffix. The ‘V’ indicates a 50°C calibration (as opposed to the standard 40°C industrial calibration). In a cramped ship’s engine room or an unventilated machinery space, ambient temperatures easily spike. Using a standard 40°C breaker here will lead to nuisance thermal tripping under normal loads. The HFW3125VL eliminates this headache.

On Installation: Always use a calibrated torque wrench when securing the terminal lugs. Loose connections create micro-arcing and localized heating, which trick the thermal element into tripping prematurely—or worse, damage the breaker casing. Ensure lugs are torqued strictly to Eaton’s factory manual specifications (typically 120 lb-in for F-frame lugs of this rating).”
