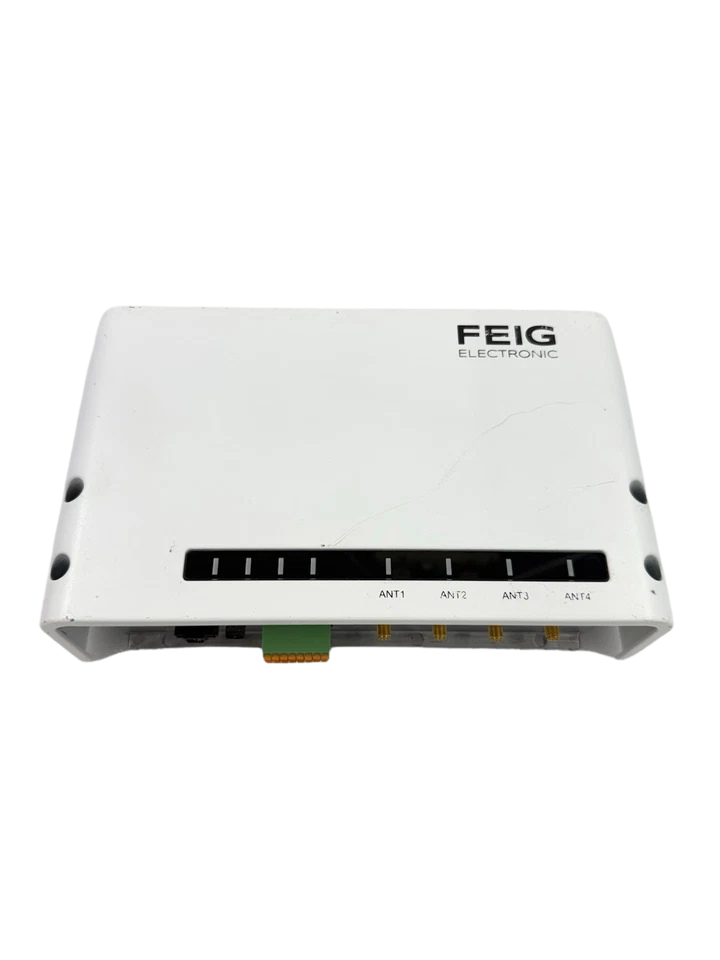

Feig ISC.LRU1002-EU UHF Long Range RFID Reader

The FEIG Electronic ID ISC.LRU1002-EU (MPN: 4127.001.00) is an UHF long-range reader engineered for harsh operational environments, automated manufacturing plants, logistics gantries, and marine shore/vessel intermodal terminal systems. Operating strictly within the European telecommunications band (865 MHz to 868 MHz) in accordance with ETSI EN 302 208, the LRU1002-EU delivers up to 2.0 Watts (33 dBm) RF output power across four internal multiplexed 50-ohm SMA-Female antenna channels.

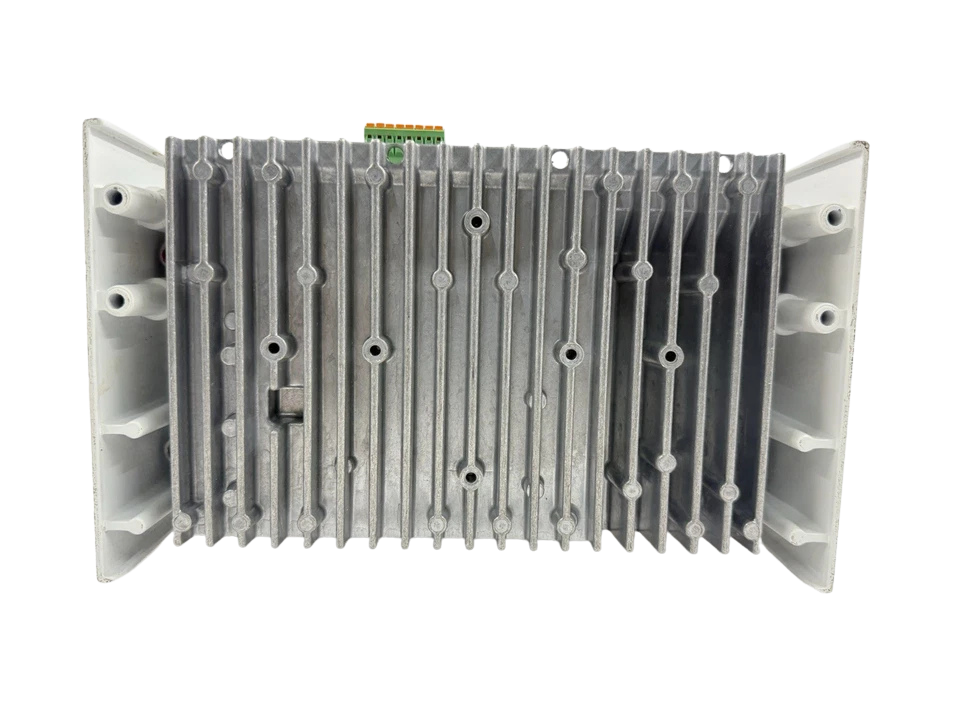

Build with an advanced high-sensitivity receiver architecture, real-time RSSI signal strength tracking, carrier phase angle calculation, and on-board cryptographic key hardware (Secure Element for NXP UCODE DNA and ISO 29167 ciphers), this system excels in environments prone to multi-path reflections and electromagnetic congestion. Encased in a rugged die-cast aluminum housing rated to IP53 (upgradeable to IP64 via specialized cable gland sealing caps), the ISC.LRU1002-EU withstands severe continuous thermal cycling, transient line spikes, and mechanical vibration.

Model Details

• Manufacturer: FEIG ELECTRONIC
• Product Line: OBID i-scan® UHF / ID Identification Stationary Readers
• Model Code: ID ISC.LRU1002-EU

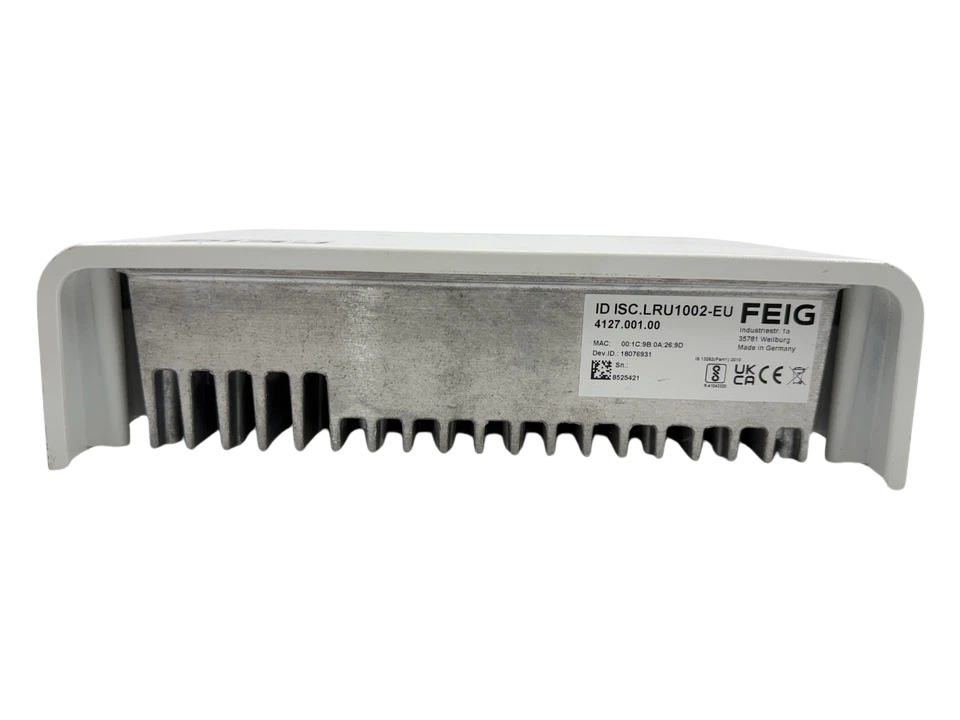

• Manufacturer Part Number (MPN): 4127.001.00 (Standard Commercial Housing)
• Enclosure Variant Cross-Designation: ID LRU1002X-EU (M12/M8 industrial circular connector variant)

Features

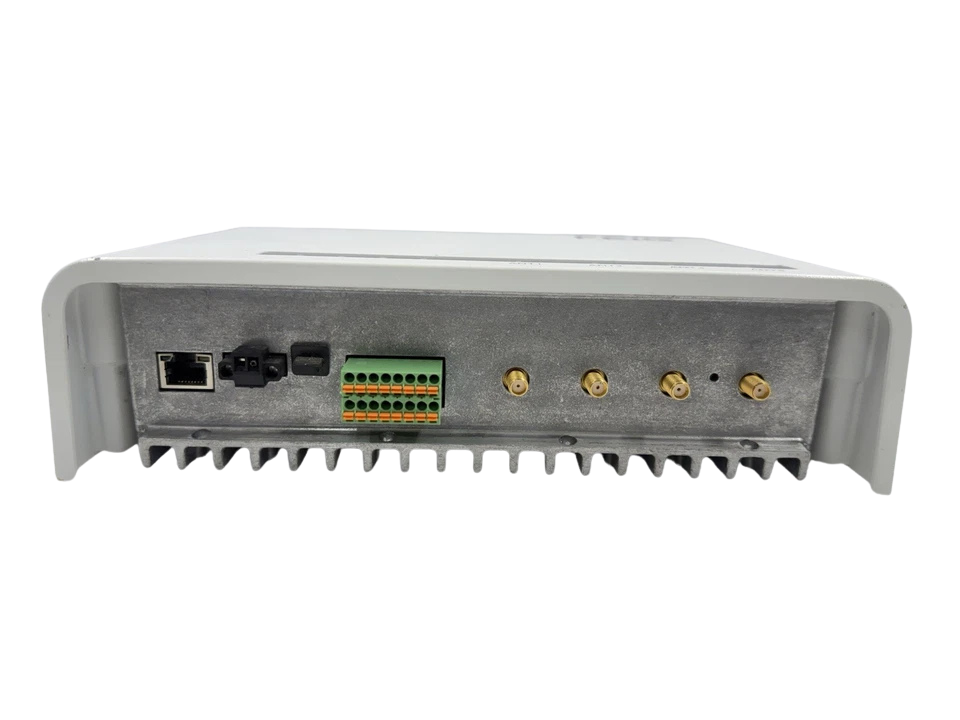

1. High-Power 4-Channel Multiplexed RF Transceiver: Delivers an adjustable 100 mW to 2.0 W (20 dBm to 33 dBm) output power across four software-steered 50 Ω SMA-Female antenna ports, with cascaded external multiplexer support (ID ISC.ANT.UMUX) scaling up to 32 read points.
2. Industrial Noise Immunity & Receiver Sensitivity: High dynamic range signal decoding allows dense reader mode (DRM) operation and long-range transponder acquisition up to 12 meters (40 ft) in high-interference RF environments.
3. Comprehensive Digital Control I/O: Features two opto-isolated solid-state inputs, two optocoupler outputs, and two independent electromechanical relay circuits capable of directly cycling pneumatic gates, LED visual stacks, or interlock relays.
4. Cryptographic Hardware & Tag Protection: Native integration with EPC Gen2v2 (ISO/IEC 18000-63) and ISO 29167 protocols, including an onboard Secure Element for hardware-encrypted authentication keys and Untraceable tag commands.
5. Industrial Communication Suite: Native 10/100 Base-T Ethernet (TCP/IP), RS232, Wiegand interface bus for physical security systems, and USB-OTG port for offline memory stick firmware loading and automated configuration cloning.

Technical Specifications

Compatible Antennas

• FEIG ID ISC.ANT.U270/270-EU: 8.5 dBi circular polarized patch antenna (ideal for gantry and conveyor side-scanning).
• FEIG ID ISC.ANT.U600/270-EU: High-gain lane-spanning directional antenna for vehicle and container portals.
• FEIG ID ISC.ANT.U170/170-EU: Compact antenna for internal chute systems, sorters, and machinery integration.
• Third-Party Antennas: Any standard passive UHF antenna matched to 865–868 MHz with 50 Ω impedance (Kathrein, Times-7, Laird, Huber+Suhner) via SMA or reverse-TNC to SMA low-loss jumpers.

Compatible Host Systems & Software

• Industrial PLC Platforms: Siemens SIMATIC S7-1200 / S7-1500 (via TCP/IP socket blocks or RS232-CP modules), Beckhoff TwinCAT, Rockwell Allen-Bradley ControlLogix.
• Protocols & Middleware: FEIG ISO Host protocol (DLL/SDK for C++, C#, Java, Python), EPCglobal LLRP (Low Level Reader Protocol), ClearStream RFID, Keonn AdvanSafe systems.
• Transponder IC Compatibility: NXP UCODE 7, 8, 9, and UCODE DNA (AES-128 cryptographic engine); Impinj Monza 4, Monza R6, M700, and M800 series; Alien Higgs-3 / Higgs-9; EM Microelectronic EM4325.

Part Number Cross-References

• 4127.001.00: FEIG ID ISC.LRU1002-EU (Standard European ETSI unit)
• 4128.001.00: FEIG ID ISC.LRU1002-FCC (North American FCC Part 15 equivalent, 902–928 MHz)
• 4330.000.00: FEIG ID LRU1002X-EU (M12/M8 industrial circular connector variant)
• 3841.000.00: ID ISC.ANT.UMUX (External 4-to-1 UHF Multiplexer for expansion)
• 4138.000.00: Connector Sealing Cap Assembly (Upgrades protection rating from IP53 to IP64)

Frequently Asked Questions

What is the maximum read distance of the FEIG ISC.LRU1002-EU?

The reader delivers a maximum reliable read range of up to 12 meters (approx. 40 feet). The practical read field is dictated by antenna gain (e.g., 8.5 dBi patch), coaxial cable attenuation, tag transponder dimensions, and the surface composition (metal/liquid presence) of the tagged asset.

Can the ISC.LRU1002-EU operate within North America or the US?

No. The ISC.LRU1002-EU is factory-calibrated for the European ETSI frequency band between 865.6 MHz and 867.6 MHz. For deployments in the United States, Canada, or other FCC-governed regions, use model ID ISC.LRU1002-FCC (MPN: 4128.001.00), which operates between 902 MHz and 928 MHz.

Can all four antenna ports transmit simultaneously?

No. Standard multi-port UHF readers utilize an integrated high-speed electronic RF switch (multiplexer). The LRU1002 sweeps through enabled antenna channels sequentially. You can configure individual dwell times, RF output powers, and target tag populations per antenna port through the FEIG ISO Host software or configuration parameters.

Does the reader directly switch 230V AC warning sirens or gate motors?

No. The on-board relays are dry-contact, low-voltage outputs rated for a maximum of 24 V DC at 1.0 A switching current. To switch line-level AC motors, stack lights, or hydraulic barrier solenoids, use the reader’s 24 V relay outputs to drive an intermediate industrial DIN-rail interposing contactor or safety relay.

How does the Config-Cloning feature work in the field?

The reader supports automated USB configuration cloning via its USB mini-port. Maintenance technicians can export all network parameters, power levels, and filter arrays from a master reader onto a standard USB flash drive. Plugging the flash drive into a replacement or secondary unit clones the setup automatically without requiring a laptop or network discovery tool on site.
