Fireye 45RM1 1003 IR Self-Checking Flame Scanner Detector

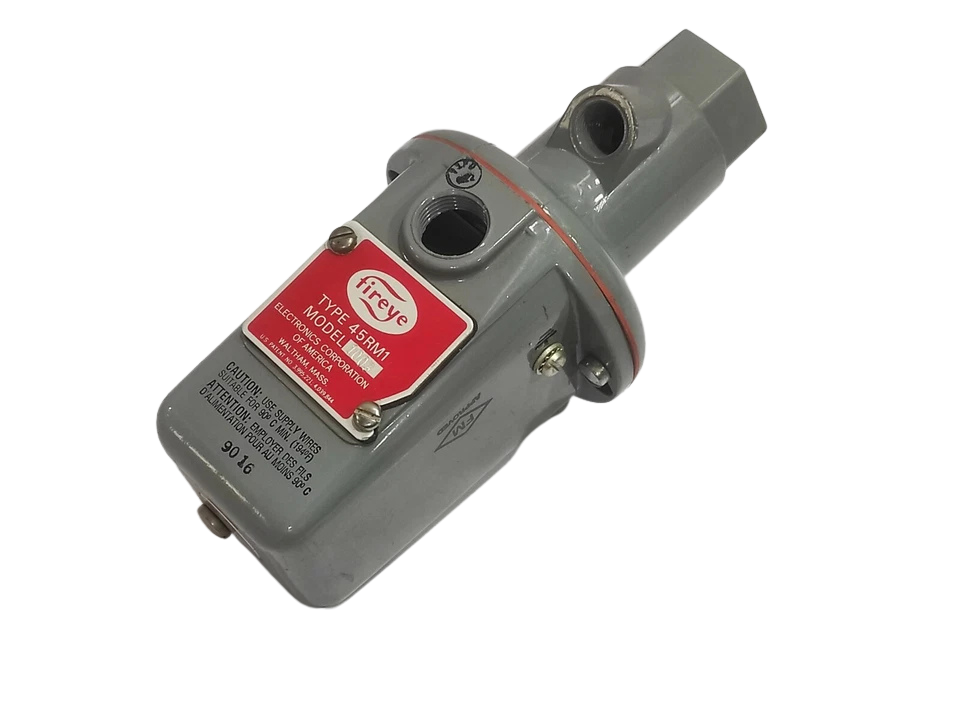

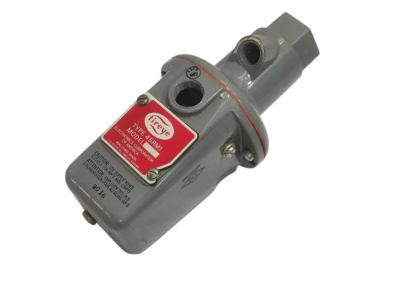

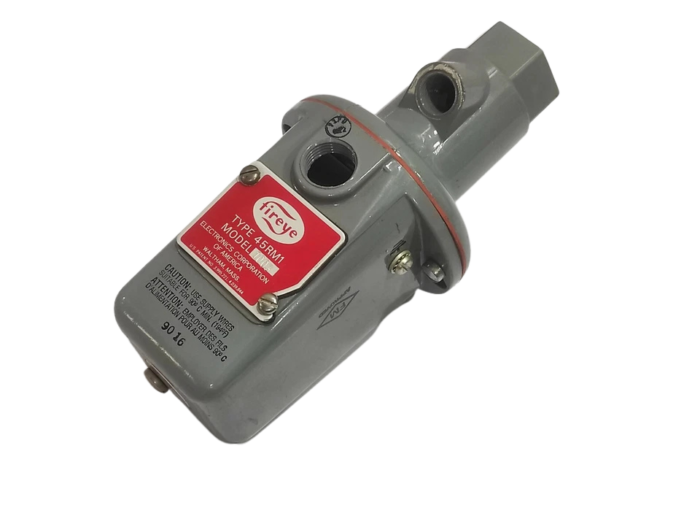

Fireye 45RM1 1003 Infrared Self-Checking Flame Scanner

The Fireye 45RM1 1003 is a heavy-duty, high-discrimination infrared (IR) flame detector sensor engineered specifically for commercial and industrial burner management systems (BMS). As a critical safety component in multi-burner environments, this self-checking scanner continuously senses the modulation frequencies inherent in combustion flames, providing reliable flame-on/flame-off data to preventing catastrophic fuel accumulation.

Operating on a specialized infrared spectrum, the 45RM1 1003 features an integrated, magnetically driven mechanical shutter that interrupts the optical path several times per minute. This true self-checking loop allows the associated amplifier to immediately identify sensor component failure, photodiode degradation, or short-circuits, instantly triggering a safety shutdown sequence if an anomaly occurs.

Model Details:

• Brand Name: Fireye
• Product Category: Flame Safeguard & Burner Management Systems
• Model Type: 45RM1
• Model Number (MPN): 45RM1-1003
• Thread Type: BSP (British Standard Pipe)
• Sensor Technology: Infrared (IR) with Adjustable Frequency Discrimination

Features at a Glance

1. Dynamic Self-Checking Loop: An internal electromagnetic shutter periodically interrupts the optical path, ensuring hardware integrity and avoiding harmful failure-to-open failure situations.
2. High-Discrimination IR Spectrum Filtering: Monitors the flicker frequency of the target burner flame, and prevents misleading “flame-on” signals due to background furnace radiation or adjacent burners.
3. Rugged Marine-Grade Enclosure: Housed in a heavy-wall die-cast aluminum enclosure with high-temperature oil-resistant seals intended to withstand windbox pressure and severe vibrations.
4. Adjustable Sensitivity Matrices Internal 16-position tuning pot to set optimum pulse frequency response to specific burner geometry and fuel composition.
5. Quick-Disconnect Maintenance Flange: Incorporates a dual-screw keyhole mounting method that enables for speedy removal of the housing for optical lens cleaning without affecting the sight-pipe alignment.

Specifications: Fireye 45RM1 1003

Compatible Equipment Models:

• Flame Safeguard Control Assemblies: Fireye 25SU3 Series (specifically sub-models 25SU3-5166 and 25SU3-5168).
• Amplifier Cards: Fireye 25SU5 series high-discrimination and high-sensitivity amplifier racks.
• Accessories: 60-1664-4 Swivel Mount (BSP), 35-127-3 Heat Insulating Nipple, and 60-1199-2 Sealing Quartz Window assembly.

Target Applications

1. Marine auxiliary boilers and exhaust gas economizers (EGE) on merchant vessels.
2. Pulverized coal-fired power boilers.
3. Heavy fuel oil (HFO), marine diesel oil (MDO), and natural gas-fired industrial furnaces.
4. Multi-burner chemical incinerators and refinery cracking furnaces.
5. Co-generation utility plants and district heating boiler loops.

Part Number Cross-References

• Fireye Equivalent: 45RM1-1003, 45RM1-1003-BSP
• Alternative Related Formats: 45RM1-1001 (NPT equivalent baseline)
• Legacy Replacements: Crosses with older system configurations when matched with upgraded 25SU3 amplifiers.

Frequently Asked Questions

What is the primary difference between Fireye 45RM1 and 45UV5 scanners?

The Fireye 45RM1 utilizes a solid-state infrared (IR) photodiode matrix designed to detect the modulation frequencies of coal, heavy oil, and complex gas flames. The 45UV5 utilizes a gas-discharge tube optimized purely for shortwave ultraviolet (UV) radiation common in clean-burning gas or light distillates. IR scanners provide much higher discrimination in heavy-smoke or pulverized-fuel conditions.

Why is my Fireye 45RM1 1003 throwing a flickering shutter fault?

A shutter fault indicates that during the mechanical closure phase of the internal self-checking shutter, the amplifier still registered a flame signal. This is caused by either a physically jammed shutter mechanism (due to severe vibration or overheating) or an internal electronic short circuit. The scanner must be removed, cleaned, and benchmarked.

Can I replace a 1-inch NPT scanner with the 45RM1-1003 model?

The 45RM1-1003 model is built explicitly with 1-inch BSP (British Standard Pipe) mounting threads. It cannot be directly threaded onto an NPT sight pipe without an approved BSP-to-NPT adapter or an explicit BSP companion mounting flange (like the Fireye 60-1664-4 Swivel Mount). Forcing NPT threads onto this unit will ruin the aluminum casting.
