Honeywell 51199931-100 SPS5711 TDI 140521 Battery Module

Honeywell TDI 140521 P/N 51199931-100 Power Supply / Battery Module SPS5711

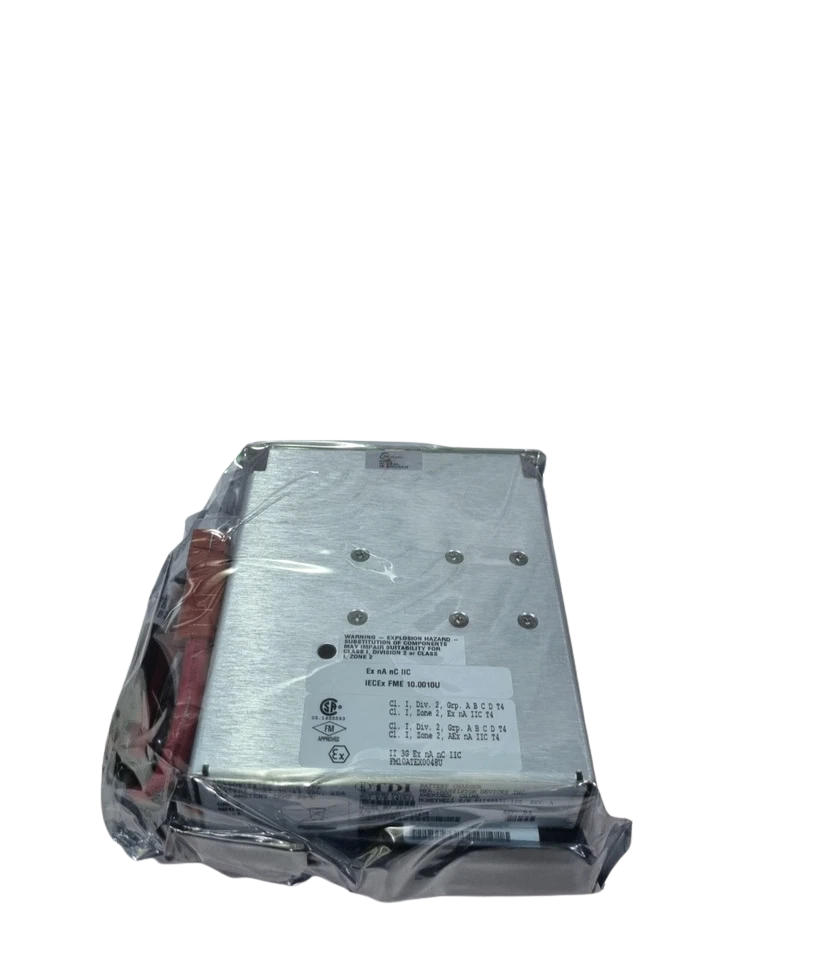

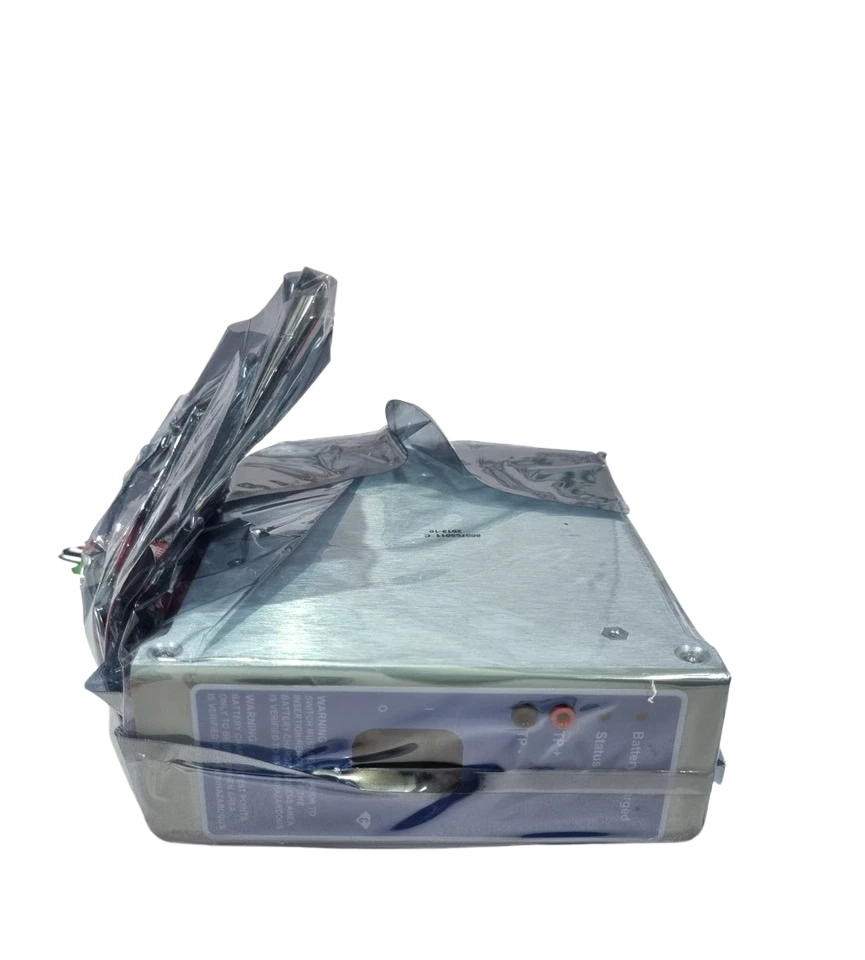

The Honeywell 51199931-100 (OEM Part Number: TDI 140521, Model: SPS5711) is a high-availability, rack/panel-mounted industrial battery charger and DC backup power module manufactured by Transistor Devices Inc. (TDI Power) for Honeywell process automation architectures. Engineered specifically for mission-critical installations—such as Honeywell TotalPlant Solution (TPS), TDC 3000, and legacy Experion Process Knowledge System (PKS) rack assemblies—this module maintains continuous DC bus voltage during primary AC or supply-side blackout conditions.

Operating across a nominal 24–26 VDC rail with an intelligent charge/float profile supporting up to 30–43 VDC on the battery port, the SPS5711 delivers up to 20 A continuous current. The ruggedized steel enclosure integrates built-in transient suppression, internal current limiting, and low-impedance galvanic isolation designed to protect sensitive control processors, High-Performance Process Managers (HPM), and Advanced Process Managers (APM) from power drops and switching transients.

Model Details

• Manufacturer: Honeywell
• Honeywell Part Number (P/N): 51199931-100
• TDI Engineering Part Number: 140521 / SPS5711
• Hardware Revisions Available: Rev B, Rev C, Rev D
• Form Factor: Proprietary Chassis Module / Subrack Slide-in Assembly

Key Features

1. Continuous 20 A High-Current Output: Delivers steady, uninterruptible 20 A direct-current capacity to stabilize distributed control nodes and critical field termination assemblies.
2. Dynamic Voltage Regulation: Seamlessly manages input fluctuations between 24 VDC and 26 VDC while floating and conditioning backup batteries across 30 VDC to 43 VDC.
3. Marine & Heavy-Industrial Hardening: Features conformal-coated internal circuit boards and a ruggedized metal frame designed to resist continuous structural vibration, harmonic resonance, and airborne saline humidity.
4. Fail-Safe Electrical Protection: Incorporates active overvoltage clamping, foldback short-circuit protection, thermal-runaway shutdown, and low-loss isolation diodes.
5. Drop-In Mechanical Compatibility: Direct mechanical slide-in architecture with self-aligning edge/terminal block connectors allows rapid replacement without rewiring control cabinets.

Compatibility

• Honeywell TDC 3000: Process Manager (PM), Advanced Process Manager (APM), High-Performance Process Manager (HPM).
• Honeywell TotalPlant Solution (TPS): Global User Station (GUS) cabinet DC distribution bays and Node Interface Command assemblies.
• Honeywell Experion PKS: Legacy migration chassis, Series A I/O subsystem racks requiring external battery hold-up conditioning.
• Power Enclosure Assemblies: Transistor Devices Inc. SPS series sub-racks (SPS5710, SPS5711, SPS5712, SPS5713 system chassis).

Part Number Cross-References

• Honeywell Primary: 51199931-100 (Revisions A, B, C, D)
• Transistor Devices Inc. (TDI): TDI 140521, SPS5711, SPS5711-REV-D
• System Power Complement P/Ns: 51198685-100 (SPS5710-2-LF), 51399930-100 (SPS5713), 51198651-100 (SPS5785 / TDI 142511)

Applications

• Marine Propulsion & Vessel Automation: Dynamic positioning (DP) cabinets, engine room alarm monitoring systems (AMS), and thruster automation panels where unconditioned DC supply drops risk vessel control.
• Offshore Oil & Gas Platforms: Central DCS racks installed in Zone 2 hazardous areas, emergency shutdown systems (ESD), and supervisory process control loops.
• Petrochemical & Refining Facilities: Uninterrupted safety-instrumented systems (SIS) and critical turbine fuel-gas monitoring loops.
• Power Generation Facilities: Combined-cycle gas turbine (CCGT) excitation control systems, boiler feedwater loop automation, and substation SCADA telemetry racks.

Frequently Asked Questions

What is the primary operational difference between the Honeywell 51199931-100 and standard 24V DIN-rail power supplies?

The 51199931-100 / SPS5711 is not an open-frame industrial switch-mode supply; it is a dedicated rack-level battery charging and backup DC bus conditioning module designed specifically for Honeywell TPS and TDC 3000 DCS hardware. It manages transition switching, current-limited battery charging (up to 43 VDC), and direct integration into proprietary Honeywell DCS power backplanes without causing ripple interference on analog I/O loops.

Can I replace an SPS5711 Revision B or C with a Revision D module?

Yes. The Honeywell 51199931-100 Revision D is completely backward-compatible with Revisions A, B, and C in form, fit, and electrical function. Revision D introduces enhanced thermal dissipation paths on the secondary rectifier circuits and upgraded transient suppression components.

What are the symptoms of an aging or failing SPS5711 module in an active rack?

Early signs of degradation include elevated AC ripple (>150 mV RMS) across the 24VDC system bus, battery bank undercharging alarms on the operator console, or thermal trip interruptions during sudden step-load increases. If high-frequency hum or localized chassis discoloration is detected, remove and inspect the module immediately.
