MTL4850 HART Multiplexer Eaton MTL | 32-Channel SIL3 Interface

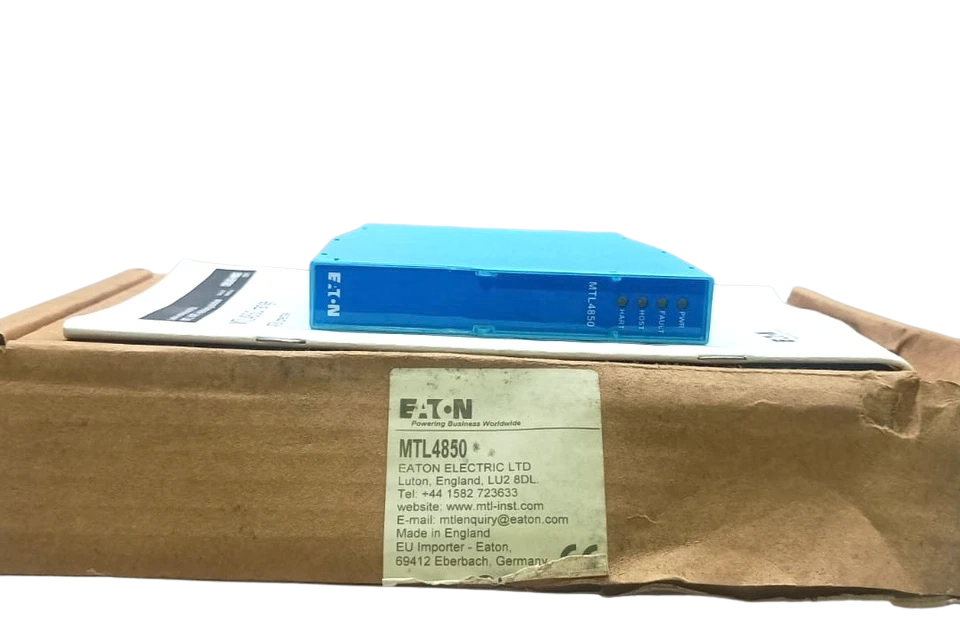

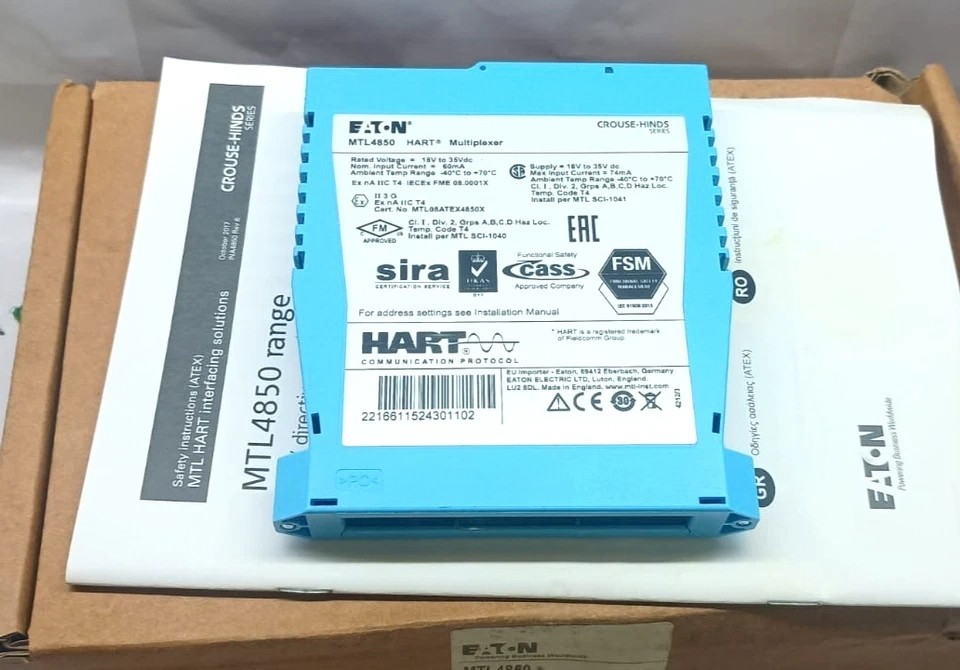

MTL4850 32-Channel HART Multiplexer Module

The MTL4850 HART Multiplexer is a specialized communication processor engineered to extract continuous real-time diagnostic, parameterization, and secondary measurement data from smart field transmitters and positioners without interrupting critical 4–20 mA process safety control loops. Designed as a modular 32-channel unit, the MTL4850 bridges digital highway addressable remote transducer (HART® Rev 5 to 7) field signals directly into RS485 multi-drop networks for supervisory DCS, PLC, and Computerized Asset Management Systems (AMS).

Operating across a nominal industrial range of 18V to 35V DC (drawing typically 60mA to 74mA max depending on supply line characteristics and line drops), the MTL4850 combines an integrated isolated power conditioner, high-speed switching matrix, and dedicated HART modem inside an ultra-compact enclosure. Evaluated for functional safety under IEC 61508, it is fully rated for safety-instrumented systems (SIS) up to SIL3 loop integration. Because the module uses isolated, dual-capacitor coupling on each leg of every channel, catastrophic faults on the multiplexer cannot degrade or ground the critical 4–20 mA loop controlling marine propulsion, offshore flare systems, or refining separation units.

Model Details

• Manufacturer: Eaton Electric Limited / MTL Instruments
• Base Model: MTL4850
• Manufacturer Part Number (MPN): MTL4850 (Standard Blue Enclosure for general process and backplane mounting)
• OEM Variant Reference: MTL4850-TR / Triconex 4850 (Black Enclosure specifically keyed for Schneider Electric / Triconex safety systems)

Key Features

1. SIL3 Functional Safety Compliance: Fully assessed to IEC 61508 for non-interfering direct attachment to safety-critical loops up to SIL3 with complete channel-to-channel isolation.
2. High-Density 32-Channel Modularity: Consolidates 32 separate 2-wire or 4-wire HART field instruments per module into a single multidrop RS485 loop, expandable up to 2,016 devices per network port.
3. Galvanic & Capacitive Loop Isolation: Dual capacitive isolation on both connection legs (50V DC channel-to-channel and channel-to-earth) completely eliminates ground loop risks and loop loading.
4. Auto-Baud Multi-Drop Serial Interface: High-speed 2-wire RS485 port auto-detects 1,200 to 38,400 baud rates with hardware DIP addressing up to 64 nodes.
5. Comprehensive Diagnostic Status LEDs: Multi-state visual indications for immediate power verification (Green), module and scanning states (Red), host communications (Amber), and field loop polling status (Yellow).

Applications

• Marine Automation & Propulsion Monitoring: Engine room smart pressure transmitters, auxiliary boiler draft instrumentation, scrubber fluid monitoring, and fuel rack control loops.
• FPSO & Offshore Platforms: Wellhead monitoring, emergency shutdown (ESD) valve positioner diagnostics, and separator tank hydrostatic level loops without breaching safety integrity barriers.
• Downstream Petrochemical & Refining: Remote calibration and predictive maintenance data extraction on hazardous-area flowmeters, guided-wave radars, and multi-variable temperature probes.
• Chemical Batch Processing: Online dynamic monitoring of valve signature profiles and sensor drift prevention on toxic substance feed lines.
• Power Generation & Steam Distribution: High-pressure steam turbine header tracking, feedwater valve travel diagnostics, and condenser vacuum measurements.

Compatible Backplanes & Carriers

• CPH-SC16 / CPH-SC16R: 16-channel intrinsic safety backplane for MTL4541 / MTL4546 isolators with direct MTL4850 integration.
• CPH-SC32 / CPH-SC32R: 32-channel high-density backplane for dual-channel MTL4544 / MTL4549 isolators.
• HMP-HM64: 64-channel interface backplane hosting up to two MTL4850 modules linked via ribbon cables to remote termination units.
• HTP-SC32 / HTP-SC32-P250: Standalone 32-channel DIN-rail carrier unit for non-IS general purpose loops.
• HCU16 / HCU16AO: 16-channel HART connection and HART filtering units.

Part Number Cross-References

• MTL 4850 (Standard format with space)
• MTL4850 (Standard continuous MPN)
• MTL4850-TR (Triconex OEM specific variant)
• Triconex 4850 / Invensys 4850
• Eaton MTL MTL4850
• Direct Alternative/Companion Unit: MTL4854 (4-channel internal concurrent modem variant for high-throughput valve diagnostics)

Frequently Asked Questions

Does the MTL4850 interfere with active 4–20 mA process safety trip signals?

No. The MTL4850 is independently certified to IEC 61508 for SIL3 applications. It is coupled to field instrument loops via dedicated series capacitors on both signal lines. It extracts digital high-frequency HART FSK communication packets passively without altering, dropping, or drawing current from the critical 4–20 mA analog control signal.

Can the MTL4850 be used in hazardous gas environments on offshore platforms?

Yes. The module holds IECEx and ATEX certifications for mounting in Zone 2 hazardous areas inside suitable IP54-rated industrial enclosures. For instruments installed in Zone 0 or Zone 1 locations, the MTL4850 seamlessly integrates with MTL4500 series intrinsically safe isolators on CPH backplanes to guarantee certified explosion protection.

What is the maximum number of field instruments supported by one MTL4850 module?

A single MTL4850 handles up to 32 separate HART field instruments. By multidropping up to 63 MTL4850 modules across an RS485 communication line, an asset management system can scan and monitor up to 2,016 individual smart instruments from a central engineering station.

What is the primary difference between the MTL4850 and the MTL4854?

The MTL4850 contains a single internal HART modem that sequentially scans all 32 channels. The MTL4854 contains four separate internal modems, enabling simultaneous multichannel interrogation—ideal for high-bandwidth tasks such as running dynamic travel tests on smart valve positioners while uninterrupted scanning continues on the remaining loops.

Can the MTL4850 auto-detect RS485 serial communication settings?

Yes. The MTL4850 features built-in auto-baud detection that dynamically synchronizes with host asset software speeds at 1,200, 9,600, 19,200, or 38,400 baud without requiring manual dip-switch reconfigurations for transmission speed.
