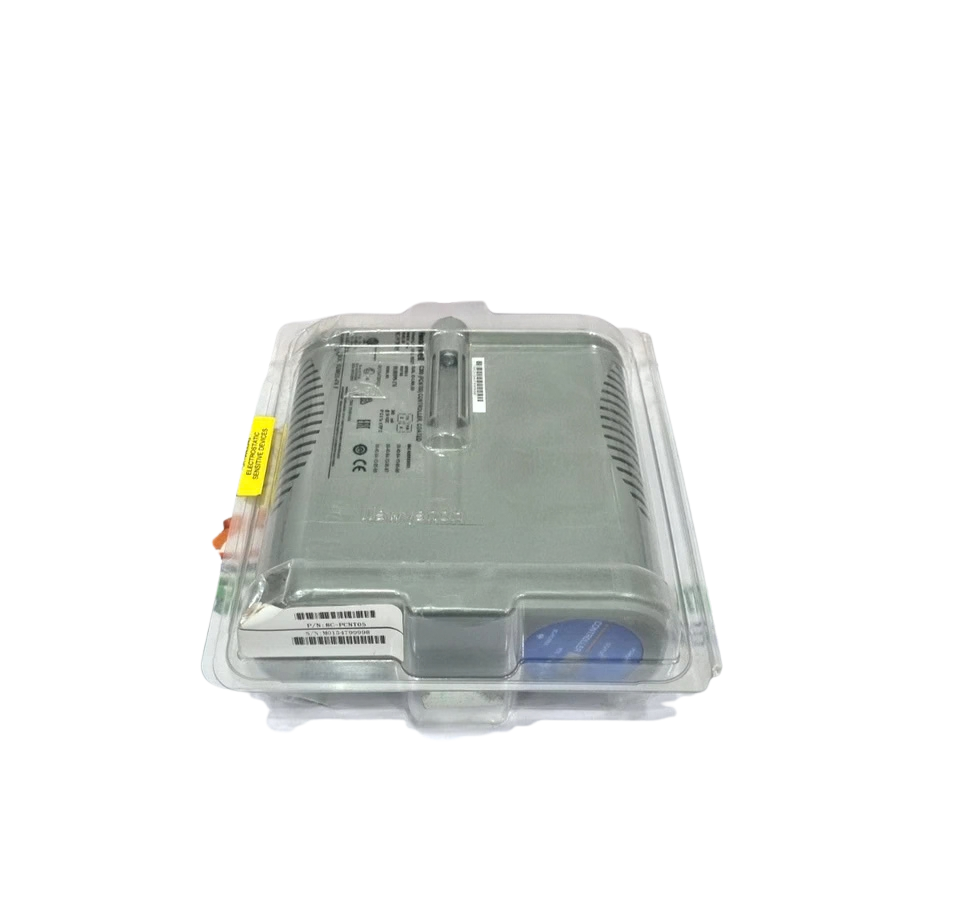

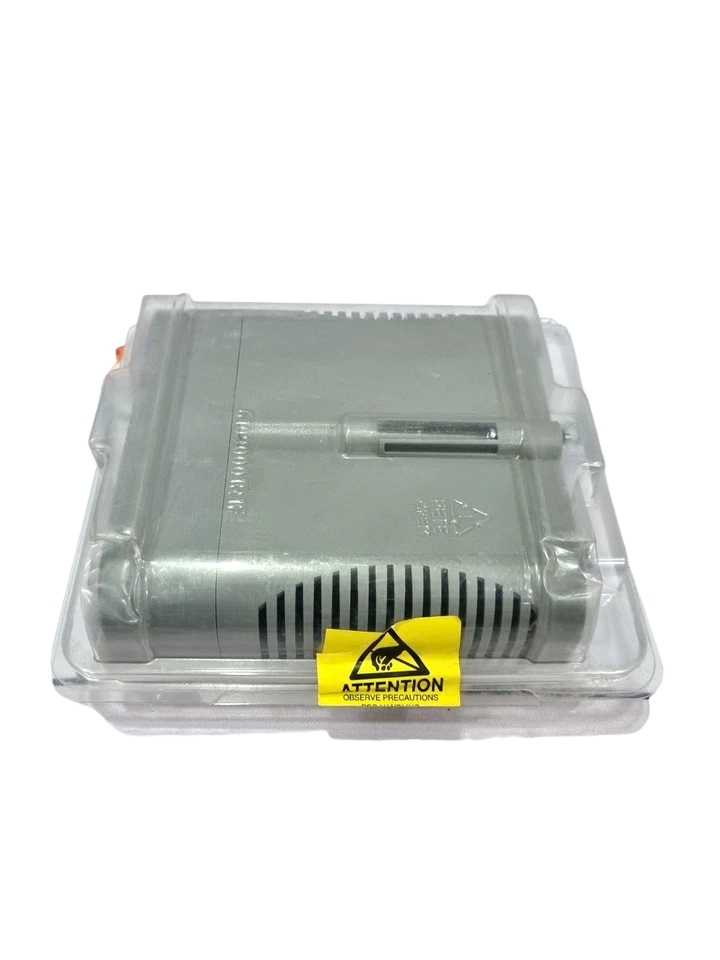

Honeywell 8C-PCNT05 Experion C300 V5 Controller Module

Honeywell 8C-PCNT05 Series 8 C300 V5 Controller Module (Conformal Coated)

The Honeywell 8C-PCNT05 (Assembly MPN: 50188999-176) is an industrial control processing unit designed for deterministic execution of continuous control strategies, batch handling, and sequential logic within the Honeywell Experion® Process Knowledge System (PKS) architecture. Manufactured specifically for the Series 8 platform, this C300 Version 5 (V5) controller mounts vertically on standard Series 8 Carrier backplanes (8C-TAIXA1 / 8C-SHD001 / 8C-CBD001).

Engineered to operate reliably under extreme conditions, the 8C-PCNT05 incorporates factory-applied conformal coating (G3 ISA S71.04 severity level compliant) to resist corrosive atmospheres, airborne contaminants, and high relative humidity commonly found in maritime machinery spaces, floating production storage and offloading (FPSO) units, offshore drilling platforms, and coastal chemical plants.

Model Details

• Series: Series 8 I/O & Control Hardware
• Hardware Type: C300 Execution Processor (Controller Engine)
• Firmware Baseline: Experion PKS R500 / R510 / R520 series (V5 runtime target)
• Processor Architecture: Dual-core deterministic real-time RISC execution engine
• Memory Integrity: Error-Correcting Code (ECC) SDRAM with non-volatile Flash retention for bootloader and cold-start parameter blocks
• Redundancy Protocol: 1:1 hardware redundancy via high-speed, point-to-point dedicated redundancy cable link (direct memory mirroring at sub-millisecond execution cycles)

Technical Specifications

Terminal & Port Allocations

• FTE A (Port A): RJ-45 connection, IEEE 802.3 100Base-TX full duplex, assigned to primary Experion Fault Tolerant Ethernet network trunk.
• FTE B (Port B): RJ-45 connection, IEEE 802.3 100Base-TX full duplex, assigned to secondary Experion FTE tree for cable-fault path protection.
• Redundancy Cable Port: High-speed serialized LVDS channel interconnecting adjacent redundant partner C300 controller for synchronous cache transfer.
• Carrier Bus Rails (Backplane): Internal high-speed parallel bus carrying dual-redundant 24 VDC control power and dual IOLINK channels routing out to field termination assemblies (FTA) and I/O carrier drops.

Part Number Variations

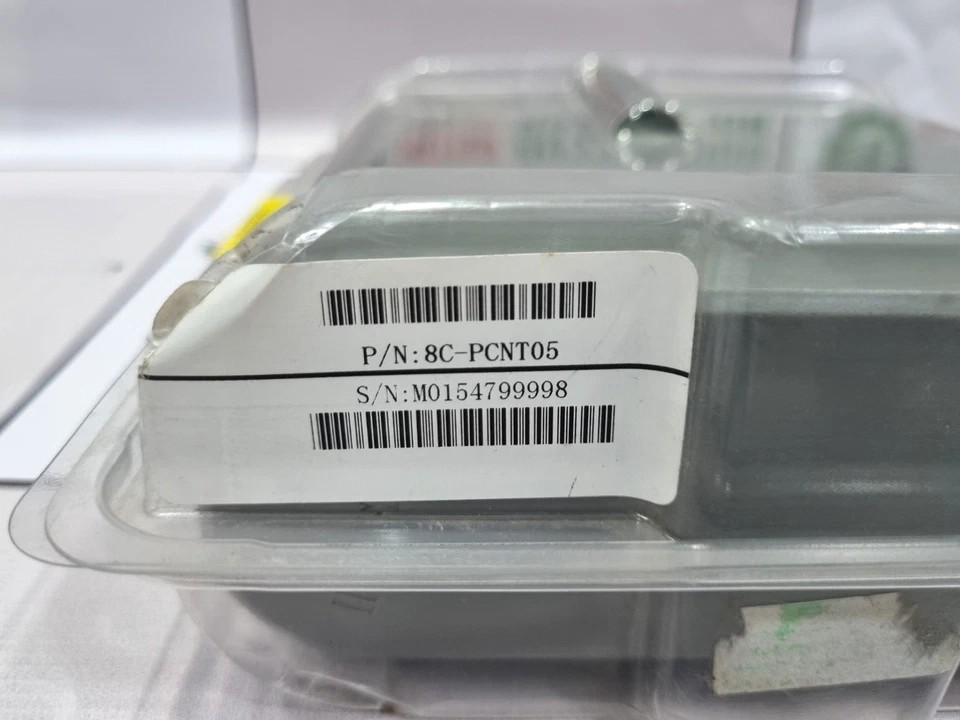

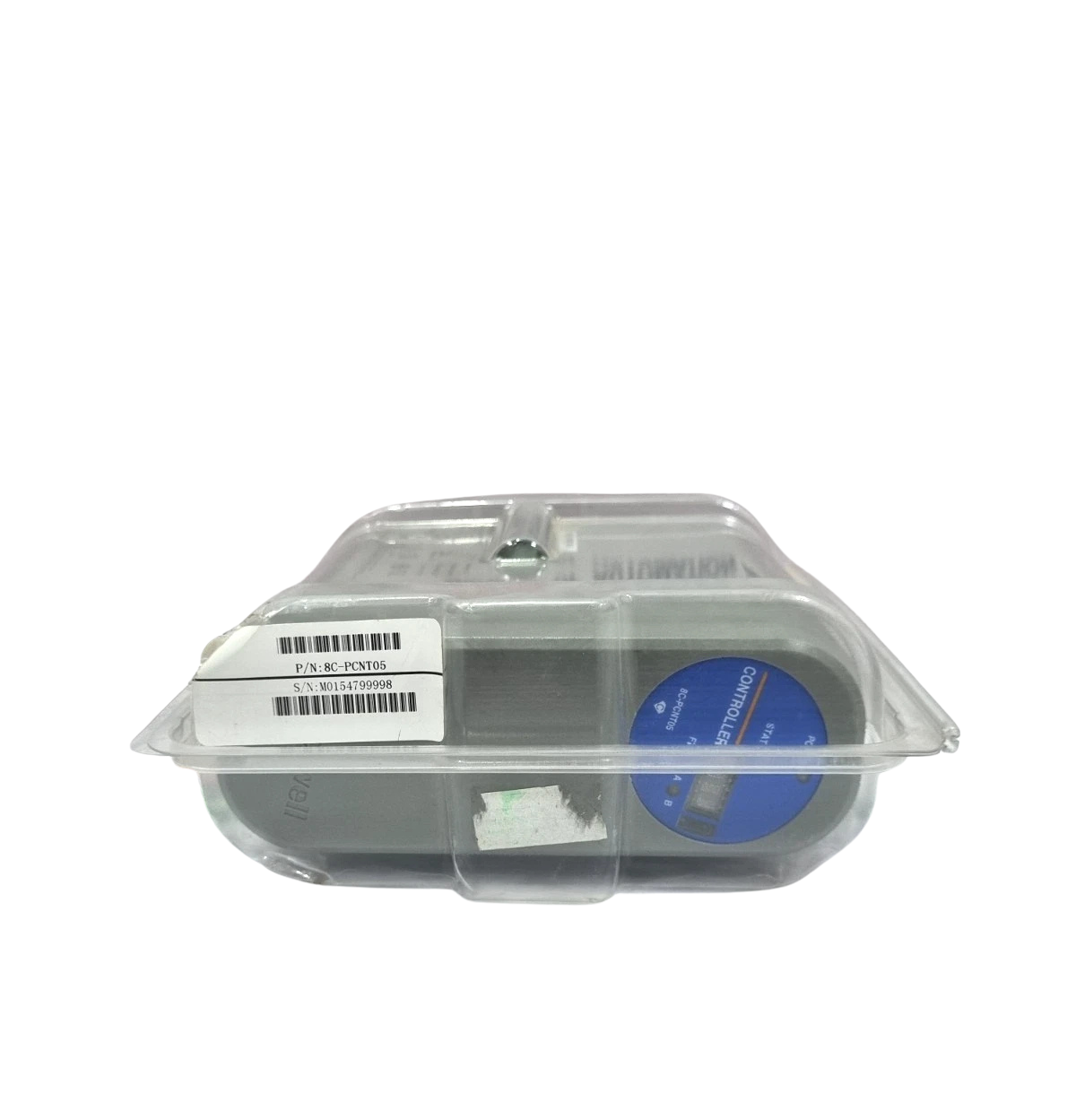

• Model Number: 8C-PCNT05

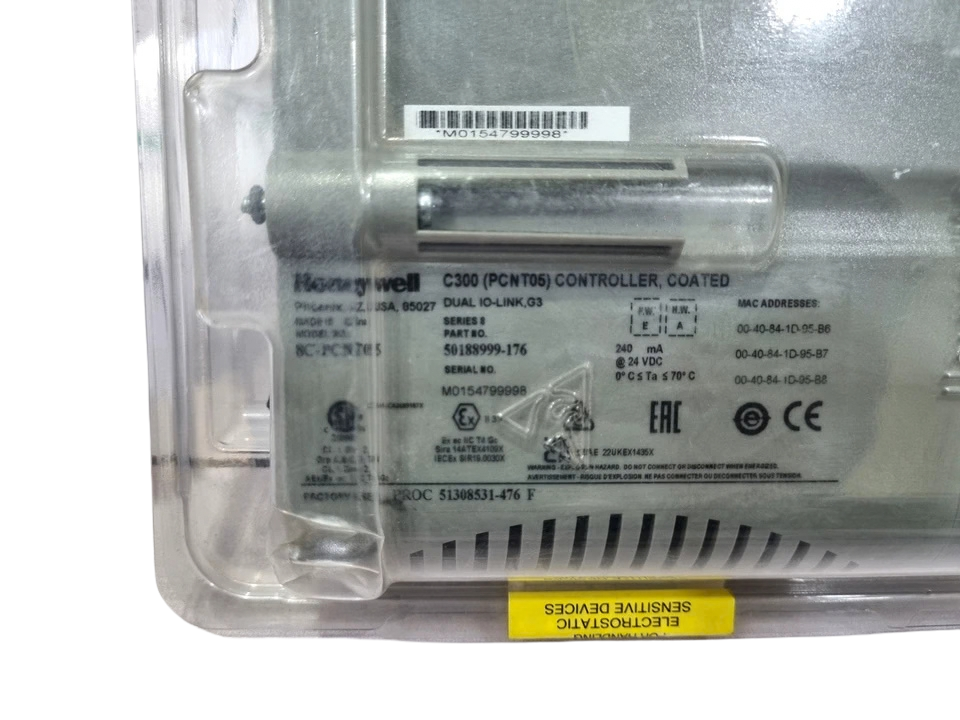

• Factory Spares Assembly Number: 50188999-176 (Coated Version 5)
• Legacy/Alternative Production Stamped P/N: 50188999-076
• Non-Coated Variant Reference: 8C-PCNT02 / 50188999-100 (Uncoated baseline—not recommended for marine/offshore environments)

Key Features

1. Version 5 Advanced Control Engine: Executes advanced regulatory control, custom Function Block Diagrams (FBD), sequence blocks, and standard complex logic loops with deterministic deterministic cycle times down to 10 ms.
2. Corrosion-Proof G3 Conformal Coating: Specially treated substrate and component layers mitigate the risk of dendritic whiskering and chemical corrosion caused by airborne sulfur compounds, chloride salts, and ammonia.
3. Native Fault Tolerant Ethernet (FTE): Integrated dual-port hardware-level Ethernet interface continuously handles network multi-homing and single-point cable breaks without process disruption.
4. Hitless 1:1 Hardware Redundancy: Automatic, state-synchronized switchover occurs within a single execution cycle without bumped analog outputs, missed interlocks, or communication dropouts.
5. In-Service Firmware Migration: Supports online firmware update capability while redundant, eliminating the requirement to shut down operational processes during DCS upgrades.

Applications

• Offshore Vessel & Marine Automation: Main engine auxiliary monitoring, dynamic positioning power management, cargo handling controls, marine boiler automation, and ballast water treatment systems.
• Oil & Gas / FPSO Facilities: Wellhead separation control, gas compression packages, flare gas management, and topside safety-critical process automation.
• Petrochemical & Continuous Refining: Distillation column control, continuous blending units, hydrocracking reactors, and utility distribution networks.
• Power Generation Facilities: Combined-cycle gas turbine balance-of-plant (BOP), continuous emissions monitoring (CEMS), and demineralized water plant control.

Marine Engineer’s Installation Guidelines

• Vertical Carrier Orientation: Series 8 hardware depends on natural convective airflow. Always mount the 8C-PCNT05 carrier on a rigid, vibration-isolated vertical DIN rail inside an IP54 or NEMA 4X steel enclosure. Never install horizontally, as heat pockets build behind the inner board heatsink and shorten the life of onboard capacitors.
• Grounding & Shielding: In ships and offshore rigs where 440 VAC IT ungrounded networks are common, ensure the Experion system ground (protective ground) maintains an isolated low-impedance connection to the hull/structure (target < 1.0 Ohm). Loop analog field shields strictly at the FTA shield terminals—never ground field cable shields at both the field device and the marshaling cabinet.

Frequently Asked Questions

What makes the 8C-PCNT05 different from the standard 8C-PCNT02 controller?

The 8C-PCNT05 is explicitly engineered with factory-applied conformal coating on all internal circuit boards and exposed surface-mount electronics. This protects against moisture, salt-laden marine air, and airborne corrosive contaminants (ISA S71.04 Class G3). The 8C-PCNT02 lacks this protective barrier and is suited only for climate-controlled, dry control rooms.

Can I hot-swap the 8C-PCNT05 while the system is powered and running?

Yes. The Honeywell Series 8 platform supports full Removal and Insertion Under Power (RIUP). Provided the redundant partner C300 controller is online, synchronized, and displaying a stable primary status, you can pull the failed module and insert a replacement 8C-PCNT05 directly without turning off backplane power or disrupting running process loops.

Can an 8C-PCNT05 be used as an exact replacement for an older 50188999-176 part number?

Yes. Part number 50188999-176 is the internal printed assembly and spare part number assigned by Honeywell for the 8C-PCNT05 coated module. They are identical in form, fit, and operational firmware compatibility.

Does this module require a software license key to unlock redundant operation?

Redundancy requires licensing at the Experion Control Builder / Configuration server level (Control Processor Redundancy license). The 8C-PCNT05 controller hardware itself is redundancy-ready out of the box, requiring only connection to the redundant carrier slot and the dedicated high-speed redundancy cable.

What are the steps to recover a module showing a solid red FAIL LED?

First, ensure that the redundant partner is holding primary control. Extract the module from the carrier base, inspect the backplane multi-pin interface for bent pins or debris, and reseat the unit. If the FAIL LED persists, perform an offline base memory clear using the recessed front reset button, reload the target firmware block via Honeywell Experion Firmware Loader, and re-bind the unit in Control Builder.
