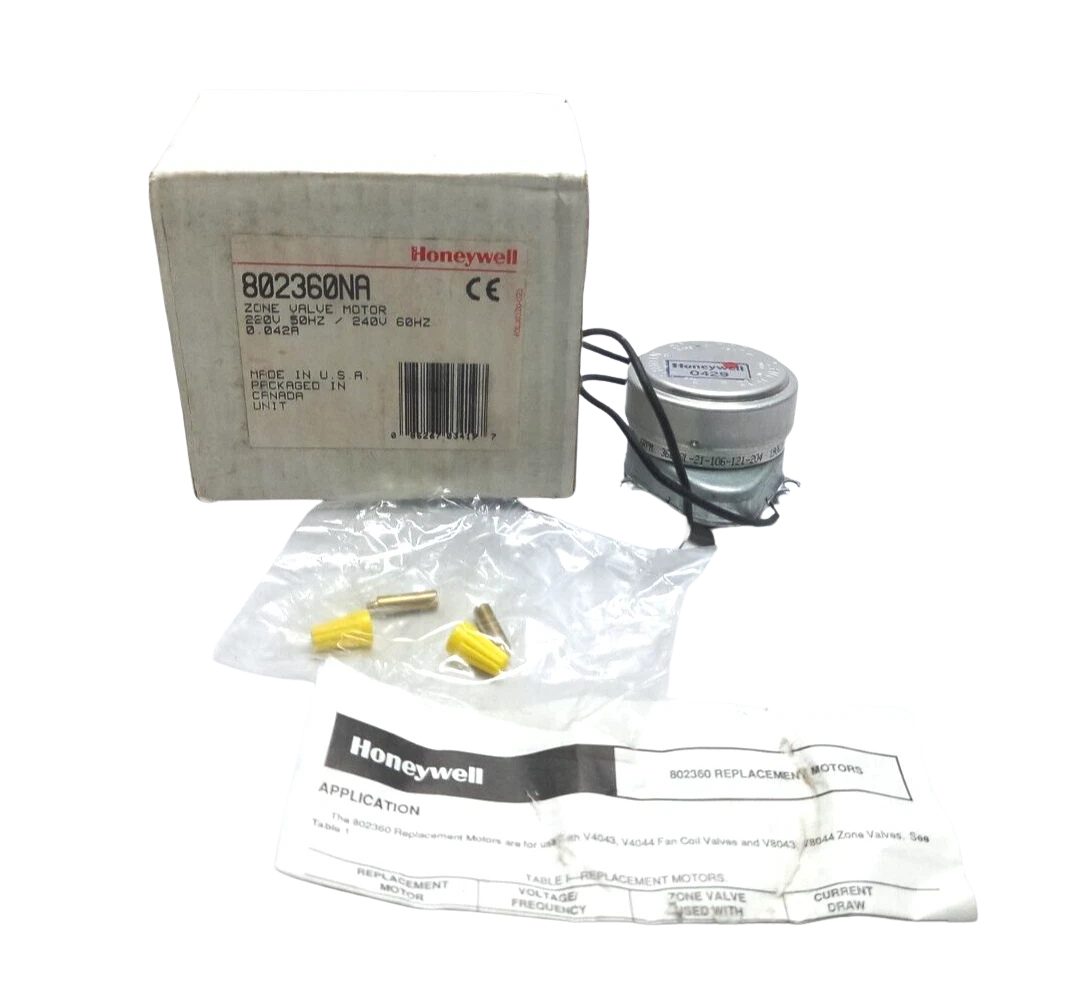

Honeywell Zone Valve All Models

Honeywell Zone Valve Series (All Models)

The Honeywell Zone Valve product range (V4043, V8043, V8044, VC, VN and MZV PowerTrack series) sets the industry standard for precise control of media flow in hydronic heating and cooling and marine auxiliary fluid systems. Reliable by design, these motorized machines control water, glycol solutions (up to 50% concentration) and low pressure steam.

Rugged forged brass or bronze valve bodies and snap-action or spring-return resin actuators provide positive shut-off, low electrical consumption and easy interfacing with standard low-voltage thermostats or direct digital control (DDC) building management systems.

Model Details & MPN Matrix

• V4043 Series: Line-voltage (230V/120V) 2-way straight-through and diverting valves for hydronic and steam applications.
• V8043 Series: Low-voltage (24V) 2-way straight-through spring-return valves widely utilized in residential and light commercial loops.
• V8044 / V4044 Series: Two-position diverting valves configured for fan coil systems.
• VC Series: Balanced 2-position hydronic valves featuring quick-connect electrical sockets and replaceable internal cartridge assemblies.
• VN Series: High-performance characterized control valves (CCV) with electronic fail-safe or non-fail-safe actuator options.
• MZV PowerTrack Series: Patented plug-cartridge zone valves with built-in pre-balancing features.

Features

1. Zero External Leakage Design: Featuring precision machined stainless steel stems, high-grade EPDM O-rings and chemically nickel-plated brass balls or resilient plugs.
2. Flexible Actuator Power Options: 24 VAC, 120 VAC or 230/240 VAC designs with low current draws.
3. Quick-Replacement Powerheads: Enables actuator servicing or powerhead replacement without draining the fluid loop or disconnecting pipe connections.
4. Factory installed auxiliary microswitches (SPDT) are offered for direct boiler or circulating pump interlock.Integrated auxiliary switch models
5. Manual Operating Lever: Manual open override lever for filling, flushing and pressure testing the system.

Applications

• Marine and offshore accommodation HVAC fan-coil units
• Closed-loop industrial chilled and hot water distribution networks
• Commercial perimeter baseboard heating and convector loops
• Boiler staging and domestic hot water tank priority switching
• Heat recovery ventilation (HRV/ERV) coils

Technical Specifications: Honeywell Zone Valve Series

Terminal Allocations & Wiring Configurations

• Red / Yellow Leads (Standard 2-Wire): Connected directly to the 24V or line-voltage controller / switching relay output. Energizes the internal heat motor or synchronous gear drive.
• White / Orange Leads (Auxiliary Switch): Potential-free SPDT internal microswitch contacts that close securely when the valve reaches its fully open destination, used for firing burners or starting booster pumps.

Compatible Equipment Models

Honeywell T6811, T6373, and T4/T6 series digital thermostats

• Sundial Plan (S-Plan, C-Plan, Y-Plan) central heating wiring centers.
• Resideo Braukmann hydronic balancing manifolds
• Standard 3-wire or 2-wire DDC controller analog relay outputs

Part Number Cross-References

• 4043H1056 / V4043H1106: Direct replacement for legacy Danfoss and Drayton 22mm/28mm 2-way valves.
• V8043F1036: Equivalent cross for standard residential 24V sweat-fitting zone applications.
• VC4013 / VC6013 Series: Replaces obsolete sliding-stem compact valves in modular air handlers.

Engineer Expert’s Guide & Pro Tips

Marine Engineer Note: When installing Honeywell zone valves in shipboard seawater or closed freshwater loop applications, always position the actuator above or horizontal to the centerline of the pipe axis. Never allow the powerhead to hang downward beneath the pipe run. This structural safeguard prevents catastrophic water ingress into the electrical gear train or motor housing should a minor stem packing weep occur over long operating lifecycles.

1. System Flushing: Ensure chemical flushes are completely neutralized and free of suspended oxygen or heavy particulate matter before commissioning. Particulate debris trapped against the valve seat will degrade the EPDM seal and cause passing or internal seat leakage.
2. Manual Override Handling: Use the manual opening lever exclusively for initial system filling, pressure testing, or cold draining. Leaving the lever permanently pinned in the manual position disables automatic thermal control failsafes.

Frequently Asked Questions

Can a Honeywell zone valve powerhead be replaced without draining the entire pipe network?

Yes. For all V4043, V8043, and VC series models, the motorized powerhead assembly can be unclipped or unscrewed directly from the brass valve body without breaking the pipe joints or draining the fluid circuit.

What is the primary difference between the V4043 and V8043 series?

The V4043 series operates on high/line voltage (120V to 240V AC), whereas the V8043 series is engineered exclusively for low-voltage (24V AC) control architecture commonly linked to standard home or marine compartment thermostats.

Why is my Honeywell zone valve getting excessively hot during operation?

Thermal motor heating is completely normal during active cycles, particularly on synchronous heat- motor models which continuously dissipate minimal power to hold the valve open against internal return springs. Ensure ambient temperatures surrounding the actuator do not exceed design thresholds (+52°C).

How do I manually open a Honeywell zone valve during a power outage?

Locate the manual lever on the side of the actuator housing, push it firmly inward, and slide it up into the latched “MAN. OPEN” slot. The mechanism will automatically spring back to the “AUTO” position once system electrical power is successfully restored.
