Integrated Power Systems 2641 Engine Alarm Module (017-2641 / 018-002640 Rev A)

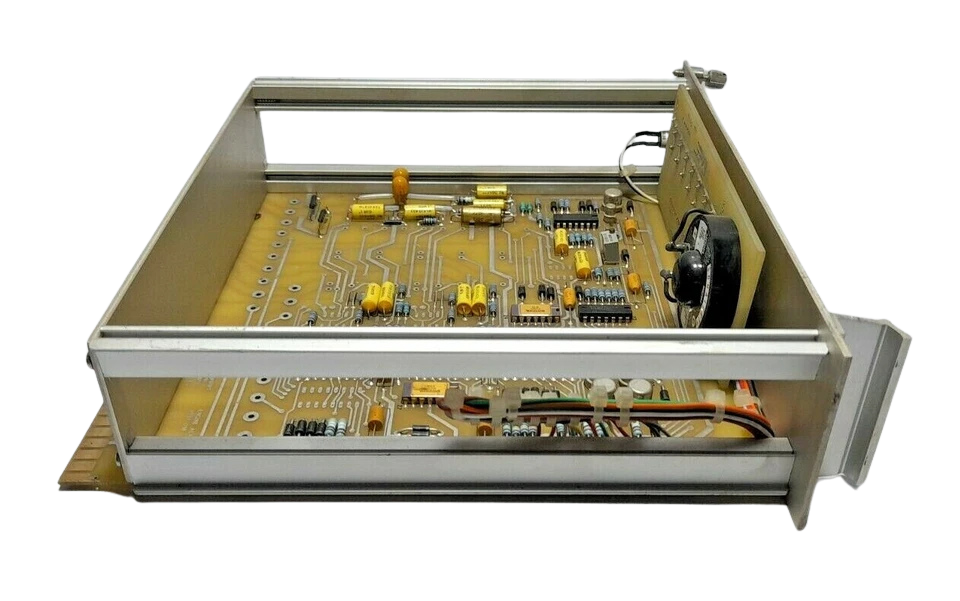

The Integrated Power Systems 2641 Engine Alarm Module is a heavy-duty, marine grade printed circuit board (PCB) control module used for real-time diagnostic safety monitoring and fault signaling for commercial main propulsion and auxiliary diesel engine systems. This module adds an important layer of automated protection by taking inputs from primary engine sensors such as oil pressure switches, coolant temperature sensors and overspeed governors to initiate audible and visual alarms before critical thermal or mechanical thresholds are exceeded.

The Model 2641 is designed for the severe vibration, high ambient heat and humid environments of marine engine rooms, providing maximum uptime and system integrity. Its hardwired discrete logic circuit avoids the processing delays or software lockups that plague modern microprocessors, enabling speedy fault identification when conditions threaten industrial safety.

Model Details

• Brand: Integrated Power Systems (IPS)
• Model Number: 2641
• Manufacturer Part Number (MPN): 017-2641 / 017-002641

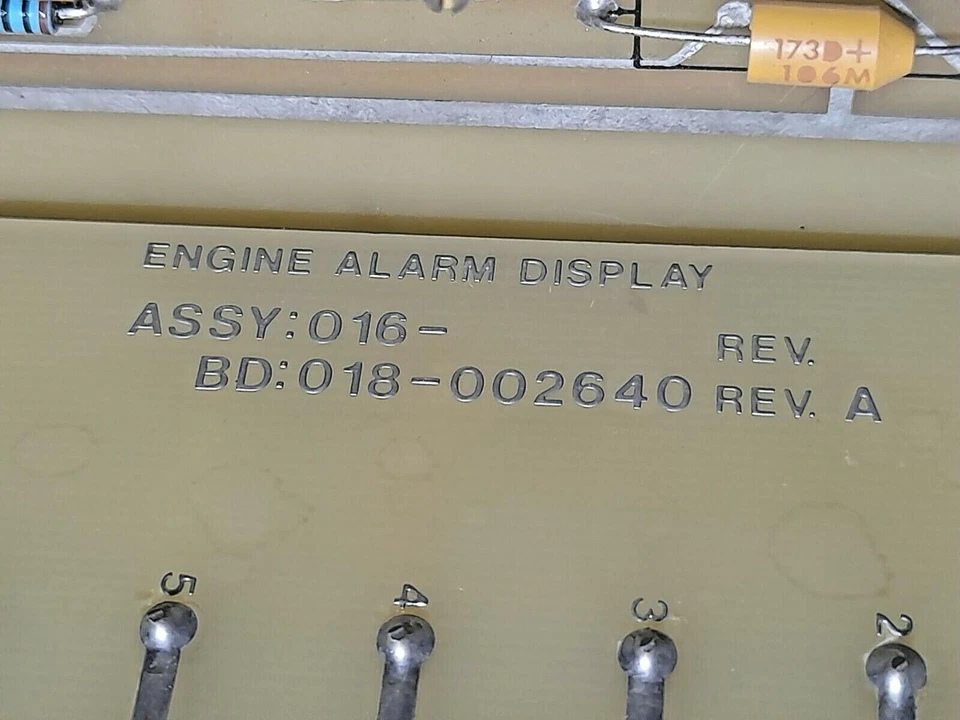

• Base Board / PCB Number: 018-002640 / 018-002583
• Revision Level: Rev A / Rev B backward compatible

Technical Specifications: Integrated Power Systems 2641

Features

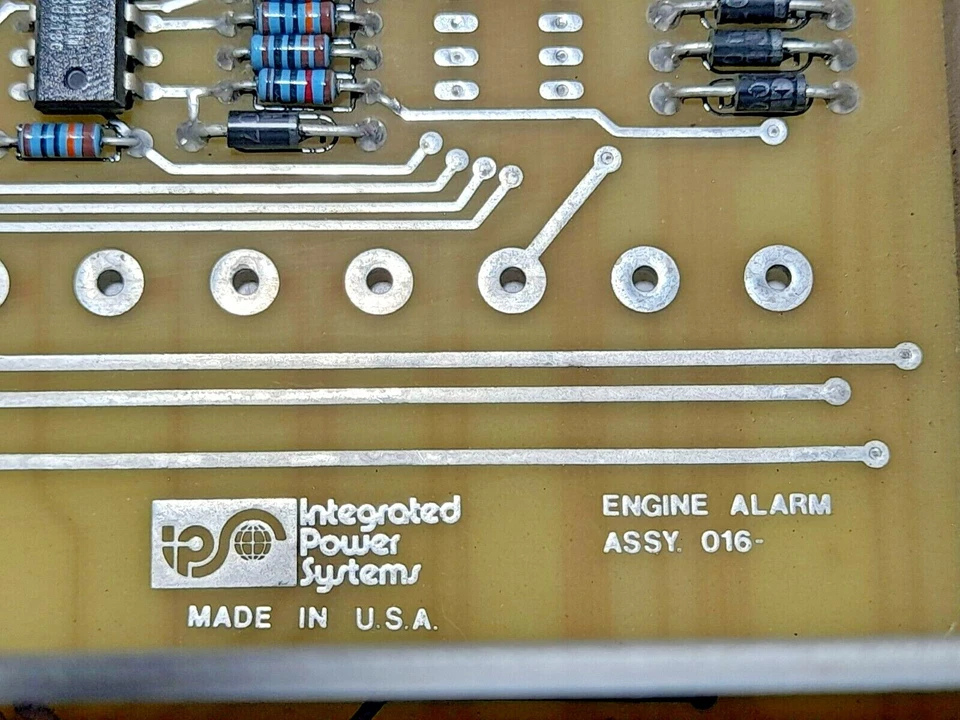

1. Industrial-Grade Construction: Heavy copper traces on a rugged FR-4 substrate coated with high-grade conformal insulation to resist moisture, salt spray, and fuel vapor oil-mist degradation.
2. Instantaneous Relay Outputs: Features heavy-duty on-board electromechanical relays to rapidly drive external engine-room sirens, annunciator light panels, and fuel shut-off solenoids.
3. Hardwired Logic Reliability: Employs rugged solid-state discrete componentry, eliminating software crash vectors and vulnerabilities to electromagnetic interference (EMI).

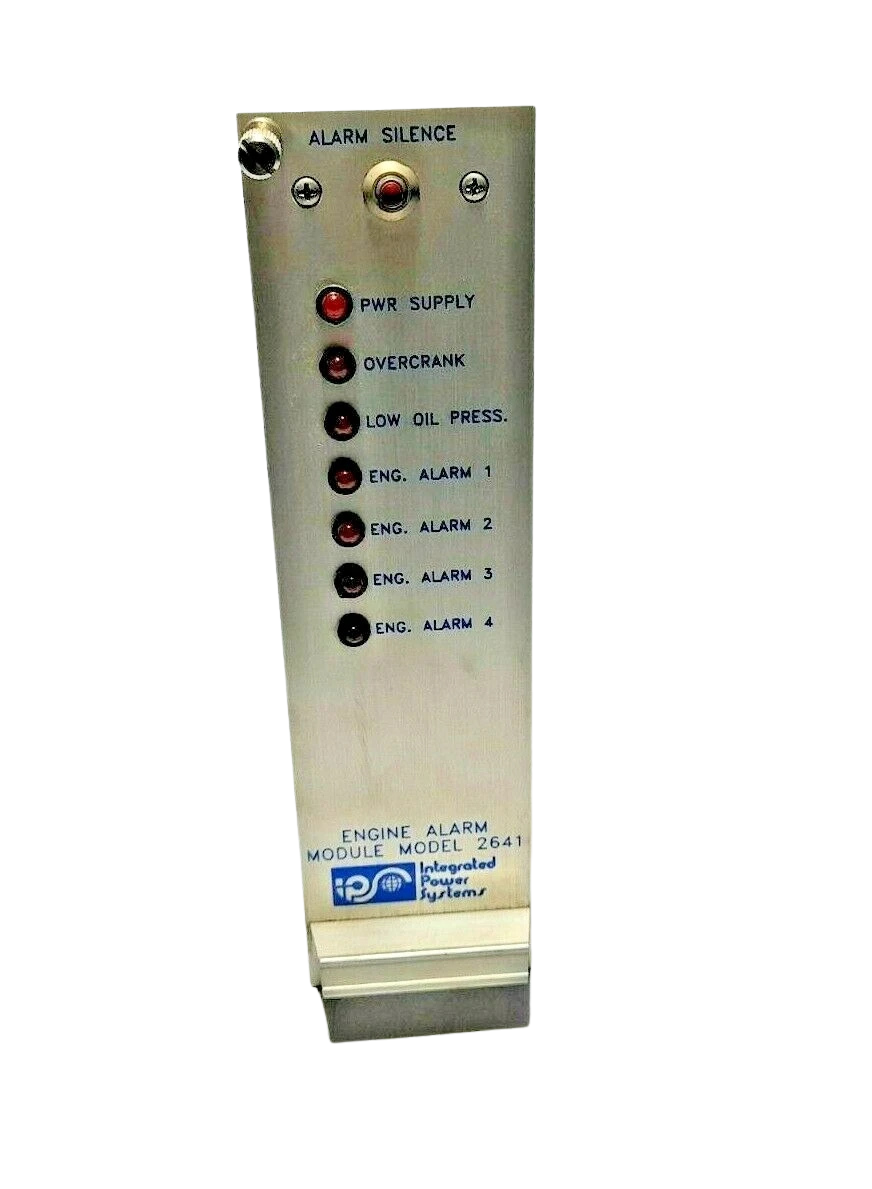

4. Integrated Status Indicators: Features on-board diagnostic diagnostic LEDs allowing marine technicians to quickly isolate active field faults from sensor line breaks.

Applications

• Commercial Marine Vessel Propulsion: Main engine monitoring systems for tugs, supply vessels, ferries, and blue-water cargo carriers.
• Auxiliary Marine Generator Sets: Continuous safety monitoring on backup and shipboard service diesel generator units.
• Industrial Power Generation Plants: Stationary prime power and emergency backup diesel genset monitoring arrays.
• Offshore Drilling Rig Machinery: Hazardous area pump drives, mud pumps, and heavy auxiliary power plants requiring dedicated, non-microprocessor safety architectures.

Equipment Compatibility & Systems Integration

The Integrated Power Systems 2641 module is a universal analog engine alarm logic component integrated into several older marine control system packages. It is natively compatible with:

• IPS Engine Monitoring Systems: Series 2000, 2500, and 2600 Main Control Enclosures.
• Caterpillar Marine Engine Panels: Retrofitted auxiliary control clusters on CAT 3406, 3408, 3412, and 3500 series mechanical engines.
• Detroit Diesel Mechanical Control Enclosures: Custom configurations for 8V71, 12V71, and 16V92 marine propulsion plants.
• Cummins K-Series Control Panels: Used as a discrete secondary safety loop supervisor module alongside mechanical governors.

Part Number Cross-References

• IPS 017-2641
• IPS 017-002641
• IPS 018-002640 Rev A
• IPS 018-002583 Rev B
• IPS 016-002640
• IPS 016-002583

Professional Maintenance & Installation Advice

1. Transient Voltage Management: When integrating the 2641 Module to drive inductive loads—such as large air-start solenoids or heavy engine-room horns—always wire a freewheeling diode (e.g., a standard 1N4007) across the external DC coil terminals. Without a suppression diode, the inductive kickback voltage generated when switching off these loads will arc across the module’s small on-board relay contacts, drastically shortening the PCB’s functional life span and generating localized electromagnetic interference.
2. Troubleshooting False Alarms (Ground Loops): If you encounter intermittent “ghost” alarm triggers under heavy alternator charging loads, check the main control panel ground path. The Model 2641 relies on a clean, low-resistance reference ground. Over time, salt-air exposure can corrode steel panel standoffs, causing a voltage drop between the PCB ground track and the ship’s hull ground. Clean all physical chassis mounting points back to bare metal and run a dedicated 14 AWG copper ground strap from the board terminal back to the primary distribution block.
