NOV EG-III Control Module 10506109-001

National Oilwell Varco EG-III Control Module (10506109-001)

National Oilwell Varco (NOV) / Ross Hill Controls EG-III Control Module (MPN: 10506109-001) is a heavy-duty ruggedized engine generator control unit for demanding maritime, offshore drilling and industrial power generation applications. The EG-III serves as the central control unit for monitoring, synchronization and protection of medium voltage diesel generator sets.

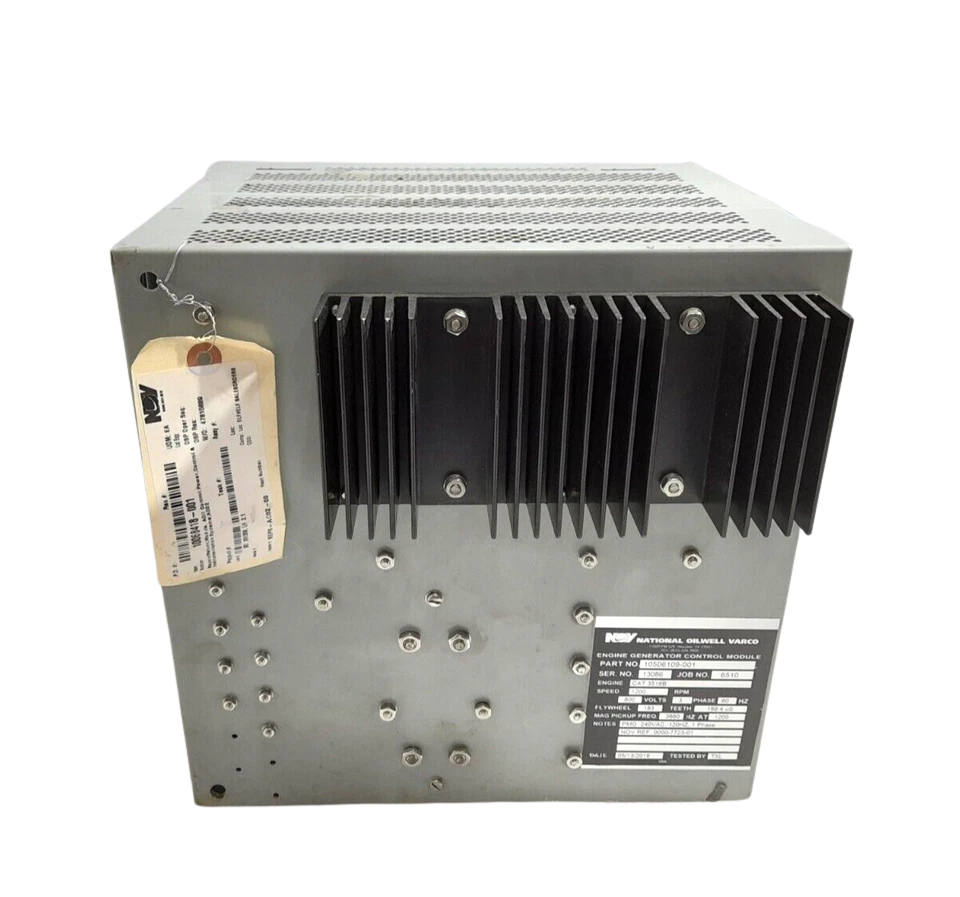

This module provides a single, rack-mountable drawer assembly with governor control logic, automatic voltage regulation interfacing, and complete failure annunciation, as a marine engineering solution. The EG-III is constructed to work in the tough, vibration-intensive settings of SCR (Silicon Controlled Rectifier) drilling rigs and vessel engine rooms and controls real-time engine speed trim, generator synchronization and circuit breaker interlock control.

Main Features

1. Integrated Generator Protection: Active timing and trip LEDs for key faults such as over/under voltage, over/under frequency, phase imbalance, exciter over-current and reverse power.
2. Accurate Synchronization Interlocking: Front panel “IN SYNC” signal and manual breaker override circuit safety controls with push-to-close.
3. Dedicated Governor Trim Controls: Manual potentiometers for Voltage Trim, Frequency Trim and High Idle Trim provide real time fine-tuning of engine speed and load distribution.
4. Real-Time Magnetic Pickup Monitoring: A pulse pickup status LED verifies real-time operational speed signals from the flywheel ring gear.
5. Multi-Engine Operation Selector: 4-position switch selector for OFF, LOW IDLE, HIGH IDLE and RUN states to progressively warm up engines and apply load.

Compatible Equipment Models

• Diesel Engines: Caterpillar 3516B (1200 RPM variants), EMD 16-645-E8 (900 RPM variants).
• Power Systems: Ross Hill / National Oilwell Varco SCR Drilling Rig Drives & Marine Main Propulsion Systems.
• Generator Units: 600V, 3-Phase, 60Hz high-capacity alternators.

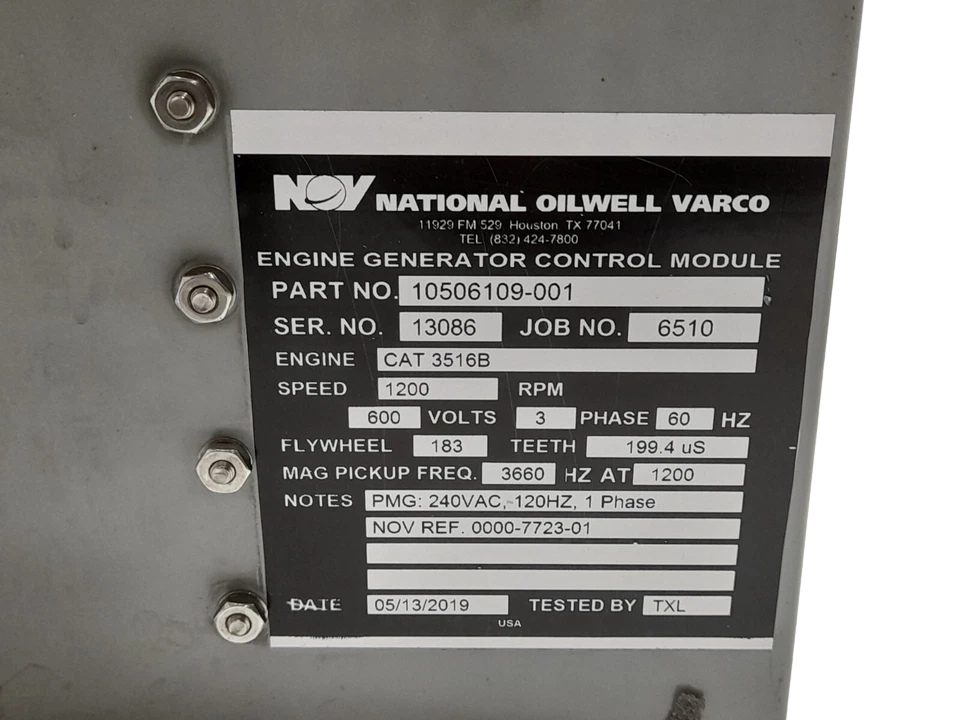

Part Number Cross-References

• NOV / Ross Hill Controls: 10506109-001
• OEM Alternate Part Number: 0000-7723-01
• Back Panel Assembly: 0001-0295-00
• Annunciation Board: 0000-7719-00 / 0001-9973-05
• Protection Board: 0000-7725-01 / 0000-7726-00

Marine Chief Engineer’s Field Diagnostics

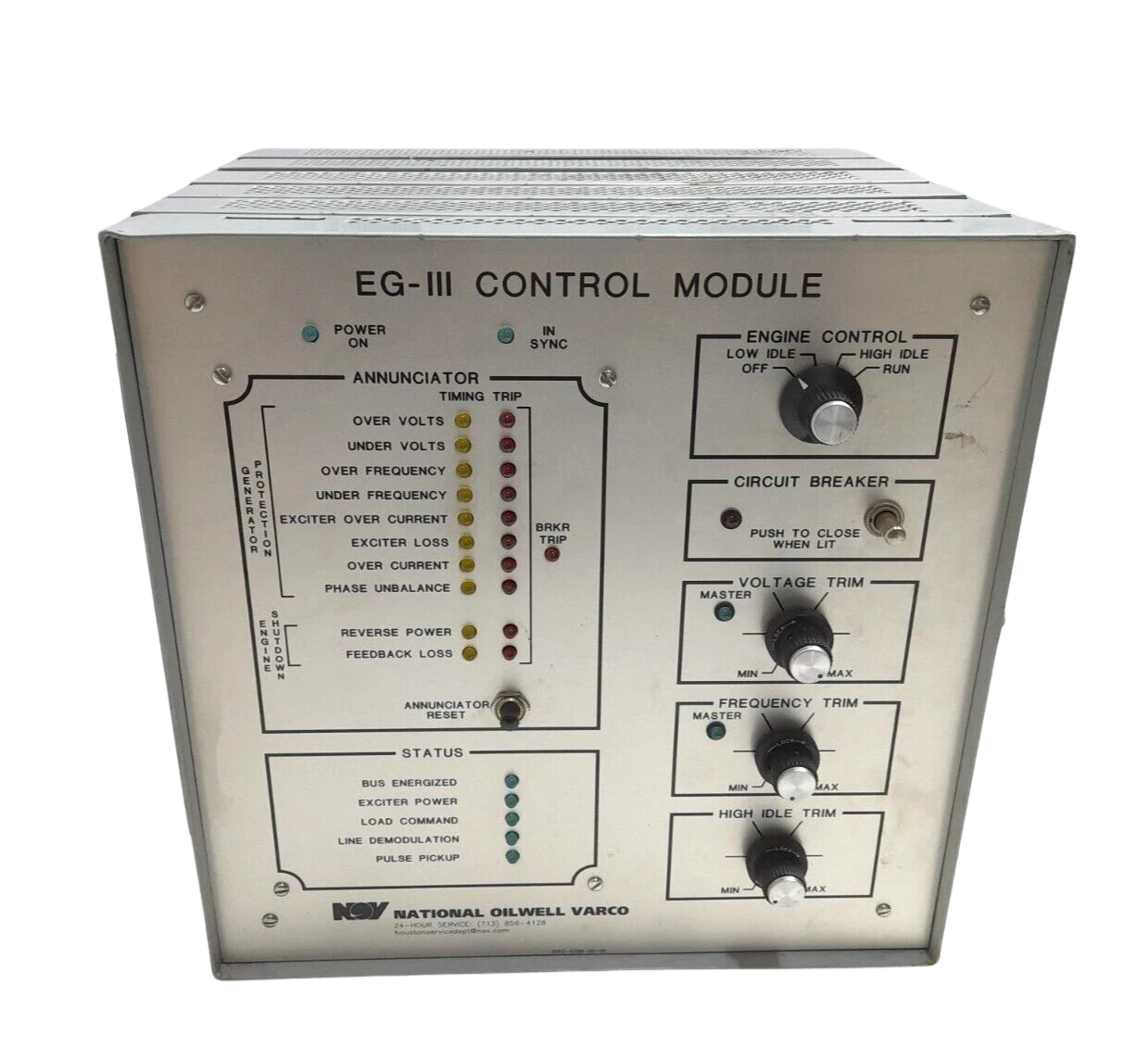

When troubleshooting an engine generator set controlled by the EG-III, the module’s front panel is your primary diagnostic interface. Always pay close attention to the Pulse Pickup LED.

If the engine is cranking but fails to fire, check this LED first. If it is dark, your Governor Module is not receiving the minimum 1.0 VAC signal required from the magnetic speed sensor to initiate fuel injection.

If the speed sensor signal checks out but you still have no start command, check the Metering Module on the far left of the rack to ensure an engine shutdown alarm has not remained latched.

Installation Guide:

1. Shielding Speed Inputs: Ensure that the magnetic pickup shielded cables (typically wired to pins TB2-26 & 27) are grounded at only one end. Multi-point grounding creates ground loops that corrupt the speed pulse frequency (3660 Hz), causing governor hunting and unstable frequency outputs.
2. Manual Breaker Rules: Under no circumstances should the manual mechanical “PUSH ON” button located directly on the generator’s physical circuit breaker front panel be used to bypass the EG-III sync loop. Doing so can lead to out-of-phase bus connection failures, causing terminal structural and winding damage.
