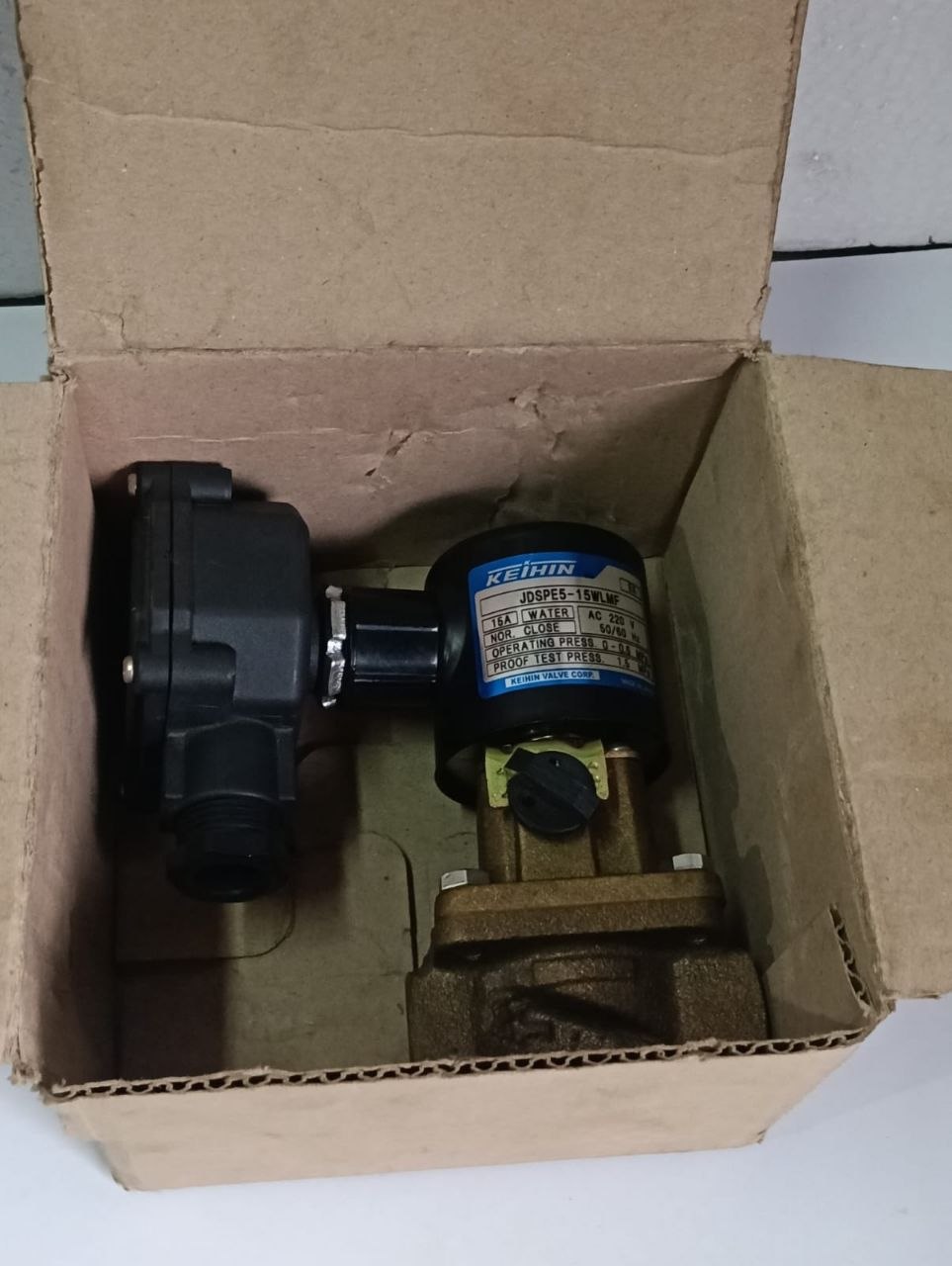

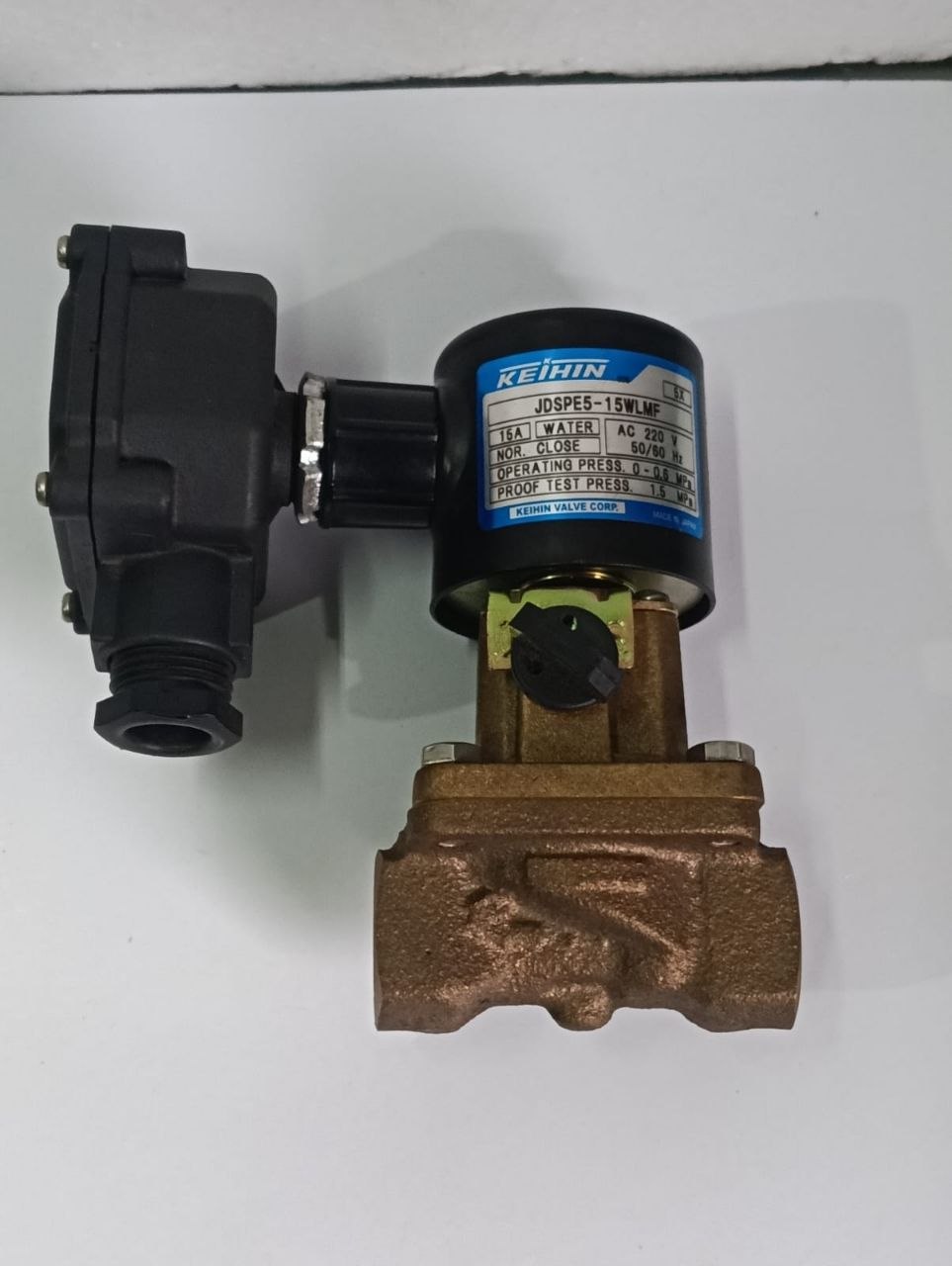

Keihin JDSPE5-15WLMF Solenoid Valve

Keihin JDSPE5-15WLMF Solenoid Valve

The Keihin JDSPE5-15WLMF is a direct-acting, normally closed (NC) electromagnetic solenoid valve engineered primarily for marine fluid transfer, ballast automation, and industrial cooling loops. Manufactured in Japan, this unit leverages a low-pressure-drop internal geometry coupled with a robust magnetic coil capable of sustained 100V/110V AC excitation across 50Hz and 60Hz frequencies. Engineered for liquid media up to a maximum dynamic operating pressure of 0.6 MPa, it holds a hydrostatic proof test pressure rating of 1.5 MPa, ensuring zero-leakage integrity against transient pressure spikes common in positive displacement pump systems.

Model Details

• Manufacturer: Keihin Valve Corp.
• Model/MPN: JDSPE5-15WLMF
• Bore Size/Nominal Diameter: 15A (Equivalent to DN15 or 1/2″ internal porting)
• Media Configuration: W (Water / Non-corrosive liquids)
• Actuation Profile: L (Low-to-mid pressure differential acting)

Compatible Equipment Models

The JDSPE5-15WLMF operates as a drop-in replacement and integrates directly into the following architectural systems:

• Marine Cooling Modules: Alfa Laval central cooling auxiliary circuits, Yanmar secondary freshwater cooling jacket lines.
• Purifier Systems: Water sealing and displacement water injection lines on Mitsubishi and Westfalia separators.
• Boiler Feed Systems: Low-pressure auxiliary make-up lines for Aalborg marine boilers.
• HVAC Chillers: Condensate drainage and chilled water flow regulation for onboard marine accommodations.

Part Number Cross-References

• Daehan Pascal: JDSPE5-15WLMF (Licensed designation)
• Burkert Equivalent: Series 6281 EV (DN15, 110V AC modification)
• Danfoss Equivalent: EV220B 15B (Subject to coil voltage matching)
• NSN/IMPA Catalog: Matches IMPA coding block 73 34 XX (depending on exact flange/union threading requirements).

Key Features

1. Zero-Pressure Actuation: Employs a direct-lift diaphragm mechanism, allowing the valve to actuate fully even at 0.0 MPa line pressure, eliminating the need for a minimum pressure differential.
2. High Proof-Pressure Margin: Rated to withstand 1.5 MPa hydrostatic testing while normal operation is at 0.6 MPa, providing a 2.5x safety factor against water hammer shockwaves.
3. Dual-Frequency Coil: Wound for dual 50/60Hz AC frequencies, making it universally adaptable to both European/Asian marine grids (50Hz) and American-standard shipboards (60Hz).
4. Union End Connections: Facilitates rapid hot-swapping during scheduled dry-dock or emergency at-sea maintenance without requiring localized pipe cutting or hot work.
5. Corrosion-Resistant Housing: Treated internal wetted parts inhibit galvanic corrosion and scaling when subjected to untreated freshwater or heavily chlorinated washdown fluids.

Applications

• Ballast Water Treatment Systems (BWTS): Precision injection of neutralizing chemicals or freshwater flushing loops.
• Main Engine Auxiliaries: Automated jacket water pre-heating line regulation.
• Potable Water Generators: Reverse Osmosis (RO) permeate diversion and dump valve operations.
• Industrial Automation: Machine tool coolant flow control and automated washdown rig distribution.
• Fire Suppression: Non-critical sprinkler pilot line actuation.

Frequently Asked Questions

What is the maximum operating pressure of the Keihin JDSPE5-15WLMF?

The maximum dynamic operating pressure is 0.6 MPa (approximately 87 PSI or 6 Bar). It is tested to a proof pressure of 1.5 MPa (15 Bar) to withstand system transients and water hammer, but continuous operation must remain under 0.6 MPa for reliable coil lift.

Can this valve operate on 220V AC marine power?

No. The JDSPE5-15WLMF is specifically wound for 100V (50/60Hz) or 110V (60Hz) applications. Supplying 220V will instantly burn out the electromagnetic coil. If your ship’s automation runs on 220V, you must route the circuit through a step-down control transformer.

Does this valve require a minimum pressure drop to open?

No. This specific Keihin unit utilizes a mechanism that allows it to operate even at 0.0 MPa. It is ideal for gravity-fed tanks or low-pressure closed-loop cooling systems where pressure differentials are negligible.

What does the ’15’ signify in the JDSPE5-15WLMF model number?

The “15” dictates the nominal bore size of the valve, corresponding to 15A or DN15. This translates to an internal diameter of approximately 1/2 inch, which dictates the flow coefficient (Cv) and matching pipe union size.

Is it safe to use this solenoid valve for diesel fuel or heavy fuel oil (HFO)?

No. The “W” in the nomenclature indicates it is optimized for water media. The specific elastomer used in the diaphragm is not chemically rated for hydrocarbons. Utilizing this valve for marine gas oil (MGO) or HFO will cause the diaphragm to swell, leading to catastrophic flow blockage or external leakage.
