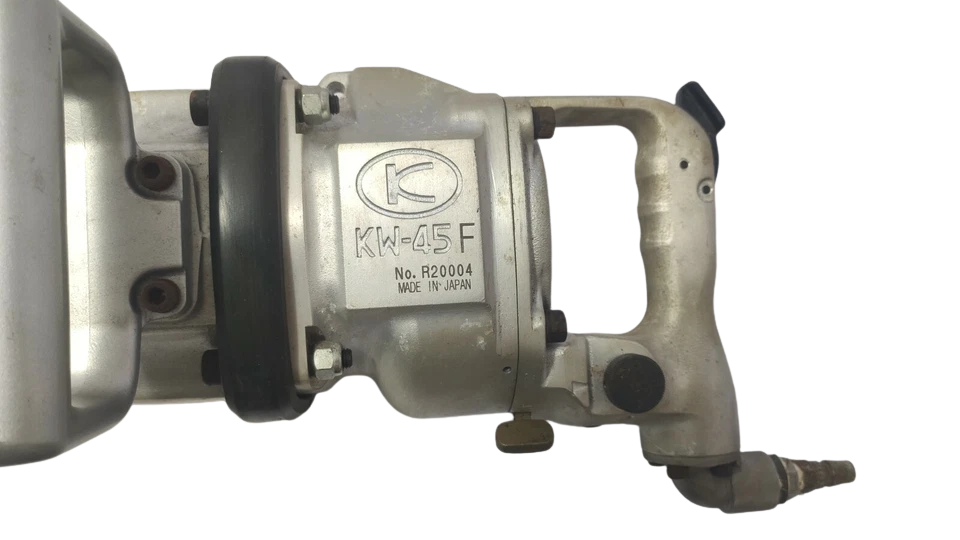

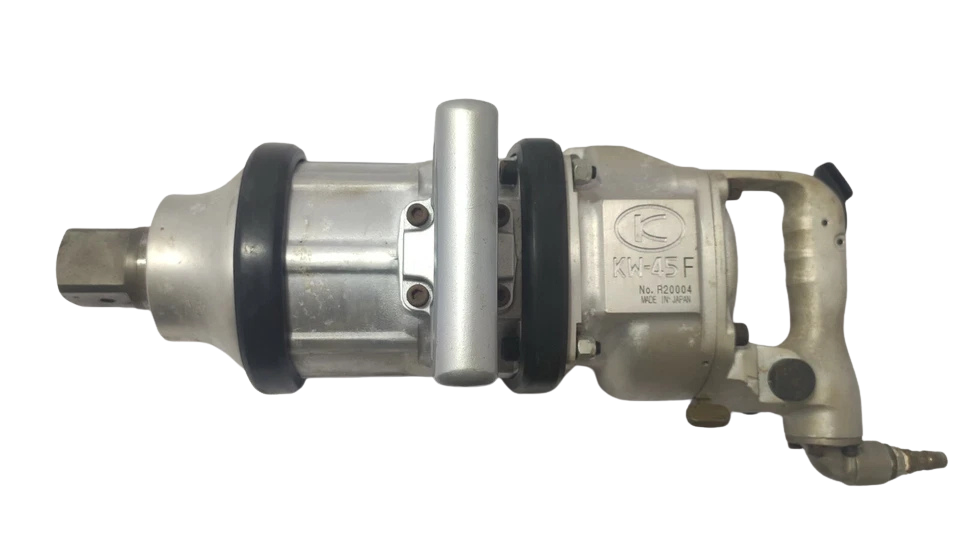

Kuken KW-45F Straight Impact Air Wrench

KUKEN KW-45F Heavy-Duty Straight Impact Air Tool

The KUKEN KW-45F is a top grade Japanese made straight air impact wrench for tough, high torque applications in harsh industrial conditions. This air tool is designed for long term torque application with sturdy inline design and 1-1/2 inch square drive and is capable of withstanding hard axial and radial mechanical loads. It’s an important instrument for the re-manufacture of large industrial assemblies giving the correct combination of power, air consumption efficiency and dynamic internal dampening required for continuous duty cycles.

Model Details:

• Model Designation: KW-45F
• Manufacturer Part Number (MPN): KW-45F
• Configuration: Straight / Inline Handle Body with Choice of Internal/External Throttle Trigger Trims
• Anvil Type: Standard 2-3/16 inch length with pin-retaining hole

Specifications: Kuken KW-45F

Main technical features

1. High Output Torque Envelope: Delivers a reliable working envelope of 780 to 2,900 Nm (580–2,150 ft-lb) at standard working pressure, reducing operator time on recalcitrant, seized or high tension fasteners.
2. Industrial Double-Hammer / N-Type Equivalent Impact Clutch: A complex impact mechanism that offers high kinetic energy per blow (550 IPM), while lowering peak transient vibrations sent to the user’s hands.
3. Inline Ergonomic Handling Profile Straight cylindrical shape and dead-handle mount offer excellent lever arms and precise line-of-sight axis alignment for vertical or deep-recess bolting procedures.
4. Precision Air Control Throttle: Multi-stage, graduated throttle system that provides fine torque modulation during first thread engagement to help prevent cross-threading.
5. Heavy-Duty Cast Metal Housing: Reinforced alloy shell protects the air motor and key internal components from accidental impacts, corrosive marine atmospheres and workplace abrasives.

Marine & Heavy Industrial Applications

• Shipbuilding, Marine Drydocking & Ship Repair: Main propulsion plant disassembly, cylinder head stud tensioning, propeller shaft coupling bolts, and large sea-chest valve overhauls.
• Construction Machinery & Heavy Fleet Depots: Overhaul work on earthmovers, continuous mining machinery, track pad replacement, and crawler crane structural framing assembly.
• Process Plant & Petrochemical Refineries: Tightening and breaking of high-pressure pipe flanges, heat exchanger shell fastening, and structural steel erection bolting.
• Heavy Rail Maintenance: Rail car carriage assembly, wheel set repairs, and foundational infrastructure track work.

Compatible Equipment Models

• High-output mobile air compressors capable of sustaining a minimum delivery rate of 35 CFM at 90 PSI dynamically (e.g., Atlas Copco, Ingersoll Rand tow-behind diesel units).
• Standard industrial-grade impact sockets compliant with ISO 2725-2/DIN 3129 configurations for 1-1/2 inch drives.

Part Number Cross-References & Alternates

• KW-45F-1: 1-inch Square Drive variant sharing identical internal motor assembly architectures.
• KW-45FS: #5 Spline Drive Anvil variant for specialised high-vibration tool retention architectures.
• Industry Class Equivalents: Ingersoll Rand 599A1, Chicago Pneumatic CP6120-D28H, Atlas Copco LMS68 Series.

Marine Engineering Field Assessment

Expert Note: “On large vessel maintenance—specifically during main engine overhauls like handling lower cylinder jacket bolts or turboblower casings—space and stability are at a premium. The straight handle configuration of the KW-45F allows it to drop into tight structural pockets where conventional pistol-grip or D-handle wrenches fail to fit. Because it draws a heavy volume of air (30 CFM), pairing this tool with a restrictive 3/8-inch coupling will choke the tool’s performance down by as much as 40%. Always ensure your air manifold supplies a clean, continuous flow through a dedicated 1/2-inch or 3/4-inch line to maintain optimal kinetic output.”
