Mitsubishi Electric E1100 HMI Operator Panel 24VDC 06045C

Mitsubishi Electric E1100 HMI Operator Panel (24VDC, MPN: 06045C)

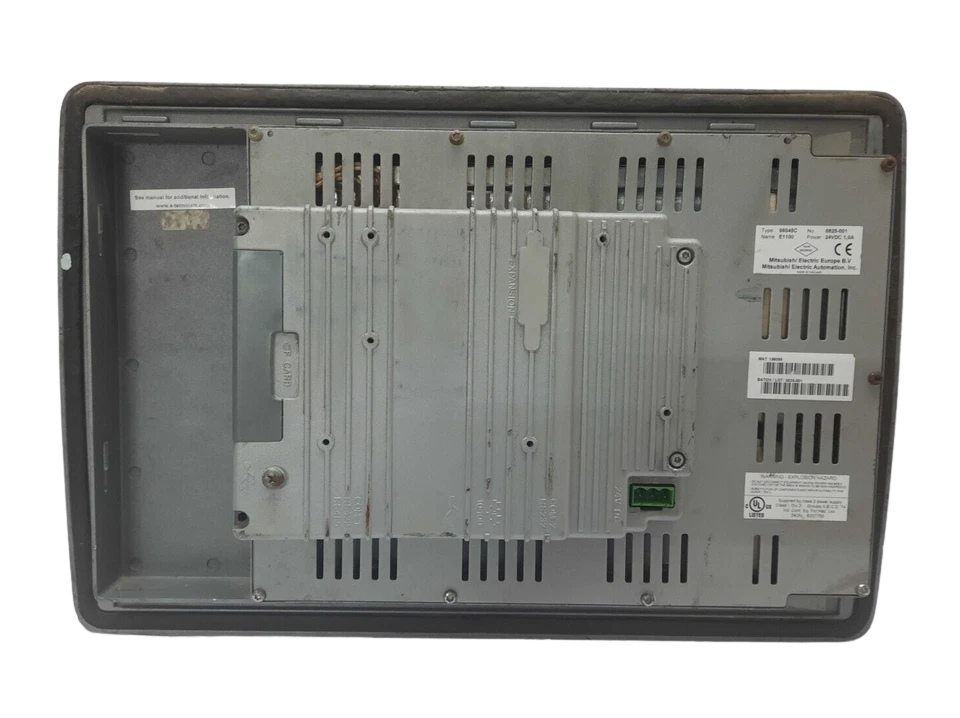

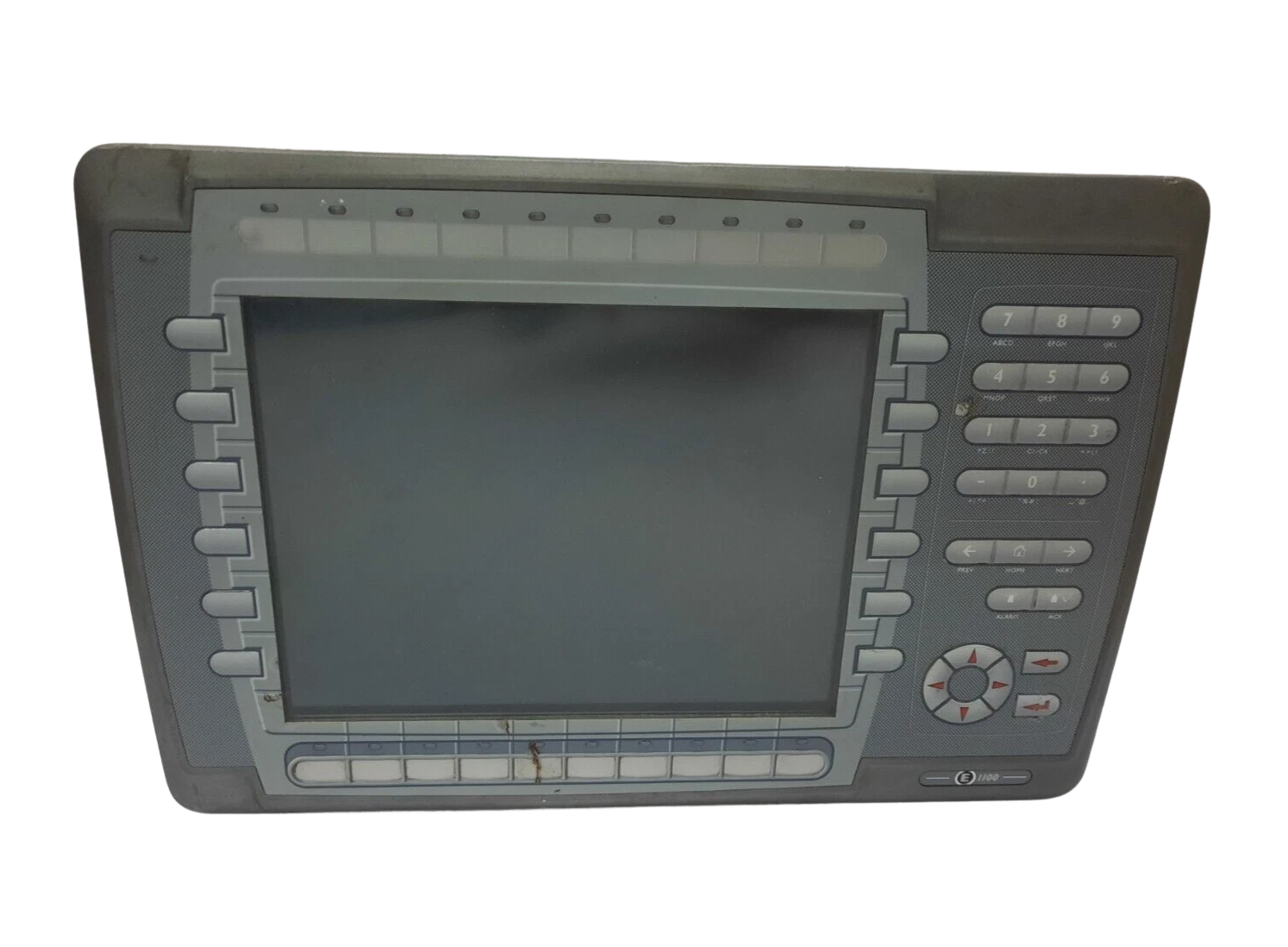

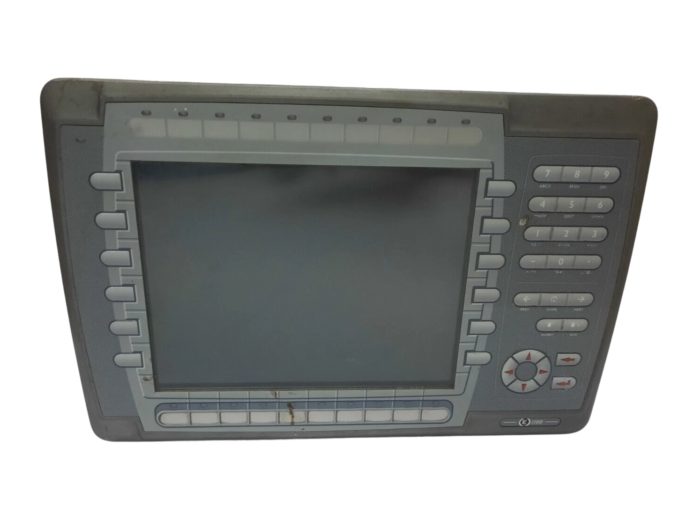

The Mitsubishi Electric E1100 HMI Operator Panel (MPN: 06045C) is a rugged high performance human-machine interface for demanding industrial and maritime automation situations. The operator terminal is built on a brilliant 10.4-inch TFT-LCD display with a clear 800 x 600 pixel resolution. It allows real-time monitoring, process visualization and machine control. The E1100 series is designed to bridge the gap between complicated programmable logic controllers (PLCs) and plant operators. The E1100 series is manufactured to high quality and safety levels so that dependable plant floor visualization is possible in difficult situations.

Model Details

• Brand: Mitsubishi Electric
• Series: E1100

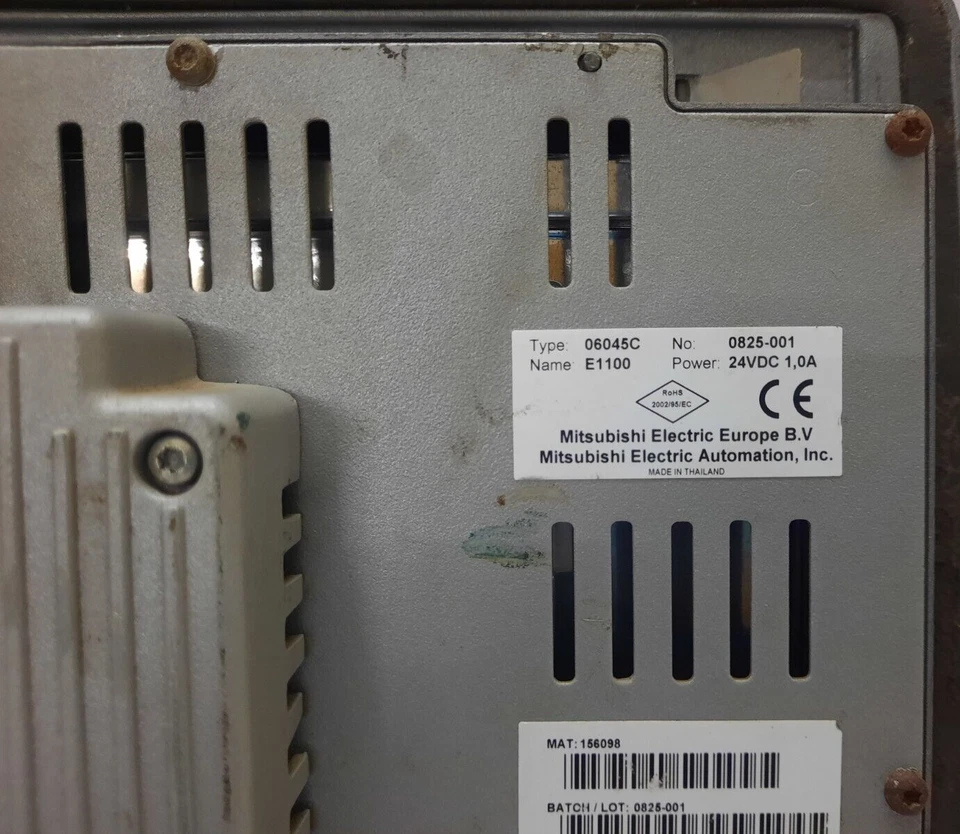

• Manufacturer Part Number (MPN): 06045C
• Product Category: HMI / MMI / OIT Operator Interface
• Display Type: 10.4″ TFT-LCD Color Display

Specifications: ME E1100 HMI

Key Features

1. High-Resolution 10.4″ Display: Delivers crisp graphic layouts, alarms, and trend lines on a bright TFT screen.
2. Robust Industrial Build: Engineered for high-vibration and shock-prone environments like marine bridge systems and heavy factory floors.
3. Ample Memory Capacity: Features 12 MB of non-volatile memory to manage comprehensive screen hierarchies and historical logging.
4. Flexible Communication Interface: Equipped with serial, Ethernet, and USB expansion slots for smooth PLC integration.
5. IP66 Front Sealing: Offers total protection against dust ingress and high-pressure water jets from any direction.

Applications

• Marine engine control and automation consoles
• Ballast water management monitoring systems
• Discrete manufacturing production lines
• Packaging and material handling machinery
• Water treatment and pump station telemetry

Part Number Cross-References

• Beijer Electronics Equivalent: E1100 (OEM variant)
• Internal Part Code: 06045C
• Obsolete Successor Path: Mitsubishi GOT2000 series migration paths available.

Expert Advice:

When retrofitting this unit onto marine control panels exposed to salt-air condensation, always apply a thin layer of dielectric grease to the D-SUB communication pins and verify the integrity of the front panel neoprene gasket. A compromised IP66 gasket seal will allow moisture ingress behind the display overlay, causing touch-grid drift.

The E1100 internal power regulator is sensitive to high-frequency inductive kicks from adjacent solenoid valves or contactor coils sharing the same 24VDC bus. Always route your 24VDC supply lines through a dedicated isolated industrial power supply and secure a low-impedance copper strap directly from the chassis ground lug to the cabinet backplate.

Frequently Asked Questions

What programming software is required to configure the Mitsubishi E1100 06045C HMI?

The E1100 series relies on E-Designer software, which allows screen layout configuration, tag mapping, and alarm script management for communication with Mitsubishi and multi-vendor controllers.

Can this HMI communicate with non-Mitsubishi PLCs?

Yes. Thanks to Beijer’s robust protocol library embedded in the firmware, the E1100 supports communication drivers for Siemens, Allen-Bradley, Omron, Schneider, and Modbus RTU/TCP protocols.

What should I do if the touch screen becomes unresponsive?

First, verify that the 24VDC supply voltage is stable and strictly within the 20–30 VDC window. Undervoltage conditions often freeze the analog resistive touch controller chip. If the problem persists, perform a system restart and recalibrate the touch interface via the system menu.
