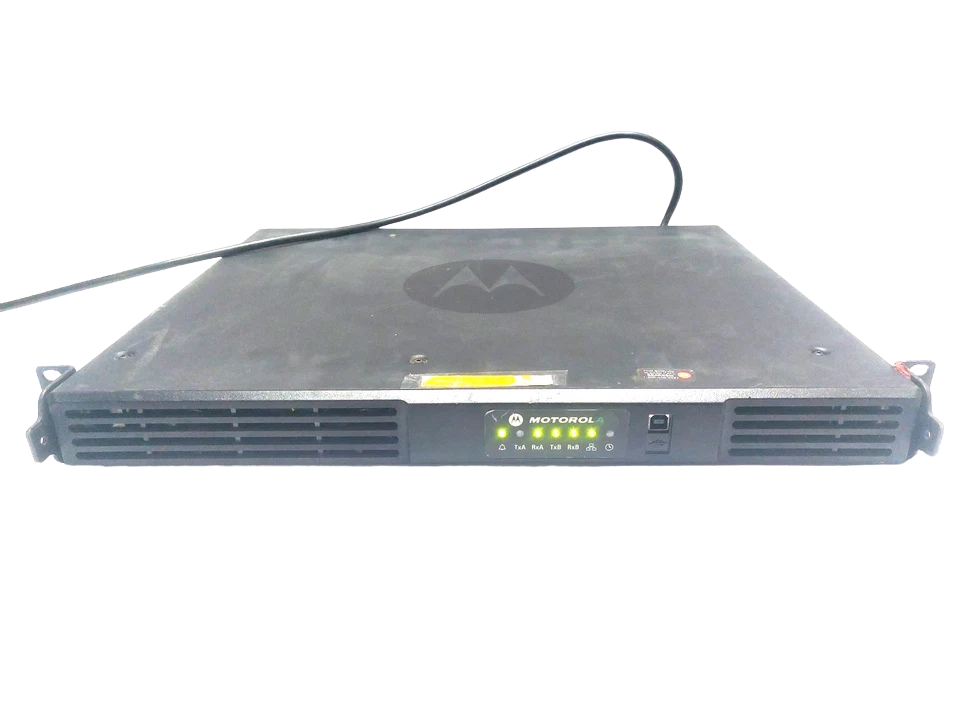

Motorola SLR 5700 Repeater AAR10QCGANQ1AN UHF 50W

Motorola SLR 5700 MOTOTRBO DMR Digital/Analog Repeater (MPN: AAR10QCGANQ1AN)

The Motorola MOTOTRBO™ SLR 5700 (Model: AAR10QCGANQ1AN) is an enterprise-grade, high-efficiency 1U rack-mount DMR/analog base station engineered for continuous-duty operation in demanding environments. Built specifically to resolve RF attenuation across compartmentalized steel superstructures, offshore platforms, shipboard machinery spaces, and heavy industrial facilities, the SLR 5700 operates across the UHF 403–470 MHz band with an adjustable 1 to 50 Watt RF power output.

The unit integrates high-sensitivity receiver architecture, advanced digital error correction, and 2-slot TDMA technology to deliver two simultaneous voice/data channels over a single 12.5 kHz physical allocation. Featuring integrated AC-to-DC power switching (100–240V AC, 4A max) alongside an automatic 12V DC battery revert system with an internal 3A float charger, the SLR 5700 ensures uninterrupted mission-critical communications even during primary bus power drops.

Model Information

• Manufacturer: Motorola Solutions
• Model Series: MOTOTRBO™ SLR 5000 Series (SLR 5700)
• Manufacturer Part Number (MPN / Model ID): AAR10QCGANQ1AN (UHF 1 / 403–470 MHz)
• Super Tanapa Number: PMUE4430 / PMUE4430A series
• Input Voltage Ratings: 100–240V~ AC (50/60 Hz, Max 4.0A) | 11.0–14.4V DC (Nominal 12V DC, Max 14.3A transmit)
• Form Factor: 1U Standard 19-inch EIA Sub-rack Mounting

Key Features

1. 100% Continuous Duty Cycle at Full 50W Output: Engineered with an ultra-low thermal footprint, high-efficiency solid-state power amplifier (SSPA), and dynamic variable-speed cooling fans capable of non-stop transmission in high-temperature environments.
2. Integrated Dual-Supply & 3A Battery Revert Charger: Operates on universal 100–240V AC main grid with seamless, zero-millisecond automatic transfer to 12V DC battery banks with a built-in 3A float charger.
3. ETSI DMR Tier II & Tier III Architecture Ready: Fully compatible with Conventional Digital, Conventional Analog FM, IP Site Connect, Capacity Plus, Linked Capacity Plus, and Capacity Max trunked networks.
4. Modular Field-Replaceable Units (FRU): Features modular Internal Power Supply (PSU), Power Amplifier (PA), and Modem architecture for rapid on-site repair and zero-downtime maintenance.
5. Full Remote Diagnostics & Control (RDAC): Real-time IP-based network telemetry monitoring for VSWR, forward/reflected RF power, board temperature, rail voltages, and channel status.

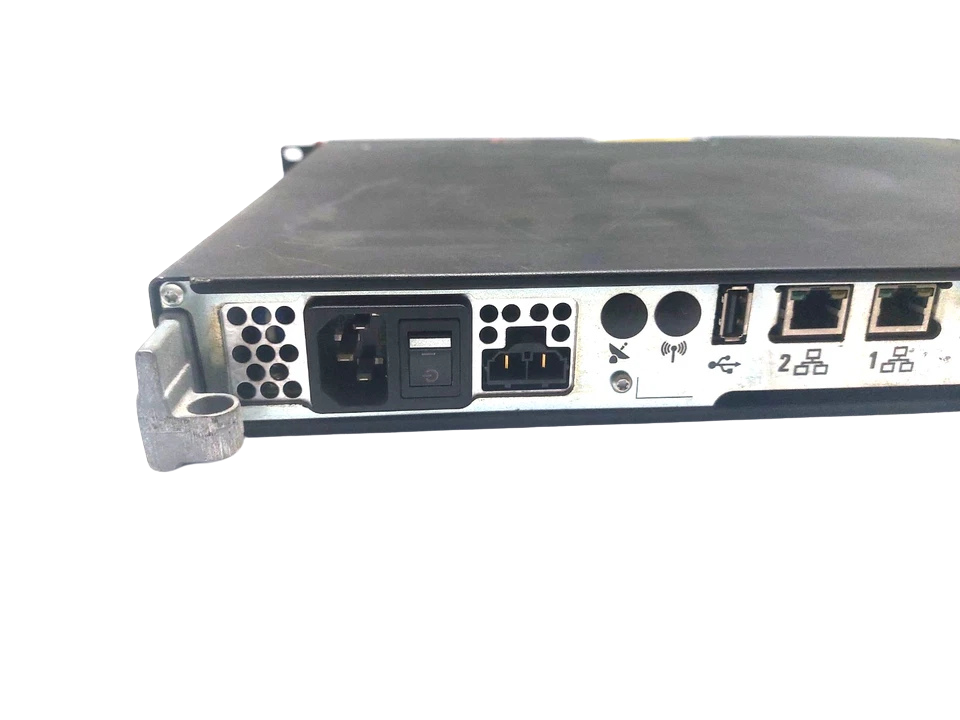

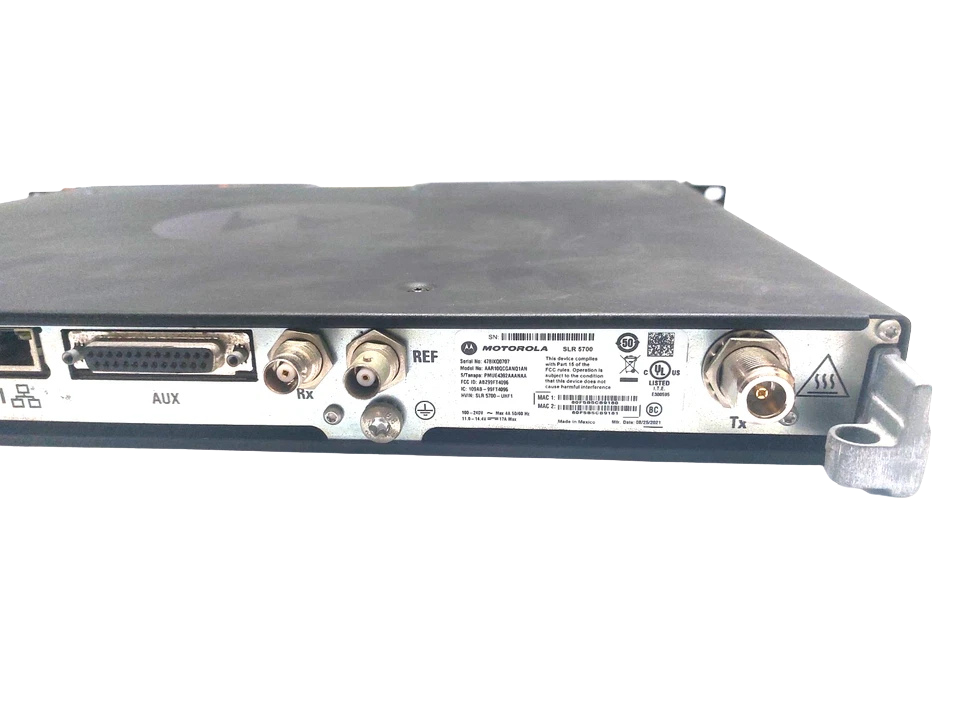

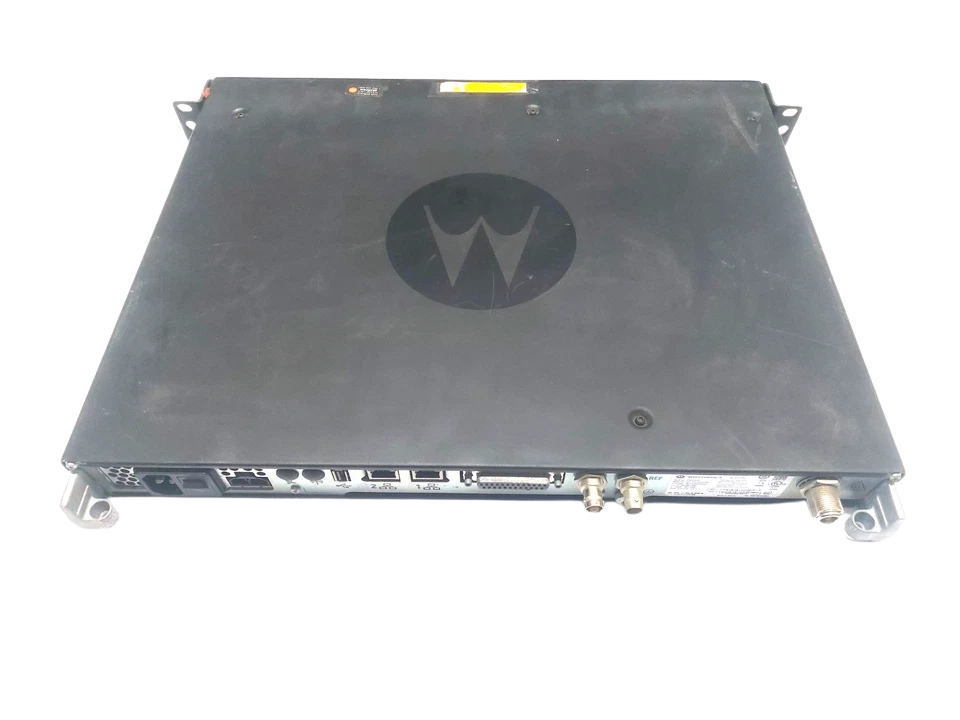

Terminal & Connector Allocation Map

• AC Power Port: Standard 3-prong IEC C14 connector (Hot, Neutral, Earth Ground) rated 100–240V AC.
• DC Power & Battery Charging Port: Polarized high-current terminal with quick-disconnect screw studs (Pin 1: +12V DC Battery Input/Charge Out; Pin 2: Ground/Chassis Earth).
• RF Transmitter (TX): Precision 50-Ohm N-Type Female receptacle. Connects directly to external bandpass duplexer or dedicated transmit antenna.
• RF Receiver (RX): Low-loss 50-Ohm BNC Female receptacle. Connects to the receiver branch of a duplexer or multi-coupler.
• Ethernet Network (LAN): 8P8C RJ-45 shielded jack for IP multi-site linking, console interfacing, and remote software maintenance.

Supported Handheld & Mobile Radios

• Motorola MOTOTRBO Portables: DP4400e, DP4800e, DP4801e, DP2400e, DP4401Ex (ATEX/IECEx Marine), DP4801Ex, XPR 7550e, XPR 7350e, XPR 3500e, R7, R2, Ion series.
• Motorola Mobile Transceivers: DM4600e, DM4400e, DM4601e, XPR 5550e, XPR 5350e.
• Third-Party DMR Equipment: Fully interoperable with any DMR Association Tier II/Tier III compliant transceivers (Hytera, Tait, Icom, Kenwood).

Applications

• Marine & Offshore Platforms: Primary voice repeater for commercial vessels (Bulk Carriers, Tankers, Container Ships, FPSOs, Drillships) to guarantee communication through heavy steel watertight bulkheads, cargo holds, and engine compartments.
• SOLAS Chapter II-2 Firefighter Radios: Serves as the central RF trunk base to provide clear, uninterrupted emergency UHF digital radio coverage for shipboard emergency response teams.
• Refineries & Petrochemical Plants: Central communications node integrated with ATEX/IECEx intrinsically safe field transceivers across hazardous operating zones.
• Power Generation & Heavy Industrial Utilities: Continuous operations in engine rooms, boiler houses, tunnel grids, and substation complexes with high ambient electromagnetic interference (EMI).
• Port & Harbor Logistics: Crane-to-dock, tugboat dispatch, and inter-terminal cargo management communications.

Frequently Asked Questions

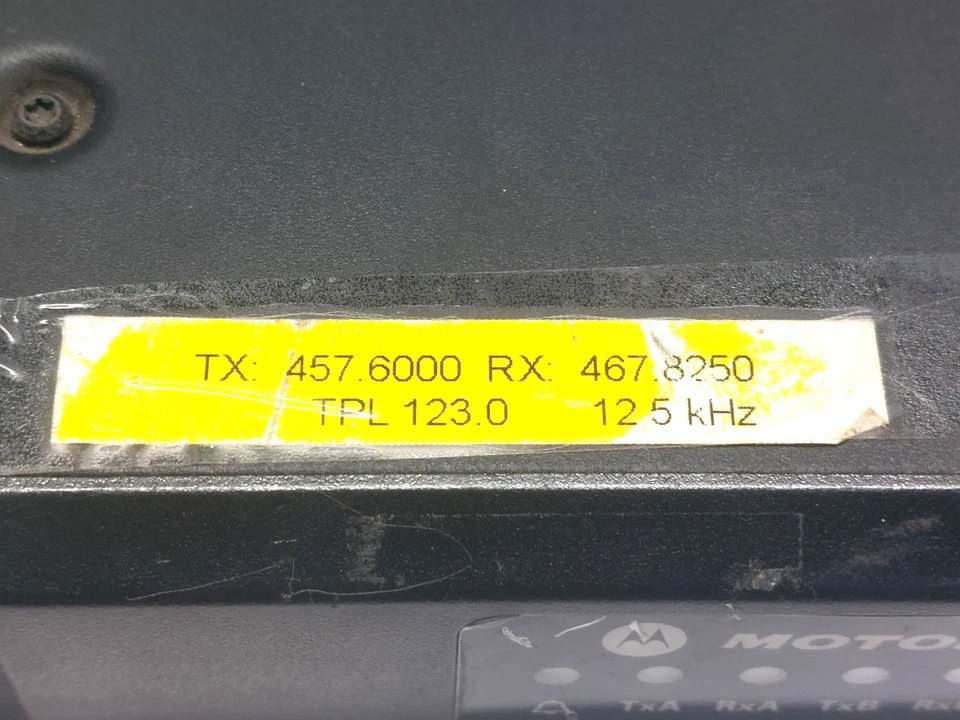

What frequency band does the Motorola SLR 5700 model AAR10QCGANQ1AN cover?

Model AAR10QCGANQ1AN operates specifically across the UHF 1 spectrum, covering 403 MHz to 470 MHz. This band is ideal for penetration through steel bulkheads, concrete walls, multi-level decks, and heavy industrial plant layouts.

Can the SLR 5700 operate simultaneously on both digital and analog modes?

Yes. The SLR 5700 features Dynamic Mixed Mode (DMM). It automatically switches between analog FM and digital DMR modes based on the incoming call type received from field portables or base stations, allowing a smooth phased migration path from legacy analog systems to digital DMR.

How does the automatic battery backup (DC revert) system work?

The SLR 5700 includes built-in DC power failover circuitry and a 3A battery maintenance charger. Connect a 12V DC auxiliary battery bank to the rear DC terminal block while the unit runs on 100–240V AC. If primary AC mains fail, the repeater transfers operation to the DC battery instantaneously without dropping active calls or resetting the unit.

Can this repeater be integrated with IP Site Connect for remote or shore links?

Yes. The onboard 10/100 Ethernet port supports MOTOTRBO IP Site Connect. This allows multiple SLR 5700 repeaters on different vessels, work sites, or remote operational facilities to link over standard IP LAN/WAN networks for seamless wide-area roaming.

What is the maximum continuous duty cycle of the SLR 5700 at 50 Watts?

The SLR 5700 is rated for a 100% continuous duty cycle at its full 50-Watt RF output. It is engineered for 24/7/365 heavy voice dispatch, digital data, and trunking operations without thermal tripping under high ambient temperatures up to +60°C (+140°F).
