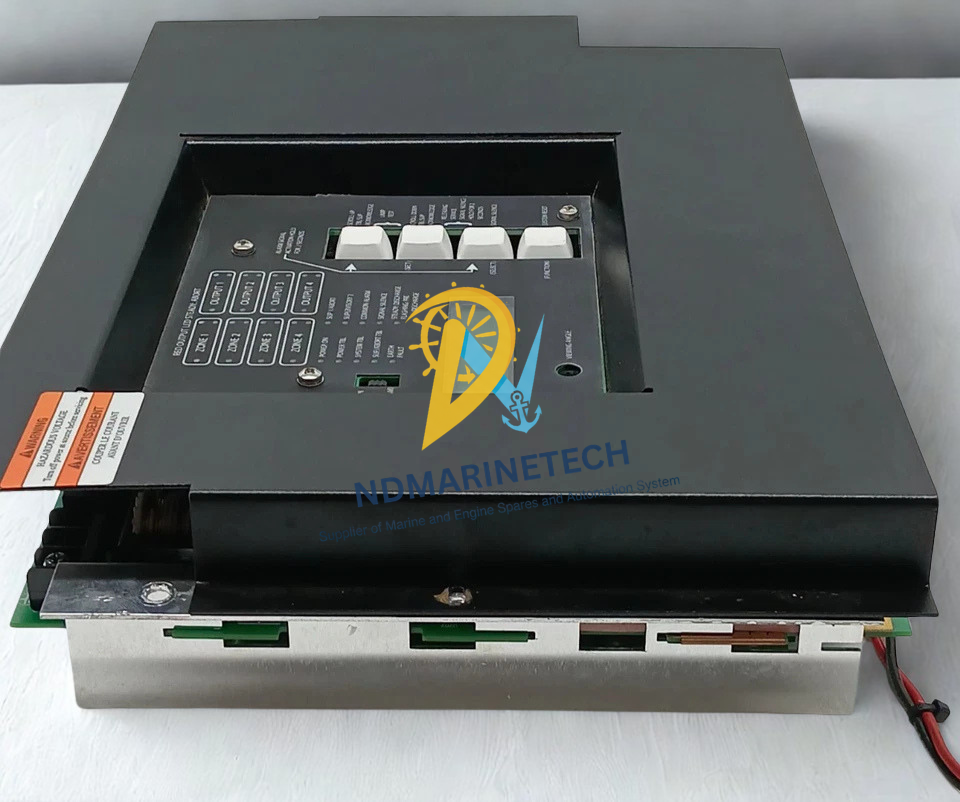

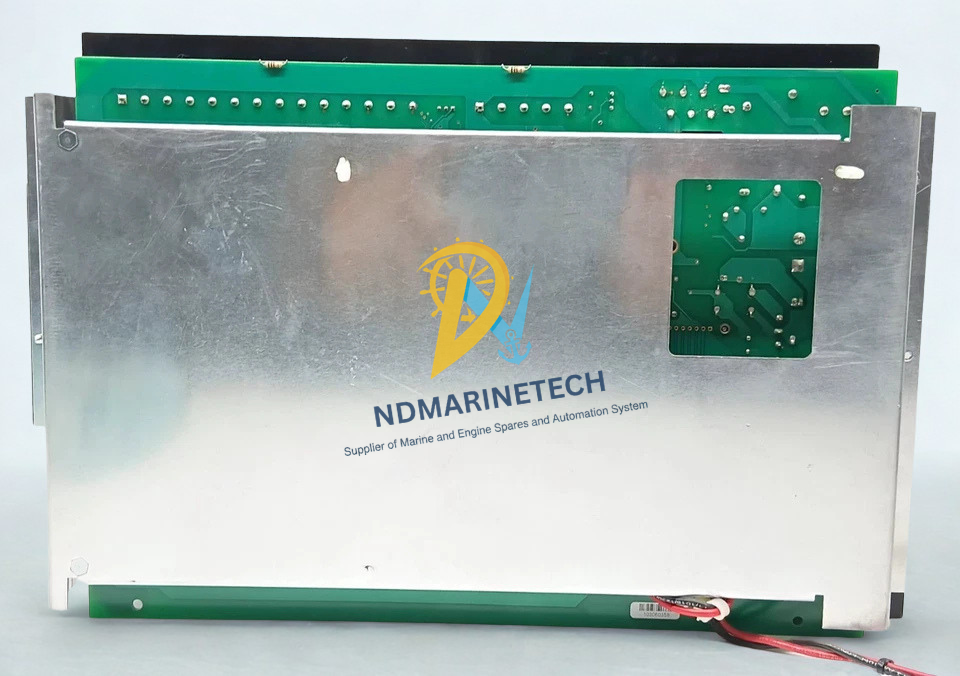

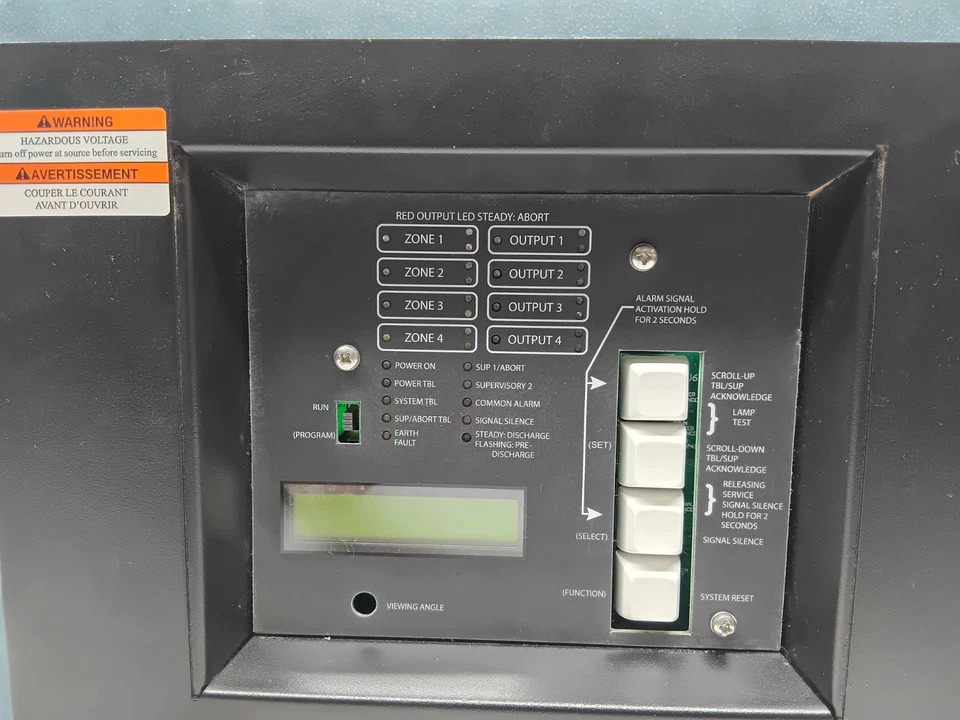

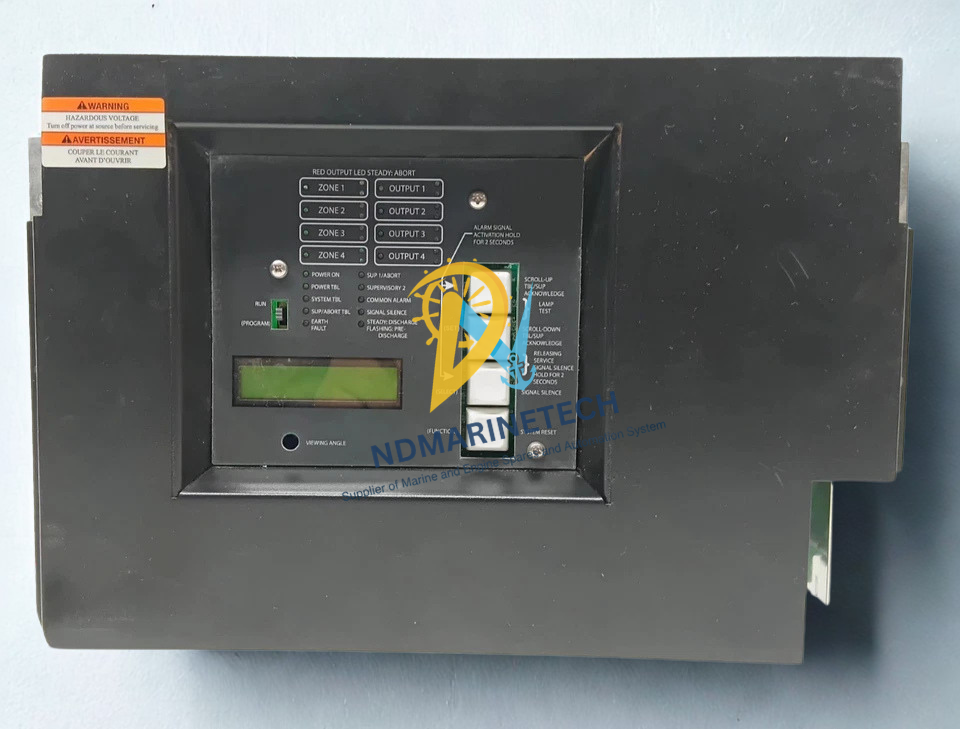

Potter 5150357-01-D Fire Alarm Releasing Control Panel

POTTER 5150357-01-D FIRE ALARM RELEASING CONTROL PANEL

The Potter 5150357-01-D is a commercial-grade, heavy-duty fire alarm and special hazard releasing control panel motherboard designed by Potter Electric Signal Company. This primary internal circuit assembly is the processing engine for complicated fire detection and localized suppression systems and is engineered for mission-critical reliability.

It is designed to resist tough architectural and mechanical environments and controls the key timing, cross-zoning, and signaling network required to operate clean agent suppression, pre-action water systems, and deluge valves. Whether employed as a replacement core or as part of a typical industrial infrastructure, the 5150357-01-D ensures that life-safety networks and asset-protection systems fire exactly when they need to and never by accident.

Model Details:

• Brand: Potter Electric Signal Company
• Model Number: 5150357-01-D
• Manufacturer Part Number (MPN): 5150357-01-D
• Board Revision/Copyright: Rev D / 2016 Assembly Standard
• Manufacturing Origin: Assembled in U.S.A.

Technical Details:

Applications

• Machinery Space Protection Controls fixed fire-fighting gas systems such as FM-200, CO2 or Novec 1230 in industrial areas and marine motor rooms.
• Server Rooms & Data Centers: Provides cross-zoned smoke detection networks to protect sensitive electronic infrastructure by clean-agent dumping.
• Pre-action Sprinkler Control: The major release mechanism in commercial buildings where a two-stage interlock system is required to avoid unintentional water release.
• High-Value Logistics Warehouses Watches targeted and general initiating zones to defend important asset banks.

Guidance by NDMarineTech:

• Standard panels can develop intermittent ground faults when used in high-vibration or high-humidity situations, such as vessel machinery rooms or offshore platform control modules, where fire protection is required. The Potter 5150357-01-D has an isolated ground and performs quite well under these loads.
• My main concern as a maritime engineer is that a releasing panel does not mistakenly trip a chemical dump because of a single sensor failure or a short circuit due to salt-air degradation. On this board the counting and cross-zoning architecture ensures that at least two independent verification points are met prior to the activation of the releasing solenoid.
