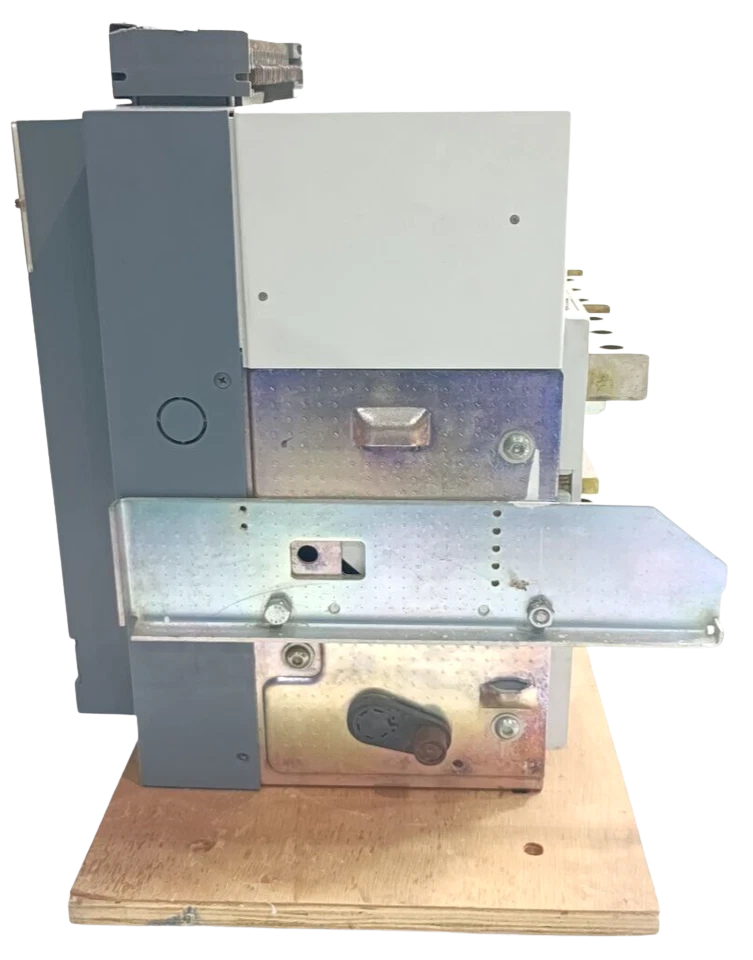

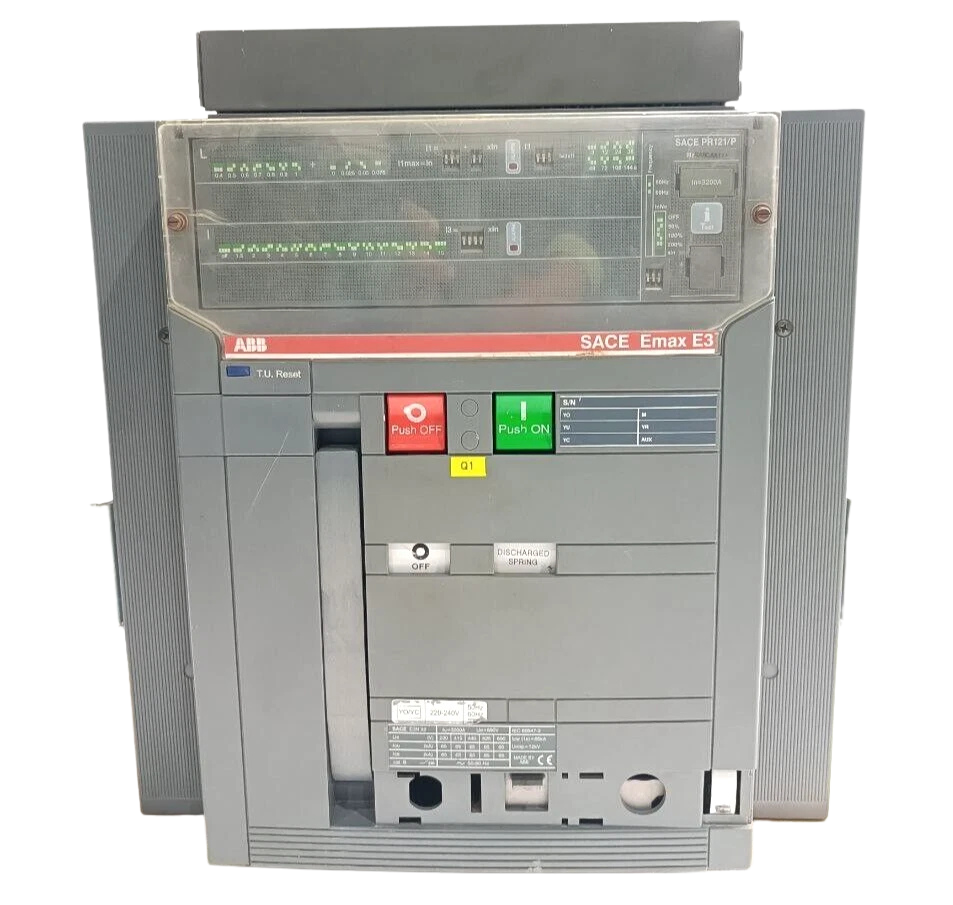

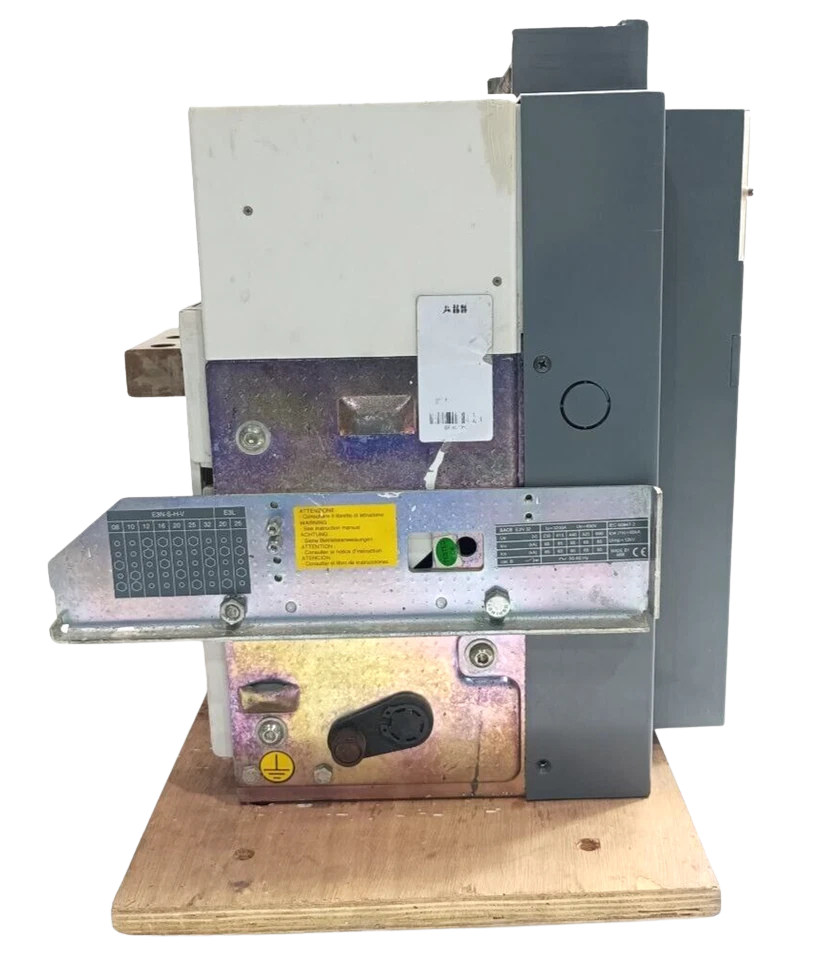

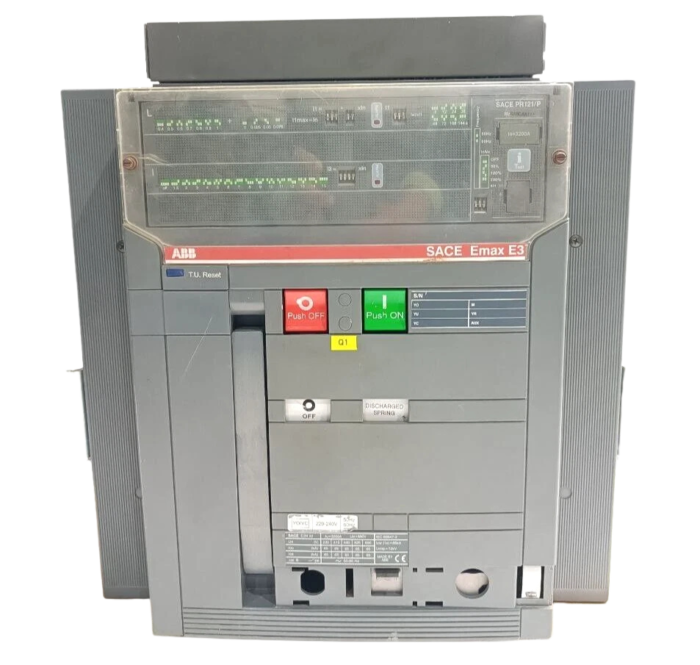

ABB SACE Emax E3N32 3200A Air Circuit Breaker

The ABB SACE Emax E3N32 3200A is an industrial heavy-duty low voltage Air Circuit Breaker (ACB) used for control, isolation and protection of important electrical networks against overloads and short circuits. Featuring a rugged 3-pole architecture and a continuous current rating of 3200A, this circuit breaker provides best-in-class performance in challenging multi-megawatt applications. The operating voltage is up to 690V AC, and the auxiliary coils are specially designed for 220-240V AC, 50/60Hz.

The E3N32 is provided with sophisticated microprocessor based protection releases (often from the PR121, PR122 or PR123 family) which enable selective protection coordination and rapid tripping capabilities under short-time fault currents. Its structural frames are designed to handle high dynamic and thermal stress making it the perfect choice for main switchboards in heavy industries, processing plants and marine vessels.

Model Details

• Manufacturer Part Number (MPN): 1SDA056144R1 (Typical for E3N 3200 PR121/P-LI In=3200A 3p F HR Configuration)
• Alternative Configurations:

• • 1SDA056146R1 (E3N 3200 PR121/P-LSIG)
  • 1SDA058242R1 (E3N 3200 PR122/P-LSI)
  • 1SDA056161R1 (E3N 3200 PR121/P-LSI Drawout / Moving Part)

• Part Number Cross-References: ABB 1SDA056144R1, SACE E3N32, Emax E3N 3200, E3N3200PR121, SACE E3N 3200A 3P.

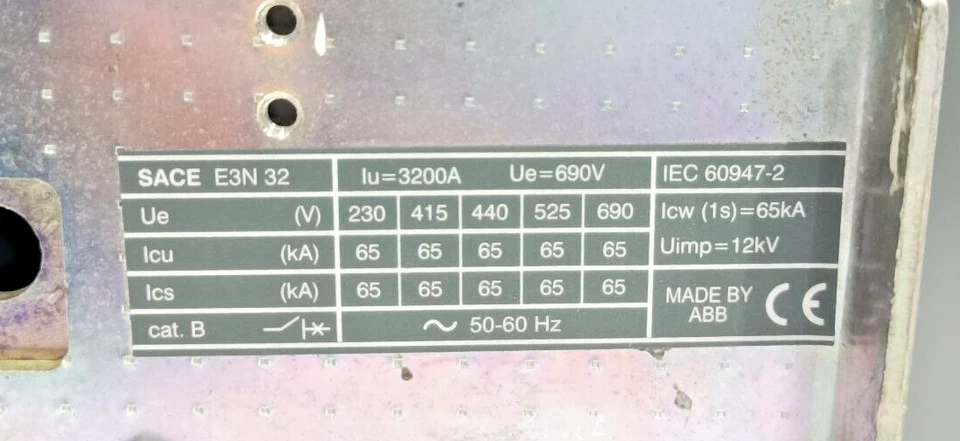

Technical Specifications: ABB SACE Emax E3N32

Equipment Compatibility

The ABB SACE Emax E3N32 frame seamlessly integrates into standard industry switchgear housings and is fully backward compatible with the historical SACE Emax series infrastructure when configured with matching connection kits.

• Switchgear Housings: ABB MNS, ABB ArTu, and generic IEC-compliant low-voltage distribution cubicles.
• Trip Units: SACE PR121/P, PR122/P, and PR123/P electronic overcurrent protection modules.

Applications

• Marine Main Propulsion & Auxiliary Switchboards: Used as a generator protection breaker or main bus-tie tie breaker on commercial vessels, container ships, and offshore platforms.
• Heavy Industrial Processing Plants: Safeguards multi-megawatt distribution systems in steel mills, cement factories, and petrochemical refineries against thermal overloading and short circuits.
• Data Centers & Infrastructure: Serves as the primary incoming breaker from MV/LV transformers to guarantee service continuity via highly reliable fault isolation.
• Power Generation Plants: Handles critical switching operations for conventional hydro/thermal plants as well as large-scale solar and wind farm consolidation switchgear.

Marine Engineer Expert’s Guide

1. When deploying the ABB SACE Emax E3N32 in a marine or heavy offshore environment, ambient heat dissipation and vibration profiles are your primary operational hurdles. ACBs drawing upwards of 3000A in enclosed steel switchboards generate a substantial thermal signature.

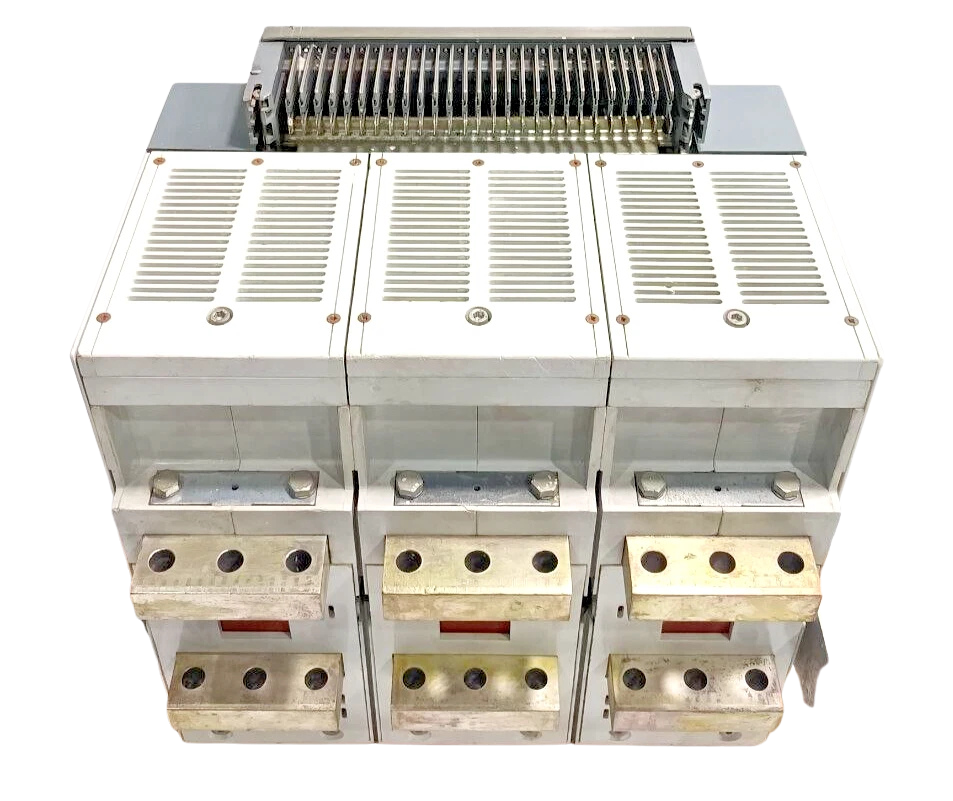

2. Busbar Torquing & Contact Maintenance: Ensure the rear horizontal copper terminals are torqued precisely to ABB’s factory recommendations (usually 70 Nm for M12 hardware). Loose terminal joints act as localized resistance heaters; under a 3200A load, a loose nut will burn out the rear terminal cluster and trip your thermal sensors prematurely.
3. Harmonic Distortion Considerations: If this unit is downstream of heavy Variable Frequency Drives (VFDs) or large SCR thruster systems, ensure your PR122 or PR123 trip units are adjusted to filter out high-frequency harmonic fluctuations. False tripping due to skin effects on the internal Rogowski coils can disrupt shipboard power distribution. Always verify that the auxiliary control supply (220-240V AC) is fed from an uninterruptible power source (UPS) or a clean, surge-protected line to avoid auxiliary coil dropouts during heavy motor startups.

Frequently Asked Questions:

What trip units can be installed on the E3N32 3200A circuit breaker?

The E3N32 is fully compatible with the SACE PR121/P, PR122/P, and PR123/P microprocessor overcurrent releases. These offer modular protections ranging from standard basic overload/short-circuit protection (PR121) to advanced power metering, communication protocols, and directional protection (PR123).

Can a 3-pole ACB be modified for use in a 4-pole system?

No, the physical frame, internal current transformers (Rogowski coils), and contact mechanisms are factory-fixed. A 3-pole (3P) breaker cannot be field-modified into a 4-pole (4P) variant. For applications requiring a switched neutral, a dedicated 4-pole Emax E3N frame must be ordered.

What maintenance is required for the mechanical charging mechanism?

The internal springs must be checked for proper lubrication every 2,000 cycles or every two years in marine environments. The charging motor (220-240V AC) and associated microswitches should be inspected to ensure clean electrical contacts and crisp physical actuation.
