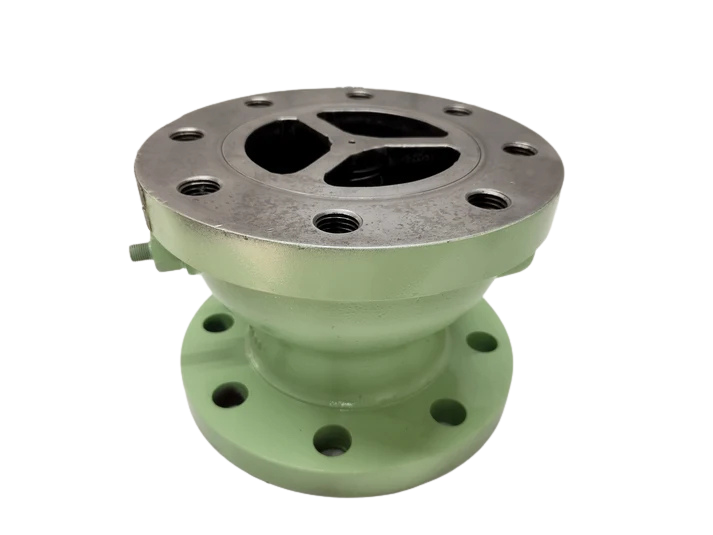

Rolls-Royce Marine F201A Item: 214-061 Valve

Rolls-Royce Marine F201A Item: 214-061 Valve

The Rolls-Royce maritime F201A Item: 214-061 Valve is a mechanical valve, designed to OEM specifications for demanding maritime propulsion, auxiliary power generation and deck machinery control systems. This component has been designed for cyclic thermal loading, high hydraulic operating pressures and aggressive fuel oils (including MGO, MDO and HFO). It provides accurate fluid control, tight seat sealing and long service intervals on medium speed diesel engines and heavy marine deck equipment.

The 214-061 valve is made of hardened stainless alloy steel with stellite-faced contact zones, ensuring structural integrity against high pressure spikes and heat gradients up to 650°C. The F201A Item: 214-061 is recommended for fuel injection assemblies, cylinder head valves and high pressure hydraulic manifolds where it avoids dynamic pressure drops and prevents premature seat wire-drawing.

Model Details:

• Manufacturer / Brand: Rolls-Royce Marine / Kongsberg Maritime
• Model Designation: F201A Series
• Item Number: 214-061
• Manufacturer Part Number (MPN): 214-061 / F201A-214061
• OEM Drawing Reference: F201A-061-REV-D

Key Features

1. High-Grade Stellite Facing: Cobalt-chromium alloy welded seat surface resists thermal erosion, cavitation, and micro-welding at elevated temperatures.
2. Precision Surface Finish: Stem ground to Ra 0.2 µm and seat ground to Ra 0.1 µm for gas-tight contact and minimal friction seal wear.
3. Tough Substrate Core: Nitrided martensitic stainless steel body delivers high tensile strength (>1,100 MPa) to resist cyclic fatigue failure under high-frequency operation.
4. Corrosion-Resistant Coating: Protective surface passivation prevents hot-corrosion caused by high-sulfur Heavy Fuel Oil (HFO) vanadium and sodium deposits.
5. Tight Dimensional Tolerances: Machined to within ±0.005 mm stem concentricity, ensuring drop-in replacement without additional lapping when installed into standard guides.

Compatibility & Engine Models

The F201A Item: 214-061 valve is compatible with various medium-speed marine diesel engines and marine deck systems manufactured under the Rolls-Royce Marine, Bergen Diesel, and Kongsberg Maritime portfolios:

• Rolls-Royce Bergen C-Series: C25:33L (6C, 8C, 9C In-line)
• Rolls-Royce Bergen B-Series: B32:40 (In-line and V-Engine configurations)
• Rolls-Royce Bergen K-Series: KR-MB, KRG-6, KRG-8, KRG-9 Marine Diesel Gensets
• Rolls-Royce Hydraulic Winch & Deck Systems: Low/High-pressure hydraulic control block manifolds (System 514 / 520 series)
• UT-Design Marine Vessels: Main propulsion auxiliary fuel systems and hydraulic actuation loops

Part Number Cross-References

• Rolls-Royce / Bergen OEM: 214-061, 214061, F201A-214-061
• Kongsberg Maritime Part No: KM-214061-F201
• Alternative OEM Reference: RR-F201A-061

Applications

• Medium-speed marine main propulsion diesel engines running on MDO or Heavy Fuel Oil (HFO).
• Marine auxiliary generator sets (Gensets) providing continuous vessel electrical power.
• High-pressure hydraulic directional and pressure-relief manifolds for anchor handling winches, towing winches, and offshore crane systems.
• Scavenge and auxiliary hydraulic actuator blocks on offshore support vessels (OSVs, PSVs, AHTS).

Installation & Clearance Checks

• Stem-to-Guide Clearance: Prior to installation, measure valve stem diameter using an outside micrometer (16.000 mm nominal) and check internal guide clearance with a telescoping gauge. Target cold clearance is 0.05 mm to 0.08 mm. Excessive clearance (>0.12 mm) leads to stem flutter, uneven seat hammering, and premature oil seal wear.
• Seat Lapping Procedure: If installing into a reconditioned cylinder head or valve block, perform a fine-grit blueing check using Prussian Blue. Ensure a minimum 85% continuous contact band around the 45° seating surface. Lap gently using fine silicon carbide paste (600 grit); never over-lap stellite faces as this rounds the critical sealing edge.
• Torque & Preload: Ensure spring retainers and split collets are seated evenly. When securing valve guide collars or housing cap screws, torque diagonally in three steps to the factory torque specification (120 Nm final torque for standard M14 retaining studs) using a calibrated torque wrench.

Troubleshooting & Field Maintenance

• Seat Wire-Drawing / Blow-By: If burning or pitting is detected along the seating face during 4,000-hour overhaul inspections, check for fuel injector needle dribble or HFO vanadium deposit buildup. Clean with ultrasonic baths and check seat concentricity with a dial indicator (max runout: 0.02 mm).
• Hydraulic Sticking: If used in hydraulic control manifolds, fluid contamination above ISO 4406 Cleanliness Code 16/14/11 will cause stem binding. Flush system pipes and replace return line filter elements (10-micron nominal) before replacing the valve.

Frequently Asked Questions

What is the primary function of the Rolls-Royce Marine F201A Item: 214-061 Valve?

The Rolls-Royce Marine F201A Item: 214-061 valve is an OEM component designed to precisely control fluid flow and maintain pressure seal integrity in high-pressure marine diesel engine systems and specialized hydraulic deck machinery.

Can this valve be used with Heavy Fuel Oil (HFO)?

Yes. The valve features a stellite-faced contact surface and a nitrided martensitic stainless steel stem engineered to withstand hot-corrosion and high thermal loading associated with sulfur-rich Heavy Fuel Oils (HFO), Marine Diesel Oil (MDO), and Marine Gas Oil (MGO).

Which engine models use part number 214-061?

Part number 214-061 is primarily installed on Rolls-Royce Bergen C-Series (C25:33), B-Series (B32:40), and K-Series (KR/KRG) medium-speed engines, as well as selected Rolls-Royce hydraulic winch control systems.

How do I check if my valve stem or seat requires replacement?

Measure stem diameter against the 16.000 mm baseline using a micrometer, check total runout with a dial indicator (maximum allowable runout is 0.02 mm), and perform a Prussian Blue contact test on the 45° seat to verify an 85% continuous contact ring. Stem clearance exceeding 0.12 mm indicates the valve stem or guide must be replaced.
