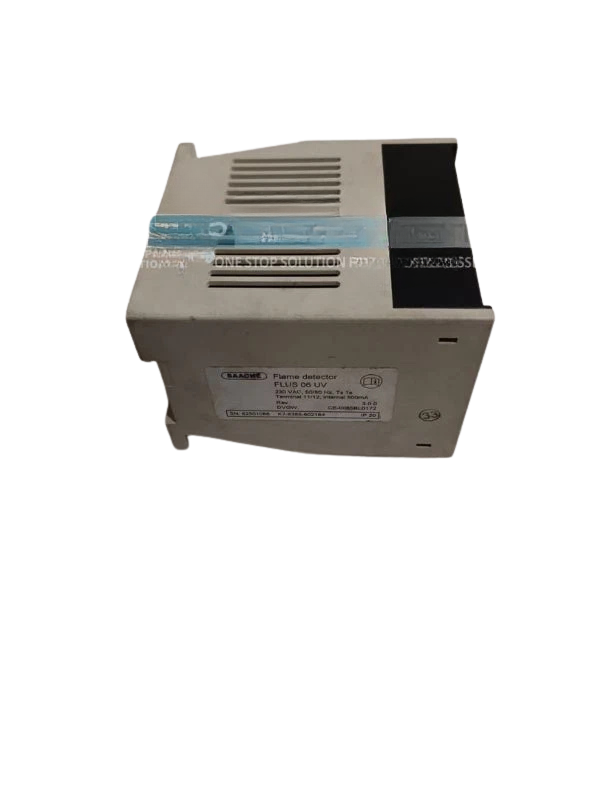

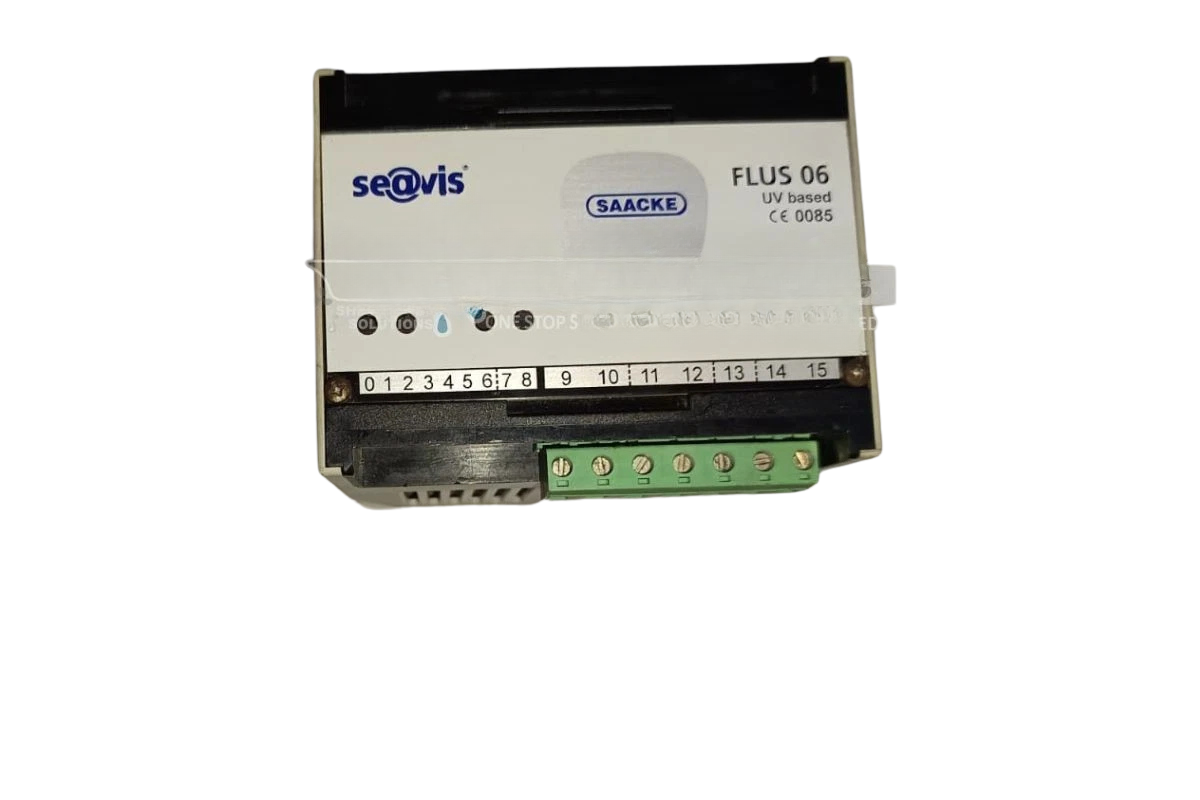

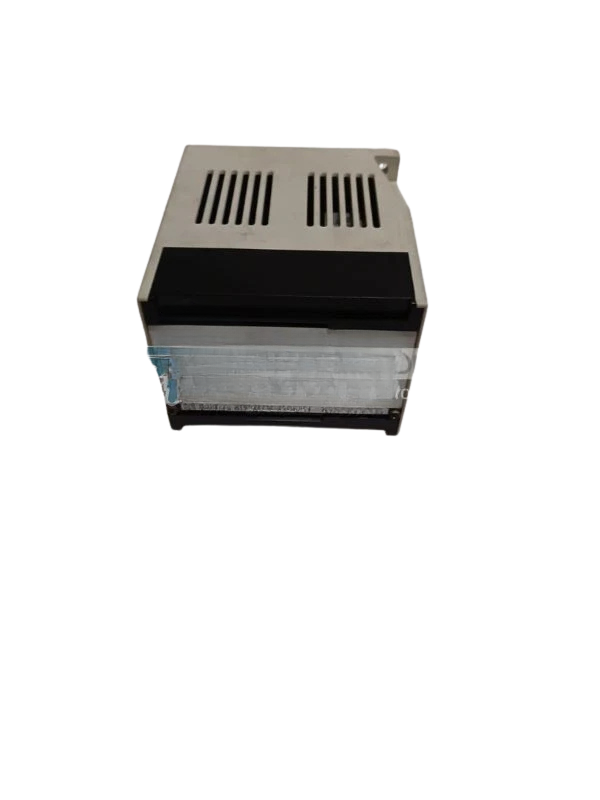

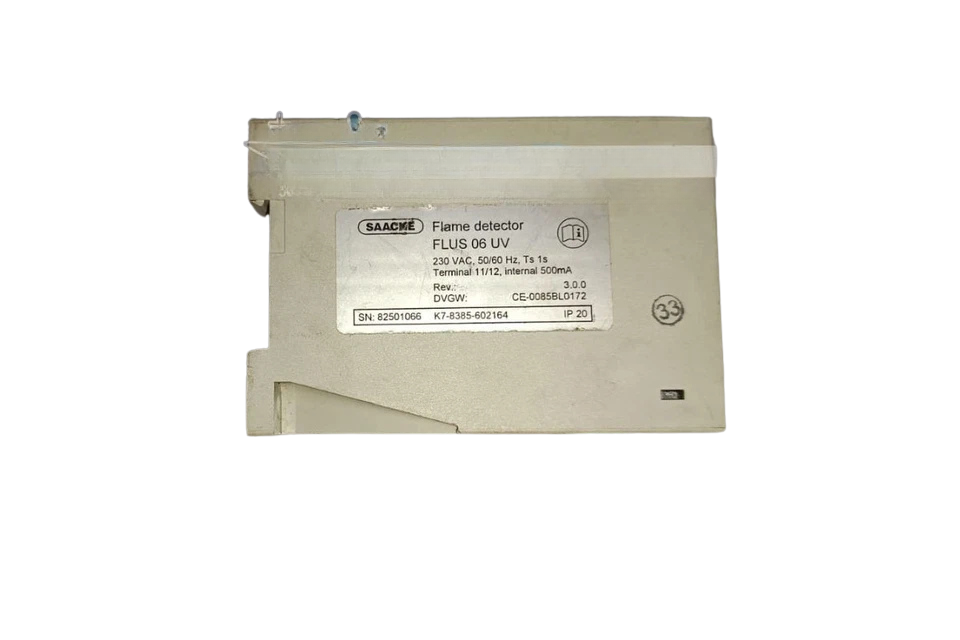

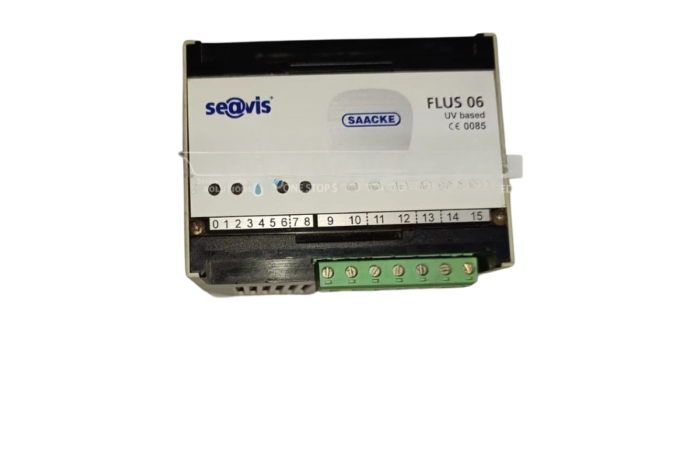

SAACKE FLUS 06 UV Flame Detector 230VAC

SAACKE FLUS 06 UV Flame Detector 230VAC (Unused New)

The SAACKE FLUS 06 UV Flame Detector (Model: FLUS06UV) is a high-precision, heavy-duty optical flame monitoring device engineered specifically for industrial combustion systems, auxiliary marine boilers, and main propulsion steam generators. Designed to operate seamlessly with SAACKE burner management systems (BMS), this 230VAC unit utilizes a specialized ultraviolet (UV) phototube responsive to short-wave radiation (190 nm to 270 nm). It selectively detects the primary ultraviolet emission bands generated by hydrocarbon flames while filtering out background infrared radiation, refractory glow, and ambient lighting interference. Its ruggedized die-cast aluminum enclosure ensures reliable continuous operation inside harsh marine engine rooms and high-vibration boiler fronts.

Model Details

• Manufacturer: SAACKE GmbH
• Series / Model: FLUS 06 / FLUS06UV
• Part Reference / MPN: K7-8385 Series
• Operating Voltage: 230 VAC (50/60 Hz)

Compatibility

• Compatible Equipment Models: SAACKE rotary cup burners (SKV/SKVD series), steam boiler automatic combustion controllers, se@vis burner management systems.
• Part Number Cross-References: K7-8385, FLUS06UV, Saacke Flame Scanner Assembly Type FLUS 06.

Key Features

1. High-speed UV sensor array accurately distinguishes true pilot and main flame ignition from hot refractory glow.
2. Rapid reaction time of under 100 milliseconds guarantees immediate fuel safety shut-off during flameout events.
3. Robust IP65-rated die-cast aluminum housing effectively withstands intense mechanical vibration and thermal stress in marine environments.
4. Built-in noise suppression circuitry filters out electromagnetic interference (EMI) from nearby high-frequency ignition transformers and variable frequency drives.
5. Compact cylindrical architecture allows effortless retrofit and direct mounting onto standard burner sight tubes and flanges.

Applications

• Marine auxiliary and waste heat recovery boilers
• Industrial steam and hot water generation plants
• Heavy-oil and marine diesel oil (MDO/MGO) fired combustion burners
• Refinery process heaters and thermal fluid systems

Frequently Asked Questions

What causes the SAACKE FLUS 06 to register a false flame failure?

False trips are typically caused by optical lens fouling due to oil mist or soot accumulation, misaligned sighting tube positioning, or degradation of the internal UV phototube over extended operating cycles. Regular inspection and purging air verification resolve most issues.

Can this 230VAC variant replace an older 24VDC model directly?

No. Electrical supply voltages must match strictly. The FLUS 06 is manufactured in distinct voltage configurations. Ensure your burner control panel supplies the designated 230VAC (50/60Hz) power input matching this unit.

How do I test the flame detector without risking a boiler shutdown?

The unit features internal self-monitoring circuitry, and many setup configurations allow a simulated functional check via the BMS panel during burner purge cycles or using an approved external UV testing lamp directed at the sensor aperture.
