Schneider Electric SXWPS24VX10001 Power Supply

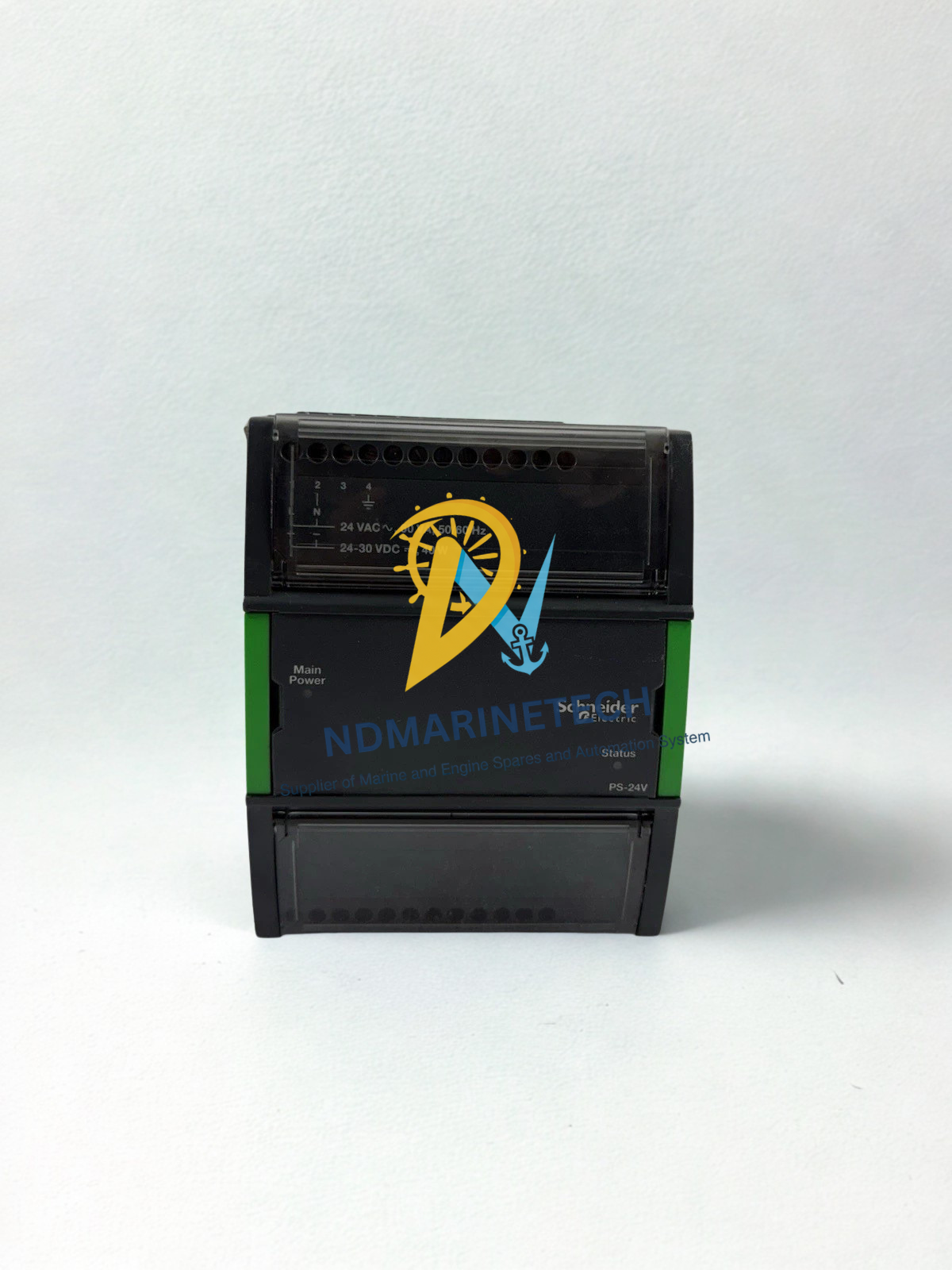

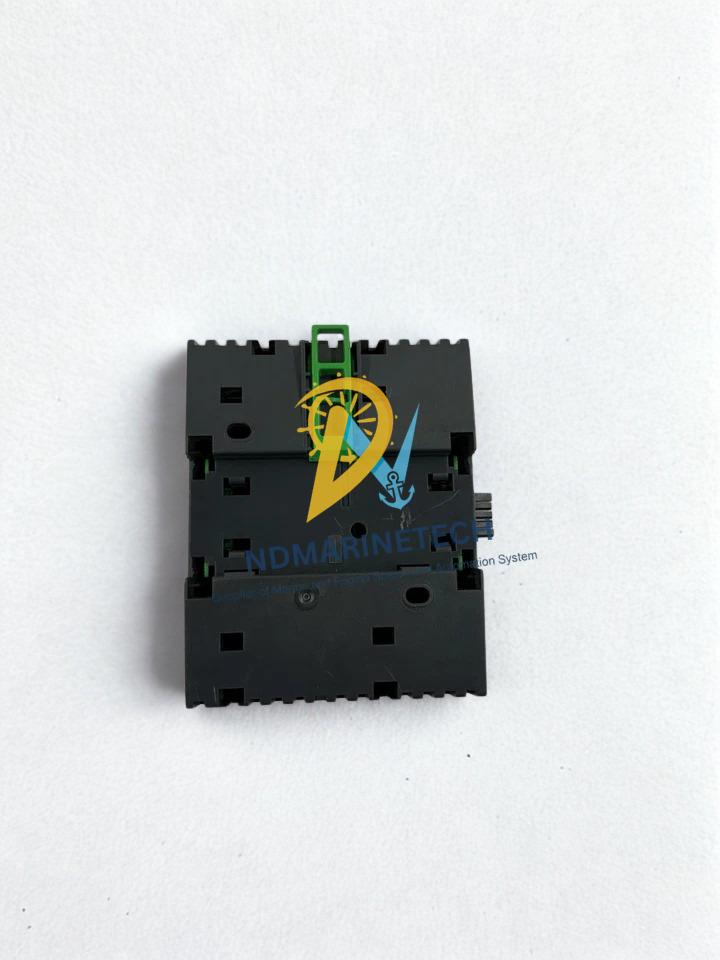

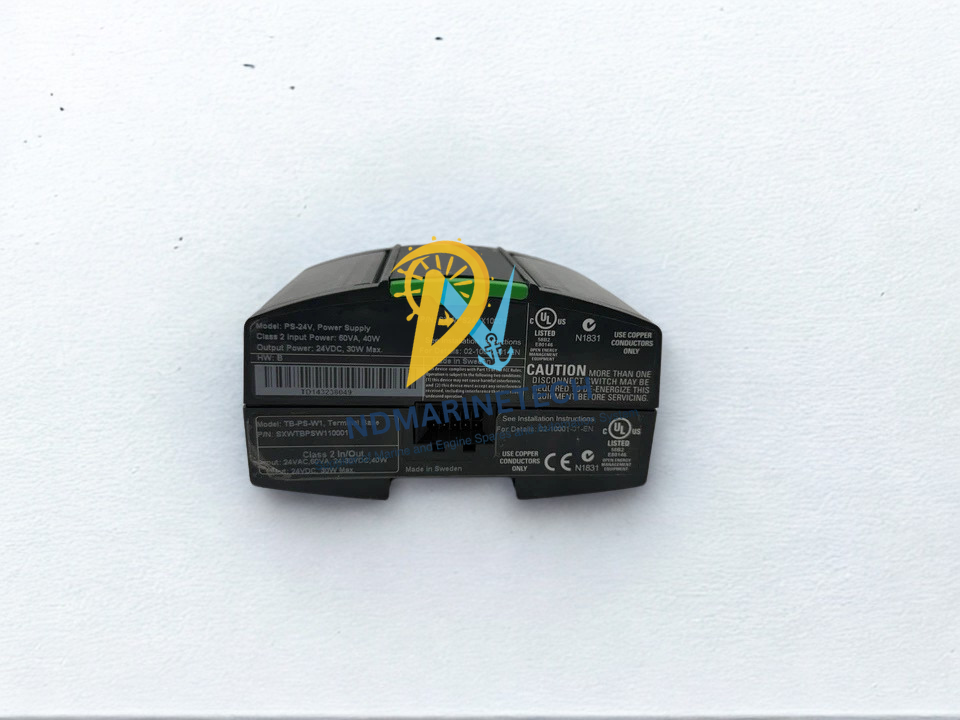

Schneider Electric SXWPS24VX10001 SpaceLogic PS-24V Power Supply Module

The Schneider Electric SXWPS24VX10001 (Device Short Name: PS-24V) is a SpaceLogic power supply module designed for the EcoStruxure Building Operation architecture. It is noted for its outstanding performance. The voltage and current profiles of the high-density I/O modules around the AS-P server have been carefully considered in the design of this outstanding quality power module. Flexible Input Capabilities – The 24VAC or 21-30 VDC inputs are easily accepted with the 24 VDC output power being reliably regulated. Designed to meet the rigors required of commercial and maritime automation applications, this small module guarantees low downtime and systemic dependability for key control infrastructure.

Product Specifications

Main Features

• Custom System Compatibility: Delivers a consistent, high-efficiency power footprint for the SpaceLogic AS-P server and related I/O modules.
• Flexible Dual-Input Architecture: Accepts 24 VAC and 21 to 30 VDC input configurations, simplifying power distribution layouts across a wide range of marine and industrial panels.
• Flame-Retardant Housing High grade UL94-5VB rated and IP20 rated for durability in tough settings.
• Eco-friendly engineering, totally mercury-free, PVC-free compliant with EU RoHS, China RoHS and REACh principles with Sustainable Green Premium Design.
• Streamlined Form Factor: Very small physical size allows for dense, space-saving DIN rail or panel layouts without compromising heat dissipation efficiency.

Model Details

• MPN: SXWPS24VX10001
• Device Short Name: PS-24V
• GTIN/UPC: 3606480472403

Compatibility Requirements

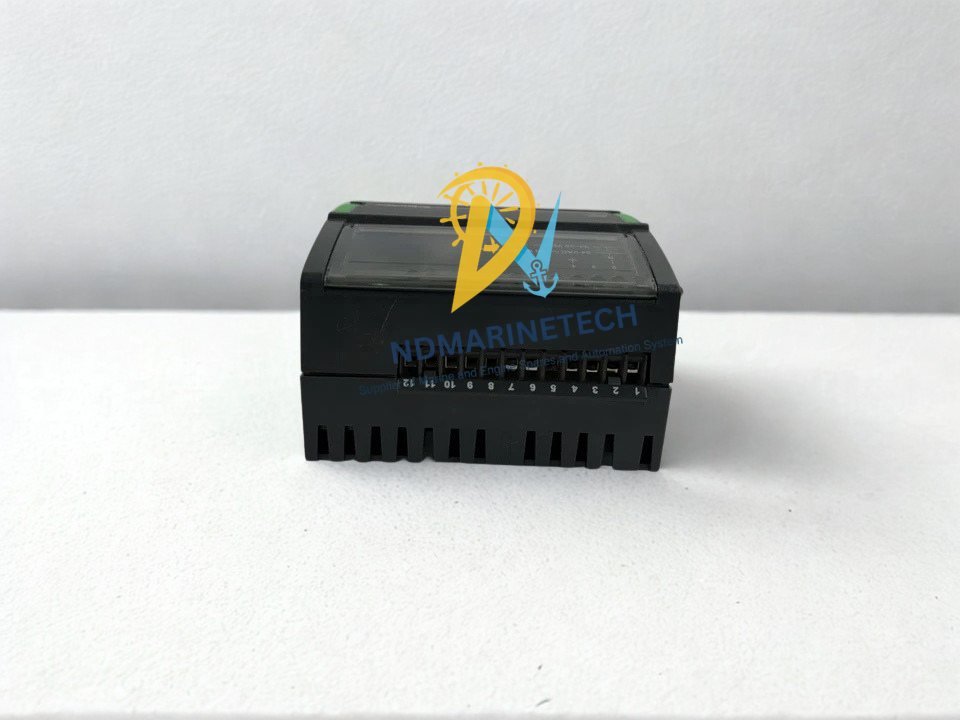

This module requires a Schneider Electric EcoStruxure TB-PS-W1 terminal base for mounting and wiring connections. It is fully compatible with the SpaceLogic AS-P Controller and all matching EcoStruxure Building Operation I/O modules.

Installation Guidance:

1. Always Use the Correct Base Remember SXWPS24VX10001 cannot be directly wired. This is the TB-PS-W1 terminal base. Insert the power module and make sure the base is clicked securely onto the DIN rail.
2. Thermal Management: The module operates very cool at a 10 W rating but do not sandwich it tight between high heat generating devices (like huge contactors or VFDs) in your control panel arrangement. Maintain standard clearance for maximum lifecycle durability.
3. Input Conditioning: If you are feeding this module with 24 VAC inside an engine room or heavy industrial floor, verify your step-down transformer has enough surge suppression. Power surges occuring during startup of large equipment are short lived but might wear down the components at the input stage of the unit.
