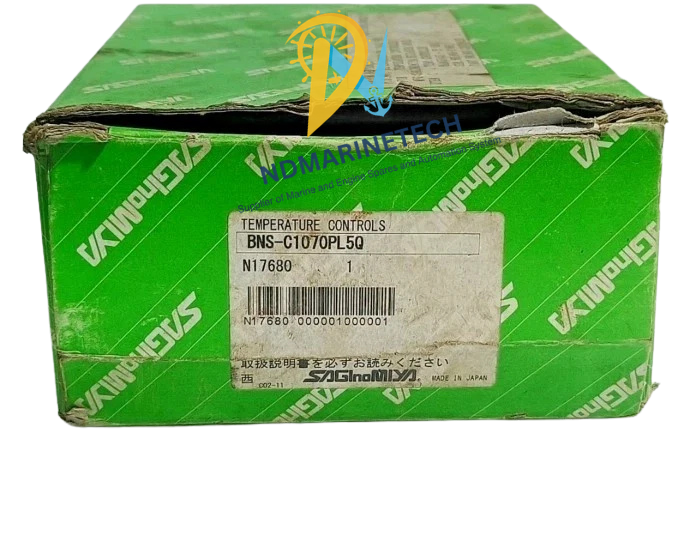

Saginomiya BNS-C1070PL5Q Temperature Control

Saginomiya BNS-C1070PL5Q Temperature Control

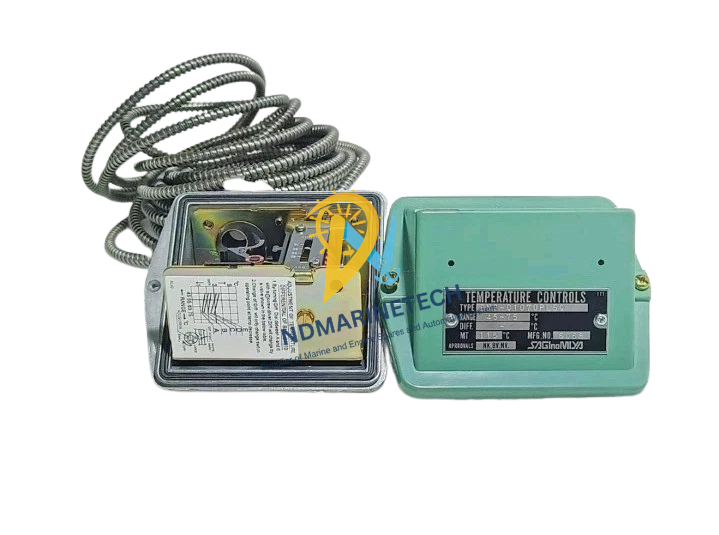

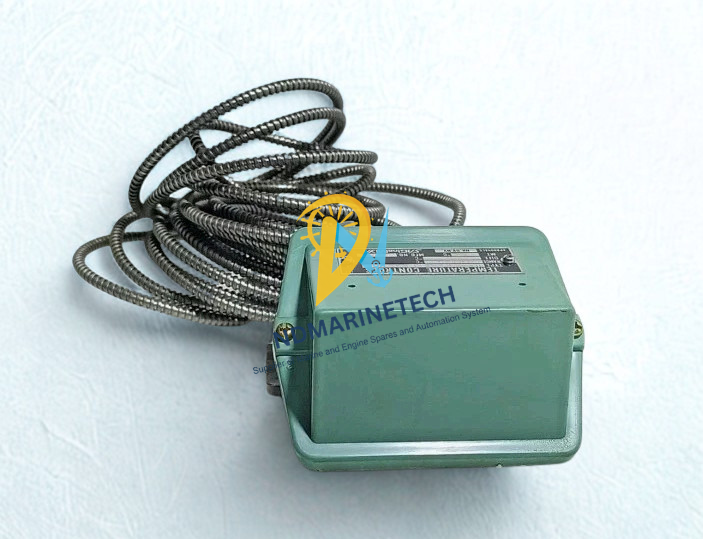

The Saginomiya BNS-C1070PL5Q is a temperature controller with bellows that works quite well. It is built for tough jobs and gives consistent control for cooling water, lubricating oil, or industrial heating systems. It is built strong enough to keep its set-point precision even in the high-vibration situations that are common on marine diesel engine platforms.

Specifications

Key Features:

• Exceptional Vibration Resistance: Designed to endure the mechanical pressures of engine rooms and industrial plants while preventing chattering and premature contact wear.
• Precision Bellows System: Uses a high-sensitivity vapor-pressure thermal element to respond quickly to temperature changes.
• SPDT switching is versatile, as the Single Pole Double Throw contact can be used in both heating and cooling applications.
• High Thermal Ceiling: With a maximum bulb temperature of 115°C, the unit is resistant to inadvertent over-temperature surges.
• Compact and modular design: Easily integrates into existing control panels or direct-mounting applications, leaving a low footprint.

Installation and Maintenance Guide:

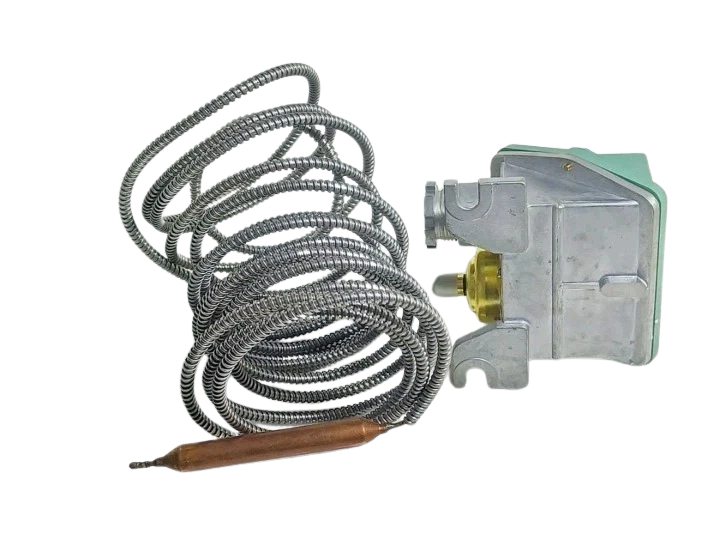

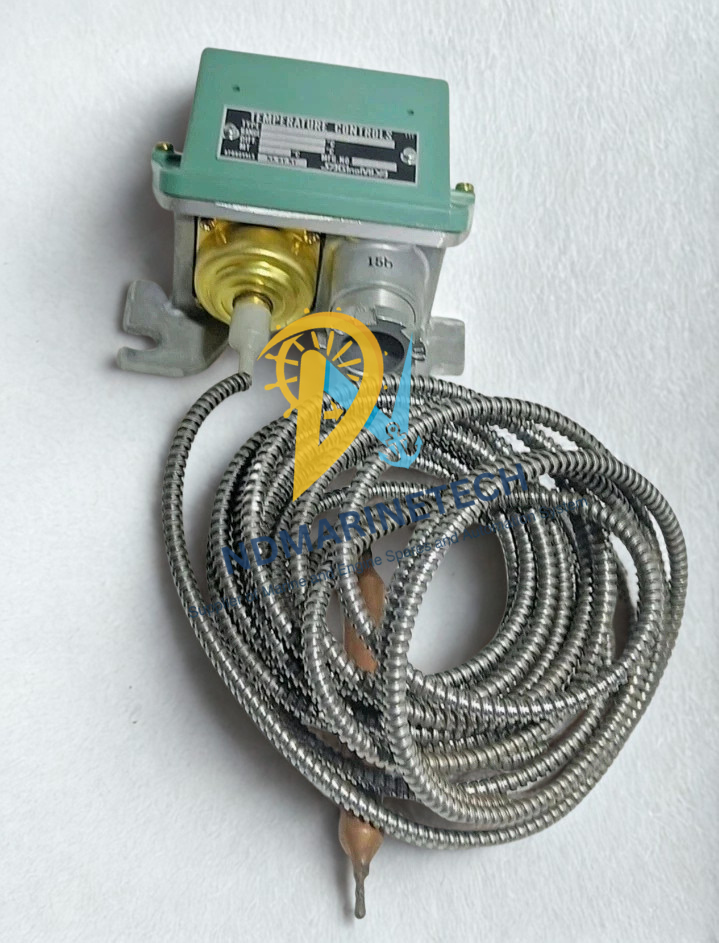

Engine Room Tip: Make sure the capillary tube isn’t bent or kinked when you put in the BNS-C1070PL5Q. There should always be a stress loop near the bulb to keep it from breaking from too much vibration.

1. Calibration Check: During the initial sea trial or industrial run, always use a calibrated thermometer to check the set point. The scale is a guide; the actual temperature of the fluid is the truth.
2. Wiring: Put ferrules on the ends of your wires. Bare stranded wire will eventually vibrate free or tear in places with a lot of vibration, which will cause signals to come and go.
3. Placement of the Bulb: To get accurate readings, make sure the sensing bulb is completely in the flow of the medium and not in a dead-leg of the piping.
