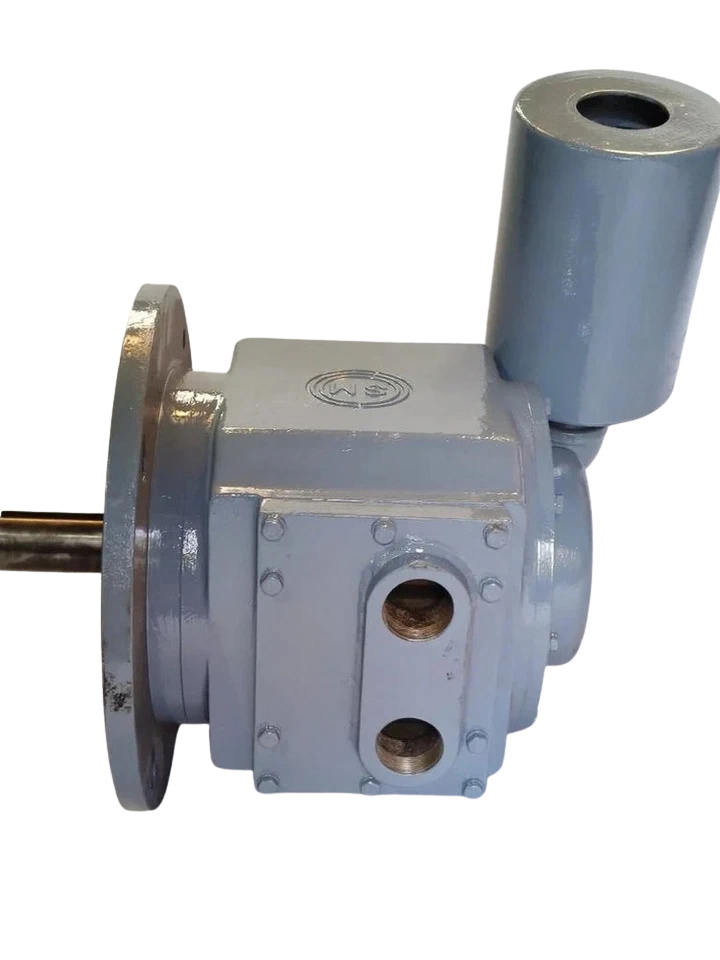

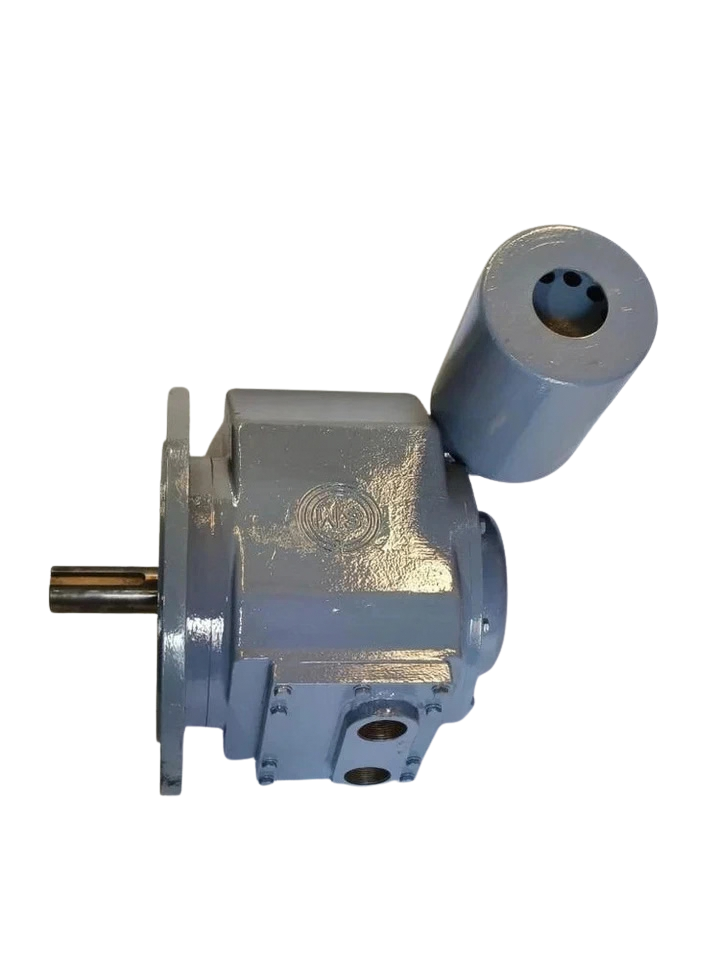

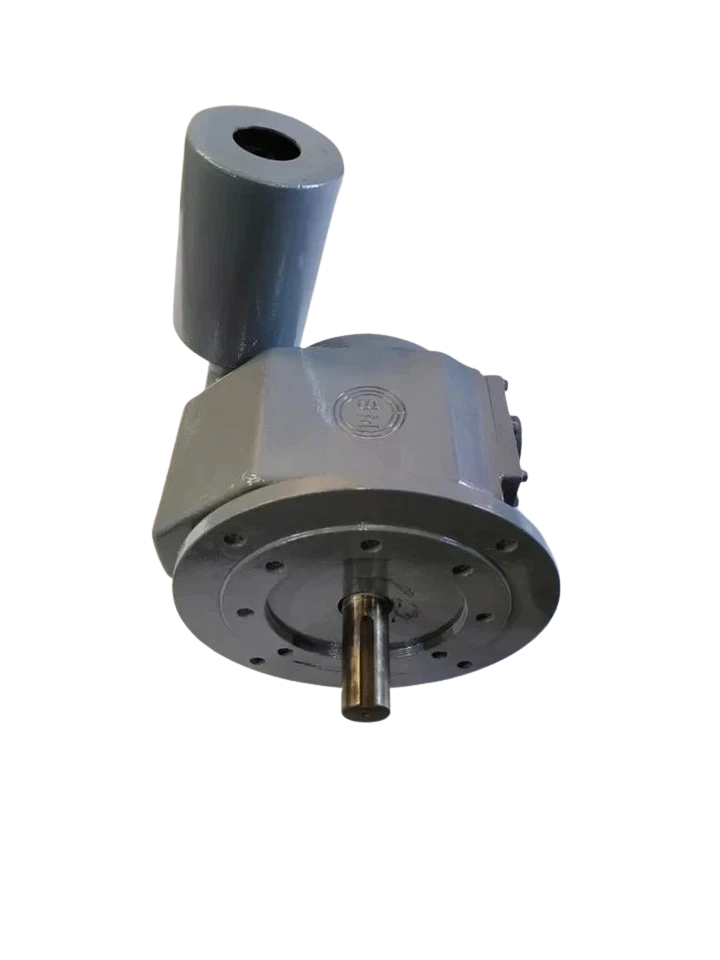

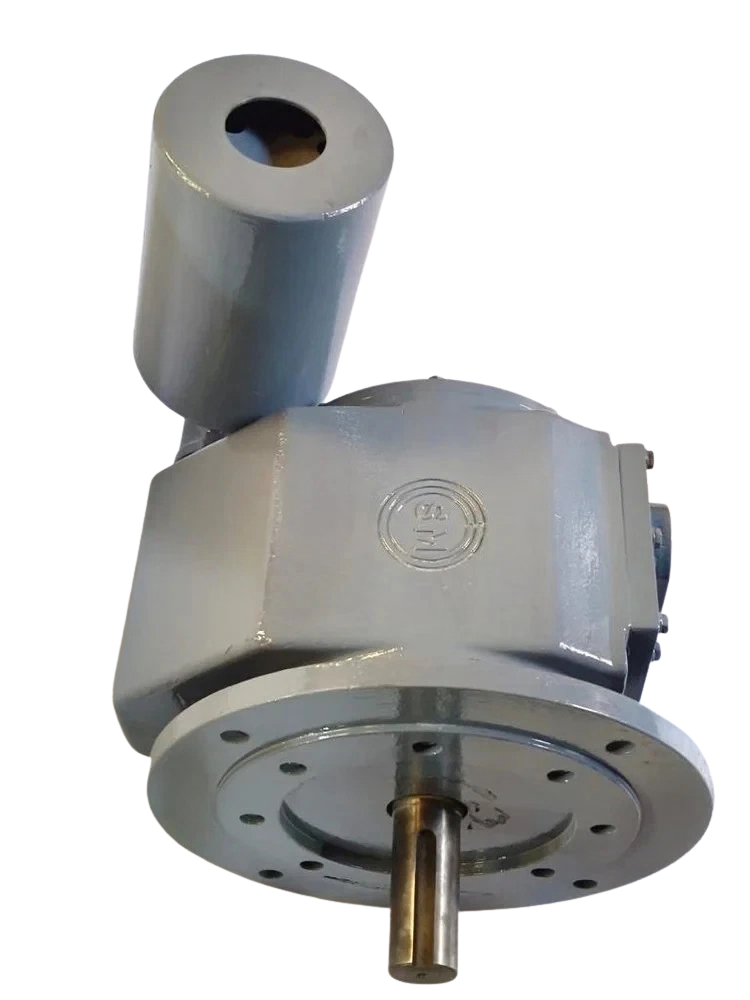

Shin Myung SMF 25P-1800S Air Motor

Shin Myung SMF 25P-1800S Marine Air Motor

The Shin Myung SMF 25P-1800S is a pneumatic motor designed specifically for harsh deck machinery, offshore platform operations, and hazardous zone industrial installations. Engineered by Shin Myung Tech. Co., Ltd. (Republic of Korea), this motor delivers 25 PS (18.4 kW / 24.7 HP) at a rated continuous speed of 1800 RPM under standard working pressure of 5.0 to 7.0 bar.

The SMF 25P-1800S provides high starting torque, smooth low-speed throttling, and reversible operation without electrical spark hazards. It is intrinsically safe (ATEX Zone 1/21 equivalent by nature of pneumatic design) and impervious to moisture, sea salt corrosion, and thermal overloads—making it an industry-standard prime mover for mooring winches, capstans, accommodation ladder davits, and deck cranes.

Model Details

• Manufacturer: Shin Myung Tech. Co., Ltd.
• Series: SMF (Flange / Heavy Duty Marine Series)
• Model Designation: SMF 25P-1800S
• Manufacturer Part Number (MPN): SMF-25P-1800S
• Design Type: Heavy-Duty Multi-Piston / Rotary Pneumatic Drive
• Standard Casting Code / Material: JIS FC250 / FCD450 High-Grade Gray/Ductile Cast Iron

Key Features

1. Substantial Output Density: Generates 25 PS (18.4 kW) continuous power rating at 1800 RPM, maintaining peak torque delivery across varying pneumatic pressures (5.0 to 7.0 bar).
2. Intrinsically Explosion-Proof: Operates strictly on compressed air; generates zero electrical discharge or ignition risk, meeting safety mandates for oil/chemical tankers, gas carriers, and hazardous deck zones.
3. High Overload & Stall Tolerance: Withstands full stalls under maximum line pull without winding burnout or casing distortion; instantly recovers torque once load drops below stall limits.
4. Corrosion-Proof Marine Metallurgy: Precision-bored cast iron housing and specialized bronze/nitrided alloy mechanical components resist aggressive saline ambient environments and wet utility air supply.
5. Dynamic Directional Control & Braking: Designed for reversible forward/reverse operation with rapid stopping capability, compatible with standard marine 4-way proportional pneumatic control valves.

Part Number Cross-References & Equivalent Models

• Samgong Co., Ltd.: SAM-25PE Series (Pneumatic Drive Equivalent)
• Japan Air Motor (JAM): JAM-25P Series / JAM-20PE Series
• Shin Myung Alternative Configurations: SM-25P-1800, SMF-25P, SMP-25P (foot-mount configuration)
• Ingersoll Rand Marine Equivalent: MRV015 / KK5B Series (Dimensional adapter plate required)

Compatibility

• The Shin Myung SMF 25P-1800S is compatible as a prime mover or auxiliary starter unit on the following marine and industrial systems:
• Capstans & Mooring Winches: Shin Myung SMCAP series deck capstans, MacGregor, Pusnes, Tsuji, and Mitsui marine winch gear trains.
• Lifeboat & Davit Systems: Gravity davit hoists, rescue boat launching appliances (VestDavit, Palfinger, Oriental Marine).
• Accommodation Ladder Winches: Standard pneumatic hoists on commercial merchant vessels (VLCC, Bulk Carriers, LNG Carriers).
• Industrial Agitators & Pumps: Heavy-duty fluid mixing tanks, slurry pumps, and hazardous zone chemical injection mixers where electric motors cannot be deployed.

Frequently Asked Questions

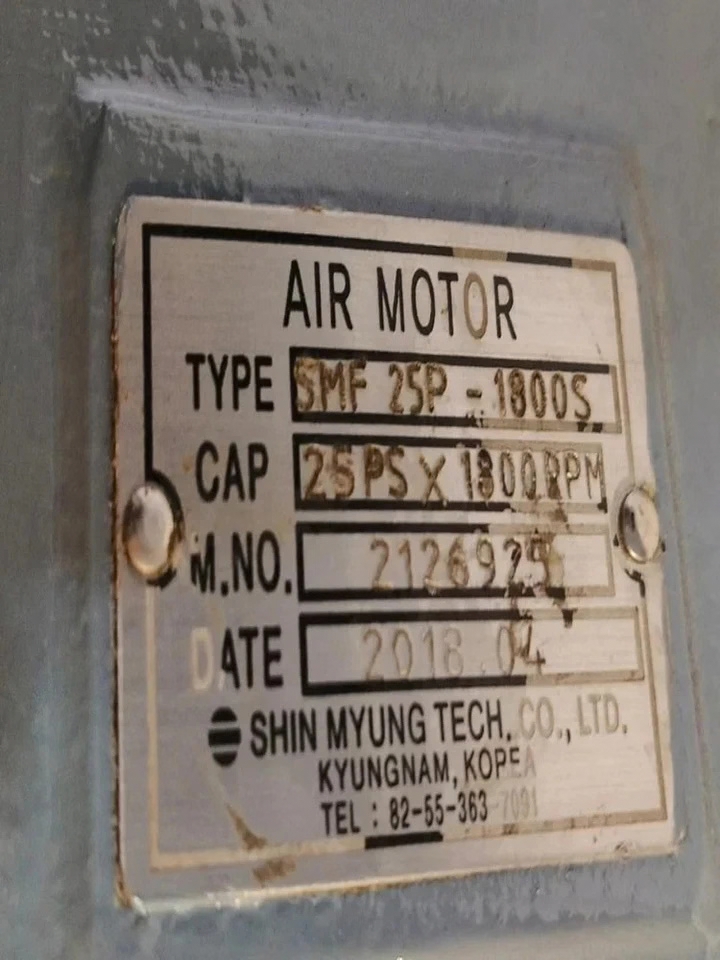

What does the model code SMF 25P-1800S signify?

“SMF” denotes Shin Myung’s marine flange-mounted heavy series; “25P” indicates the rated capacity of 25 PS (~18.4 kW); and “1800S” designates the rated running speed of 1800 RPM in a standard design revision.

Can this motor run continuously in hazardous marine tanker zones?

Yes. The SMF 25P-1800S is purely pneumatic, requiring no electrical wiring, switchgear, or sparking contacts. Its air-driven mechanism and heavy cast iron body make it naturally explosion-proof and compliant with tanker deck safety guidelines for Zones 1, 2, 21, and 22.

Can the SMF 25P-1800S operate in reverse rotation?

Yes. The motor is bi-directional. Reversal is executed by altering the air supply path across the inlet/outlet channels using an external 4-way direction control pneumatic valve.

What happens if the driven load exceeds motor capacity and causes a stall?

Pneumatic motors like the SMF 25P-1800S can safely stall under overload conditions indefinitely without internal thermal burnout, electrical tripping, or casing damage. Once the external resistance drops, the motor immediately resumes operation.

How do I troubleshoot a noticeable drop in speed or power output?

First, inspect the line pressure at the motor inlet while running under load to ensure it maintains at least 5.0 to 6.0 kgf/cm². Next, inspect the in-line air strainer and exhaust silencer for scale, rust debris, or iced condensation. If pressure and flow are nominal, check internal lubrication levels and verify whether seal rings require replacement.
