Eaton 134ME00007A Dowmax Hydraulic Motor

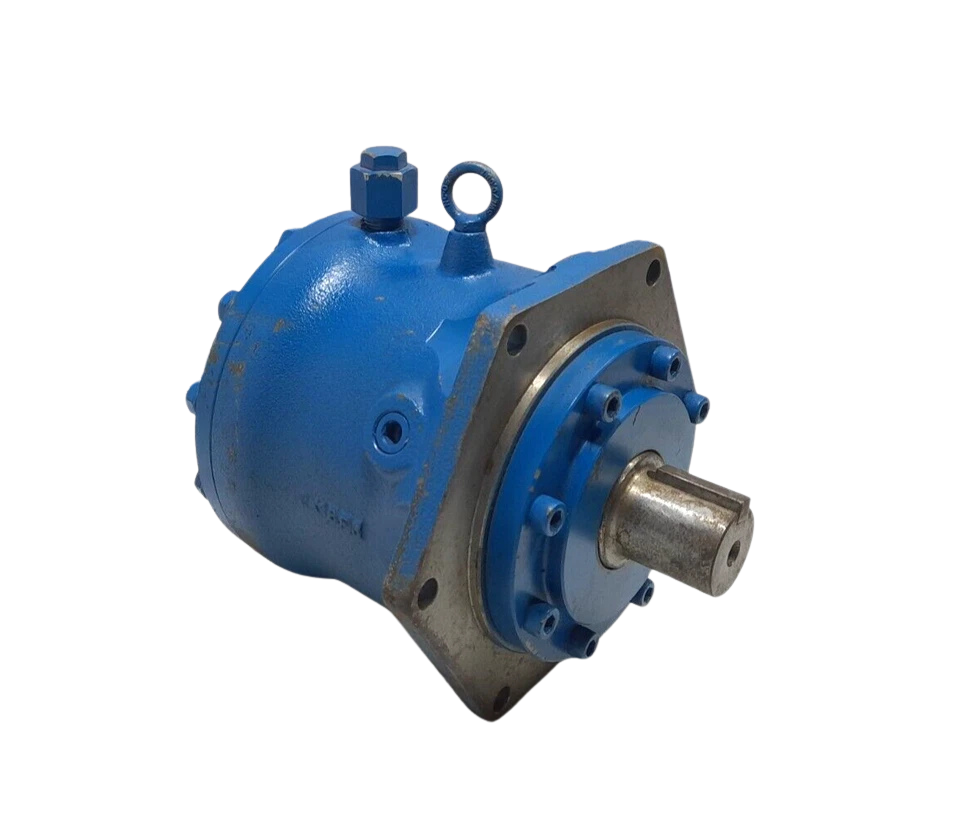

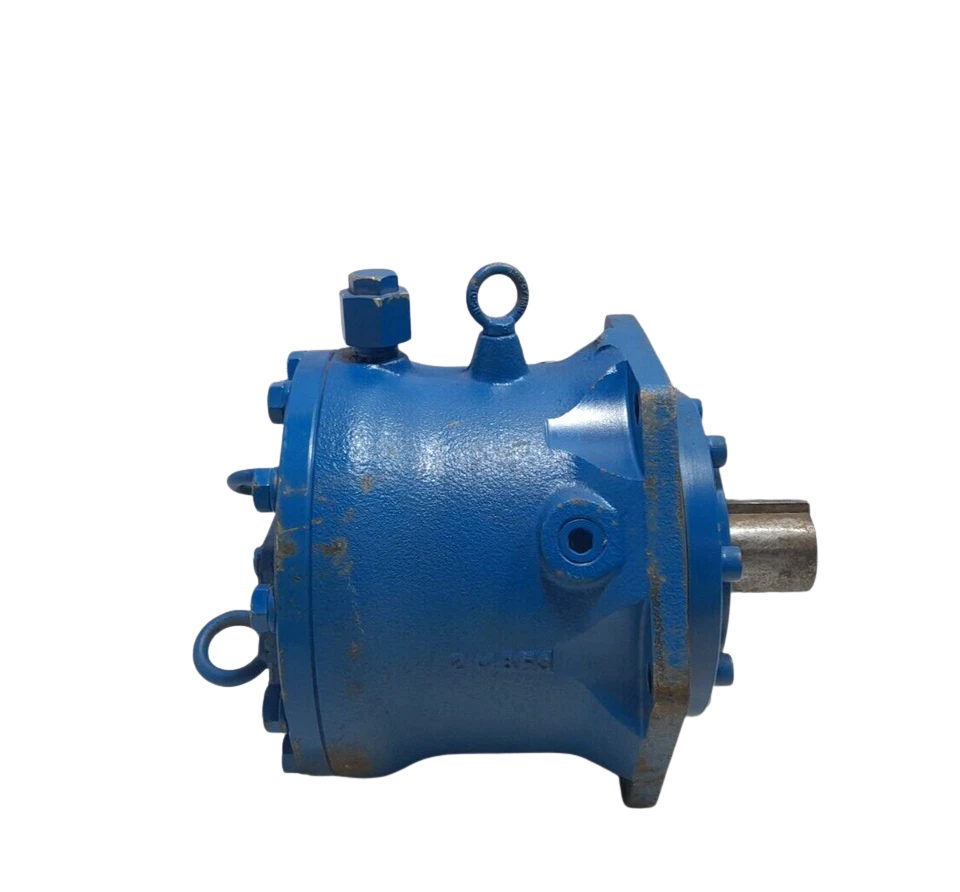

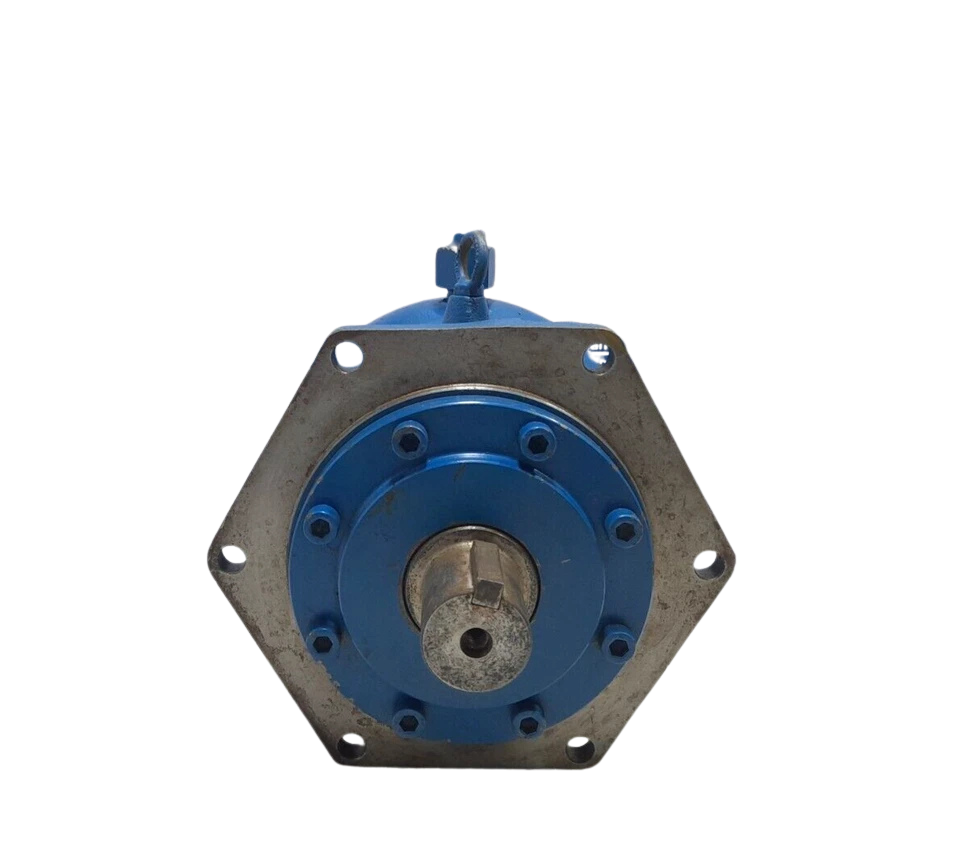

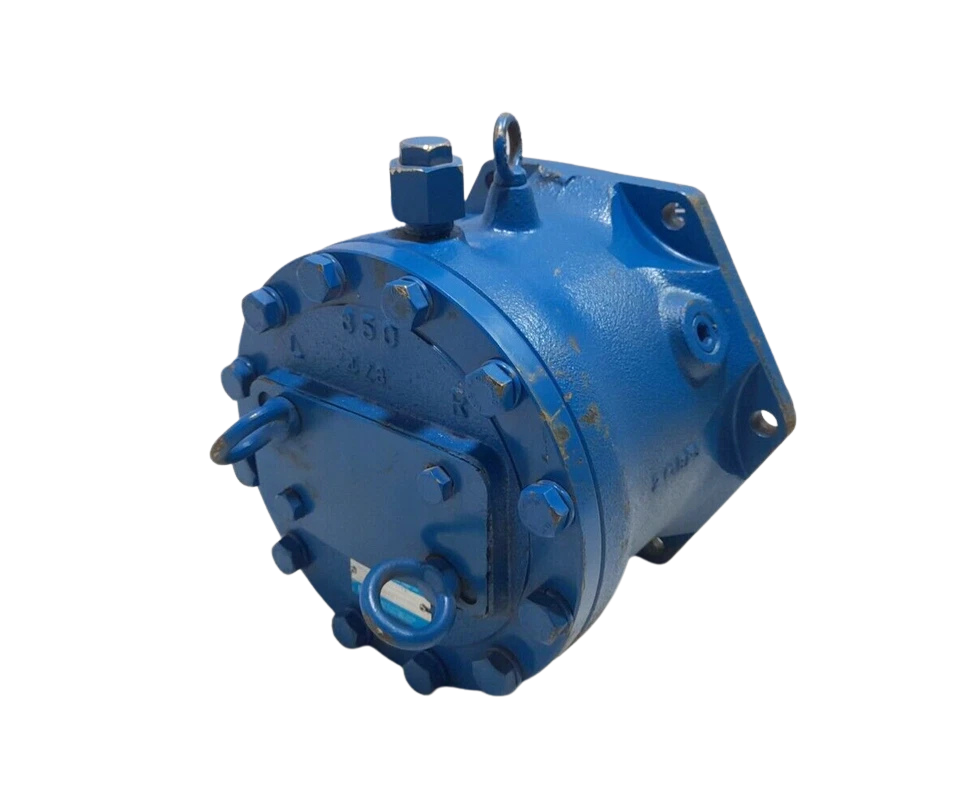

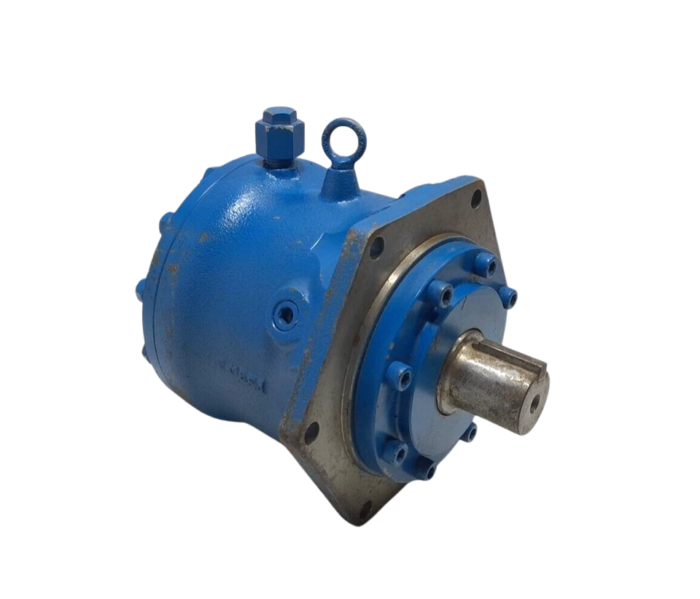

Eaton 134ME00007A Dowmax Axial Piston Hydraulic Motor

The Eaton 134ME00007A is a heavy duty, low speed, high torque (LSHT) axial piston hydraulic motor designed in the well known Dowmax ME Series (often cross referenced with the ME175-KE arrangement and drawing number DZ3188B). The motor is designed for high-integrity industrial and marine applications and delivers consistent volumetric and mechanical efficiency under rigorous duty cycles. Its rugged internal axial piston design allows it to develop high starting torque without external gear reduction boxes, saving vital installation space in tight machinery rooms.

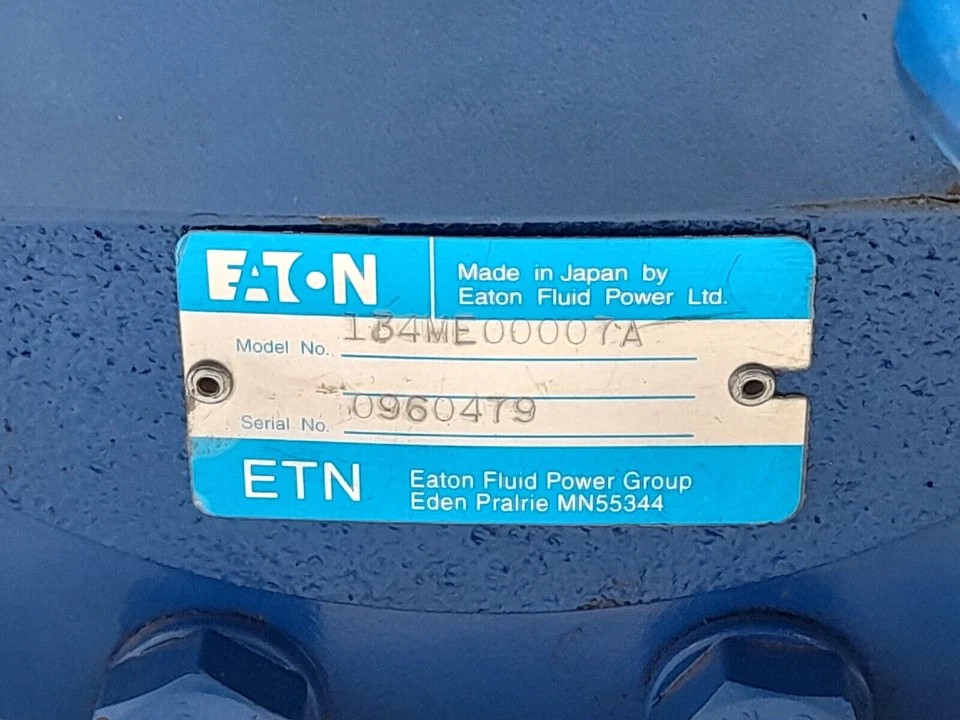

Model Details:

• Manufacturer: Eaton
• Series: Dowmax ME Series (ME175-KE variant)
• Manufacturer Part Number (MPN): 134ME00007A
• Drawing / Blueprint Reference: DZ3188B
• Country of Origin: Japan

Technical Details: 134ME00007A Motor

Key Features

1. High Starting Torque Density: Delivers a robust 765 Nm of rated torque, ensuring smooth breakaway under heavy load conditions without slip.
2. Low-Speed Optimization: Engineered specifically for stable, pulsation-free operation at minimal RPM thresholds.
3. Compact Axial Configuration: Minimizes radial space requirements, facilitating direct integration into tight machinery spaces and winch drums.
4. Rugged Industrial Build: High-grade metallurgical construction engineered to handle continuous duty cycles in corrosive and high-pressure environments.
5. High Overall Efficiency: Minimizes internal fluid leakage and parasitic drag, reducing thermal loading on the broader hydraulic power unit (HPU).

Applications

• Marine deck machinery (mooring winches, anchor windlasses, and cargo cranes)
• Industrial material handling and high-torque rotary drives
• Heavy-duty construction and mining machinery auxiliary transmissions
• Plastic injection molding and metal forming rotary actuation
• Offshore oil and gas hydraulic subassemblies

Marine Engineer Expert’s Guide

Advisory: When installing high-torque axial piston motors like the Eaton Dowmax series in marine environments, strict adherence to fluid cleanliness (minimum ISO 4418 / NAS 1638 cleanliness standards) is mandatory to prevent scoring on the internal valve plate and piston shoes.

• Flushing & Priming: Always fill the motor case with clean hydraulic oil through the highest case drain port before initial system startup. Running the unit dry, even for a few seconds, can wipe out the internal journal bearings.
• Case Drain Backpressure: Ensure the case drain line is routed directly back to the hydraulic reservoir with an independent, unrestricted path below the fluid level. Excessive case pressure will blow out the main shaft oil seal.
• Thermal Monitoring: During commissioning, monitor the casing temperature differential. Sudden spikes indicate excessive internal bypassing or misalignment with the driven load shaft.

Frequently Asked Questions (FAQs)

What is the exact torque rating of the Eaton 134ME00007A motor?

The motor is rated at 765 Newton-meters (Nm) of torque, optimized for heavy-duty low-speed and high-load operations.

Does this motor require an external gearbox?

No. Because it is a low-speed, high-torque (LSHT) axial piston motor, it can drive loads directly at lower speeds, frequently eliminating the need for reduction gearboxes.

What are the primary cross-reference numbers for this unit?

This unit maps directly to the Dowmax ME175-KE line, engineering drawing DZ3188B, and alternate supplier part number MINO-00162X10013.

Is documentation like dimensional drawings and test reports available?

Yes. Certified test reports, material sheets, and dimensional outline drawing PDFs are available upon request for project submittals and classification society approvals (such as DNV, ABS, or LRS).
