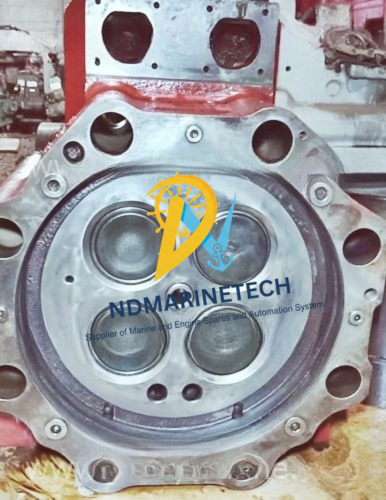

The Sulzer ZA40 and ZA40S cylinder heads are structural components designed specifically for Sulzer’s iconic line of medium-speed, four-stroke marine propulsion engines and auxiliary power generation units. These cylinder heads are designed to withstand the most extreme mechanical stresses and thermal shocks. They hold the key components of the combustion process: the very effective revolving exhaust valves, the three symmetrically organised fuel injection valves and the air-start assembly.

Whether you are running a traditional ZA40 or the upgraded long-stroke ZA40S with bore-cooled combustion chambers, it is important to preserve the structural integrity at the top of the cylinder liner to avoid blow-by, keep fuel consumption low and meet strict maritime emissions frameworks.

Specifications and Model Details

Part & Component Details

• Manufacturer Product Number (MPN): K 21101 (Main Cylinder Head Casting Assembly)

Part Number Cross-References:

• Sulzer-Wärtsilä OEM Code: 211-01, 211-02 (Fully Equipped Assembly)
• Marine Spares Code Equivalent: SZ-ZA40-CH0982, WTS-ZA40S-HEAD

Key Features

1. Bore-Cooled Architecture: Carefully designed cooling water bores near the combustion face reduce thermal stress and prevent structural distortional cracking under high cylinder pressures.
2. Integrated Rotating Exhaust Valves Specially designed to fit mechanical valve rotators (Turnomatics) to ensure equal temperature distribution across the valve face and minimise localised hot spots.
3. Triple Injection Valve Geometry (ZA40S): Multi-injector pocket machining improve fuel-air mixing. Provides clean, smoke free combustion profiles even at partial loads.
4. Nodular graphite cast iron construction: Cast with high quality spheroidal graphite iron for higher tensile strength and fatigue resistance than regular grey cast iron.

Equipment Compatibility

These cylinder heads are fully interchangeable across a broad index of vessel layouts and power generation configurations, spanning across line, V-shape, and specific auxiliary modules:

• Sulzer ZA40 Configurations: 6ZA40, 8ZA40, 9ZA40, 12ZA40, 14ZA40, 16ZA40
• Sulzer ZA40S Configurations: 6ZA40S, 8ZA40S, 9ZA40S, 12ZA40S, 14ZA40S, 16ZA40S, 18ZA40S
• Primary Vessel Classes: Deep-sea container feeders, Ro-Ro cruise ferries, heavy-lift cargo vessels, diesel-electric military auxiliaries, and continuous-duty land-based diesel power plants.

Engineer’s Insight:

The Sulzer ZA40S is a powerhouse, but the cylinder head area demands total precision during overhauls. A common mistake crews make during rapid turnarounds is ignoring the condition of the bore-cooling water guide jackets and internal insulation sleeves. Over time, heavy fuel oil (HFO) with high sulfur content can lead to cold corrosion if the cylinder head jacket water temperatures drop below 130º C at the inlet. Always ensure your cooling water treatment is strictly within chemical parameter limits to mitigate galvanic scaling inside those intricate passages.
