Tuthill GD030S Global Gear Pump G18182

Tuthill GD030S Global Gear Pump G18182

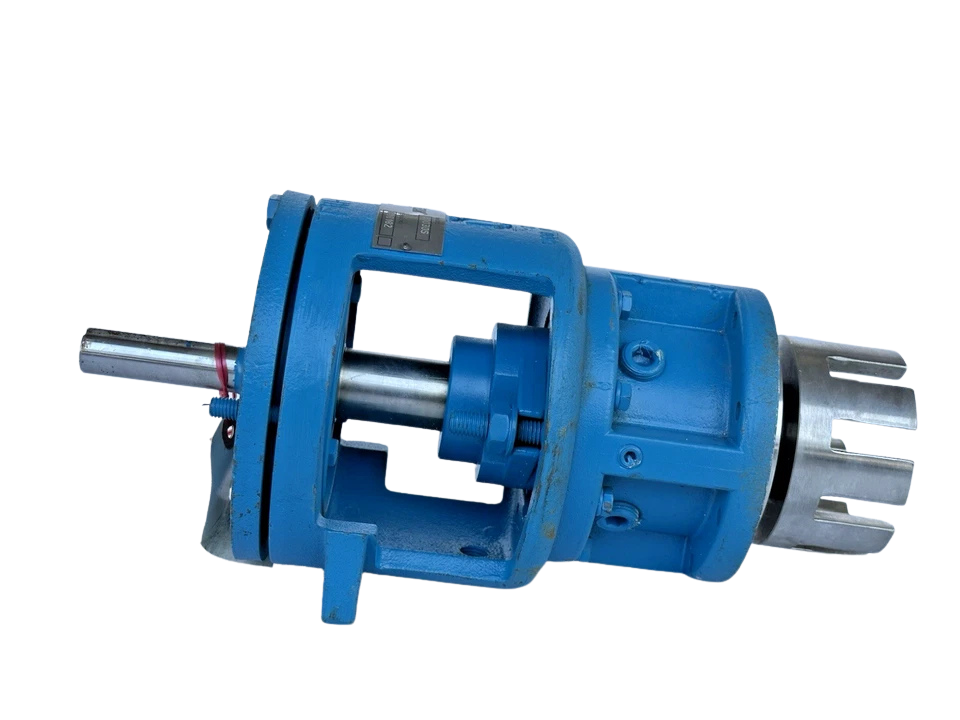

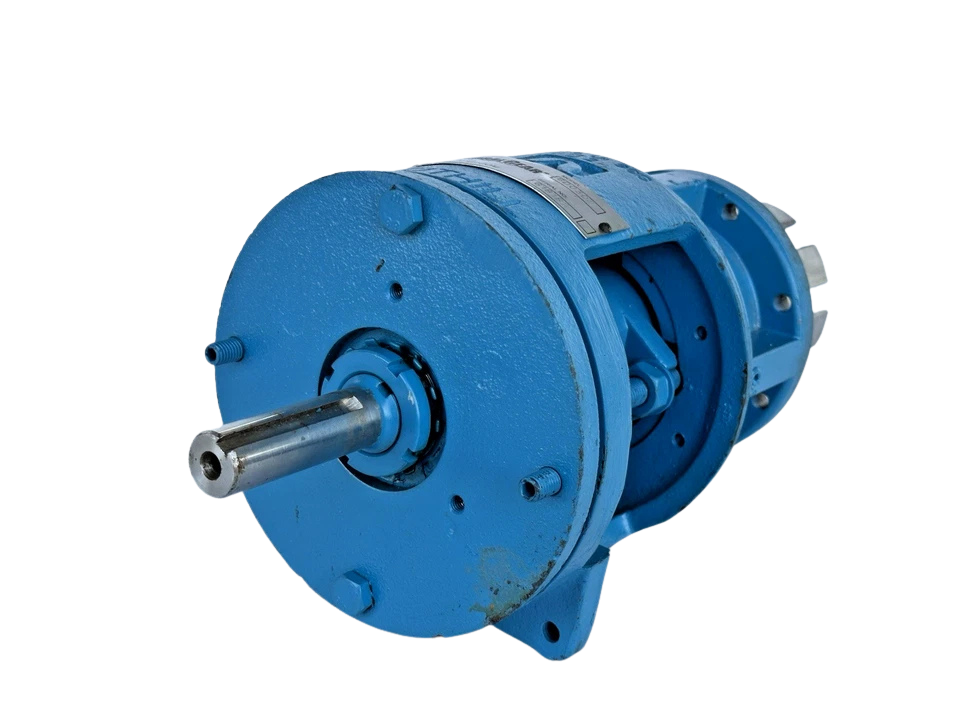

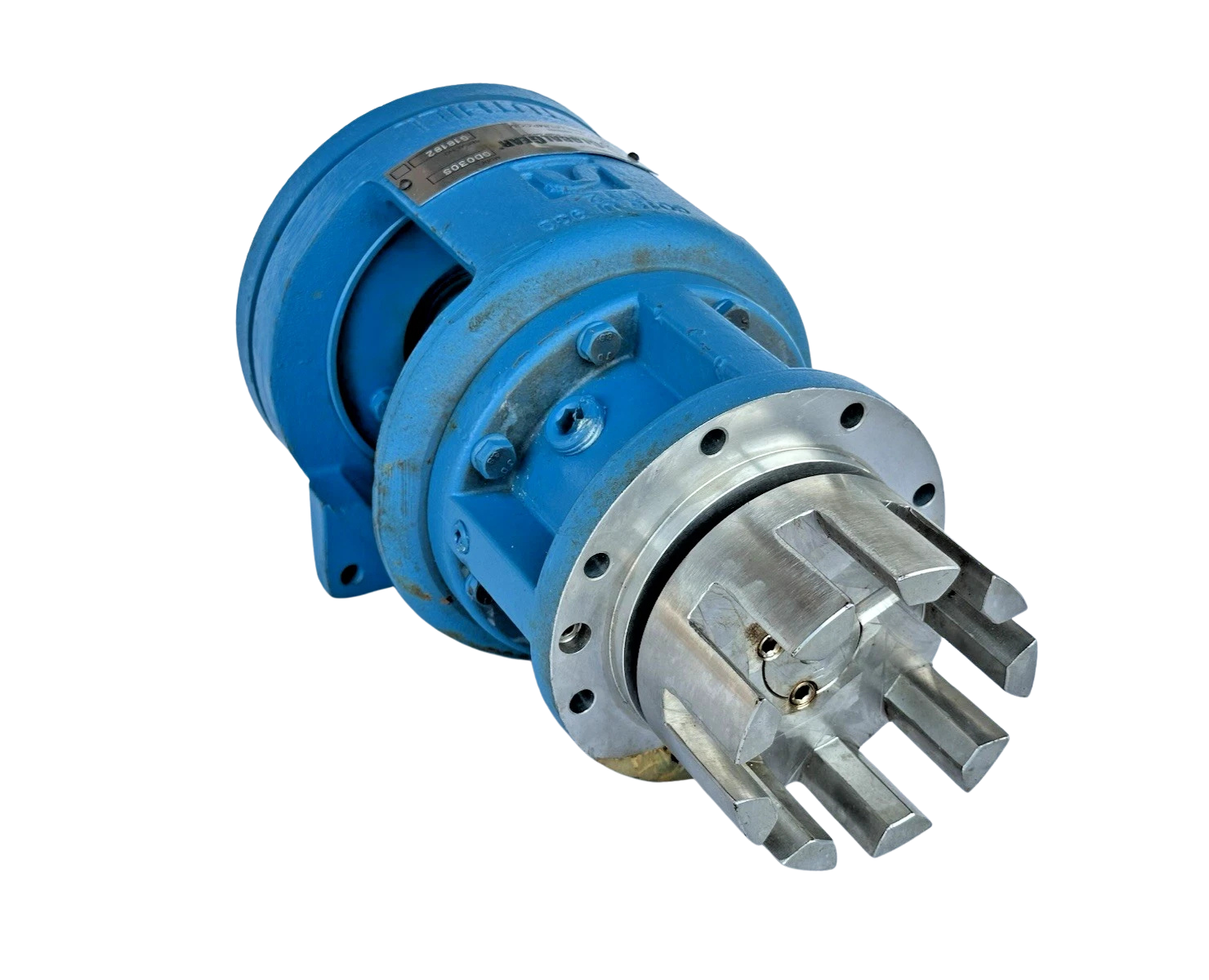

The Tuthill GD030S Global Gear Pump (MPN: G18182) is a heavy-duty, positive-displacement internal gear pump engineered for precision fluid transfer in rigorous industrial and marine environments. Designed specifically to maximize seal reliability and handle challenging high-viscosity media, this unit features a robust back pull-out architecture that simplifies maintenance without disturbing piping connections. Built with tight manufacturing tolerances and premium metallurgy, the GD030S guarantees pulse-free, continuous volumetric output under high thermal and mechanical loads.

Model Details

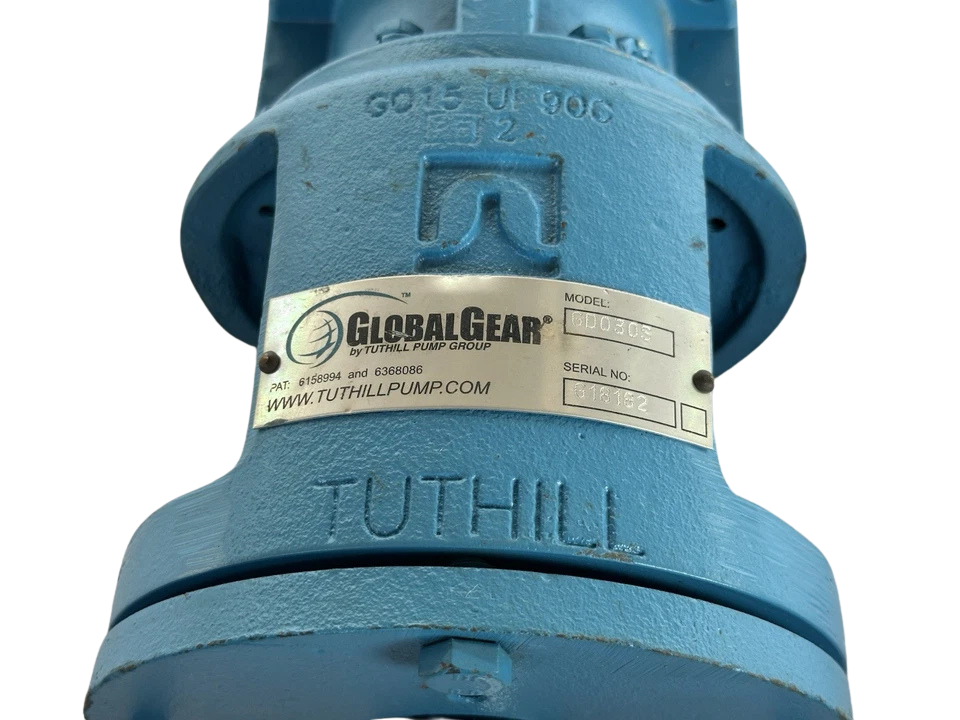

• Manufacturer: Tuthill Pump Group
• Product Series: GlobalGear® Series (Size 030)
• Model Code: GD030S c
• MPN / Factory ID: G18182

Main Features

1. Internal Gear Principle: The rotor and idler gear turn in the same direction, which means lesser shear, less noise and consistent output for viscous fluids.
2. Back Pull-Out Design: Enables full removal of the internal rotating assembly without having to disassemble the pump casing from the discharge/suction piping matrix.
3. Integrated Safety Relief Valve: Built-in adjustable relief mechanism protects downstream pipe networks and interior components from over-pressurization.
4. Heavy Duty Construction: High tensile shafts and precision machined over sized bearings reduce deflection under heavy loads.
5. Modular Seal Flexibility Rapidly changes from conventional packing arrangements to unique single or dual mechanical cartridge seals.

Compatible Equipment Models

• Tuthill GlobalGear 030 Frame Drives
• Industrial close-coupled and foot-mounted baseplates matching GG030 dimensions
• Standard ANSI/DIN mating pipeline flanges

Applications

• Marine fuel oil transfer, lubricant oil service and waste oil recovery
• Chemical processing (resins, polymers, adhesives & glues)
• Treating plants for asphalt, bitumen and heavy pitch
• Molasses, Corn Syrup, PastesSugar and Food Processing Plants
• Petroleum & Petrochemical Custody Transfer Units

Part Number Cross-References

• Tuthill Legacy ID: GG030-CI-M-SRV
• Interchangeable Build Ref: G18182-SER030
• GlobalGear Series Alternative Code: GD030-STD-FLG

Engineer Expert’s Guide & Tips

Marine Engineer Advisory: When installing the GD030S in high-temperature or high-viscosity marine fuel lines (such as VLSFO or MGO handling systems), always ensure proper pre-heating routines are followed to prevent thermal shock across the cast housing.

1. Alignment: Check cold-to-hot coupling alignment meticulously. Even minor angular misalignments under high-torque viscous loads can accelerate outboard bearing wear.
2. Relief Valve Setting: Set the internal relief valve cracking pressure precisely 10% above your maximum working system pressure to avoid unnecessary bypass recirculation while maintaining absolute pipeline safety.

Frequently Asked Questions

What is the maximum fluid viscosity the Tuthill GD030S can handle?

The pump is engineered to process highly viscous fluids up to 150,000 cSt (1,000,000 SSU), making it ideal for thick substances like asphalt, heavy resins, and molasses.

Does the G18182 model come equipped with a built-in pressure relief valve?

Yes, this unit features an integrated safety relief valve designed to protect the system framework against unexpected line blockages or operational over-pressurization.

Can this pump be serviced without removing the piping?

Yes, thanks to Tuthill’s back pull-out design, the internal rotating assembly, idler gear, and shaft mechanics can be pulled out from the rear without breaking pipeline flange connections.
