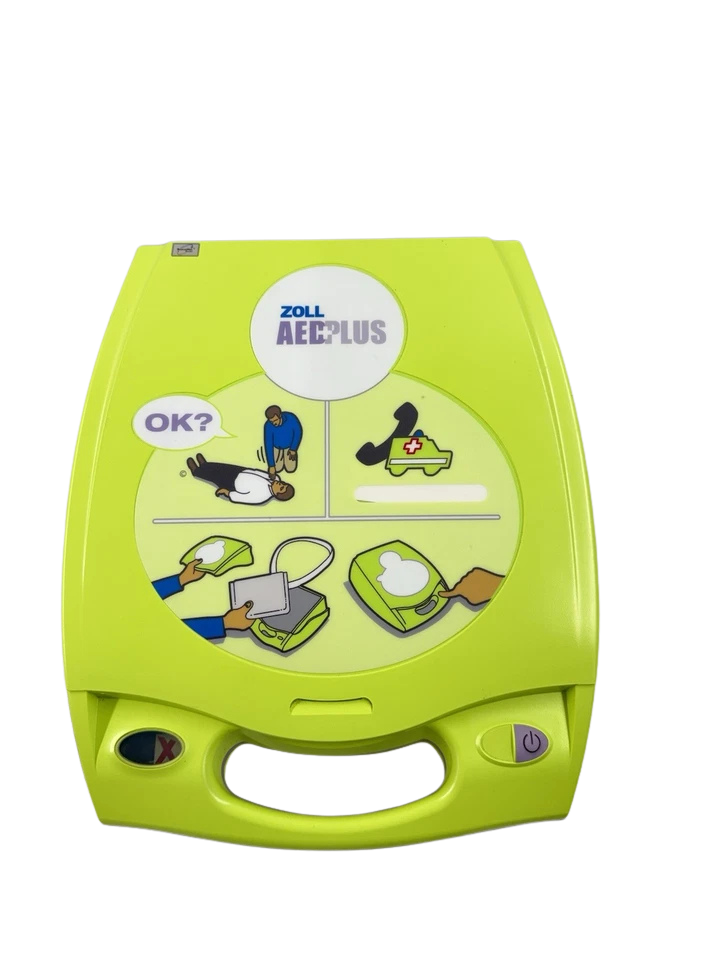

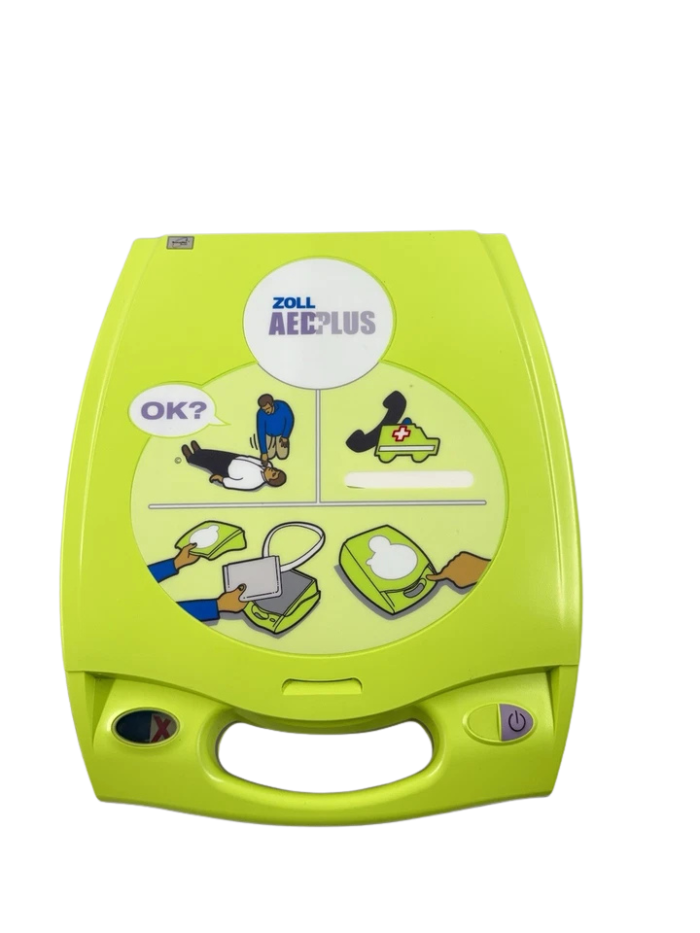

ZOLL AED Plus Defibrillator with CPR-D-padz

NEW ZOLL AED Plus Defibrillator Package with CPR-D-padz (Expiration: 2029-08-11)

The ZOLL AED Plus is an industrial-grade automated external defibrillator engineered for rapid emergency cardiac response in punishing commercial, offshore, and maritime environments. Unlike standard commercial units, the AED Plus integrates ZOLL’s proprietary Real CPR Help technology directly into a unified one-piece sensor assembly, converting real-time sternum displacement into immediate audiovisual compression feedback (rate, depth, release).

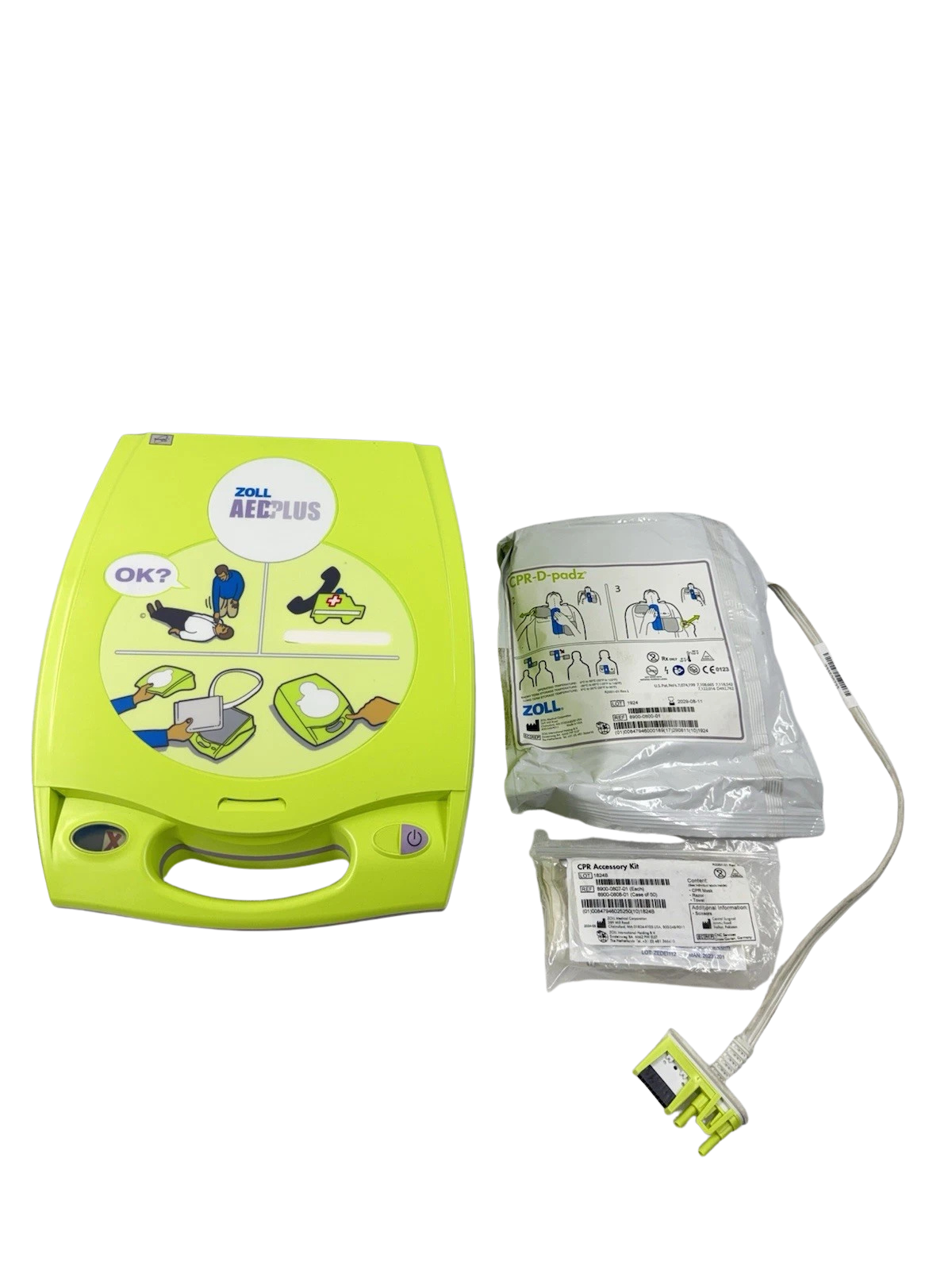

This package features brand-new, factory-sealed hardware equipped with high-performance lithium manganese dioxide power cells and a factory-sealed CPR-D-padz set with an extended field expiration date of August 11, 2029. Designed with an IP55 ingress protection rating and shock-tested to MIL-STD-810F specifications, this unit maintains full diagnostic readiness through severe hull vibration, heavy saltwater mist, humidity extremes, and ambient washdown conditions.

Key Features

1. Real CPR Help Real-Time Sternum Guidance: Embedded accelerometer in the one-piece pad harness tracks vertical displacement up to 3.5 inches (8.9 cm), triggering instantaneous “Push Harder” voice and visual prompts if compressions fall below standard clinical depth thresholds.
2. IP55 Enclosure & Rugged Shock Profile: High-impact chassis rated to withstand dust, high-velocity spray jets, drops, and helicopter transport vibration profiles per MIL-STD-810F, Method 514.5.
3. Extended Service Lifecycle (2029-08-11 Expiration): Matches long-duration maritime deployment cadences, shipping with fresh CPR-D-padz expiring August 11, 2029, and a matched 5-year 10-cell lithium power supply.
4. Standard Off-The-Shelf Consumer Power Cells: Uses 10 commercial Type 123A photo flash lithium manganese dioxide batteries, eliminating single-source proprietary battery dependency when replenishing at remote ports.

Compatible Host Systems & Accessories

• ZOLL Clinical Monitor/Defibrillator Units: CPR-D-padz are backward-compatible with ZOLL E Series, M Series, R Series, and X Series via standard multifunction cable adapters (defibrillation output verified; CPR depth feedback functions solely on AED Plus / Pro series).
• Pediatric Alternate: ZOLL Pedi-padz II (MPN: 8900-0810-01) for infant and child patients aged under 8 years or less than 25 kg (55 lbs).
• Stat-padz II Replacement: 2-piece high-adhesion electrode assembly (MPN: 8900-0801-01 / 8900-0802-01).

Applications

• Commercial Shipping & Cargo Vessels: Container ships, bulk carriers, chemical tankers, and LPG/LNG carriers compliant with SOLAS and WHO International Medical Guide for Ships.
• Offshore Oil & Gas Installations: Floating production storage and offloading (FPSO) units, jack-up rigs, drillships, and offshore substations requiring dust-tight, washdown-rated life-support equipment.
• Commercial Marine Workboats: Offshore Support Vessels (OSV), tugs, pushboats, passenger ferries, and cable-laying vessels subject to severe hull vibration.
• Industrial & Heavy Manufacturing Plants: Refineries, smelters, port container terminals, and power generating stations exposed to dust, mechanical shocks, and wide ambient temperature bands.
• Civil Defense & Remote Mining Camps: Remote basecamps where rapid logistics are unavailable and multi-year pad/battery shelf lives are critical.
