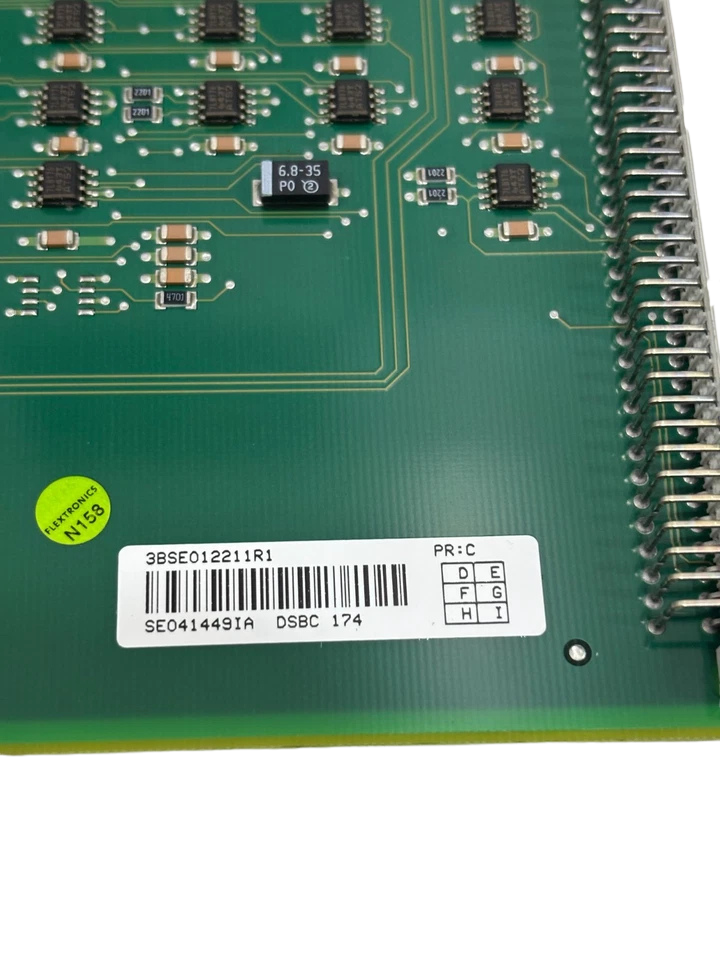

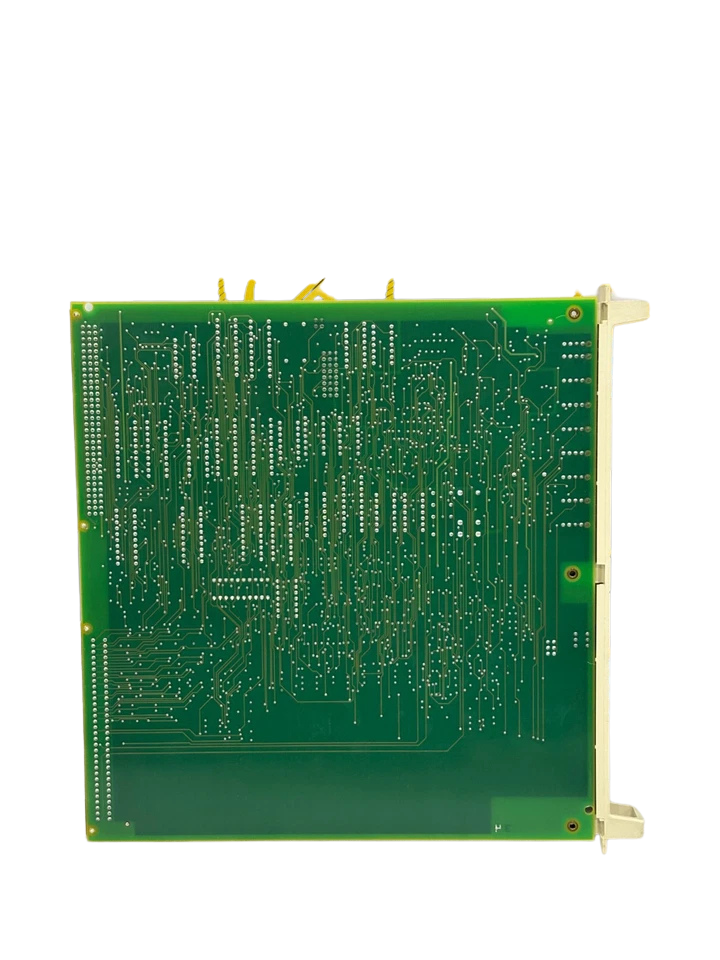

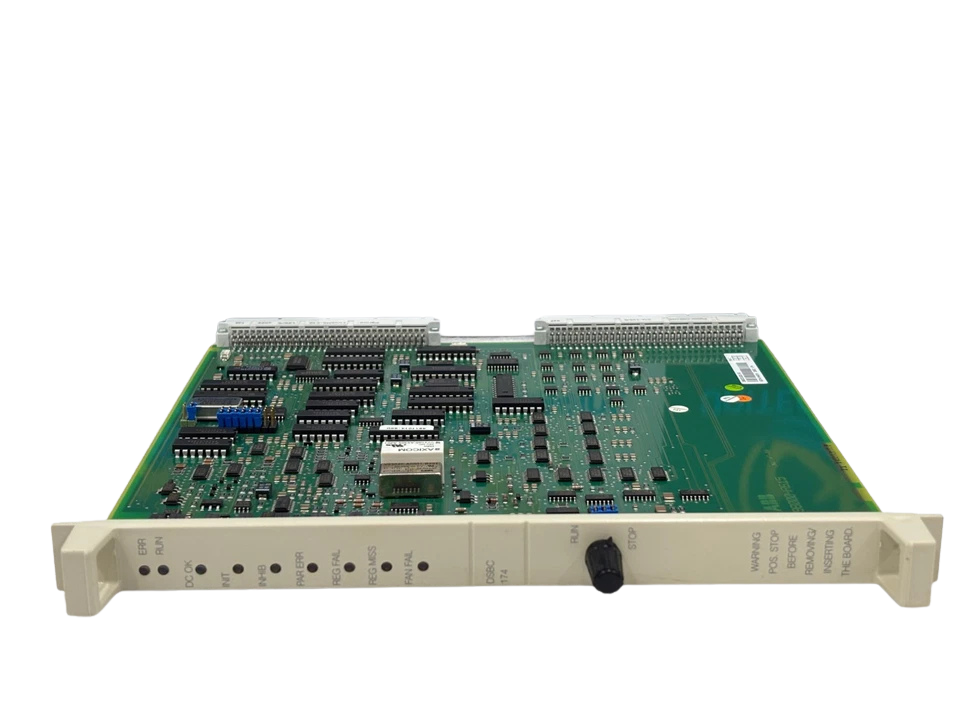

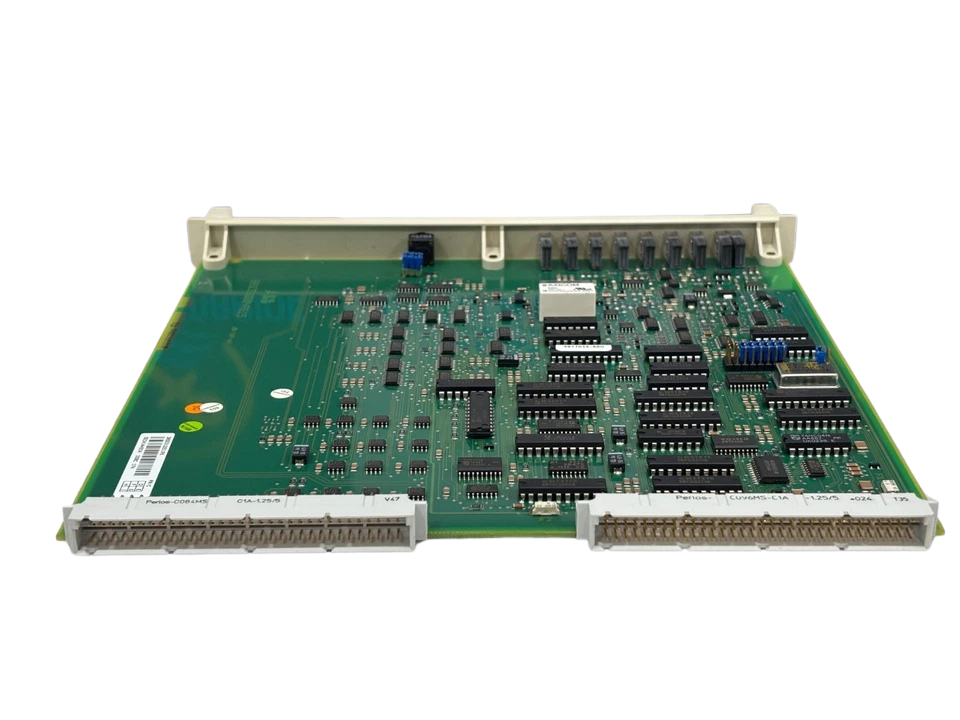

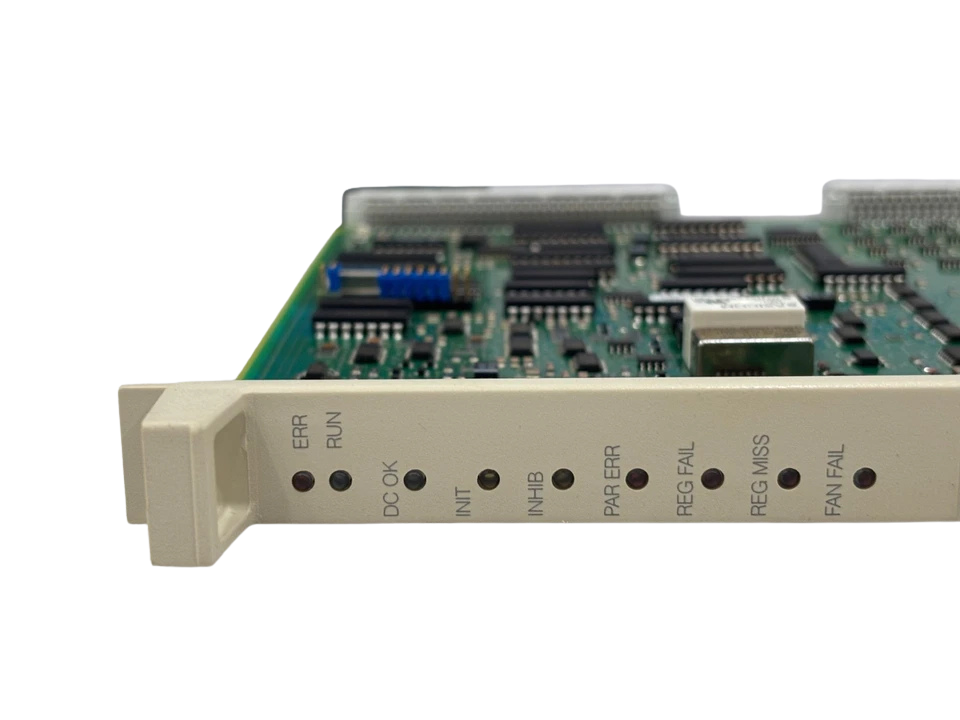

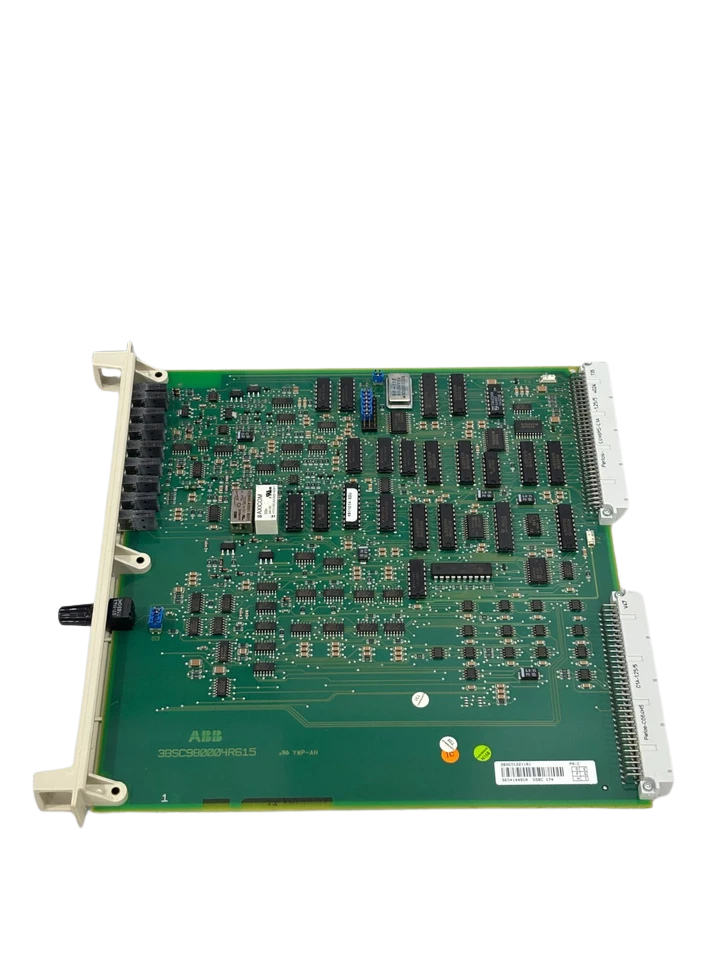

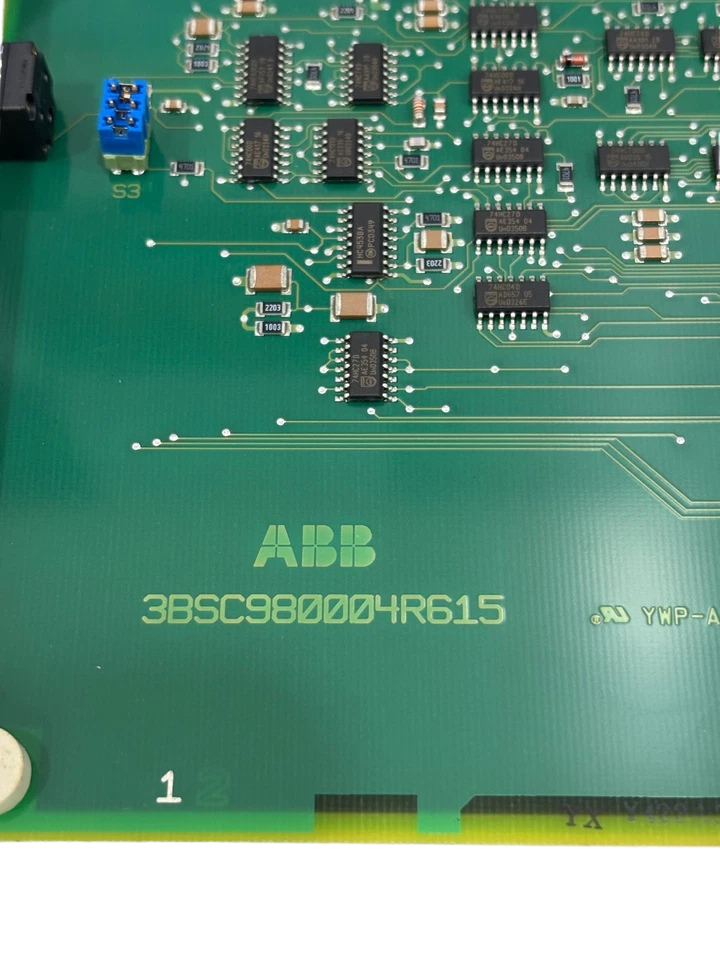

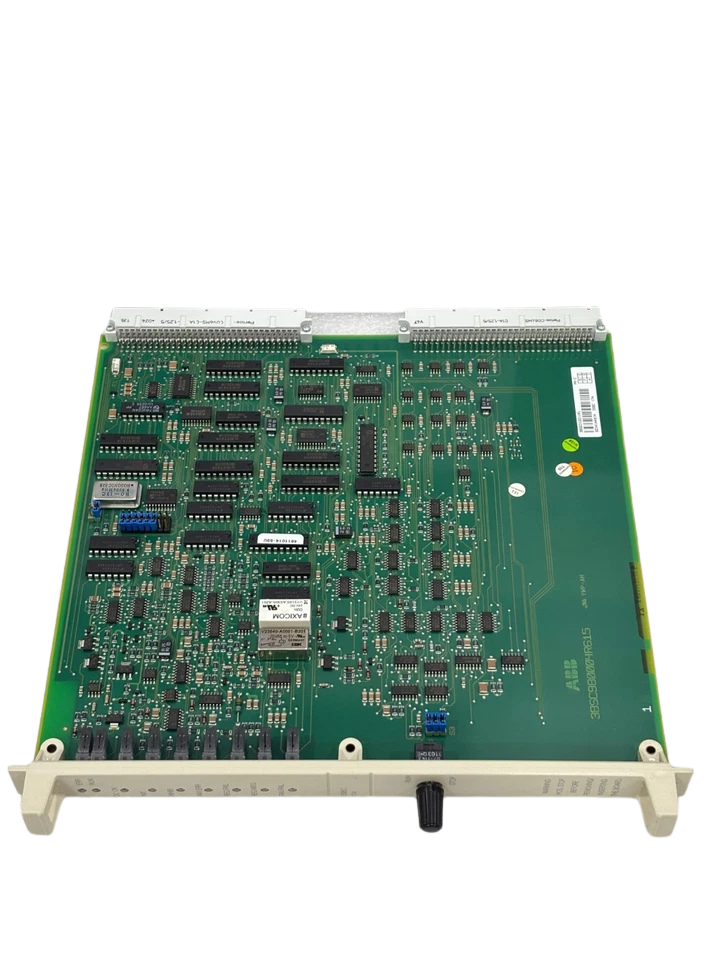

ABB DSBC174 3BSE012211R1 S100 I/O Bus Extender Module

ABB DSBC174 (3BSE012211R1) S100 I/O Bus Extender Communication Module

The ABB DSBC174 (MPN: 3BSE012211R1) is a specialized, rack-mounted bus extender module developed for the ABB Advant Controller 400 series (AC 450 / AC 410), legacy MasterPiece 200, and modernized System 800xA architectures operating with the S100 I/O subsystem.

In mission-critical marine propulsion automation, power management systems (PMS), offshore drilling setups, and continuous process plants, field I/O expansion racks are often physically separated across multiple switchboards or cabinet suites. The DSBC174 serves as the physical and electrical bridge on the high-speed parallel S100 I/O bus. Positioned in the terminal slot of an S100 I/O subrack, it regenerates, buffers, and routes parallel address, data, and control lines, preserving clock timing and signal fidelity across extension cables while maintaining robust galvanic and EMC isolation between subracks.

Technical Specifications

Features

1. Subrack Extension & Signal Regeneration: Extends the parallel backplane S100 bus between the primary master rack and secondary expansion subracks without throughput loss or latency creep.
2. Seamless Advant & 800xA Integration: Native hardware support for ABB Advant OCS (AC450/AC410), MasterPiece 200/010, and ABB System 800xA via CI856 / TP856 communication interface arrangements.
3. High-Precision Sequence of Events (SOE): Full hardware protocol preservation for millisecond-stamped Sequence of Events recording across distributed digital inputs.
4. Redundant S100 Bus Topologies: Fully compatible with redundant I/O configurations (using kits such as DSBC174K21, K25, K41, K45, and K46) to support high-availability failover architectures.
5. Industrial & Marine Grade Resilience: Built on rigid Eurocard form-factor mechanics designed to withstand the vibration spectra, thermal cycling, and electrical transients typical of shipboard engine control rooms and offshore platforms.

Compatibility:

• Controller Interfaces: ABB Advant Controller AC450, AC410, MasterPiece 200, MasterPiece 010.
• Modern Interface Adapters: ABB AC 800M via CI856 Communication Interface module and TP856 termination baseplate.
• Compatible Subracks: ABB S100 I/O subracks including RF533, RF541, and standard Advant carrier backplanes.
• Factory Documented Connection Kits:
  • DSBC174K11 (3BSE014080R1): Standard S100 I/O single-bus extension kit.
  • DSBC174K21 / DSBC174K25: Redundant S100 I/O connection kits.
  • DSBC174K41 / DSBC174K45 / DSBC174K46: Advanced redundant cabling assemblies for segmented multi-cabinet architectures.
• Alternative/Adjacent Bus Extenders: DSBC173A, DSBC176 (selection dictated by bus length and specific backplane layout).

Frequently Asked Questions

What is the exact function of the ABB DSBC174 (3BSE012211R1)?

The ABB DSBC174 is a high-speed parallel bus extender module that links and buffers the S100 I/O bus between an ABB Advant controller rack (such as an AC 450) and secondary remote I/O subracks, allowing unified address and data exchange across separated cabinets.

Can the DSBC174 be replaced while the system is powered (Hot-Swapped)?

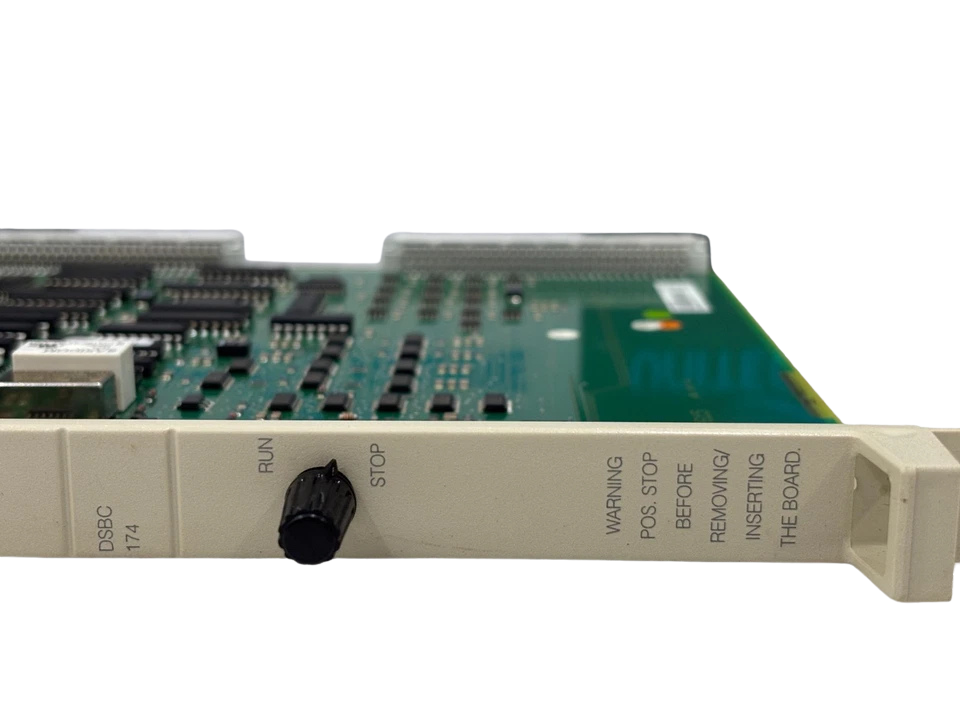

Hot-swapping a bus extender is not recommended. Removing the DSBC174 breaks the parallel address and data backplane lines, which causes immediate bus stall errors and drops all connected I/O in the chain. Safe practice requires switching the affected subrack to a halted/offline state or completing a maintenance shutdown before board replacement.

What is the difference between DSBC174 and DSBC176?

The DSBC174 is the standard direct-coupled parallel S100 bus extender used for inter-rack and adjacent-cabinet connection kits. The DSBC176 is an optical/extended-length bus repeater designed for installations requiring galvanic isolation or extended physical distances between remote control centers.

Is the ABB DSBC174 compatible with modern System 800xA controllers?

Yes. The DSBC174 can interface directly with ABB System 800xA AC 800M controllers via the CI856 Communication Interface and its corresponding TP856 termination unit, allowing operators to retain reliable legacy S100 I/O hardware without full rewiring.

Does the DSBC174 support digital Sequence of Events (SOE) logging?

Yes. The DSBC174 bus architecture preserves high-resolution digital state-change interrupts required by the controller’s SOE software engine, ensuring critical fault analysis with 1-millisecond resolution remains operational.
