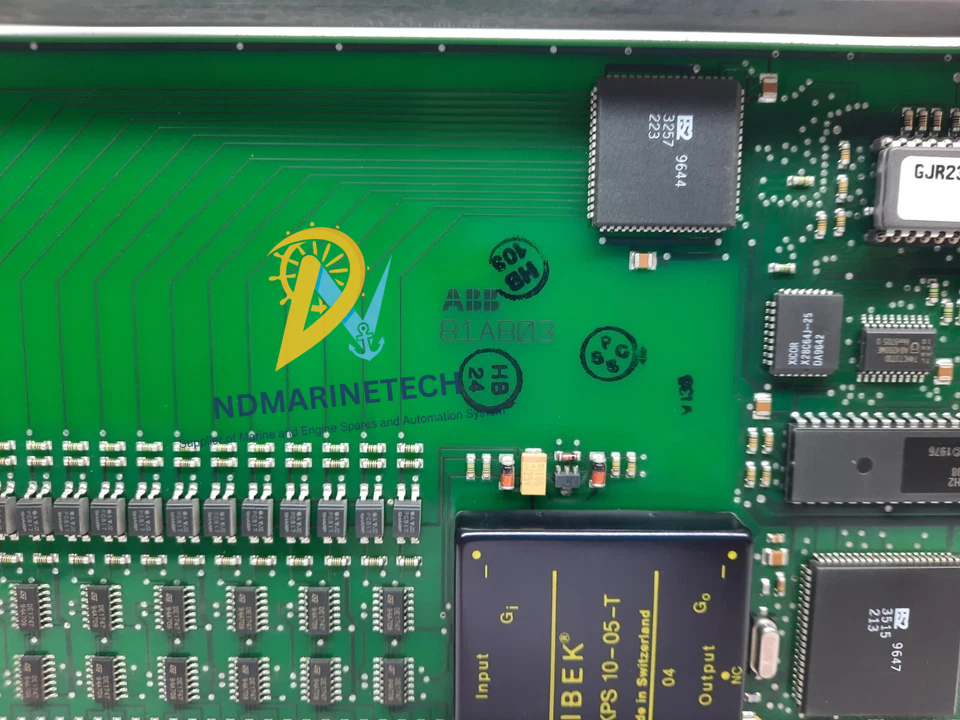

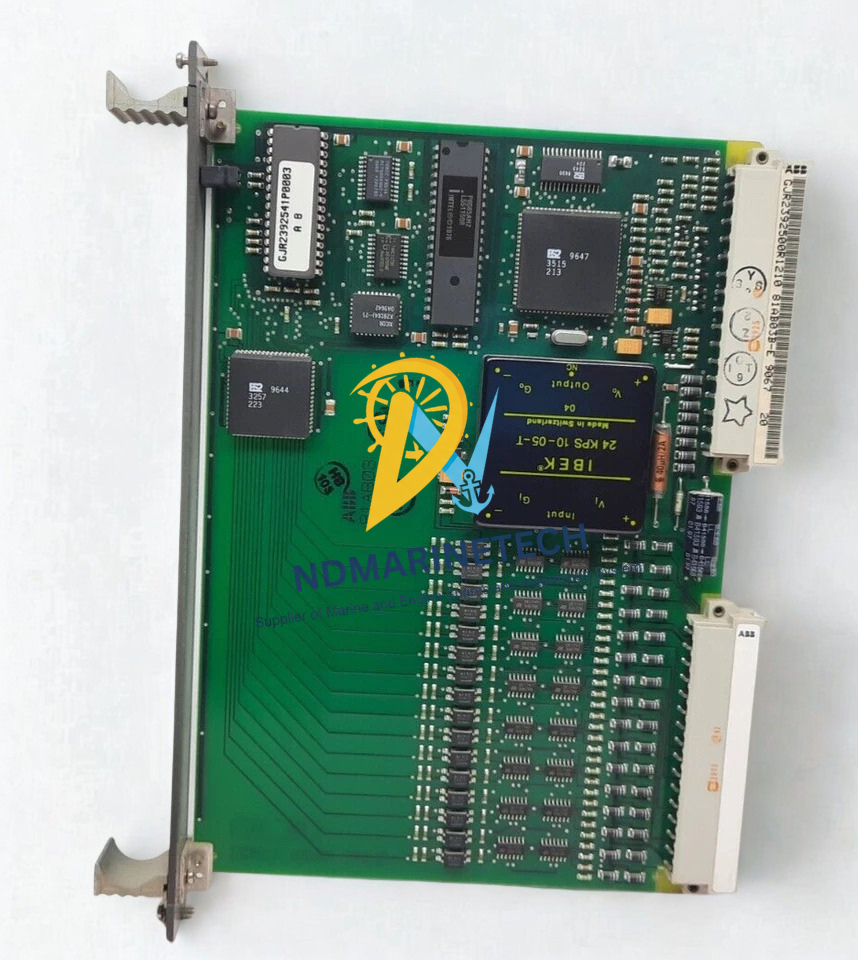

ABB GJR2392500R1210 81AB03B-E Output Module Card

ABB GJR2392500R1210 81AB03B-E Binary Output Module Card

ABB GJR2392500R1210 (81AB03B-E) is a 16-channel binary digital output module that provides excellent reliability and is designed for use with ABB Procontrol P14 and Advant OCS automation systems. The module card is ruggedly built to satisfy demanding industrial and maritime applications. It is the vital interface between central control processors and actuating devices at the field level. 16 independent digital outputs (DO) rated 24V DC, 100mA per channel. Ideal for driving electronic inputs, interlock relays, solenoids and status indication lamps. Its small form factor and superior electrical isolation guarantee seamless integration and continuous operation in challenging, high vibration marine and power generation situations.

Model Details

• Brand: ABB
• Model Number: 81AB03B-E / 81AB03R1210
• Manufacturer Part Number (MPN): GJR2392500R1210
• Control System Compatibility: Procontrol P14 / Advant OCS with Master SW

Technical Specifications

Applications

• Marine automation systems are used for main propulsion monitoring , auxiliary boiler control and integrated machinery control systems ( IMCS ).
• Power generation facilities use distributed control systems (DCS) for turbine excursions, generator signals and interlock systems.
• Process Industries: Operations requiring distinct safety interlocking and status signals eg petrochemical, water treatment.
• Relay Logic Marshalling Interfacing high power industrial breaker systems with low voltage logic circuits.

Hardware Compatibility & Cross-References

The ABB GJR2392500R1210 is backward-compatible and serves as a direct engineering replacement for the following older-generation legacy cards:

• 81AB01R1010
• 81AB10R0100
• 81AB10R0200

Lead Time & Shipping Logistics

• Dispatch Readiness: Standard stock leaves within 1 to 2 working days. Urgent marine-vessel-in-distress (AOG/Vessel Down) expedited dispatch is available.
• Global Courier Partners: Shipped via DHL Express, FedEx International, or UPS with full end-to-end tracking.
• Packaging: Sealed in professional ESD anti-static packaging with high-density foam padding to withstand harsh transit environments.

Our Engineer Expert’s Guide:

When a main plant distributed control system (like the Procontrol P14) drops a binary output loop, it can lead to critical automation lockouts—frequently preventing auxiliary pumps or safety interlocks from engaging. On sea-going vessels or remote power plants, replacing an I/O card must be fast and error-free.

The GJR2392500R1210 is a highly ruggedized PCB card, but like all high-density binary output modules, it is susceptible to downstream line faults. If a channel fails unexpectedly, it is usually indicative of an external field issue rather than an internal logic failure.
