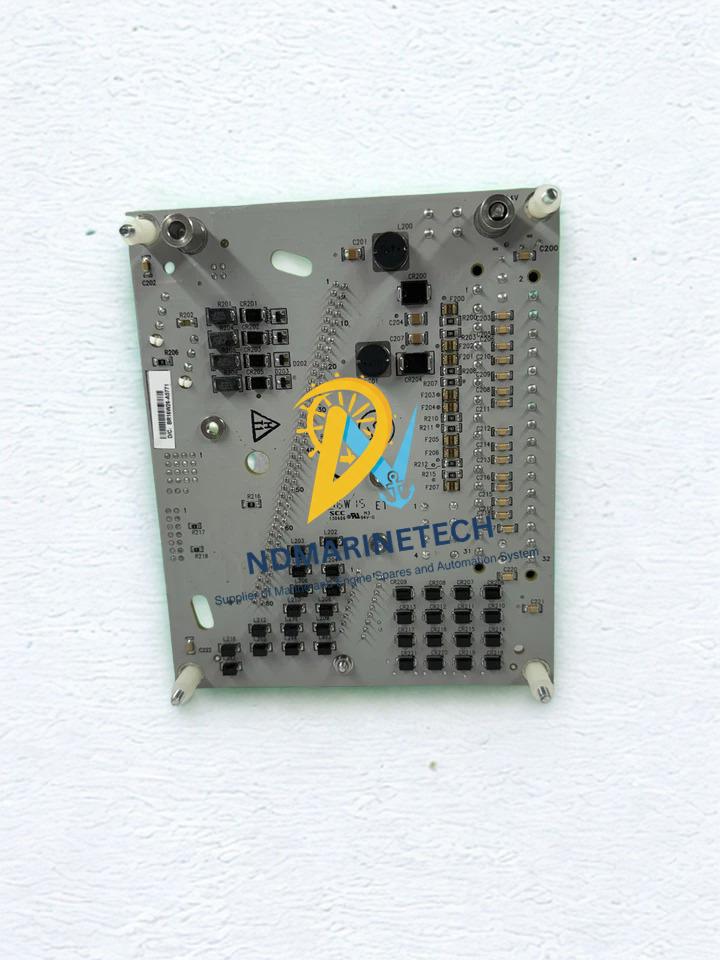

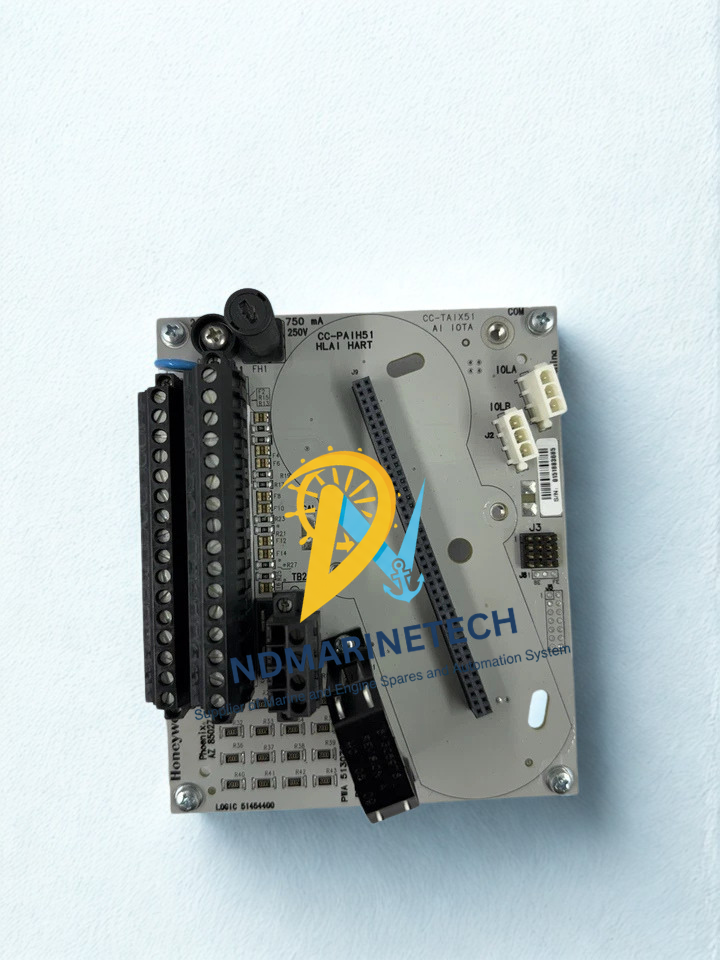

Honeywell CC-TAIX51 Analog Input Module 51307075-175

Honeywell CC-TAIX51 Analog Input Module PWA 51307075-175

The Honeywell CC-TAIX51 is a 16-channel High-Level Analogue Input (HLAI) Input Output Termination Assembly (IOTA) module for the Experion C300 distributed control system (DCS). PWA 51307075-175 This rugged module gives you seamless interface capability for essential field transmitters and your central processing infrastructure.

Designed for typical 4-20mA loop signals with built-in HART bidirectional communication, the CC-TAIX51 provides unsurpassed data acquisition accuracy, environmental ruggedness and real-time process diagnostic reporting. The Honeywell CC-TAIX51 is a 16 Channel High-Level Analogue Input (HLAI) Input Output Termination Assembly (IOTA) module, for use with the Experion C300 Distributed Control System (DCS). It is distinguished by high performance. You may rely on this module, part number PWA 51307075-175, to provide a smooth link between your central processing system and crucial field transmitters.

Model Details:

• Model Number: CC-TAIX51
• PWA (Printed Wire Assembly): 51307075-175
• PWB (Printed Wire Board): 51307074-100
• Associated Core I/O Module: CC-PAIH51

Specifications

Engineer’s Guide:

-> When deploying the Honeywell CC-TAIX51 within maritime automation systems (such as integrated platform control systems or main propulsion monitoring), electrical noise is your biggest enemy. Ships are giant floating ground planes driven by heavy inductive loads like winches, thrusters, and variable frequency drives (VFDs).

-> Always ensure your 4-20mA field instrument shielded cables are grounded only at one end—preferably right at the IOTA chassis termination bar—to prevent hazardous ground loops from skewing your critical sensor data.
