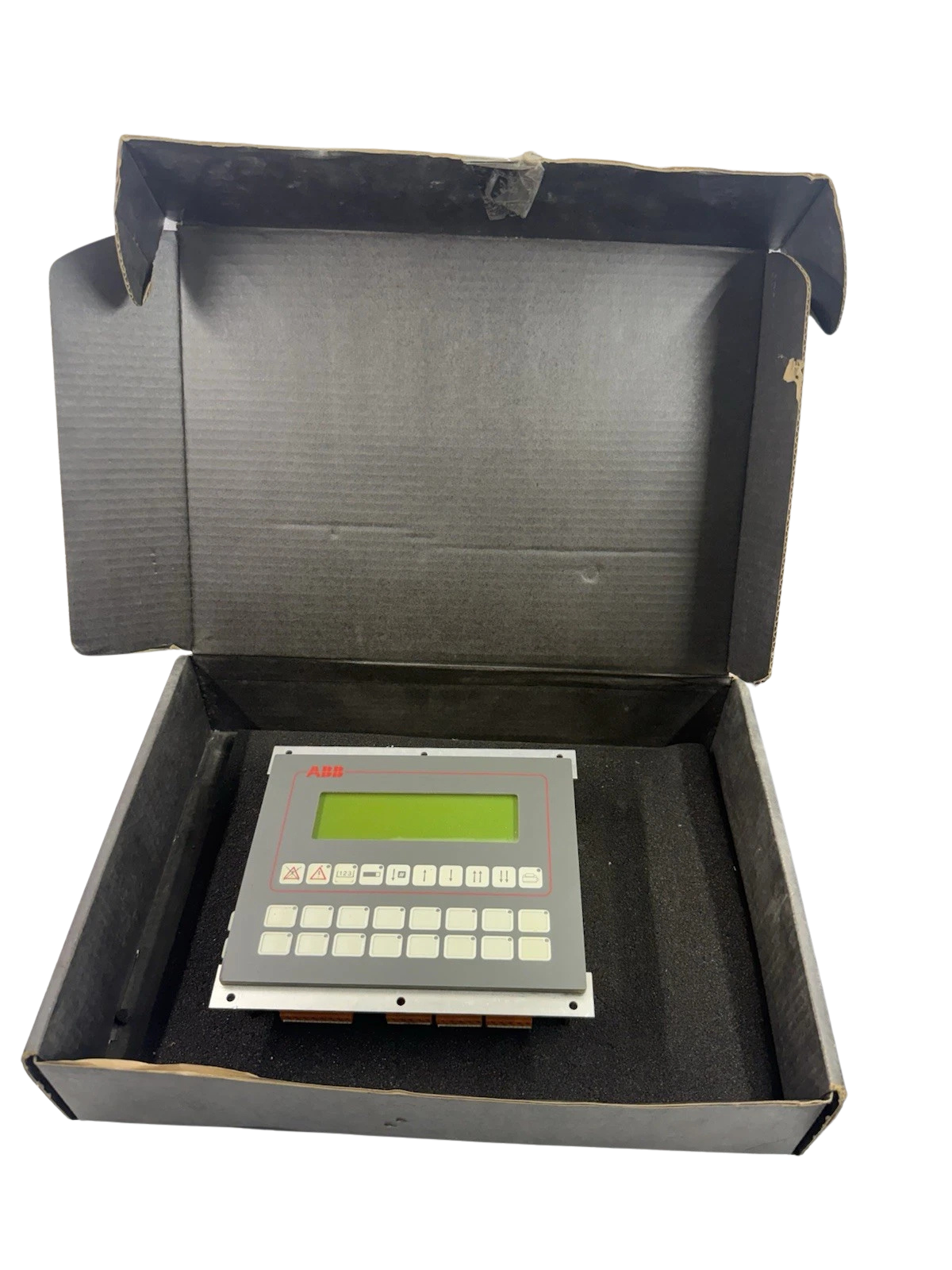

ABB HIEE200130R0002 AF C094 AE02 Control Panel Display
$3,499.00
Condition: New – Open Box
1 in stock

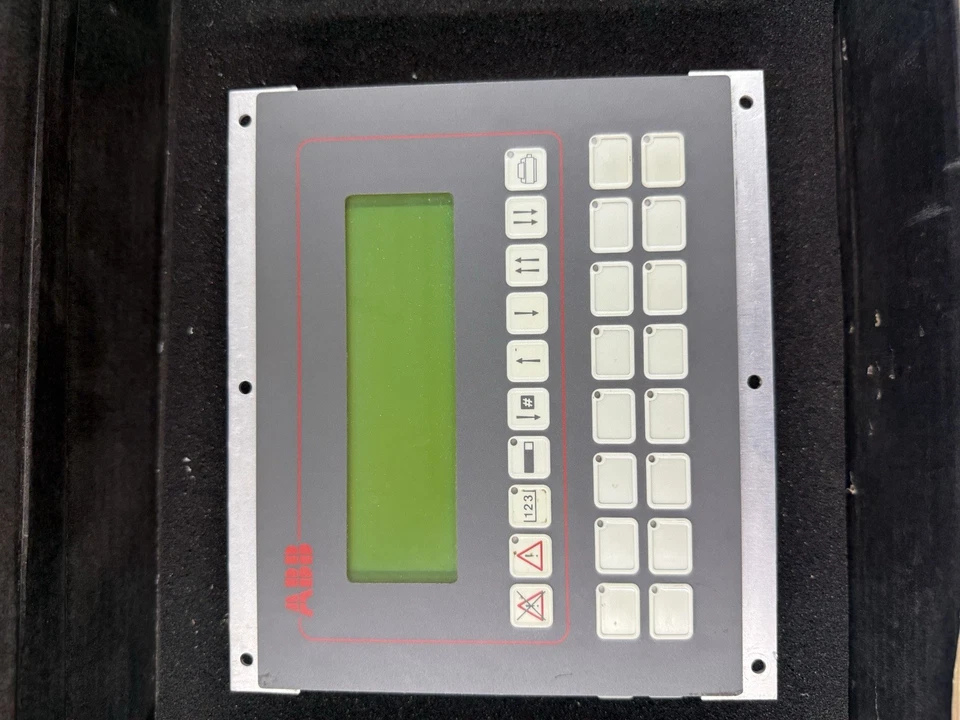

ABB HIEE200130R0002 AF C094 AE02 ARCnet Control Panel
ABB HIEE200130R0002 (AF C094 AE02) is a distributed control architectures and marine automation systems manufactured industrial ARCnet Control Panel. This hardware node is designed to perform crucial interface and communication functions and enables robust data exchanges to complicated industrial networks. With true ABB heritage component, it delivers accurate network command capabilities, deterministic token-passing communication using ARCnet protocols and structural robustness necessary for tough marine and heavy industrial applications.
Model Details
- Brand Name: ABB
- Product Category: Industrial Automation & Marine Control Systems / PLC & DCS Components / Control Panel Displays
- Manufacturer Part Number (MPN): HIEE200130R0002
- Type Designation: AF C094 AE02
- Country of Origin: India
Technical Specifications: HIEE200130R0002Â
| Specification Parameter | Technical Value / Rating |
|---|---|
| Product ID / MPN | HIEE200130R0002 |
| Module Designation | AF C094 AE02 |
| Communication Protocol | ARCnet (Attached Resource Computer Network) |
| Input Voltage Rating | 24 VDC nominal industrial supply |
| Operating Temperature Range | -20°C to +55°C |
| Storage Temperature Range | -40°C to +85°C |
| Enclosure Protection Class | IP20 (Requires cabinet installation) |
| Physical Dimensions (L x W x H) | 285 mm x 21 mm x 8 mm |
| Net Weight | 1.2 kg |
| Mounting Type | Panel Mount / Rack Integration |
| Display Type | Integrated Operator Display / LED-LCD Indicator Interface |
Key Features
- Deterministic ARCnet Architecture: Built for high-reliability industrial local area networks, ensuring predictable packet delivery without collision latency.
- Ruggedized Industrial Build: Designed to withstand continuous vibrational profiles and ambient thermal fluctuations typical of heavy engine rooms and manufacturing floors.
- Optimized Power Efficiency: Operates on standard industrial 24 VDC rails with minimal thermal dissipation.
- Plug-and-Play Compatibility: Directly maps into legacy ABB control frameworks using identical firmware and hardware pinouts.
Applications
- Marine engine control and automation monitoring consoles
- Distributed Control Systems (DCS) for power generation plants
- Factory automation and assembly line supervisory control nodes
- Oil and gas upstream processing terminal communication racks
- Water treatment plant PLC system user interfaces
Compatibility
- Compatible System Series: ABB Advant OCS, Bailey Infi 90 / Net 90 upgrades, and legacy ABB industrial automation node drops utilizing ARCnet topology.

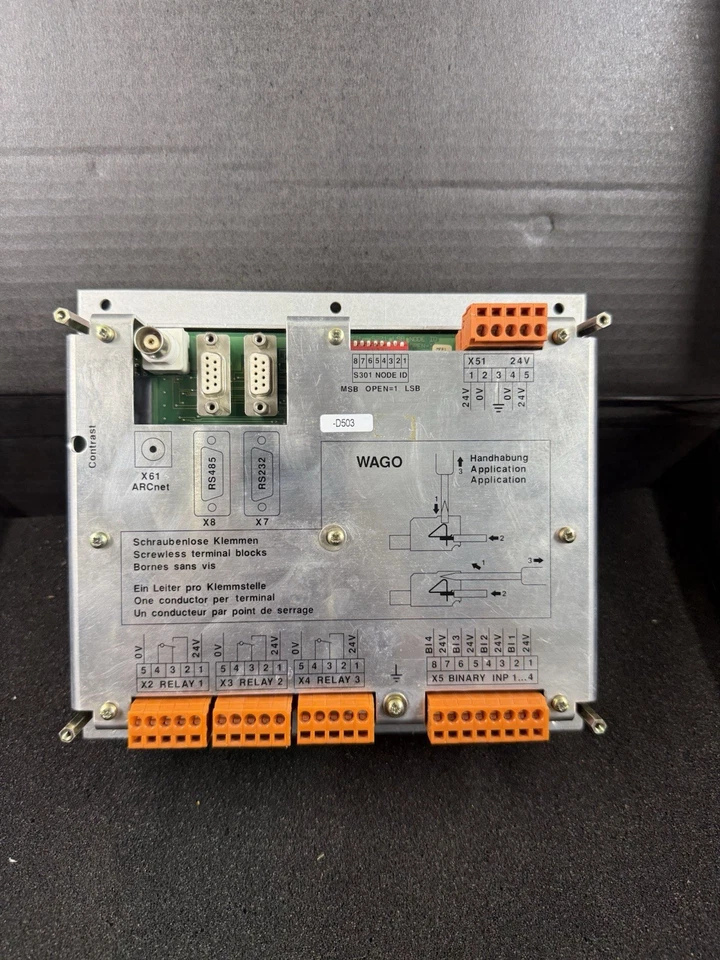

- Terminal Allocations: Standardized plug-in terminal blocks mapped specifically for 24VDC power bus distribution and dual-port coaxial/twisted-pair ARCnet network drops.
Part Number Cross-References
- ABB Internal Part ID: HIEE200130R0002
- Module Variant Code: AFC094AE02 / AF C094 AE02
- Legacy Stock Identifiers: Associated with ABB Advant controller node hardware trees.
Frequently Asked Questions
What is the purpose of the ABB HIEE200130R0002 control panel?
ABB HIEE200130R0002 (AF C094 AE02) – Operator display and network node interface with deterministic ARCnet protocol. Allows operators to see and share vital process information in ABB industrial and maritime control systems.
Will this unit work with the older ABB Advant systems?
That control panel is a direct drop-in replacement part for legacy ABB automation network topologies needing the AF C094 AE02 module specification.
