ABB OT400E03P Switch Disconnector | 3-Pole, 400 Amps

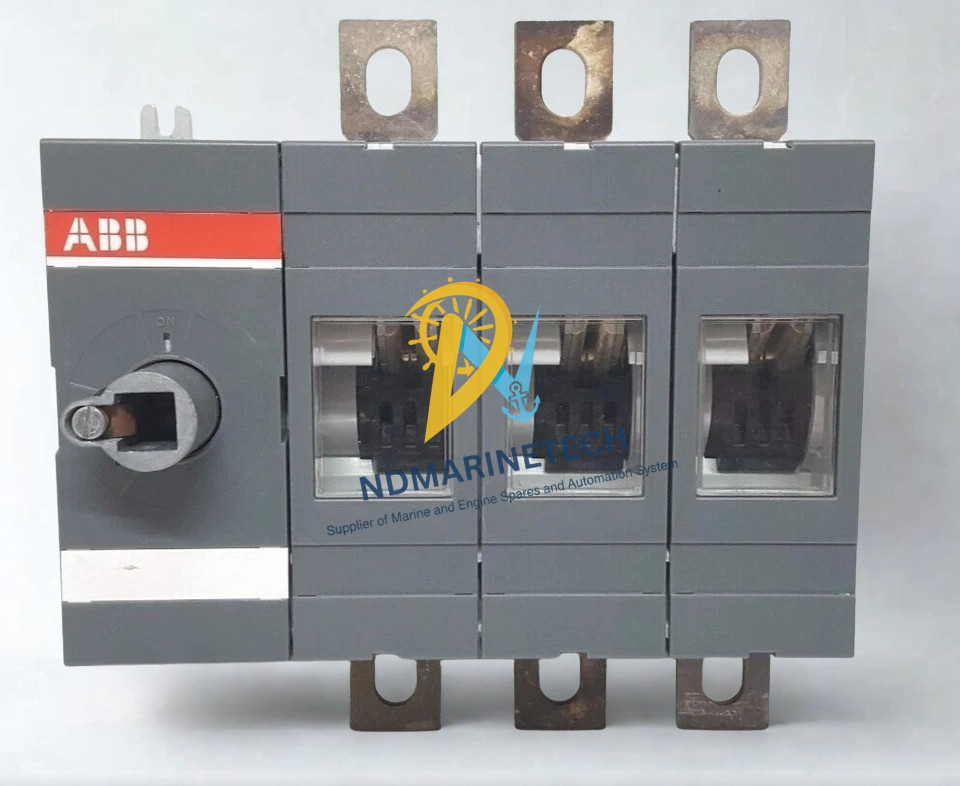

The ABB OT400E03P is a heavy duty, high performance 3 pole switch disconnector providing reliable isolation and circuit breaking for demanding industrial and marine applications. This front-operated, base-mounted unit is built by ABB, a world leader in low-voltage electrification, and is able to manage high thermal currents up to 400A at voltages up to 1000V.

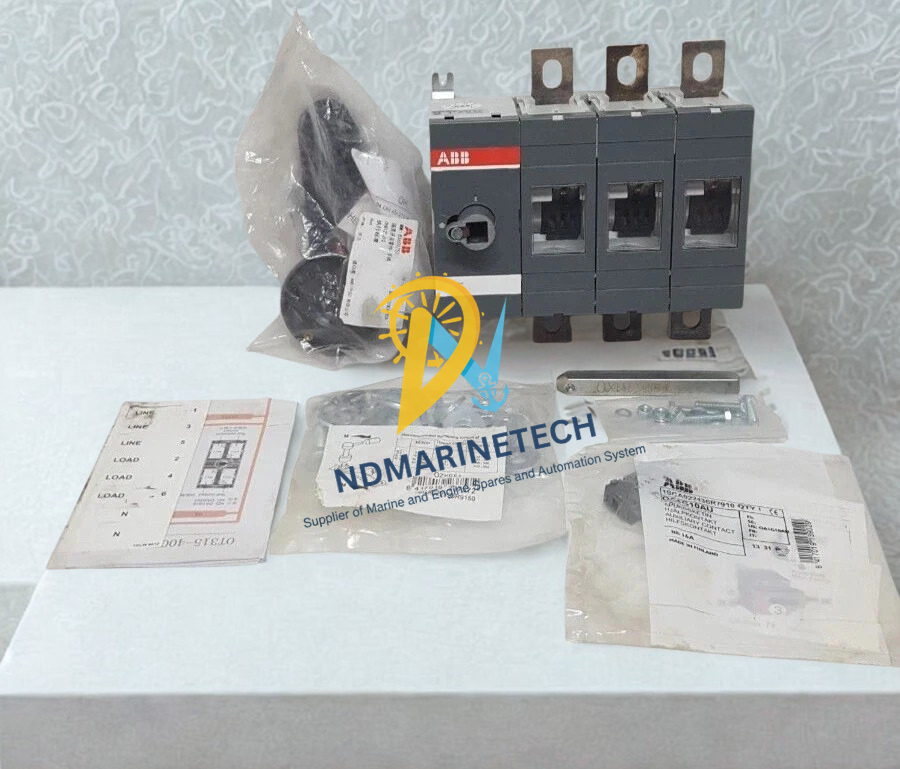

This type is fitted with a powerful black IP65 rated pistol handle and an adjustable installation shaft, allowing accurate operation and total environmental protection whether installed in switchboards or control panels. Its extraordinarily high short-circuit producing and resist capacities make it the best safety solution for isolating heavy machinery, primary power distribution lines and maritime auxiliary systems.
Model Details
- Model Number / Extended Product Type: OT400E03P
- Manufacturer Product ID: 1SCA022718R8780
- EAN / Barcode: 6417019230450
- Condition Available: New

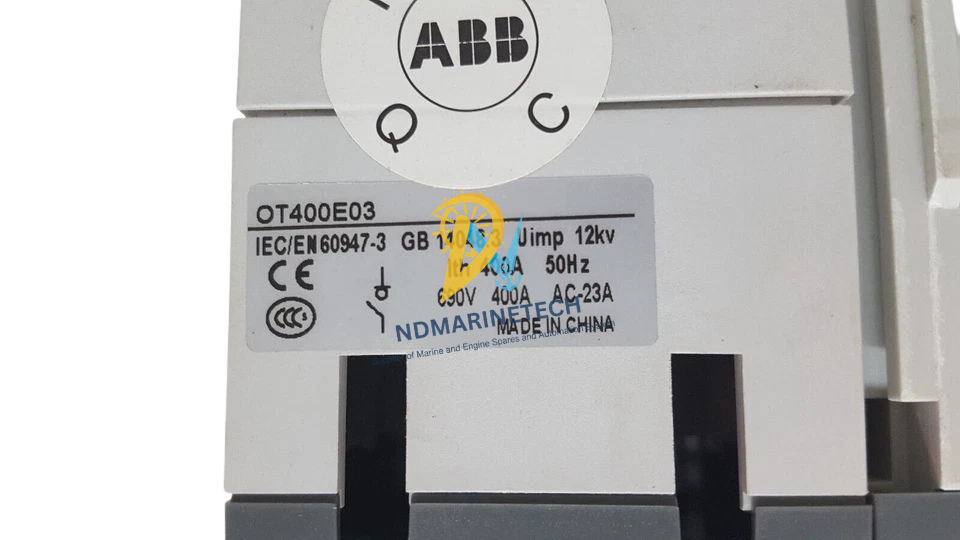

Technical Details
| Parameter | Specification |
|---|---|
| Number of Poles | 3 |
| Rated Operational Current (Ie) | 400 A (AC-21A, AC-22A, AC-23A up to 690V) |
| Conventional Free-air Thermal Current (Ith) | 400 A (at q = 40 degrees C) |
| Rated Operational Power (AC-23A) | 230 kW at 400-415V / 400 kW at 690V |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Short-time Withstand Current (Icw) | 15 kA (for 1 second) |
| Rated Short-Circuit Making Capacity (Icm) | 65 kA (690 V AC) |
| Operating Mechanism Position | 03 (Mechanism located at the end of the switch) |
| Terminal Type / Lug Width | Lug Terminals / 25 mm |
| Tightening Torque | Wire-Clamp: 30 to 44 N.m |
| Mechanical Durability | 16,000 operations |
| Dimensions (W x H x D) | 191 mm x 185 mm x 107 mm |
| Net Product Weight | 3.1 kg (approx. 7 lbs) |
Applications
- Marine Main & Auxiliary Switchboards: Used as a reliable main isolator or distribution switch inside Marine Motor Control Centres (MCC).
- Industrial Automation Power Distribution: Great for isolating points to plant machinery, large HVAC infrastructure, and production lines.
- Renewable Energy Grid Ties Used as a main disconnect switch on the AC side in large scale commercial solar inverter arrays and wind turbine power skids.
- Emergency Standby Systems: Main isolation disconnect between generator sets and critical transfer switches.
Part Number Cross-References
- ABB Global Code: 1SCA022718R8780
- Swedish E-Number: 3171201
- Alternative Series Formats: OT400E03K (with direct mounted switch handle), OT400U03 (UL class version)
System Compatibility
- Directly mounts to standard chassis panel backplates.
- Compatible with ABB internal auxiliary contact blocks (OA series) for remote status signaling.
Lead Time & Shipping Info
- Availability: Ready-to-ship from stock inventory.
- Standard Packaging: Single unit pack dimensions: 200 mm x 115 mm x 260 mm. Gross weight: 3.2 kg.
- Worldwide Shipping: Expeditious air-freight dispatch available for global vessel-in-port emergencies or tight industrial project deadlines.
