ASCO 400A Power Transfer Switch 415V 3 Phase

ASCO 400A Power Transfer Switch 415V 3 Phase (J03ATSC30400KGX0)

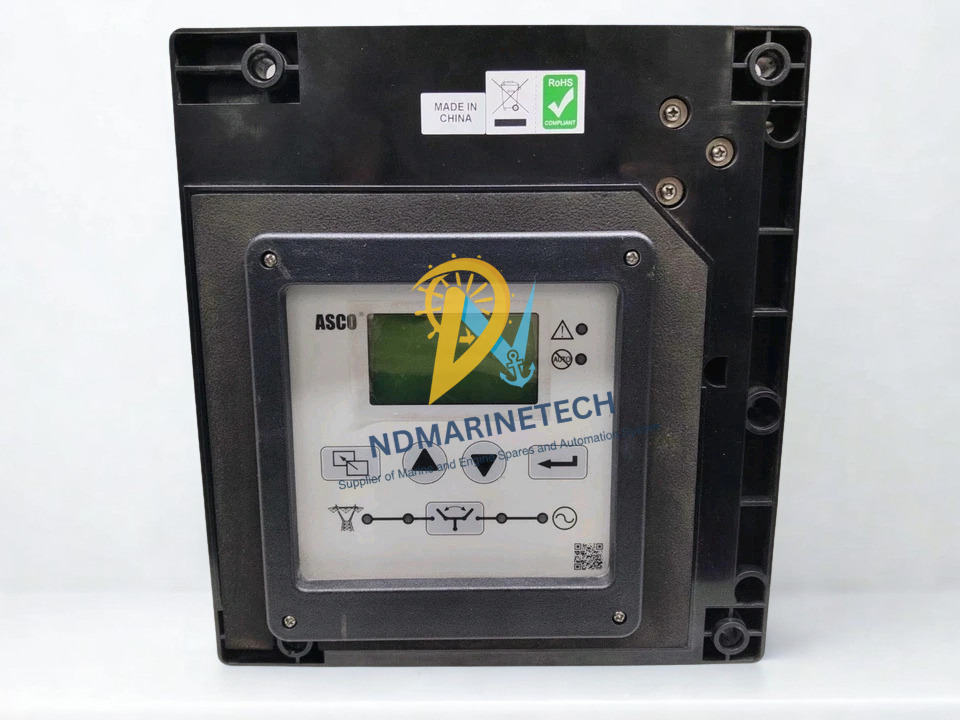

The ASCO J03ATSC30400KGX0 is a renowned ASCO 300 Series (Group G Controller platform) very reliable commercial and light industrial grade 400A Automatic Transfer Switch (ATS). This is a true business continuity 3-pole 3-phase open transition switch that monitors your incoming 415V electric grid continuously 24/7. If an anomaly, phase loss or total blackout occurs, the controller starts your backup generator and fast transfers to the emergency source in an open transition (break-before-make) mode in less than 80 milliseconds. Its reliable double-throw mechanisation does not allow inadvertent interconnection of the sources of regular and emergency power, which makes it a dependable safety device for the vital distribution systems.

Model Details:

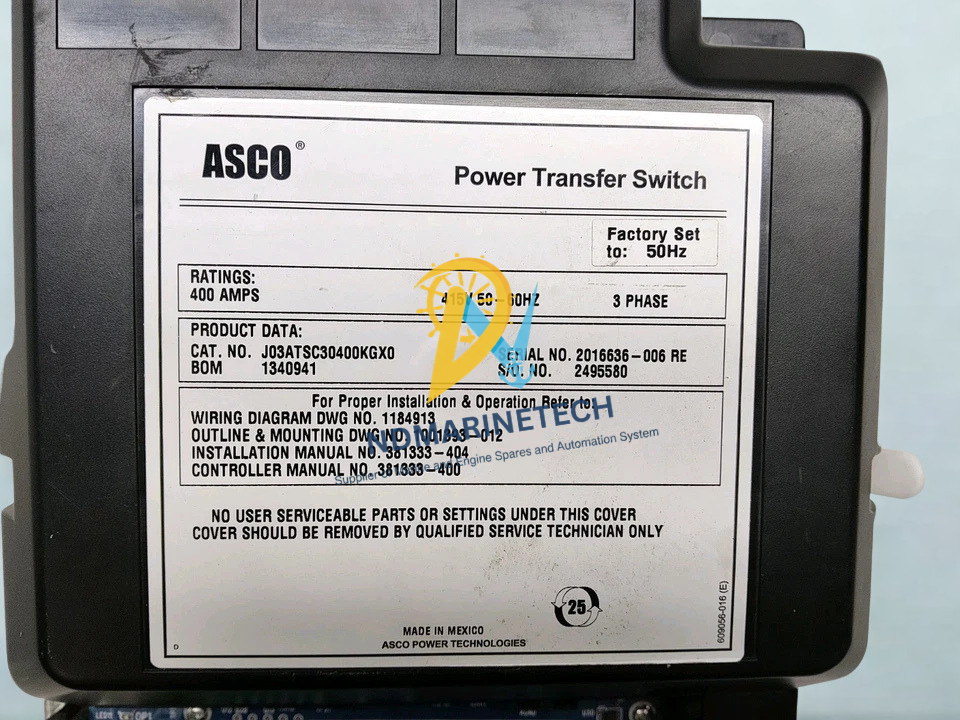

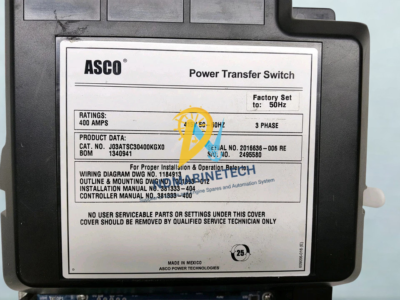

Brand Name: ASCO Power Technologies

Model Range: Series 300 (J-Frame)

Manufacturer Part Number (MPN): J03ATSC30400KGX0

Country: Mexico

Technical Data

Applications

1. Industrial Manufacturing Facilities: Keeps line voltages consistent for automated control networks, preventing costly operational restarts and machinery damage.
2. Commercial & Data Infrastructure: Provides backup for server rooms, HVAC chillers and building management hubs during distribution grid failures.
3. Marine & Shore-to-Ship Interfaces: Perfect for controlling the transmission of power between shore grids and aboard secondary distribution systems while in port at marine terminals.
4. Healthcare & Institutional Facilities: Routes backup power arrays safely to non-emergency secondary systems, backup water pumps and logistics bay lifts.

Marine Engineer’s Insight:

1. When installing a J-Frame 400A switch in high-ambient or humid operating conditions—such as coastal facilities or near shipboard auxiliary machinery decks—pay close attention to the insulator backing piece. This specific ASCO model relies on a heavy-duty backplate insulator directly behind the main switch chassis. If you ever have to remove the mechanism from its cabinet box for bench testing or intensive terminal cleaning, failing to reinstall that insulator will result in catastrophic phase-to-ground flashovers.
2. Before making your final live terminations, never guess your utility or generator phase sequence. Always check your rotation using a phase-sequence meter on both lines. If the normal and emergency lines are out of phase rotation alignment, your three-phase motors will run backward when the generator takes over, causing immediate physical failure to connected centrifugal pumps or ventilation fans. Lastly, always apply an anti-oxidant joint compound if you are running aluminum power cables to the solderless terminal lugs to avoid creeping micro-galvanic resistance over time.
