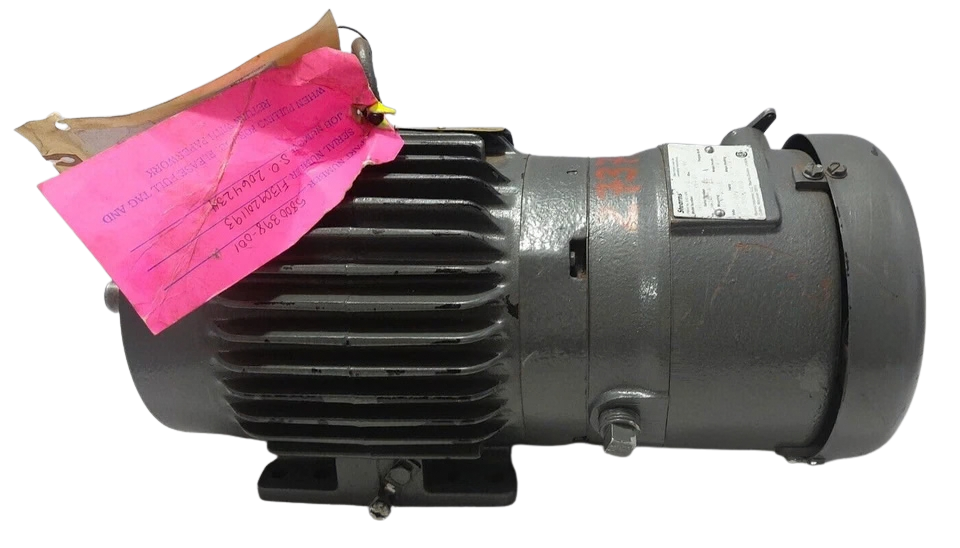

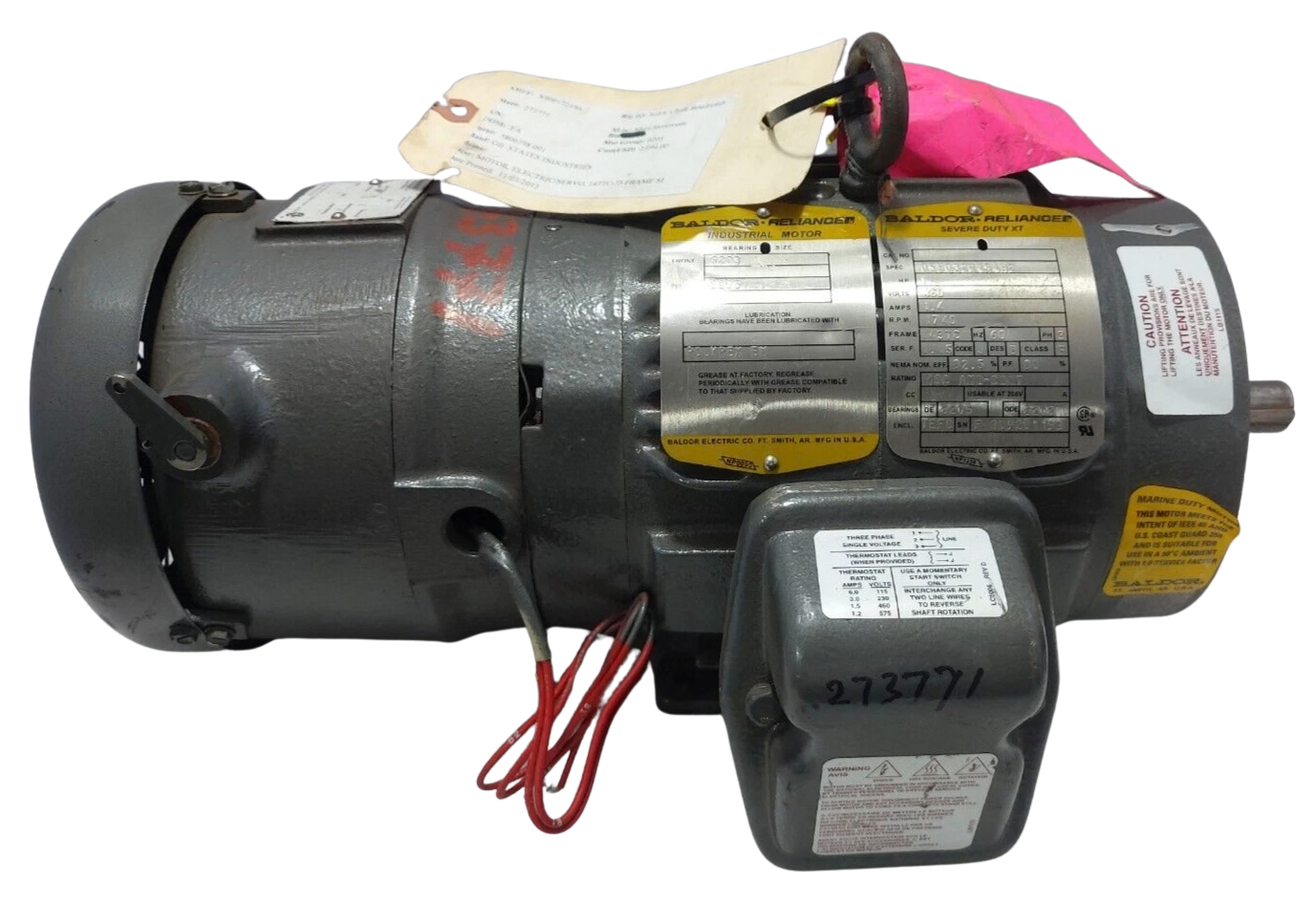

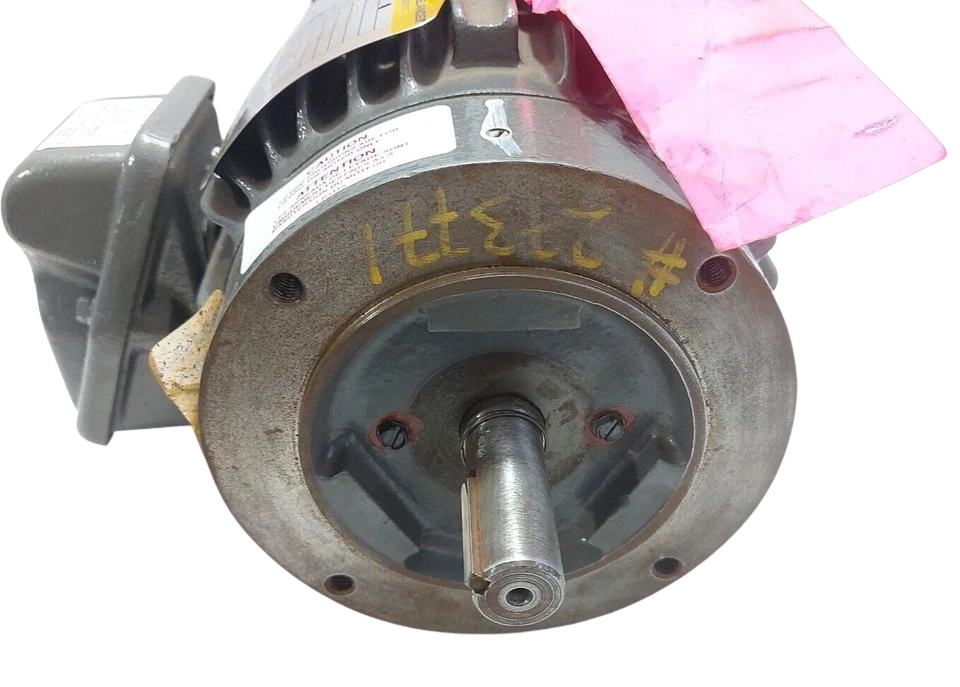

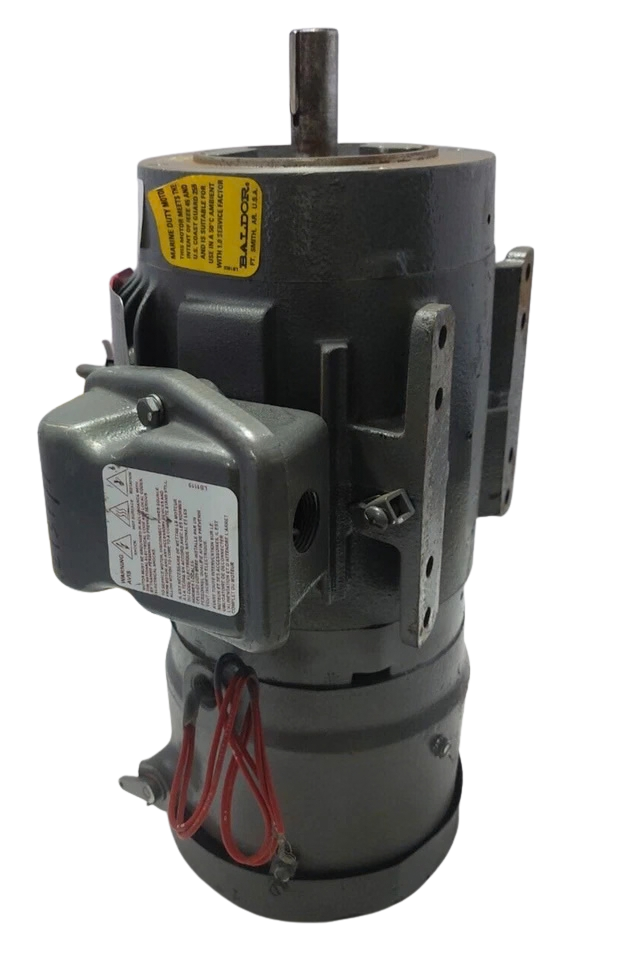

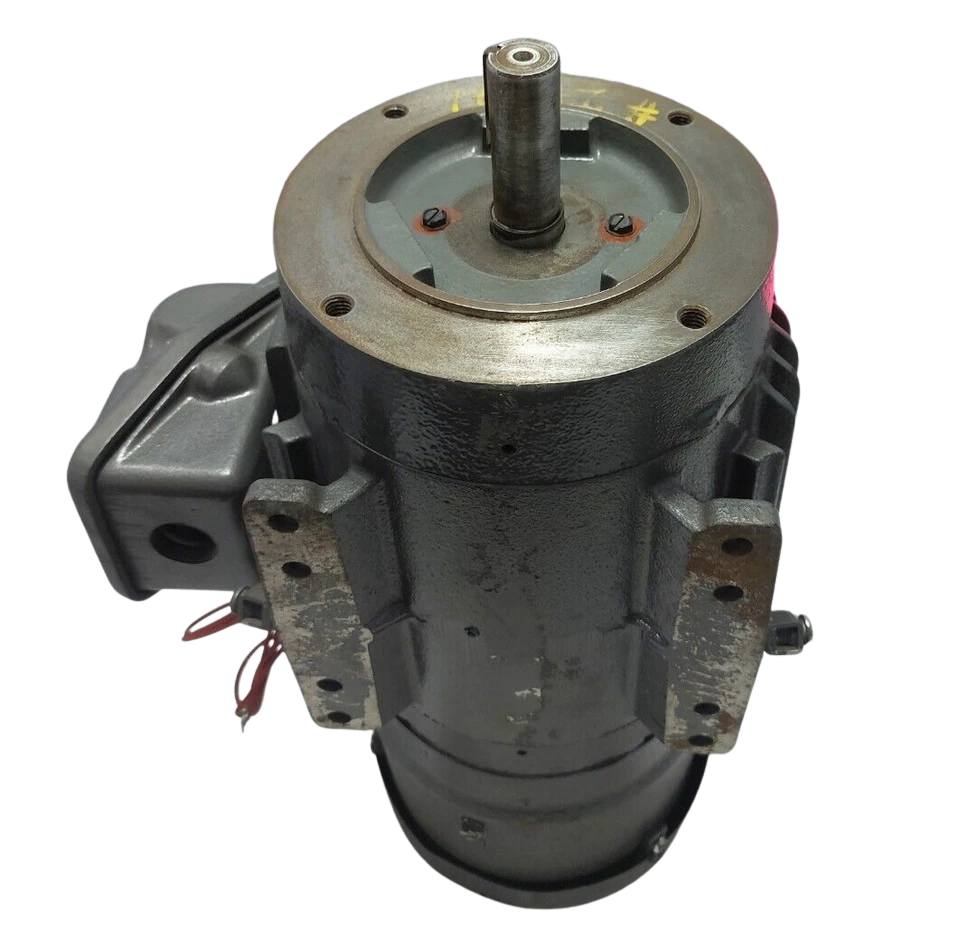

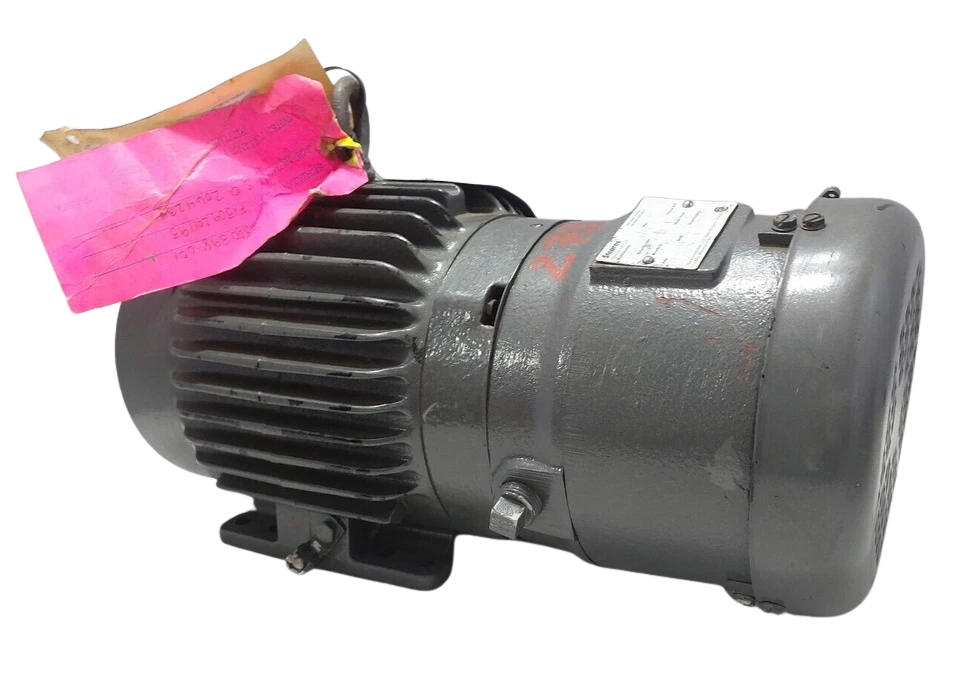

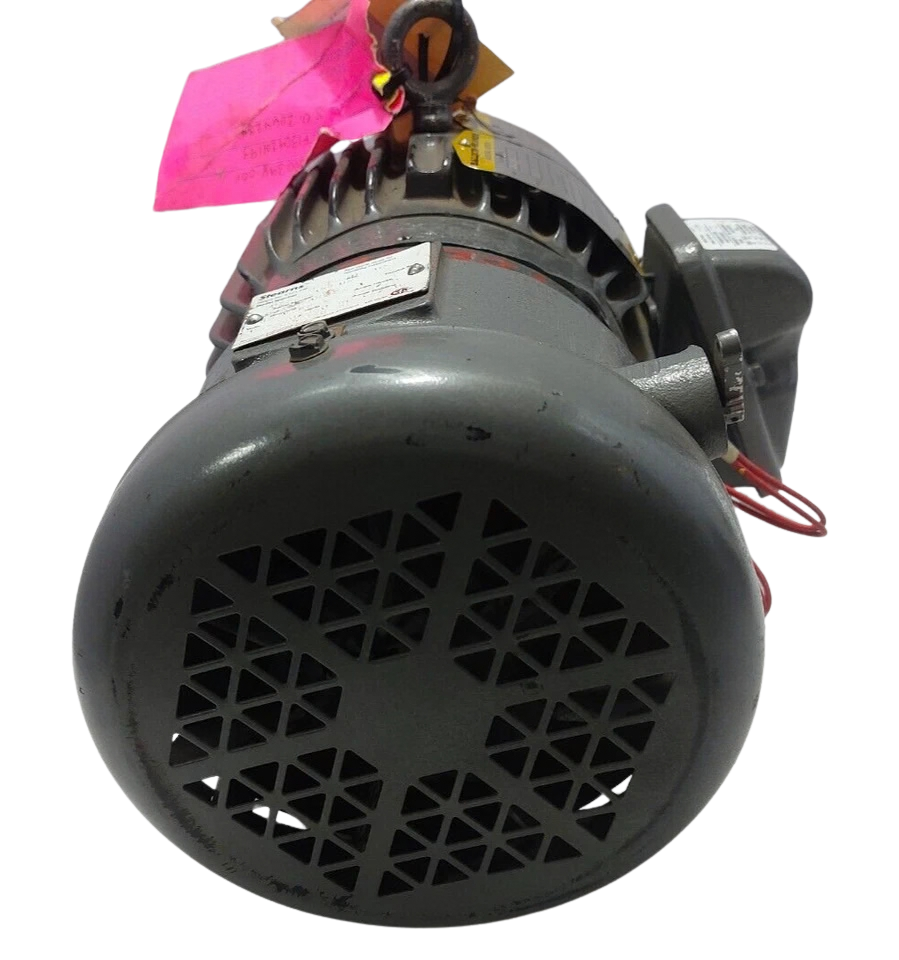

Baldor 6203 Severe Duty XT Motor 05E032W494H2 Stearns Brake

Baldor 6203 Industrial Motor (Spec: 05E032W494H2) Severe Duty XT with Stearns Fail-Safe Solenoid Disc Brake (US Pat. 5,421,436)

The Baldor-Reliance Severe Duty XT Spec 05E032W494H2 matched with an integrated Stearns spring-set, electrically released disc brake (incorporating U.S. Patent 5,421,436) is an engineered electro-mechanical drive assembly built for high-demand, high-inertia industrial and marine topside applications. Engineered to withstand continuous exposure to airborne salt spray, chemical vapor washdowns, thermal shock, and aggressive mechanical cycle loading, this Severe Duty XT configuration bridges the gap between standard NEMA industrial drives and rigorous marine offshore machinery specifications.

The drive unit combines Baldor’s cast-iron severe-duty mechanical enclosure with Stearns fail-safe braking dynamics. In the event of primary bus power loss, line fault, or emergency shutdown (ESD), the Stearns brake engages immediately through pre-compressed mechanical springs, preventing load slippage or unbraked rotational overrun in critical lifting, winch tensioning, conveyor holding, and valve actuation services.

Model Details

• Manufacturer (Motor): Baldor-Reliance / ABB Motors and Mechanical Inc.
• Motor Family: Severe Duty XT / Industrial Premium Heavy-Duty

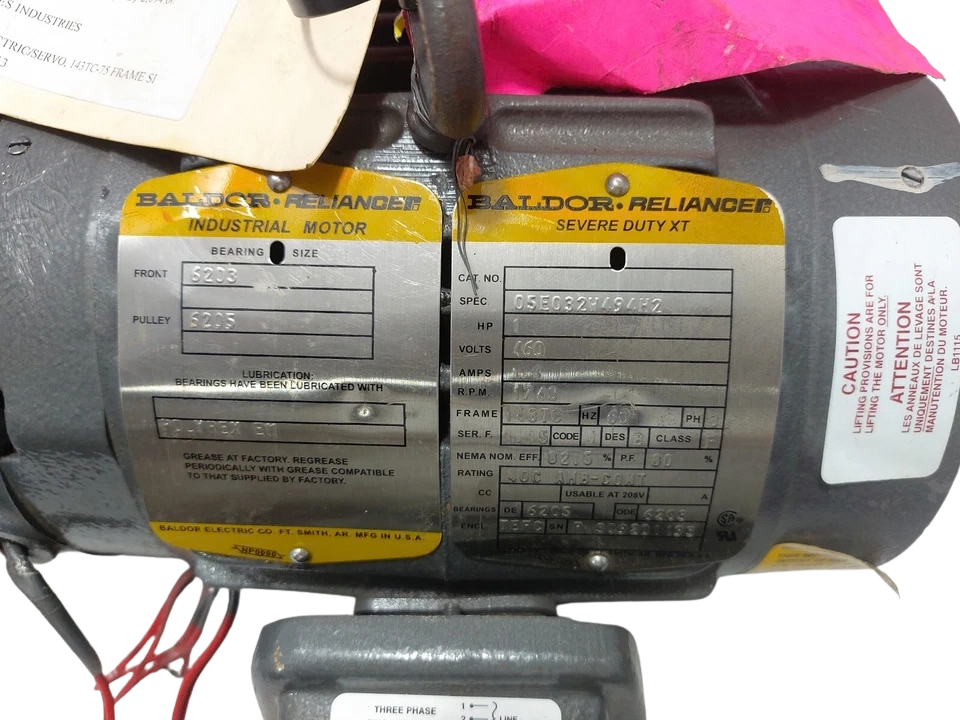

• Specification / Serialized Drawing: 05E032W494H2
• Catalog / Casting Reference: 6203 Series Cast Frame Endplate / Bearing Carrier Group
• Brake Manufacturer: Stearns Division (Rexnord / Regal Rexnord)
• Brake Mechanism / Design Patent: U.S. Patent 5,421,436 (Self-adjusting / manual-release heavy-duty electromagnetic spring-set disc brake mechanism)
• Enclosure Type: Totally Enclosed Fan Cooled (TEFC) with Severe Duty Ingress Seals
• Service Factor (SF): 1.15 Continuous @ 40°C Ambient
• Duty Cycle: Continuous Duty (S1 / NEMA Class A/B temperature rise limits)

Technical Details

Features

1. Monolithic Cast Iron Construction: Cast-iron stator housing, end plates, inner bearing caps, and oversized gasketed cast-iron conduit box protect internal windings against structural deflection, salt air, and corrosive atmospheres.
2. Fail-Safe Dynamic Stearns Disc Brake: Direct-acting, spring-set, solenoid-released mechanism built under U.S. Patent 5,421,436 provides automatic dead-stop braking upon supply interruption, complete with manual over-ride reset.
3. Severe Duty XT Ingress & Bearing Sealing: Fitted with DE and ODE rotating V-ring slinger labyrinth seals, oil-resistant fluorocarbon gaskets, sealed joints, and stainless steel hardware for wet, tropical, and salt-laden shipboard environments.
4. Class F Thermal Insulation with Class H Magnet Wire: High-dielectric winding spike resistance complying with NEMA MG1 Part 31.4.4.2; delivers sustained thermal headroom when operated across line power or variable frequency drives (VFD).
5. Extended Dynamic Balancing & Precision Runout: Factory balanced to strict precision vibration thresholds (under 0.08 in/sec peak velocity) to safeguard mechanical seals, gear trains, and internal brake friction discs from premature fatiguing.

Part Number Cross-References

• Baldor Winding/Spec Code: 05E032W494H2
• Direct Component Series: Baldor-Reliance Severe Duty XT Frame Group
• Brake Assembly Type: Stearns 56,X00 / 60-Series C-Face Solenoid Disc Brake (US Pat. 5,421,436 mechanism)
• Replaces / Equivalents:
  • Baldor VBM / ECP severe-duty brake motor combinations (equivalent torque and frame sizes)
  • Reliance Electric Duty Master XT C-face brake motor assemblies
  • Marathon Blue Chip Series Severe Duty Brake Motors

Frequently Asked Questions

What makes the Baldor Severe Duty XT different from a standard Baldor industrial motor?

The Severe Duty XT motor platform features all-cast-iron construction (frame, endplates, and terminal box), enhanced epoxy corrosion coatings, 1.15 service factor, internal rotor/stator anti-corrosion treatments, and advanced shaft slinger sealing (IP55/IP56). This provides extreme reliability in chemical, salt-spray, and severe industrial conditions where standard rolled-steel or aluminum motors corrode prematurely.

What is the function of the Stearns 5,421,436 brake on this motor?

U.S. Patent 5,421,436 applies to the heavy-duty Stearns electromagnetic spring-set disc brake mechanism. It is a fail-safe, power-off holding and stopping brake. When electric power is disconnected or interrupted, mechanical springs immediately clamp the friction discs to hold the load securely, preventing back-driving in lifting, hoist, winch, and conveyor mechanisms.

Can this Baldor/Stearns brake motor run on a Variable Frequency Drive (VFD)?

Yes. The Baldor Severe Duty motor incorporates a Class F insulation system built with spike-resistant magnet wire exceeding NEMA MG1 Part 31 standards for inverter duty. However, the Stearns brake solenoid must be wired to a separate, line-voltage power supply switched by the VFD brake-control logic, rather than connected across the inverter motor leads.

How do I wire this motor for 230V versus 460V three-phase systems?

The motor features a standard 9-lead configuration. For 230V (low voltage), wire leads in parallel (L1 to T1+T7, L2 to T2+T8, L3 to T3+T9, with T4, T5, and T6 tied together). For 460V (high voltage), wire leads in series (L1 to T1, L2 to T2, L3 to T3, with T4-T7, T5-T8, and T6-T9 spliced in pairs). Check the nameplate schematic on the cast-iron conduit box lid before energizing.

Does the Stearns brake have a manual release handle?

Yes, the integrated Stearns mechanism includes a mechanical manual release feature. This permits operators to rotate the drive train or lower suspended loads during commissioning, alignment, or power-loss procedures. Once electrical power is restored, the manual release resets automatically to fail-safe operation.
