Buy Hawe Hydraulik SLF 5-ZPL 53 Proportional Directional Spool Valve

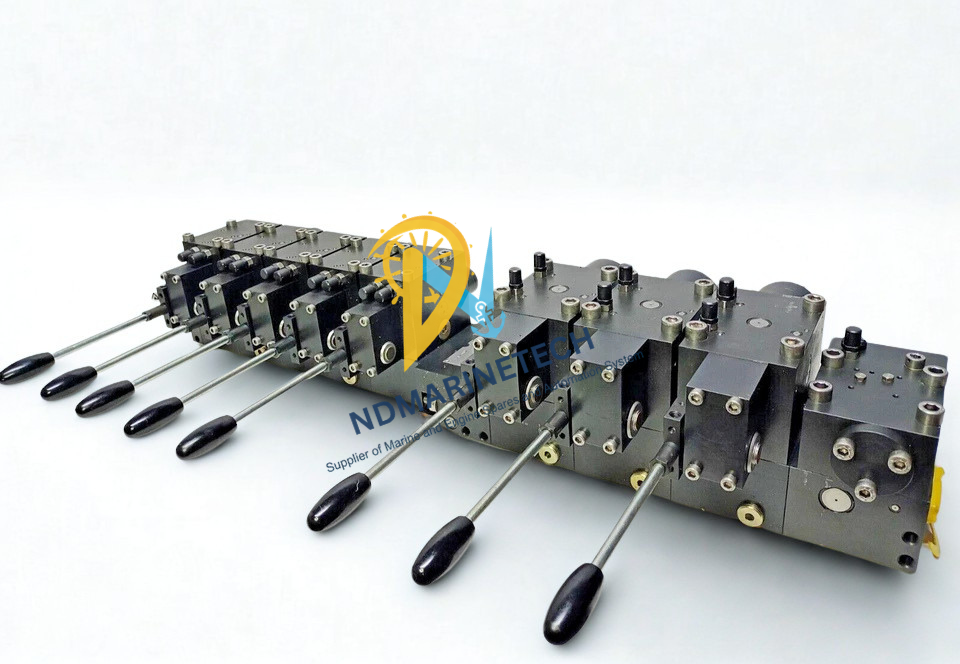

Hawe Hydraulik SLF 5-ZPL 53 Proportional Directional Spool Valve

The Hawe Hydraulik SLF 5-ZPL 53 Proportional Directional Spool valve is designed to control the direction of movement and the speed of hydraulic consumers without changing the load. The SLF 5-ZPL 53 is a separate manifold-mounting part for the larger PSLF/PSVF valve banks. It lets you run more than one hydraulic cylinder or motor at the same time. Because it works on a load-sensing premise, variations in load pressure on one consumer won’t affect the flow rate to another as long as the pump’s overall delivery capacity isn’t exceeded. This valve bank part is a great replacement or upgrade since it is made of high-quality steel that has been treated to resist rust.

This valve bank part is brand new and has never been used. The SLF label means that it is a single proportional spool valve that is meant to fit into a bespoke manifold sub-plate. Size 5 means that it can handle a lot of flow, which is good for big bore cylinders and high-torque motors. The ZPL code usually refers to intermediary plates and certain ways of connecting load-sensing restrictions and control blocks.

Model Details

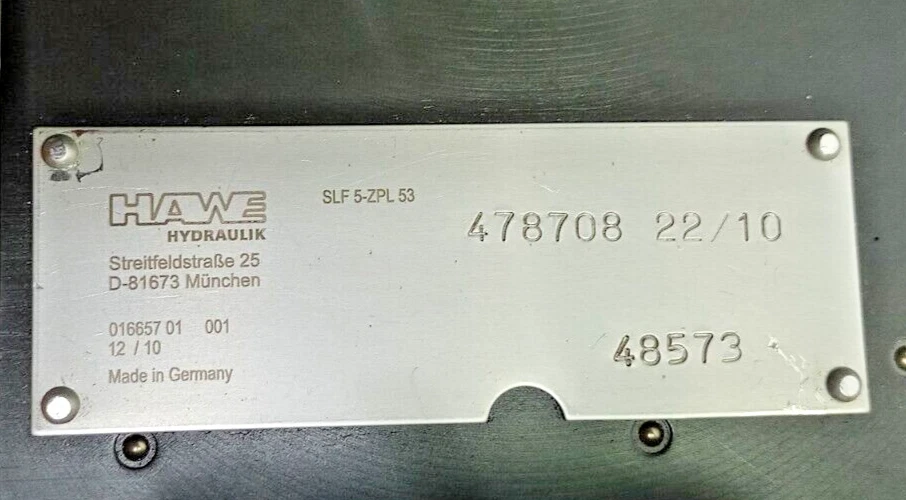

• Brand: Hawe Hydraulik
• Manufacturer Part Number: SLF 5-ZPL 53
• Condition: New – Open Box (Brand New Unused valve bank)
• Origin: Made in Germany

What are its Features:

1) Load-Independent Control keeps the speed of several hydraulic consumers the same, no matter how much pressure changes or how much weight is added to them.

2) High-Pressure Capability: Built to handle system pressures up to 400 bar, making it good for tough lifting and driving tasks.

3) Rear-Side Porting: The new design puts connection ports on the back of the sub-plate, making it much easier to do maintenance and line checks in tight engine rooms or machinery compartments.

4) Armour that doesn’t rust: It has nitrocarburized steel surfaces and electro-galvanized solenoids, which make it much less likely to break down in dampness, sea air, and harsh industrial chemicals.

5) Modular Scalability: This part can be used on its own and connects directly to Hawe PSLF (constant pump) or PSVF (variable pump) systems. This makes it easy to replace valves quickly without having to take apart the whole manifold.

Marine Engineer’s Expert Guide and Tips

As a marine engineer, I have spent countless hours in cramped steering gear rooms and weather decks troubleshooting hydraulic systems. Hawe load-sensing valves like the SLF 5-ZPL 53 are generally bulletproof, but they require respect during installation and tuning. Here is my practical advice for getting the most out of this unit.

Installation and Plumbing Considerations

Do not skimp on system cleanliness. Proportional spool tolerances are extremely tight. A single piece of weld slag or thread tape can lock up a spool and cause a catastrophic failure in a winch drive. Flush your lines thoroughly before bolting this valve to the sub-plate. Furthermore, because it mounts in any position, take advantage of the rear-ported design. Orient the block so the solenoids and manual overrides are facing the access hatch. You will thank yourself later when you are trying to manually stroke the valve at 2:00 AM in rough seas.
