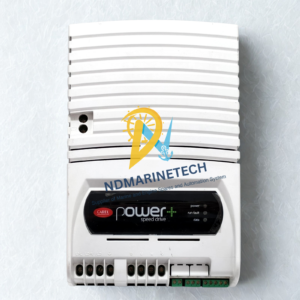

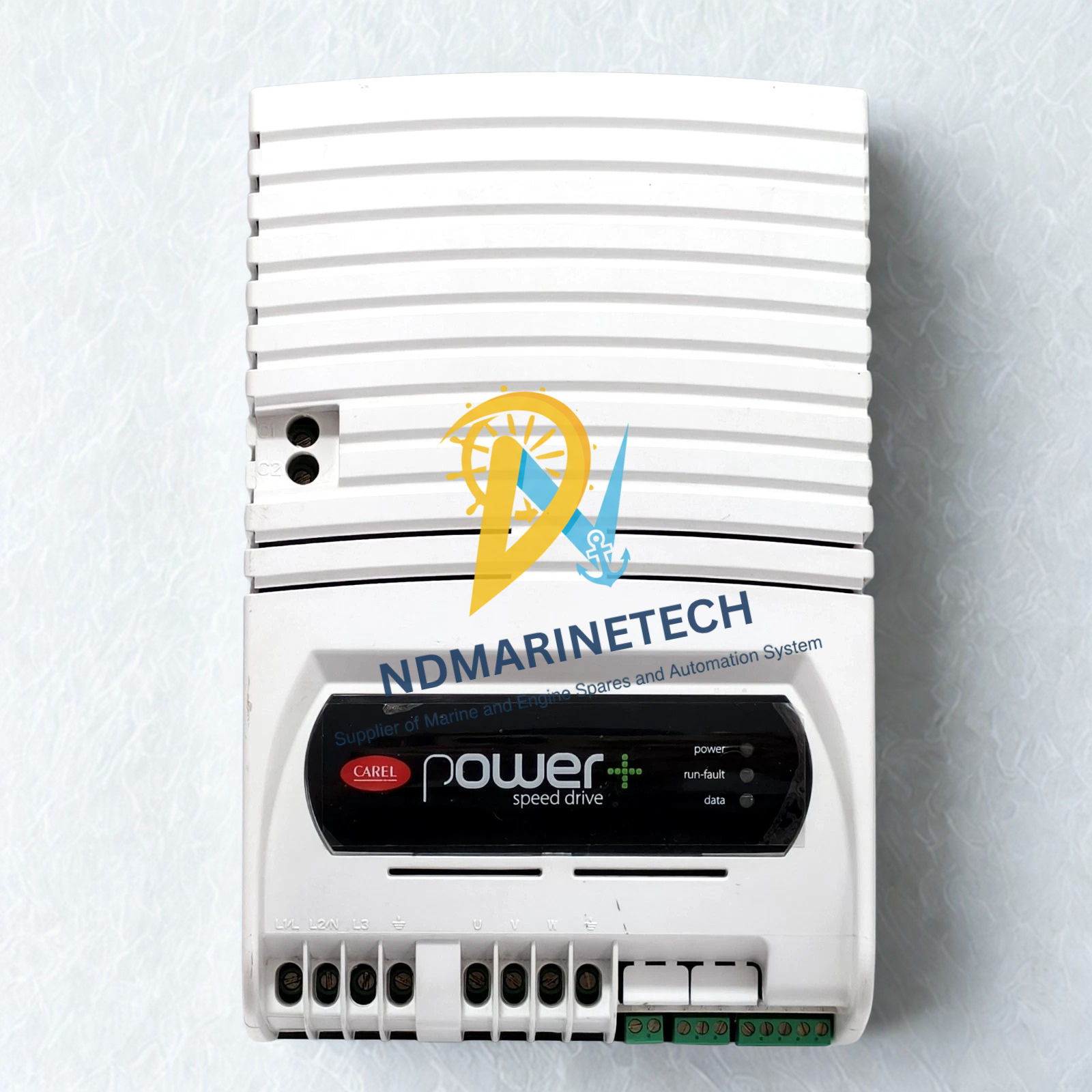

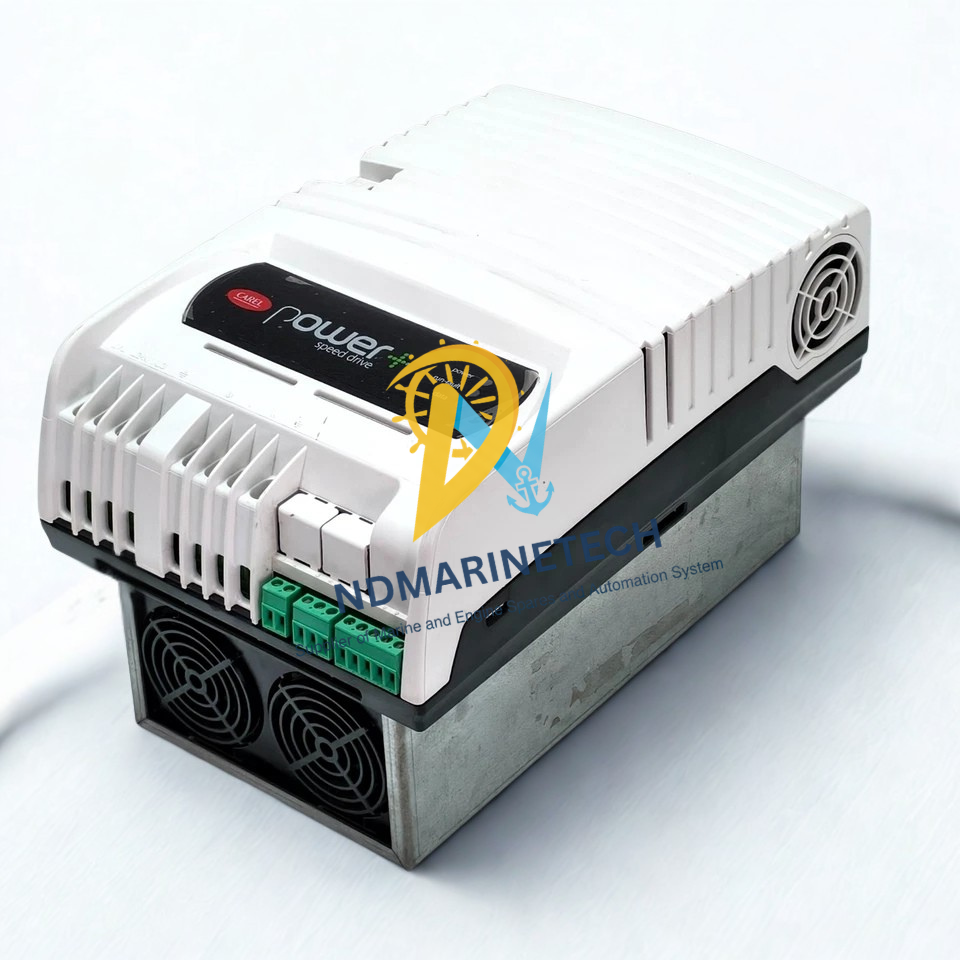

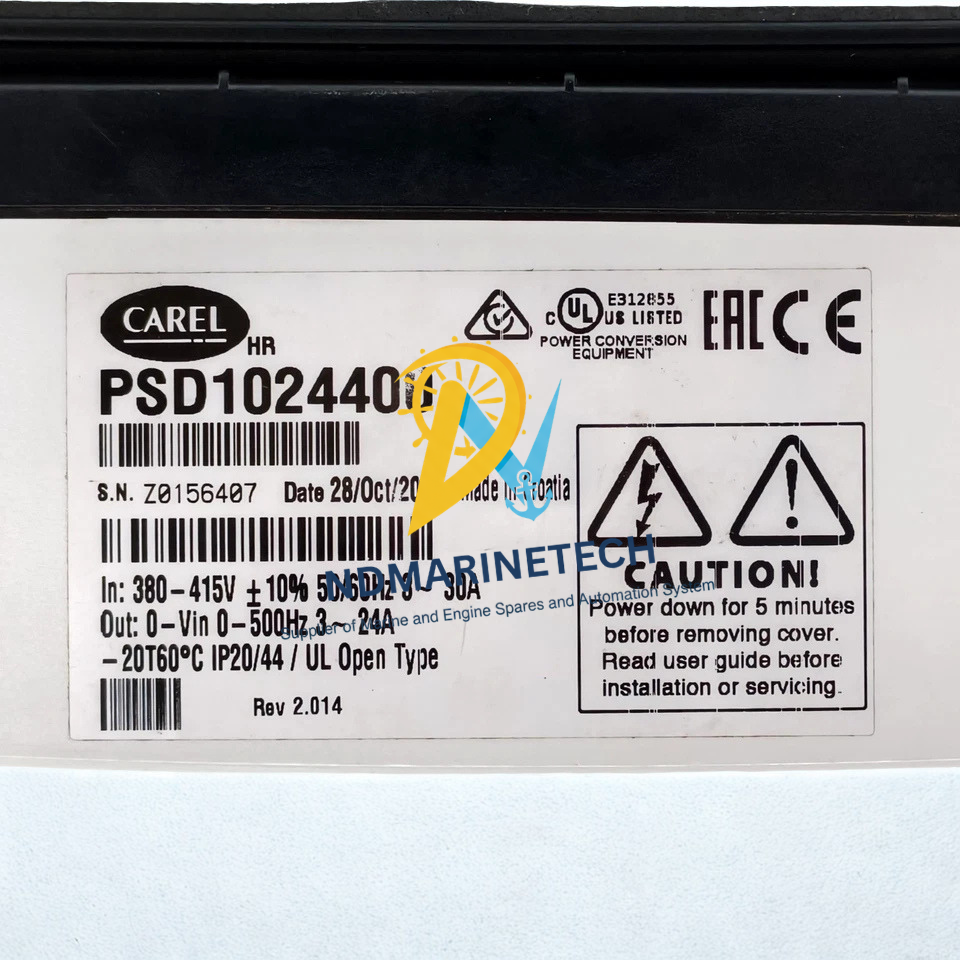

Carel PSD1024400 Power+ Speed Drive Inverter

Carel PSD1024400 Power+ Speed Drive Inverter (24A, 11kW)

The Carel PSD1024400 Power+ Speed Drive is a high-performance, industrial-grade Variable Frequency Drive (VFD) designed to provide ultra-precise modulation for commercial refrigeration, HVAC, and marine automation systems. This drive is optimised for variable loads management, with a smooth handling of sensorless-brushless permanent magnet motors (BLDC/BLAC) as well as classical asynchronous induction motors, with advanced vector or conventional V/f control.

The PSD1024400 has dramatically improved seasonal coefficient of performance (COP) metrics by adjusting the motor speed to match the dynamic system loads, reducing the mechanical wear that occurs during start-up cycles and eliminating hard inrush currents on local power distribution grids.

Model details:

Manufacturer: CAREL

Model Series: Power+ PSD1

Manufacturer Part Number (MPN): PSD1024400

Technical Specifications

Marine and Industrial Applications

• Managing reciprocating and scroll compressors in high volume industrial process chillers. Commercial Chillers and Heat Pumps.
• Marine air conditioning and refrigeration is the operation of central HVAC handling systems and the supply of plant cooling compressors on commercial boats.
• Industrial pumps: Processing line fluid pumps with variable speeds to manage line pressures in the system via volumetric throughput optimisation.
• Condensing and fan matrix systems in heavy duty refrigeration condenser fan arrays precisely modulate air flow.

Maintenance Tips:

1. Shielded Cables & EMI Isolation Use a continuous, low-impedance symmetrical shielded cable between the PSD1024400 output terminals and the compressor motor. Ground the shielding braid 360 degrees at both ends using EMC clamps. If you use RS485 communication lines for data traffic, avoid routing these lines parallel to the output lines to prevent communication drops or frame errors on the Modbus network.

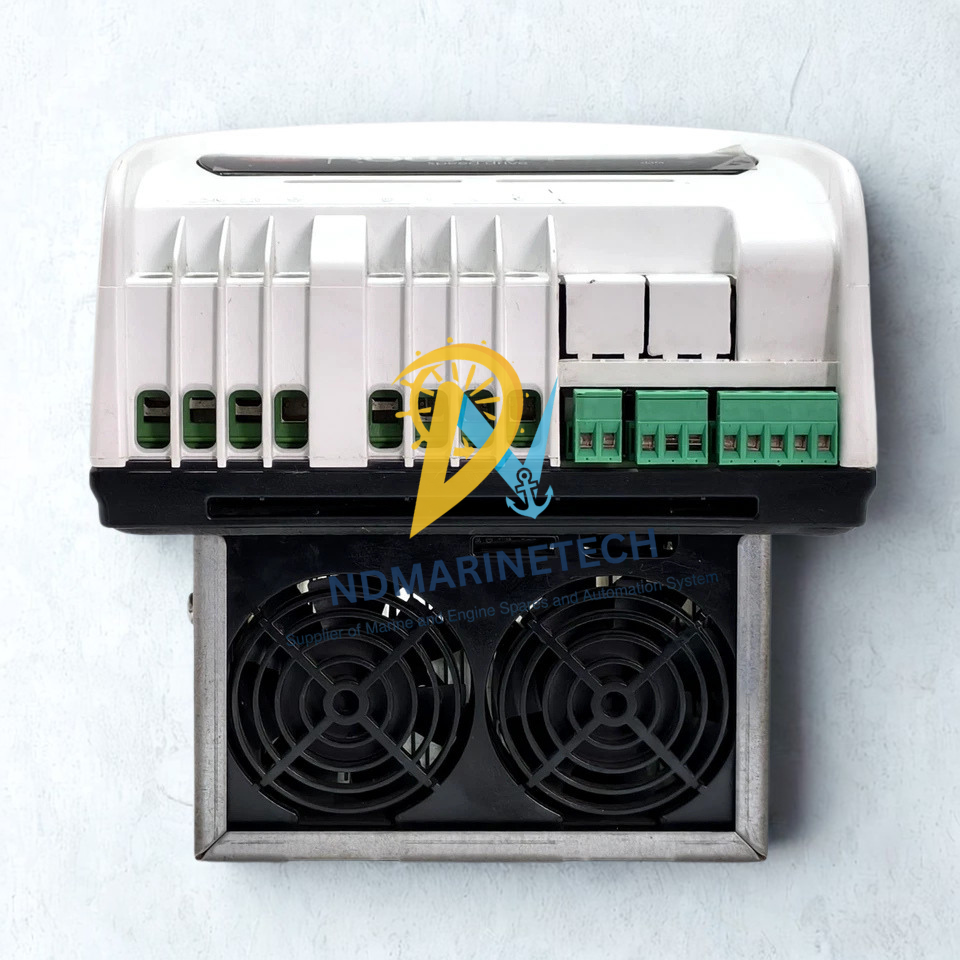

2. External Heatsink Flange: Utilise the dual IP20/IP44 chassis setup to the fullest. Cut away the rear panel and place the drive with the aluminium heatsink fin matrix protruding out the back for installation in tightly sealed electrical cabinets. This keeps thermal dissipation (proportional to the drive’s 11kW power) away from the main control box, minimising hot spots and improving the life of internal capacitors.
3. Check DC Choke and Harmonics: This unit pulls up to 30Always make sure the external DC Choke or input EMI filter (if indicated by your layout code PSD104) is securely torqued down for input current. High harmonic currents might distort and overheat surrounding induction equipment or cause erratic behaviour in delicate PLC sensors on the same power channel.
4. Safe Servicing Protocol: Critical for maintenance teams, once the main 400V breaker is isolated, provide at least 5 minutes before opening the terminal layout covers. The internal DC-bus busbar capacitors keep fatal voltage levels long after the main system display indicators go dead. Always check with a calibrated multimeter before touching any termination point.
