DEIF AGC 150 Generator Controller

DEIF AGC 150 Genset Generator Controller – Tested New-Like Condition

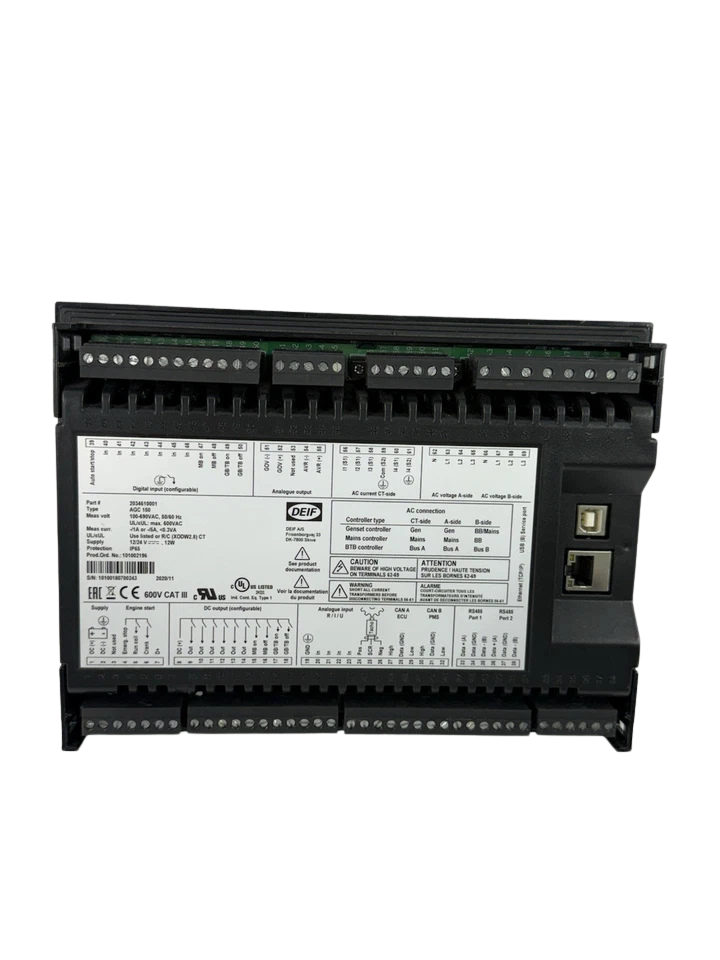

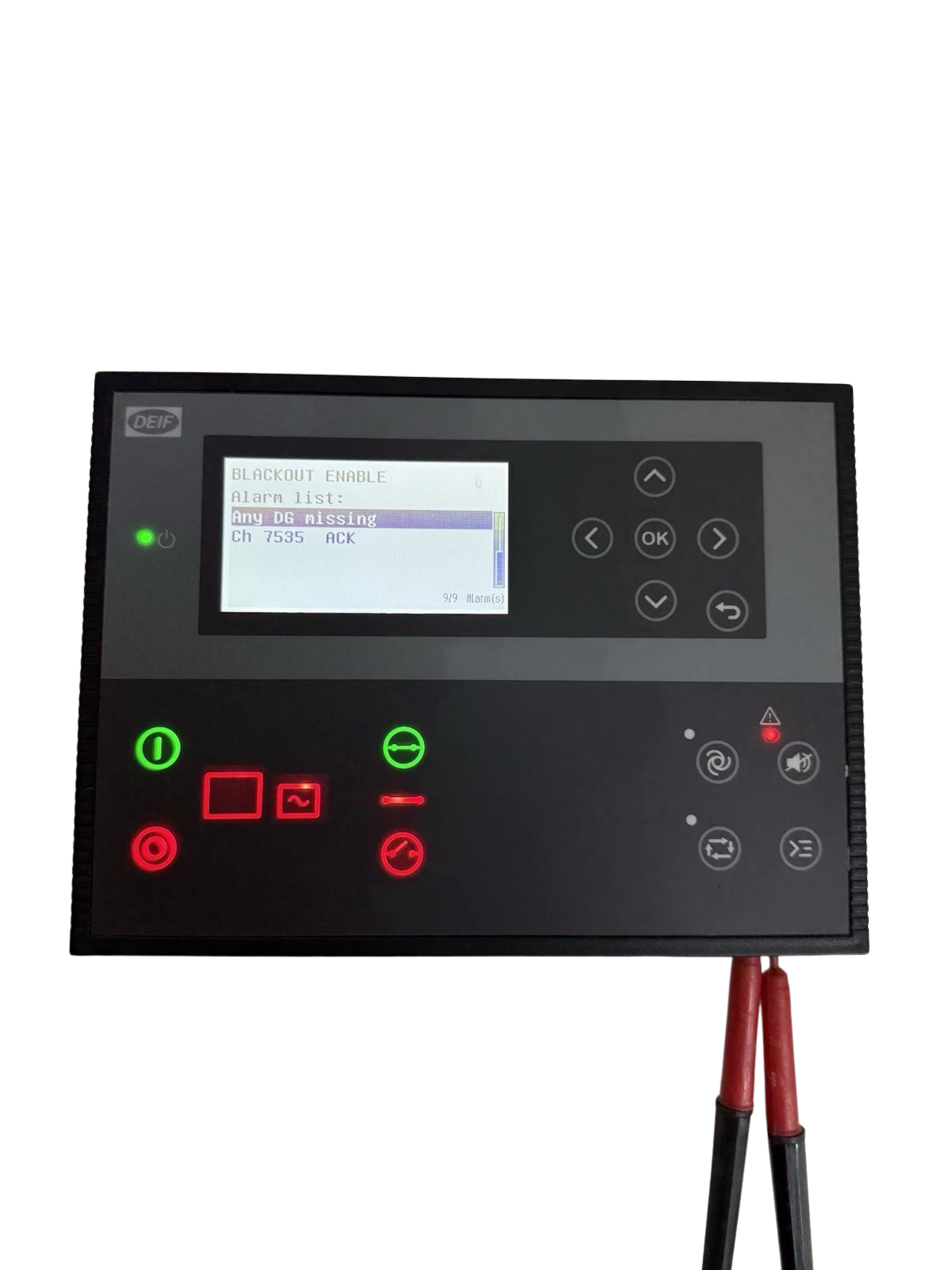

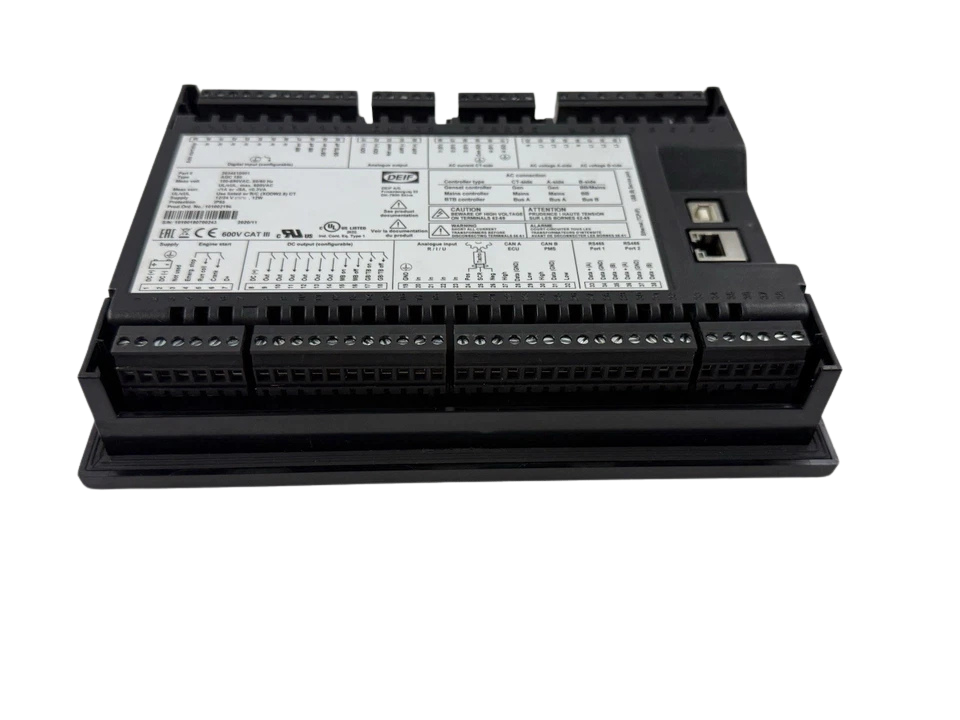

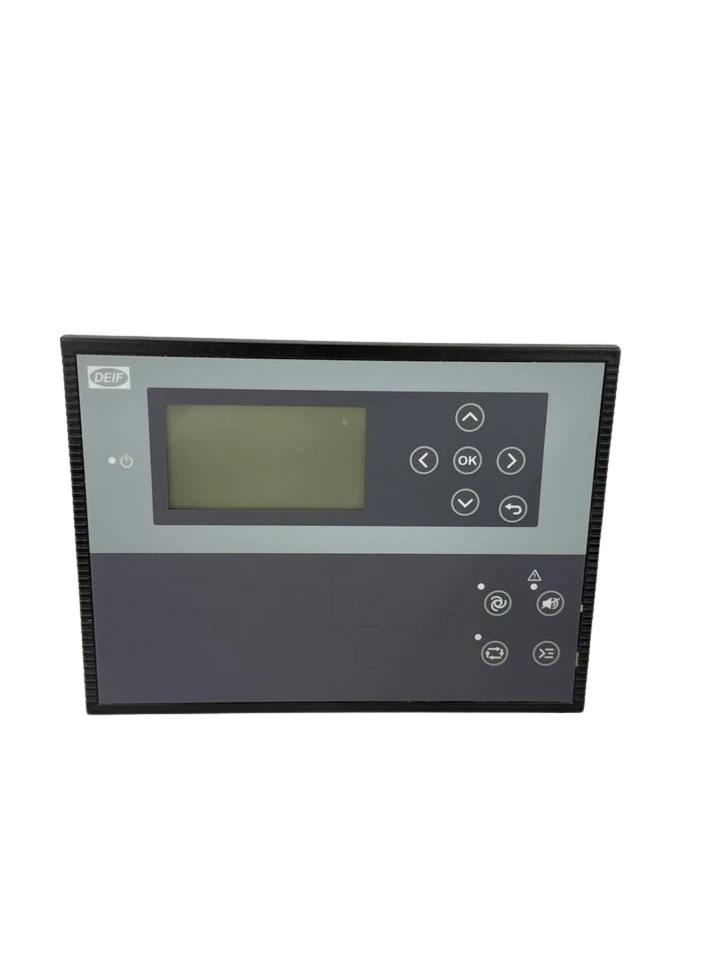

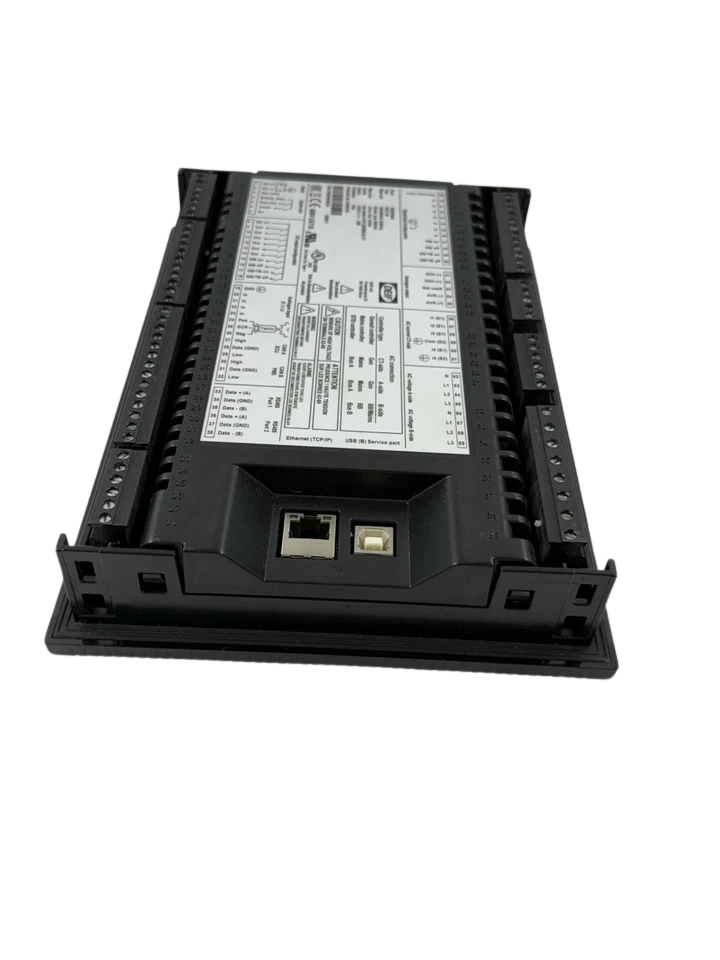

The DEIF AGC 150 is an all-in-one microprocessor-based power control and protection unit engineered for marine and industrial generator sets. Built by DEIF to withstand harsh operational environments, this controller integrates complete 3-phase generator measuring circuits, advanced synchronisation algorithms, and flexible power management capabilities into a single hardware footprint. Featuring a high-resolution, sun-readable graphical LCD screen, the unit provides clear text alarm readouts, comprehensive event logging, and intuitive 5-key menu navigation. This specific unit is offered in New-Like / Tested Surplus condition, fully verified for optimal functional parameters across voltage regulation, governor control, and CANbus communication ports.

Model Details

• Brand Name: DEIF
• Product Category: Genset Generator Controller / Power Management Systems
• Manufacturer Part Number (MPN): AGC 150 (Standard Core/Extended Package Variants)
• Condition: Reconditioned / Surplus – Tested Working (New-Like Operational Standard)
• Country of Origin: India

Technical Specifications

Key Features

1. All-in-one hardware design integrating multi-generator synchronisation, deadbus sensing, and mains failure (AMF) support.
2. Automatic peer-to-peer detection via CANbus for scalable power management networks of up to 32–40 controllers.
3. Four configurable multi-inputs supporting 0-2.5 kΩ resistance, 0-10V DC, 4-20 mA current loops, and binary digital switching.
4. Integrated isolated DC voltage (-10 to +10V) and PWM outputs for direct electronic speed governor and AVR tracking.
5. Robust 500-entry internal event and alarm data logs with export functionality via USB or Ethernet.

Applications

• Marine auxiliary and emergency diesel generator monitoring and synchronization.
• Land-based prime power and backup standby power generation plants.
• Multi-genset load-sharing and automatic mains failure (AMF) transition systems.
• Mobile rental generator packages requiring rapid deployment and simple paralleling configuration.

Compatible Equipment Models

• Engine ECUs: Supports electronic engines via CANbus (J1939 protocol, Tier 4 Final / Stage V compliant engines, MTU, Caterpillar, Cummins, Volvo Penta, Yanmar).
• Display Units: DEIF TDU (Touch Display Unit) and AOP-2 (Additional Operator Panel).
• Protection Units: DEIF SDU 104 Shutdown Unit.
• Automatic Voltage Regulators: Compatible with digital and analog AVR systems accepting standard -10V to +10V control bias.

Part Number Cross-References & Alternatives

• DEIF Legacy Line: Direct functional upgrade successor to older DEIF AGC 200 / AGC 211 / AGC 222 modules depending on application scale.
• Alternative Variant Codes: AGC-150-1 (Stand-alone), AGC-150-2 (Core Paralleling), AGC-150-4 (Extended Power Management).

Frequently Asked Questions

Can the DEIF AGC 150 controller handle complete island mode power management without a mains connection?

Yes, the AGC 150 supports autonomous stand-alone island operations, load sharing, and load-dependent start/stop sequences for up to several units communicating across the internal CANbus network without needing any grid reference.

What software is required to configure the parameters on this controller?

The controller parameters can be adjusted directly from the front-panel display using a PIN code, or fully configured using DEIF’s free, downloadable Windows-based PC utility tool connected via USB, Ethernet, or RS485.

Is this unit compatible with non-electronic mechanical diesel engines?

Yes. While it features extensive J1939 ECU connectivity for electronic engines, it also provides configurable discrete relay outputs (run coil, crank) and analog governor outputs (-10 to +10V / PWM) to seamlessly govern and monitor mechanical engines equipped with magnetic pick-up tacho sensors.
