Siemens 3SE6110 Metal-Clad Switching Magnet

Siemens 3SE6110 Metal-Clad Switching Magnet

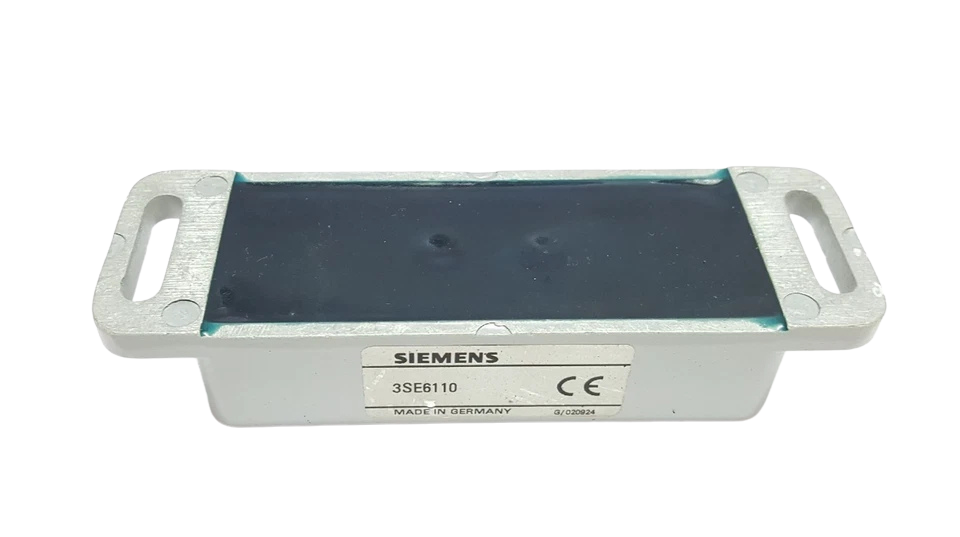

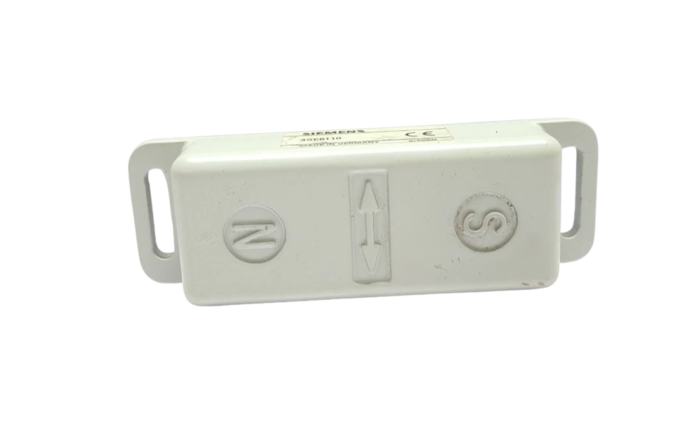

The Siemens 3SE6110 is a metal-clad switching magnet engineered to actuate non-contact safety switches and interlock monitoring systems in rigorous industrial and marine environments. Encased in a ruggedized, corrosion-resistant metal housing, this actuator is purpose-built to withstand severe mechanical stress, constant vibrations, washdowns, and exposure to oils or saline atmospheres. It guarantees absolute precision in position sensing and gate/hatch interlocking, protecting critical machinery and safeguarding technical personnel.

Model Details

• Manufacturer: Siemens
• Product Type: Switching Magnet / Safety Interlock Actuator

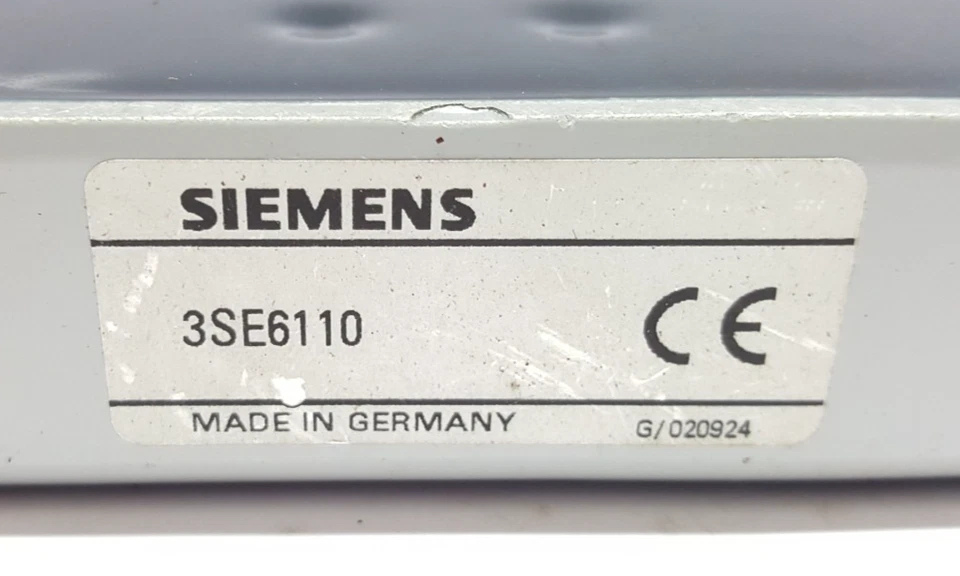

• MPN (Manufacturer Part Number): 3SE6110
• Housing Material: Heavy-Duty Metal-Clad

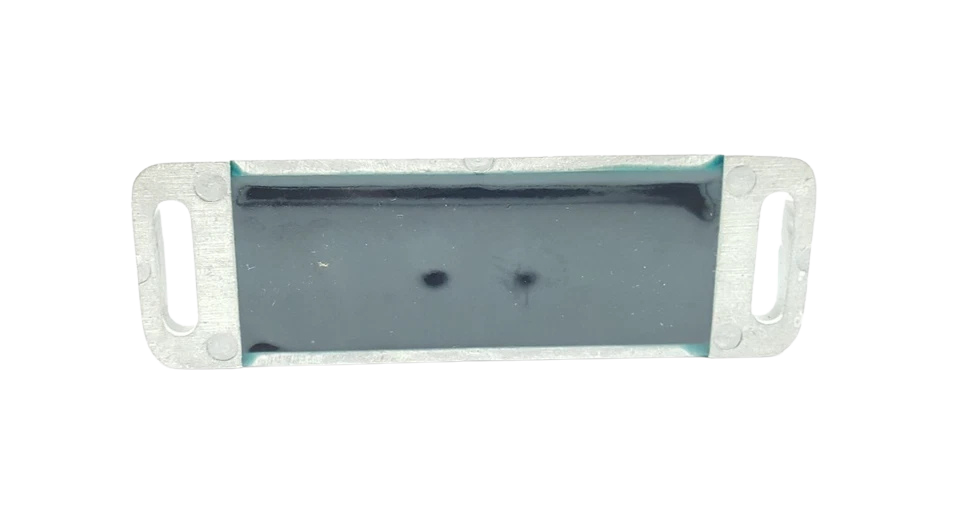

• Mounting Configuration: Screw Plate Mounted

Technical Specifications

Key Features

1. Rugged Metal-Clad Housing: Engineered to resist heavy mechanical impacts, high-pressure cleaning, and harsh corrosive elements.
2. Non-Contact Wear-Free Operation: Eliminates physical friction between sensor and actuator, maximizing operational lifespan.
3. Precise Alignment Tolerances: Ensures reliable magnetic switching even under minor structural shifts or mechanical play on heavy machinery guards.
4. Secure Fastening Mechanism: Screw plate mounting design prevents shifting or loosening under continuous engine or industrial vibration.
5. High-Reliability Interlocking: Integrates seamlessly into safety circuits to comply with strict international machine safeguarding mandates.

Applications

• Marine engine room access doors and machinery safety guards
• Heavy industrial automated assembly lines and stamping presses
• Robotics cell safety perimeter fencing and interlocks
• Material handling conveyor safety gate monitoring
• Packaging and food processing machinery requiring frequent washdowns

Compatibility & Equipment Models

• Compatible Switch Series: Siemens 3SE6 series magnetic safety switches and non-contact position sensors.
• System Integration: Works natively with standard safety relays (e.g., Siemens SIRIUS 3SK series) and safety PLCs.

Marine Engineer Expert’s Guide

• Vibration Isolation: In high-vibration marine applications (such as main propulsion and auxiliary diesel casing enclosures), use thread-locking fluid (e.g., medium-strength Loctite) on the mounting screws to prevent backing out.
• Gap Alignment Management: Maintain the manufacturer-specified switching distance gap between the 3SE6110 magnet and its corresponding sensor element. Exceeding the design clearance due to sagging hatch hinges will cause intermittent fault signals on your safety loop.
• Corrosion Mitigation: Although the metal-clad housing is corrosion-resistant, apply a light film of dielectric grease or anti-seize around the mounting interface if installed on open-deck weather-tight doors subjected to direct sea spray.

Frequently Asked Questions

What is the primary function of the Siemens 3SE6110?

The Siemens 3SE6110 is a metal-clad switching magnet designed to act as a non-contact companion actuator for safety interlock switches, verifying the closed position of machine guards, safety gates, and access doors.

Can the 3SE6110 be used in corrosive marine environments?

Yes, its heavy-duty metal-clad housing provides excellent resistance against mechanical wear and environmental degradation, making it suitable for marine and offshore installations when paired with proper sealing practices.

What safety standards does this switching magnet support?

It assists systems in meeting stringent safety compliance standards including EN ISO 14119 and IEC 60947-5-3 for non-contact interlocking devices.

How is the unit mounted to machinery?

It features a dedicated screw plate mounting design that allows secure, flush attachment to flat surfaces using standard industrial fasteners.
