Emerson Micro Motion 1600 Compact Coriolis Flow Transmitter

Emerson Micro Motion 1600 Compact Coriolis Flow Transmitter

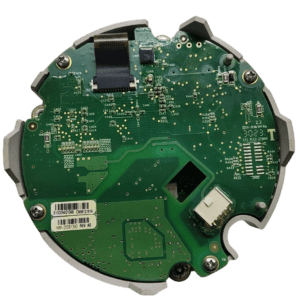

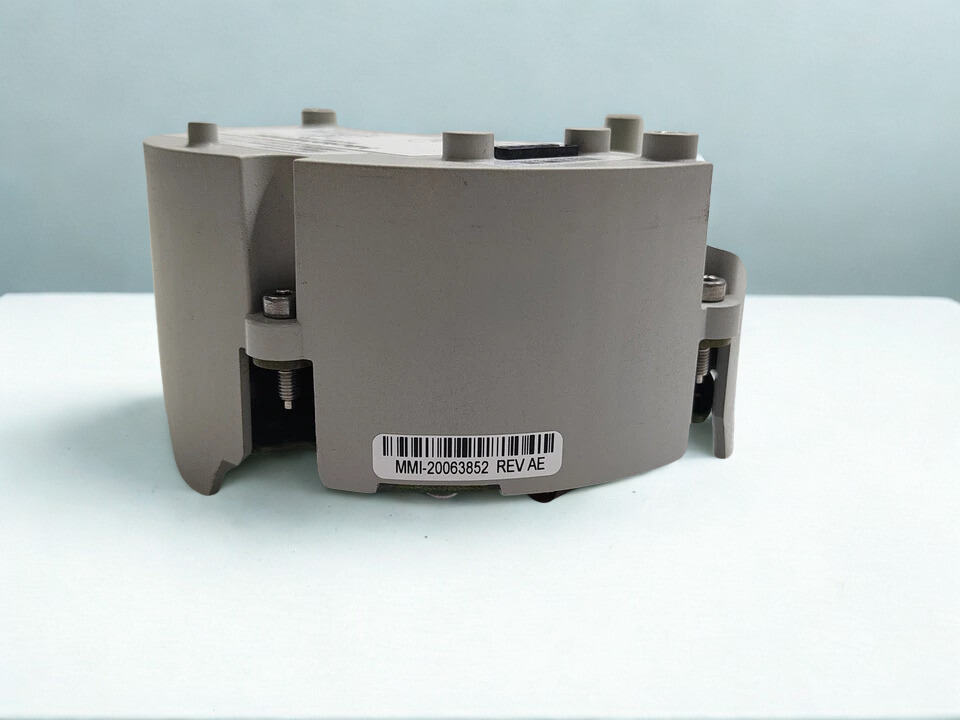

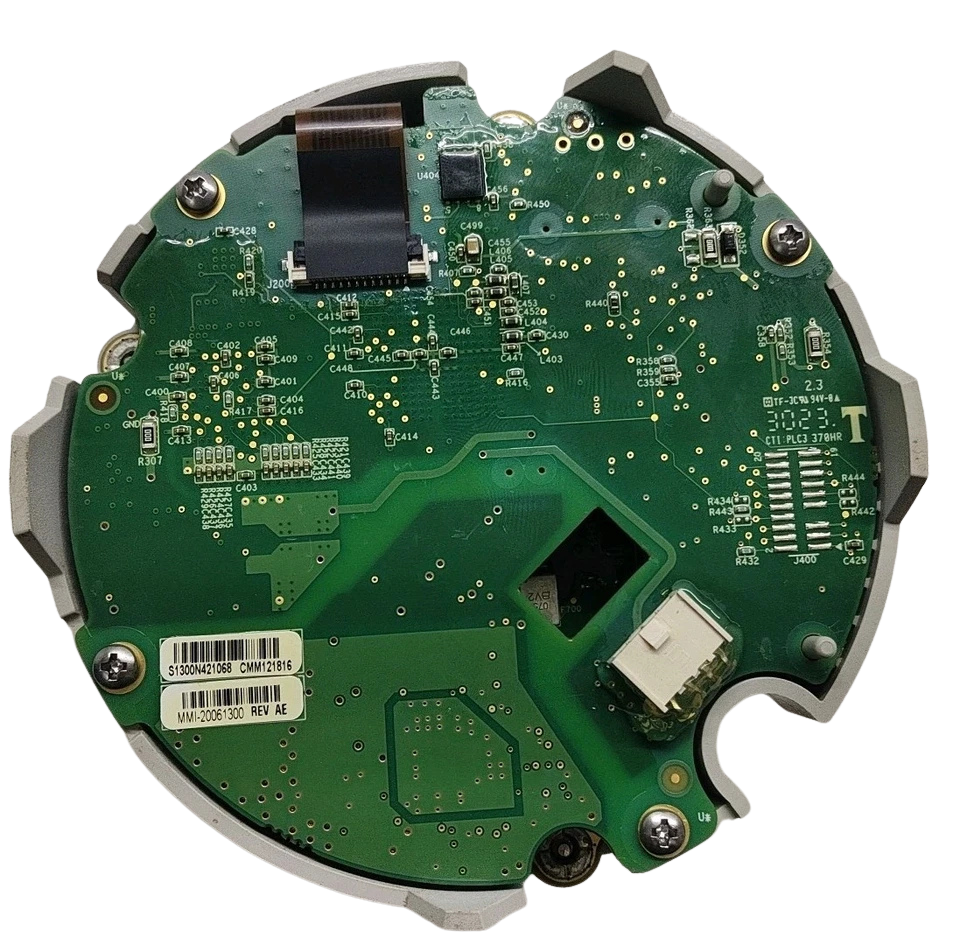

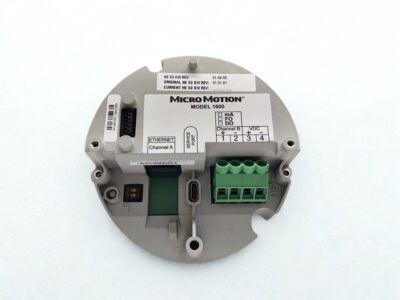

The Emerson Micro Motion 1600 is a small Coriolis flow transmitter that can accurately monitor mass flow, density, and temperature in tough process settings. It has a lightweight, single-compartment design and versatile mounting choices, which make it perfect for confined locations and skid-based systems where footprint and wiring ease are very important.

The 1600 works with HART, Modbus/RS-485, and native Ethernet (EtherNet/IP, Modbus TCP, PROFINET), so it can be easily added to modern control systems. It also has optional Power over Ethernet (PoE) to save down on installation costs. An onboard data historian and advanced diagnostic software give users a lot of information about process stability, fluid quality, and device health. This helps them maximize uptime and measurement confidence.

MICRO MOTION 1600 Key Features:

1) The compact, single-compartment design makes it easier to install on skids, tight panels, and in distant locations.

2) HART 7, Modbus RTU/RS-485, EtherNet/IP, Modbus TCP, and PROFINET are all supported. You can also use PoE to send power and data over a single cable.

3) Data historian and diagnostic tools that work together to record events, check the quality of fluids, and check the stability of measurements over both short and long periods of time.

4) One customizable I/O channel that can output mA, frequency, or discrete signals, allowing for versatile control and monitoring.

Technical Specifications: MICRO MOTION 1600

The Emerson Micro Motion 1600 transmitter offers robust technical specifications for precise Coriolis flow measurement. Below is a comprehensive list in bullet points, grouped by category for clarity.

Power Supply

• DC power: 18–100 Vdc, 3.5 W typical, up to 8–11 W maximum (model dependent); size conductors for 18 Vdc minimum at 0.7 A load.

• AC power: 85–240 Vac, 50/60 Hz, 3.5 W typical, up to 8 W maximum (configurable I/O versions).

• Power over Ethernet (PoE): PD Class 3 (6.49–12.95 W), automatic detection with Ethernet board (output code C).

• Fuse: 1.5 A slow blow (UL 248-14).​

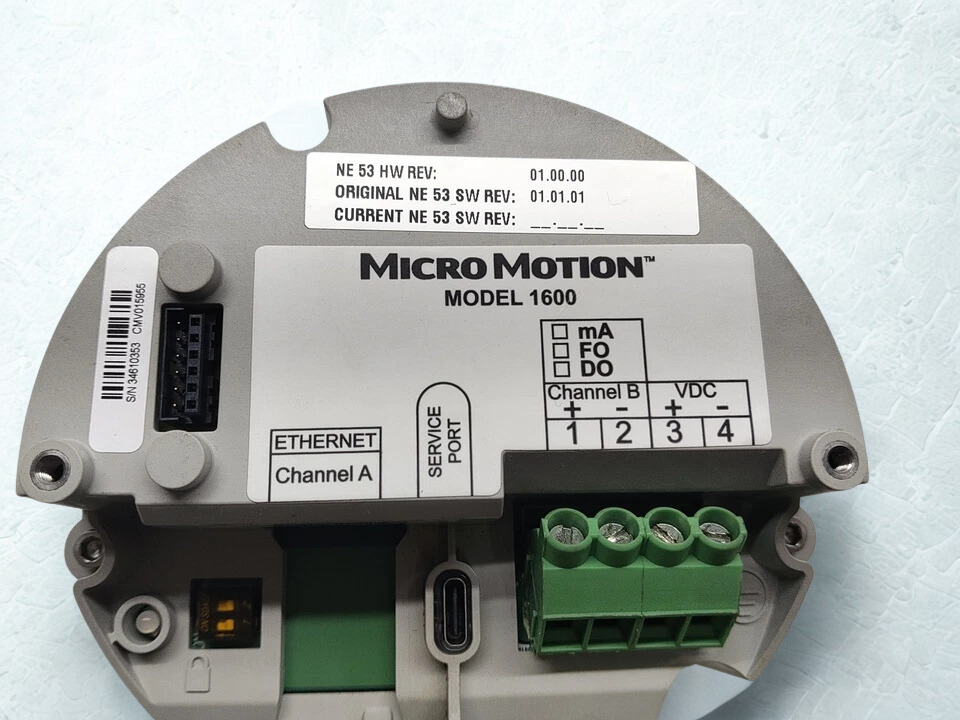

Inputs / Outputs (Channel A – Configurable)

• mA output: 4–20 mA scalable, linearity 0.015% span (span=16 mA); upscale fault 21–23 mA (default 22 mA), downscale 1–3.6 mA (default 2 mA); max loop resistance 820 Ω (active, 24 Vdc nominal) or 1080 Ω @ 30 Vdc (passive).

• RS-485 (Modbus/HART): Data rates 1200 baud–38.4 kbaud (115.2 kbaud special order).​

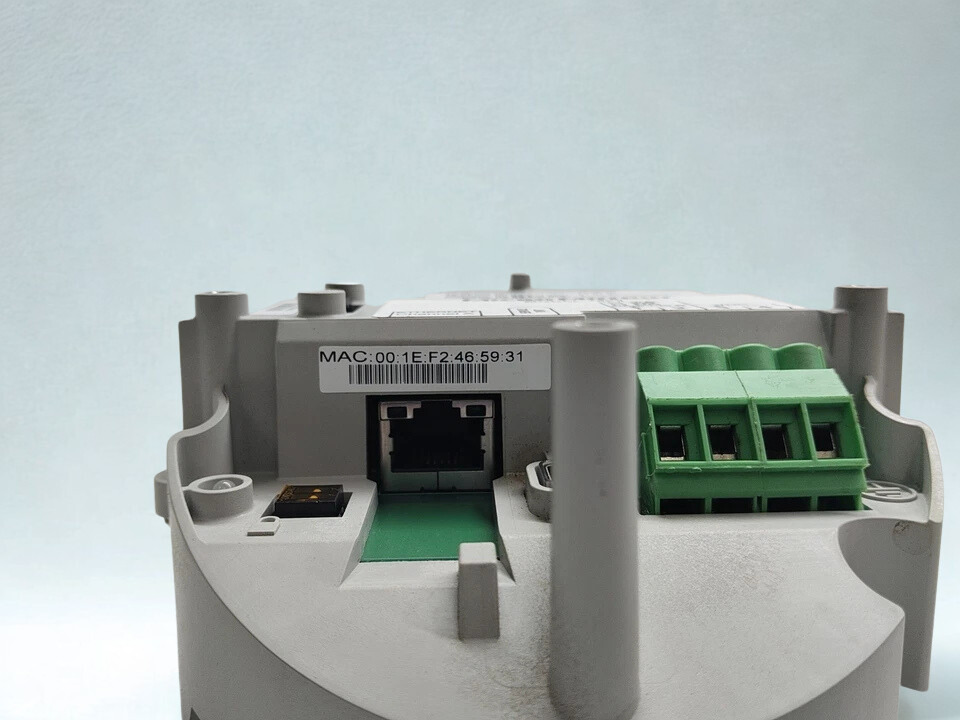

• Ethernet: 10BASE-T/100BASE-TX, auto-negotiate (10/100 MB, half/full duplex), auto-detect crossover, DHCP, ACD, QoS; supports EtherNet/IP (ODVA spec), Modbus TCP v1.1b, PROFINET Conformance Class A v2.31.

Inputs / Outputs (Channel B – Configurable)

• Frequency output: 0.01 Hz–10 kHz scalable, linear to 12.5 kHz, resolution ±1 pulse; upscale fault 10–14.5 kHz (default 14.5 kHz), downscale 0 Hz.

• Discrete output: Sourcing 7–22 mA @ 24 Vdc nominal (active) or sinking up to 500 mA @ 30 Vdc max (passive).

Communication and Protocols

• HART: Version 7, requires 250–600 Ω load.​

• Modbus: RS-485 (Channel A, code M) or TCP over Ethernet.​

• Secure web server: Default self-signed certificate, optional CA support.​

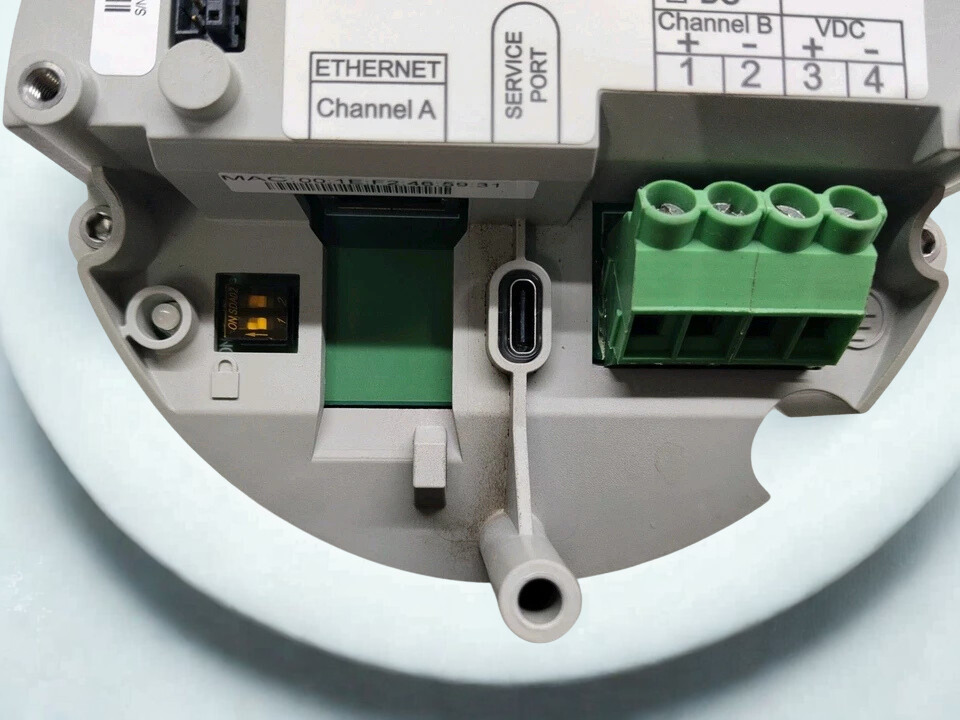

• USB-C Universal Service Port: For temporary Modbus access and configuration.

Mechanical and Environmental

• Housing: Aluminum (remote), 316 stainless steel (hygienic options).

• Ingress protection: IP66/IP67 (1600I/1600C), IP66/IP67/IP69 (1600H).

• Operating temperature: −40 °C to 65 °C (−40 °F to 149 °F) typical.

• Mounting: Integral to sensor (codes I/H) or remote 9-wire (code C) with pipe-mount bracket.​

• Weight: Add transmitter weight to sensor for integral mounts (compact design).​

User Interface and Diagnostics

• Display: Glass backlit graphical display with four mechanical buttons (or capacitive-touch options); flowmeter-status LED.

• Data historian: Licensed non-volatile memory with real-time clock for process events and diagnostics.​

• Compliance: Low Voltage Directive 2014/35/EU per EN 61010-1 (Overvoltage Category II).​

Performance Capabilities

• Flow types: Single-phase, moderate two-phase, severe two-phase.​

• Processing: Fast speed for challenging applications; supports Micro Motion sensors with 700 standard core.

EMERSON MICRO MOTION 1600 Manual

Download Manual File

Application in Industry:

-> Perfect for measuring Coriolis flow in food and drink, life sciences, chemicals, and other industrial processes where precise mass flow, density, and temperature data are needed.

-> Ideal for skid-mounted systems, OEM packages, and brownfield upgrades where the small size, Power over Ethernet (PoE), and Ethernet-based connectivity make cabling and integration easier.

-> Used to improve process understanding and uptime by combining fast measurement with onboard historian and diagnostics to fix problems with two-phase and difficult flow conditions.
